PARATHOM CLASSIC B DIM

P CLAS B 60 6.5 W/2700 K E14

GTIN: 4058075438835 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Design, dimensions, luminous flux comparable to an incandescent lamp
  • Lower energy consumption than incandescent or halogen lamps
  • Robust against vibrations
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable
  • Lifetime up to 15,000 h
  • Beam angle: up to 300°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 6.5 W
Construction wattage 6.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 38 mA
Type of current AC
Inrush current 0.09 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 85
Max. lamp number on MCB B16 A 130
Power factor λ > 0.50
Photometrical data
Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 124 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 97.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 13.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 65 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LEDPCLB60D 6,5W
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Networked standby power for CLS 0 W
Length 97.00 mm
Height 35.00 mm
Width 35.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075438835 Folding box
1		 39 mm x 39 mm x 109 mm 27.00 g 0.17 dm³
4058075438842 Shipping box
10		 205 mm x 87 mm x 123 mm 283.00 g 2.19 dm³

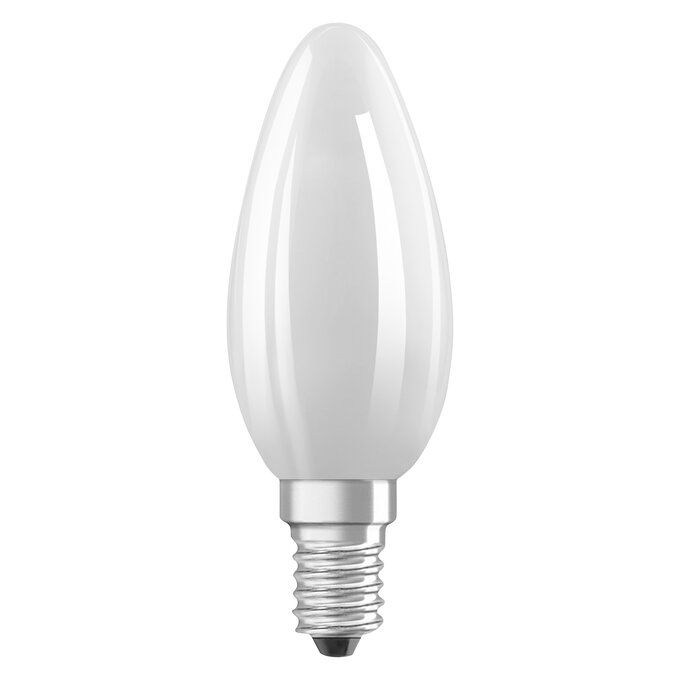

Product image: white background, diagonal
LED CLB GL FR E14
JPG (1.06 MB)
Product image: white background, upright
LED CLB GL FR E14
JPG (955.95 KB)
Product line drawing with letters
LED CLB GL FR E14
SVG (7.36 KB)
Product line drawing with numbers
LED CLB GL FR E14
SVG (8.81 KB)
Product line drawing, front, no dimensions
LED CLB GL FR E14
SVG (4.45 KB)
EAN SEG number STK number EFO number ELDAS number
4058075438835 8295377 4731399 3733667 941805400
