PARATHOM CLASSIC A DIM

P CLAS A 100 13 W/2700 K E27

GTIN: 4058075462618 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime up to 25,000 h
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
Electrical data
Nominal wattage 13 W
Construction wattage 13.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 100 W
Nominal current 60 mA
Type of current AC
Inrush current 8 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 70
Max. lamp number on MCB B16 A 120
Power factor λ > 0.90
Photometrical data
Luminous flux 1521 lm
Nominal useful luminous flux 90° 1521 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 220 °
Warm-up time (60 %) ‹ 1.00 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 120.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 70.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 98 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 13.00 kWh/1000h
Type of protection IP20
Standards CE, ROHS, ERP
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LEDPCLA100D 13W
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 120.00 mm
Height 60.00 mm
Width 60.00 mm
EPREL ID 1403219
Model number AC24703
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075462618 Folding box
1		 61 mm x 61 mm x 120 mm 86.00 g 0.45 dm³
4058075462625 Shipping box
10		 318 mm x 133 mm x 134 mm 970.00 g 5.67 dm³
PRODUCT DATASHEET
P CLAS A 100 13 W 2700K E27
PDF (215.81 KB)
Product image: white background, diagonal with OSRAM logo
655308_Classic A100 E27
JPG (2.85 MB)
Product image: white background, diagonal
Classic A100 E27
TIF (35.99 MB)
Product image: white background, upright, OSRAM logo
655303_Classic A100 E27
TIF (96.84 MB)
Product image: white background, upright
Bellalux A100 E27
TIF (27.11 MB)
Product line drawing with letters
683974_CL A 150 20W/827 E27 FR
SVG (8.64 KB)
Energy label
EL-4058075462618-AC247 03
PDF (21.41 KB)
Application pictures
Instituto Eduardo Torroja lighting renovation Case Study - Torroja 22
JPG (4.1 MB)
Application pictures
Instituto Eduardo Torroja lighting renovation Case Study - Torroja 37
JPG (4.24 MB)
Application pictures

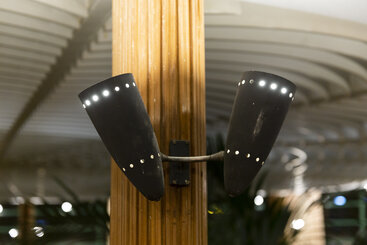

Instituto Eduardo Torroja lighting renovation Case Study - Torroja 42
JPG (4.22 MB)
Application pictures
Instituto Eduardo Torroja lighting renovation Case Study - Torroja 38
JPG (4.08 MB)
EAN SEG number STK number EFO number ELDAS number
4058075462618 8295490 4731447 3734056 941805300
