POWERSTAR HQI-TS

HQI-TS 2000 W/N/L

GTIN: 4008321530660 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Very high efficiency
  • Very high luminous flux
  • Ideal for compact floodlights
  • Good positioning thanks to K12s base
Areas of application
  • Sports stadiums and floodlight systems
  • Industrial installations
  • Airports
  • Docks and port facilities
  • Marshaling yards, container transshipment facilities
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
Electrical data
Nominal wattage 2000 W
Nominal voltage 200 V
Ignition voltage 4.0/36 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 10.4 A
PFC capacitor at 50 Hz 60 µF
1) Minimum / Maximum
Photometrical data
Luminous flux 230000 lm
Luminous efficacy 107 lm/W
Color temperature 4100 K
Color rendering index Ra 65
Light color 641
Rated LLMF at 2,000 h 0.91
Rated LLMF at 4,000 h 0.85
Rated LLMF at 6,000 h 0.82
Rated LLMF at 8,000 h 0.80
Rated lamp efficacy (standard co.) 107 lm/W
UV protection No
Light technical data
Starting time 120 s
Dimensions & Weight
Overall length 274.00 mm
Length 274.00 mm
Light center length (LCL) 137,0 mm
Diameter 40 mm
Product weight 88.7 g
Temperatures & operating conditions
Maximum permitted outer bulb temperature 950 °C
Maximum permitted pinch temperature 390 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.95
Rated lamp survival factor at 4,000 h 0.83
Rated lamp survival factor at 6,000 h 0.67
Rated lamp survival factor at 8,000 h 0.50
Lifespan B50 8000 h
Additional product data
Base (standard designation) K12s-36
Mercury content 220.0 mg
Design / version Clear
Product remark Not for general lighting
Capabilities
Dimmable No
Burning position p15
Enclosed luminaire required Yes
Hot restart Yes
Certificates & Standards
Energy consumption 2365.00 kWh/1000h
Country-specific categorizations
ILCOS MN-2000/842-E/E/SL-K12s=36-40/274/H
Order reference HQI-TS 2000W/N/
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321530660 Folding box
1		 75 mm x 75 mm x 75 mm 178.51 g 0.42 dm³
4008321530677 Shipping box
10		 391 mm x 336 mm x 164 mm 2100.36 g 21.55 dm³
User instruction / safety instructions
High Intensity Discharge Lamp UI
PDF (177.47 KB)
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4082707-EN-00 - HQI 1000W-2000W
PDF (156.59 KB)
Certificates
EAC RU C-DE.AYA46.B.16106_20 13.10.2020-12.10.2025 Rostest-Moskva - MH double capped
PDF (900.62 KB)
Certificates
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
PDF (1.15 MB)
Product image: white background, diagonal
328119_HQI-TS 2000W/N/L K12S
TIF (2.56 MB)

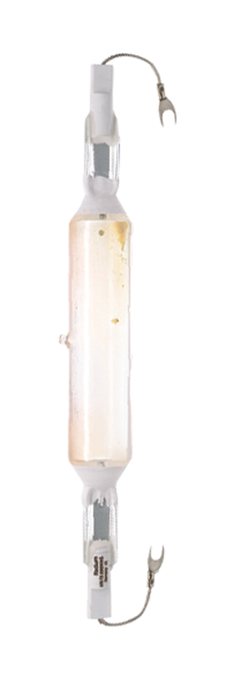

Product image: white background, upright
328120_HQI-TS 2000W/N/L K12S
TIF (2.43 MB)
Product line drawing with letters
2000_METAL HALIDE LAMPS POWERSTAR HQI-TS
SVG (14.24 KB)
Product line drawing, front, no dimensions
325812_POWERSTAR HQI-TS
SVG (9.05 KB)
Spectral power distribution
502827_HQI_TS_N_L
SVG (14.04 KB)
EAN SEG number STK number EFO number ELDAS number AU model number
4008321530660 8333140 4834620 3861004 948813990 OSRHQI-TS2000W/N/L
