HALOSTAR STARLITE 2000

HALOSTAR STARLITE 10 W 6 V G4

GTIN: 4058075094192 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • Axial filament for optimum directional light
  • Special pins for corrosion protection
  • UV filter
  • Contains no mercury
Areas of application
  • General illumination
  • Entrance lighting
  • Accent lighting
  • Lighting for reading
  • Garden lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Outdoor applications only in suitable luminaires
Product features
  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 6 V
Photometrical data
Luminous flux 130 lm
Luminous efficacy 13 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
UV protection Yes
Light technical data
Starting time 0 s
Dimensions & Weight
Overall length 33.00 mm
Light center length (LCL) 22,0 mm
Diameter 10.00 mm
Product weight 1.1 g
Additional product data
Base (standard designation) G4
Mercury-free Yes
Capabilities
Dimmable Yes
Burning position Any
Certificates & Standards
Energy efficiency class G
Energy consumption 10.00 kWh/1000h
Country-specific categorizations
ILCOS HSGS/C/AXUB-10-6-G4-10/22
Order reference 64410 S
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 33.00 mm
Height 10.00 mm
Width 10.00 mm
Chromaticity coordinate x 0.452
Chromaticity coordinate y 0.409
Beam angle correspondence SPHERE_360
EPREL ID 714470
Model number AC35313
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075094192 Folding box
1		 25 mm x 23 mm x 70 mm 3.10 g 0.04 dm³
4058075094208 Shipping box
40		 144 mm x 107 mm x 121 mm 165.00 g 1.86 dm³
Declarations of conformity
CE Declaration HAL LOW VOLT
PDF (286.41 KB)
Product image: white background, diagonal
323679_HALOSTAR STARLITE
JPG (2.2 MB)
Product image: white background, upright
323679_HALOSTAR STARLITE
TIF (23.39 MB)
Product line drawing with letters
626_HALOSTAR STARLITE
SVG (8.98 KB)
Product line drawing, front, no dimensions
325083_HALOSTAR STARLITE
SVG (4.25 KB)

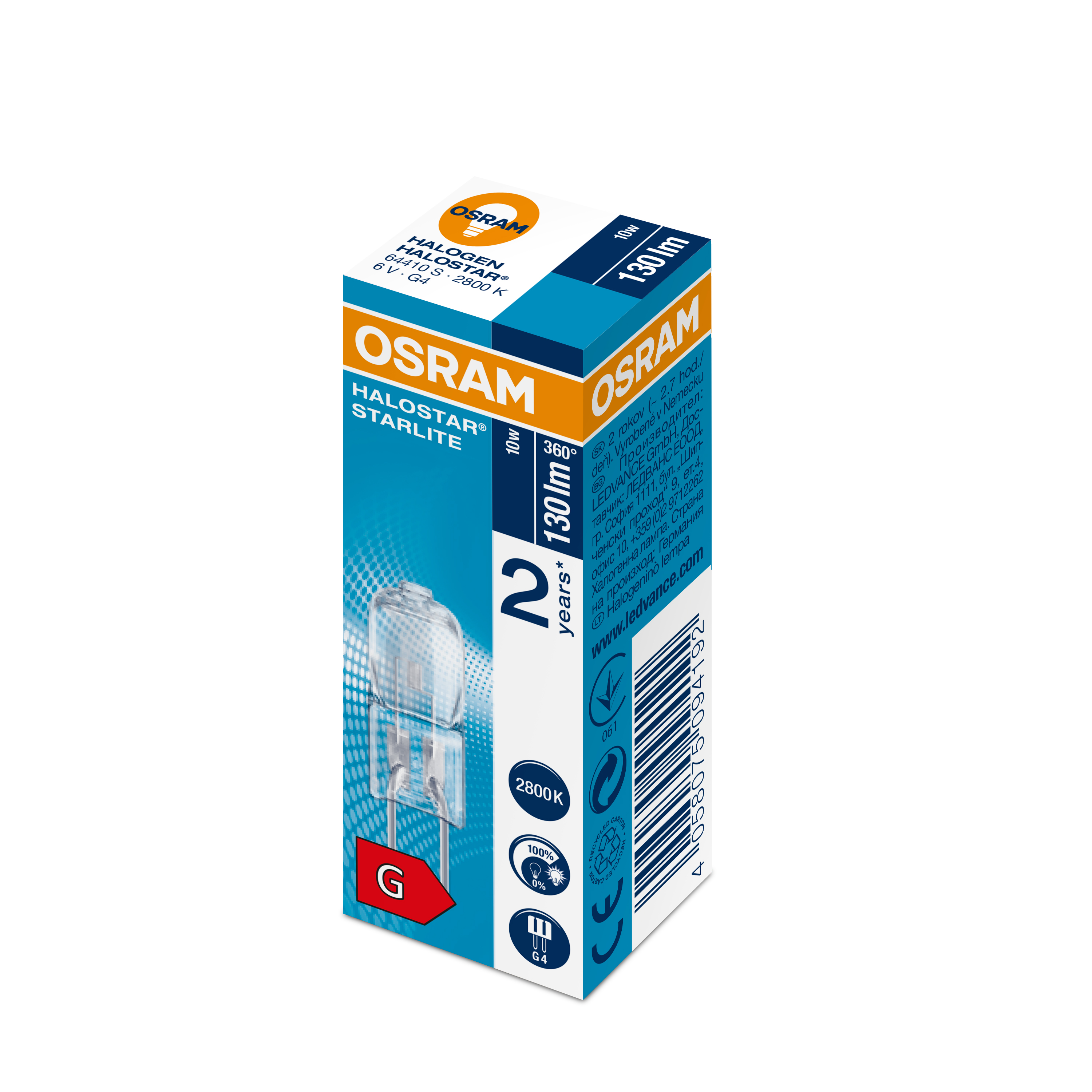

Packaging image, spacial
Halostar S AX 10W 6V G4 40X1 OSRAM
JPG (1.83 MB)
Energy label
EL-4058075094192-AC353 13
PDF (21.42 KB)
Spectral power distribution
349642_HAL_NV_UVS
PNG (103.22 KB)
EAN SEG number STK number EFO number ELDAS number
4058075094192 8326520 4739622 3720388 940330401
