HALOSTAR PRO

HALOSTAR PRO 50 W 12 V GY6.35

GTIN: 4050300615936 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Brilliant accent lighting
  • Significantly lower CO2 emissions compared to standard version
  • High luminous efficacy compared with standard lamps
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
  • Contains no mercury
Areas of application
  • General illumination
  • Kitchen lighting
  • Lighting for reading
  • Entrance lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Outdoor applications only in suitable luminaires
Product features
  • Average life: 4,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
  • IRC technology
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 50 W
Construction wattage 50.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 75 W
Photometrical data
Luminous flux 1050 lm
Luminous efficacy 21 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 100
Light color 1030
UV protection Yes
Light technical data
Starting time 0.0 s
Dimensions & Weight
Overall length 44.00 mm
Light center length (LCL) 30,0 mm
Diameter 12 mm
Product weight 1.57 g
Lifespan
Number of switching cycles 50000
Additional product data
Base (standard designation) GY6.35
Mercury-free Yes
Capabilities
Dimmable Yes
Burning position Any
Certificates & Standards
Energy efficiency class G
Energy consumption 50.00 kWh/1000h
Country-specific categorizations
ILCOS HSGS/C/AXUBIB-50-12-GY6.35-12/30
Order reference 64440 ECO
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) GY6.35
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 44.00 mm
Height 12 mm
Width 12 mm
Chromaticity coordinate x 0.437
Chromaticity coordinate y 0.404
Beam angle correspondence SPHERE_360
EPREL ID 714432
Model number AC35322
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300615936 Folding box
1		 70 mm x 23 mm x 25 mm 3.50 g 0.04 dm³
4050300942452 Shipping box
40		 144 mm x 126 mm x 121 mm 199.00 g 2.20 dm³
Declarations of conformity
CE Declaration HAL LOW VOLT
PDF (286.41 KB)
Product image: white background, diagonal
324597_HALOSTAR IRC
TIF (4.94 MB)
Product line drawing with letters
25564_HALOSTAR ENERGY SAVER
SVG (9.63 KB)
Product line drawing, front, no dimensions
325081_HALOSTAR
SVG (4.89 KB)

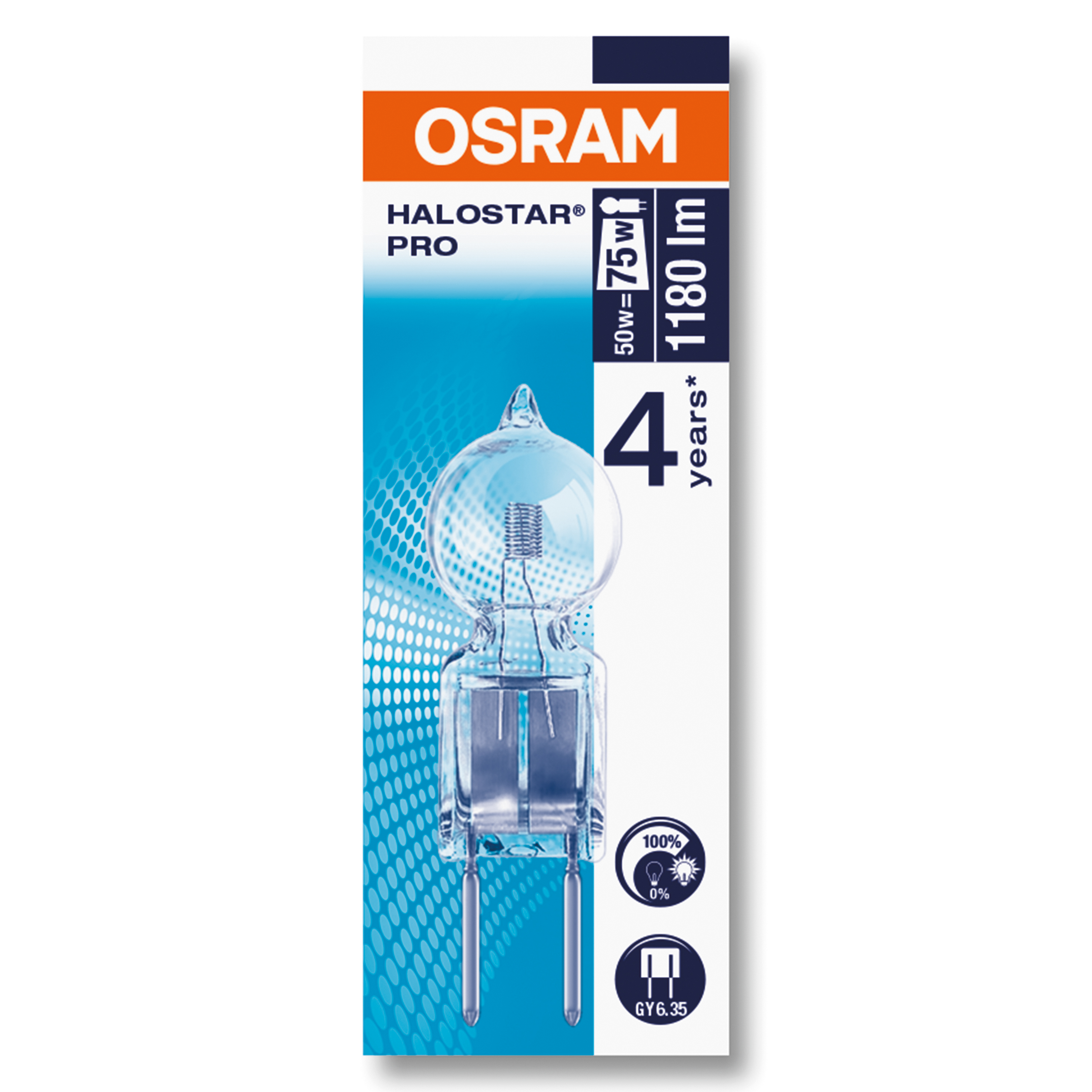

Packaging image, frontal
HALOSTAR PRO 64440 50W 12V GY6.35 MiG
JPG (2.09 MB)
Packaging image, spacial
HALOSTAR PRO 64440 50W 12V GY6.35 MiG
JPG (1.92 MB)
Energy label
EL-4050300615936-AC353 22
PDF (21.42 KB)
Spectral power distribution
349619_HAL_IRC
PNG (102.54 KB)
EAN SEG number STK number EFO number ELDAS number
4050300615936 8326506 4739511 3720223 940384515
