HALOLINE PRO
HALOLINE PRO 120 W 240 V R7S
GTIN: 4008321977717
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Brilliant accent lighting
- Direct replacement for standard tubular halogen lamps
- Significantly lower CO2 emissions compared to standard version
- Lower thermal output (compared with the standard reference product)
- No transformer required
- Contains no mercury
Areas of application
- General illumination
- Entrance lighting
- Pathway lighting
- Outdoor applications only in suitable luminaires
- Traffic areas
- Shops
- Restaurants, hotels and similar prestigious applications
- Offices, public buildings
- Ideal for emphasizing and accentuating the structure of a room
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Electrical data
| Nominal wattage | 120 W |
| Construction wattage | 120.00 W |
| Nominal voltage | 240 V |
| Nominal current | 0.5 A |
Photometrical data
| Luminous flux | 2245 lm |
| Luminous efficacy | 18 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 100 |
| Light color | 1030 |
| UV protection | No |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 118.00 mm |
| Diameter | 12.00 mm |
| Product weight | 7.2 g |
Lifespan
| Lifespan L70/B50 at 25 °C | 2000 h |
Additional product data
| Base (standard designation) | R7s |
| Mercury-free | Yes |
| Design / version | Tube |
| Product remark | Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required, Technical and light values are subject to be changed |
Capabilities
| Dimmable | Yes |
| Burning position | Any |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 120.00 kWh/1000h |
Country-specific categorizations
| ILCOS | HDG-120-240-R7s-114,2 |
| Order reference | 64696 ECO |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | R7s |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Standby power | 0 W |
| Networked standby power for CLS | not applicable |
| Claim of equivalent power | No |
| Length | 118.00 mm |
| Height | 12.00 mm |
| Width | 12.00 mm |
| Chromaticity coordinate x | 0,437 |
| Chromaticity coordinate y | 0,404 |
| Beam angle correspondence | SPHERE_360 |
| Displacement factor | 1 |
| EPREL ID | 714435,1554001 |
| Model number | AC35332,AC51811 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321977717 | Folding box 1 |
20 mm x 21 mm x 136 mm | 11.20 g | 0.06 dm³ |
| 4008321977724 | Shipping box 20 |
142 mm x 111 mm x 90 mm | 272.00 g | 1.42 dm³ |
| 4052899401310 | Shipping box 720 |
|||
| 4099854147678 | Shipping box 720 |
440 mm x 347 mm x 385 mm | 10342.00 g | 58.78 dm³ |
Product image: white background, diagonal
324591_HALOLINE FOR MAINS VOLTAGE
324591_HALOLINE FOR MAINS VOLTAGE
Product line drawing with letters
620_HALOLINE
620_HALOLINE
Product line drawing, front, no dimensions
325064_HALOLINE FOR POWER SUPPLY VOLTAGE
325064_HALOLINE FOR POWER SUPPLY VOLTAGE

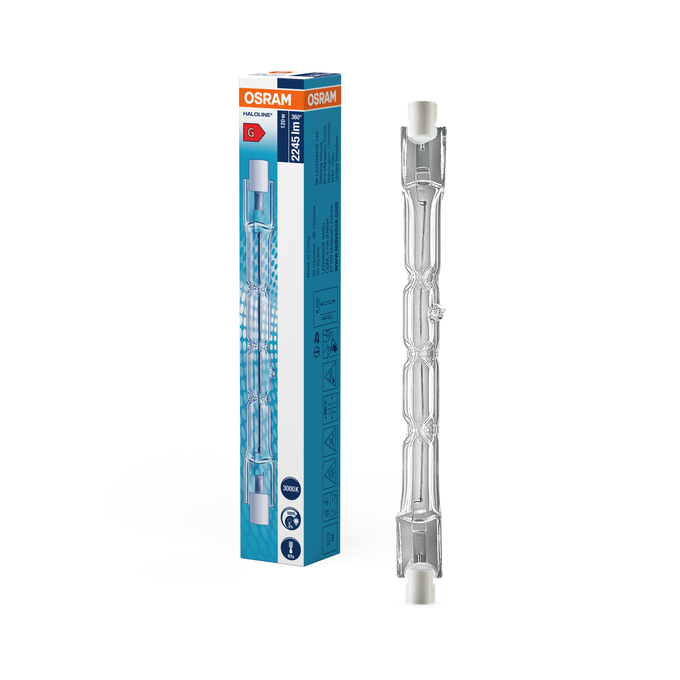

Combo Shot = Product Beauty Shot + Packaging Image
U3 HALOLINE 64696 118W 240V R7s
U3 HALOLINE 64696 118W 240V R7s
Packaging image, frontal
U3 HALOLINE 64696 118W 240V R7s
U3 HALOLINE 64696 118W 240V R7s
Packaging image, spacial
U3 HALOLINE 64696 118W 240V R7s
U3 HALOLINE 64696 118W 240V R7s
Energy label
EL-4008321977717-AC353 32
EL-4008321977717-AC353 32
Energy label
EL-4008321977717-AC518 11
EL-4008321977717-AC518 11
Spectral power distribution
349635_HAL_ohne_UVS
349635_HAL_ohne_UVS
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321977717 | 8327718 | 4739409 | 3710349 | 940306280 |
