SMART+ Outdoor Flex Multicolor

Smart+ ZB Outdoor Flex RGBW

GTIN: 4099854483059 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy to install and use
Areas of application
  • General illumination
  • Gardens
  • Patios, balconies
Product features
  • Flexible RGBW strip with wireless smart lighting function
  • RGB color control, approx. 16 million color options adjustable
  • Adjustable color temperature via Tunable White: 2,000…6,500 K
  • Dimmable
  • Mounting via clips (supplied)
  • Protection class (strip): IP65
  • Protection class (power supply): IP44
  • Network protocol: ZigBee
  • Lifetime: up to 20,000 h
  • Controllable via compatible smart home system (gateway and app) or SMART+ Switch
  • For full functionality, connection to a compatible smart home System (gateway and app) required
Equipment / Accessories
  • Power supply included
  • Control via app requires LIGHTIFY system (app and gateway) or other compatible Smart home system
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 11.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 70.000 mA
Power factor λ > 0.50
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 950 lm
Total luminous flux of contained light sources 1600 lm
Luminous efficacy 63 lm/W
Color temperature 2000 … 6500 K
Light color (designation) Red, Green, Blue, Warm White
Color rendering index Ra ≥80
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
Dimensions & Weight
Length 5000.00 mm
Height 4.50 mm
Width 12.00 mm
Product weight 560.00 g
Materials & Colors
Product color White
Housing color White
Body material Plastic
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Type of connection Plug type C (EU)
Type of protection IP65
Dimmable Yes
Mounting type Surface
Application environment Outdoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 20000 h
Number of switching cycles 15000
Certificates & Standards
Standards CE
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854483059 Folding box
1
67 mm x 252 mm x 253 mm 668.00 g 4.27 dm³
4099854483066 Shipping box
4
285 mm x 270 mm x 310 mm 3139.00 g 23.85 dm³
User instruction / safety instructions
Smart ZB Outdoor Flex RGBW
Declarations of conformity
SMART FLEX
EU Data Act
SMART ZigBee Lamps and Luminaires

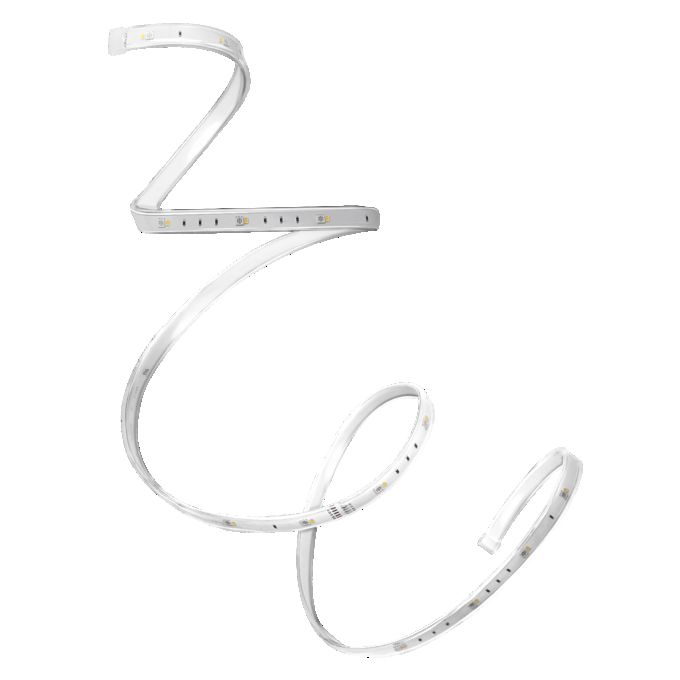

Product image: white background, diagonal
SMART OUTDOOR FLEX RGBW

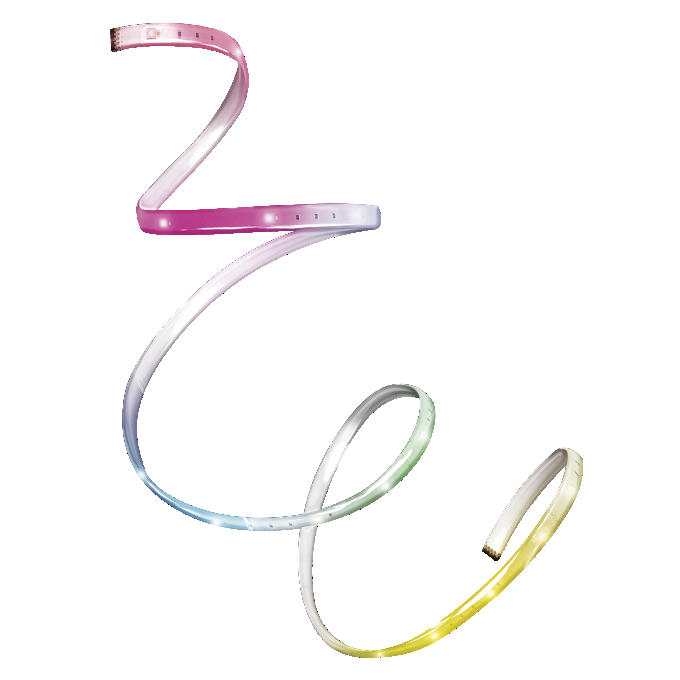

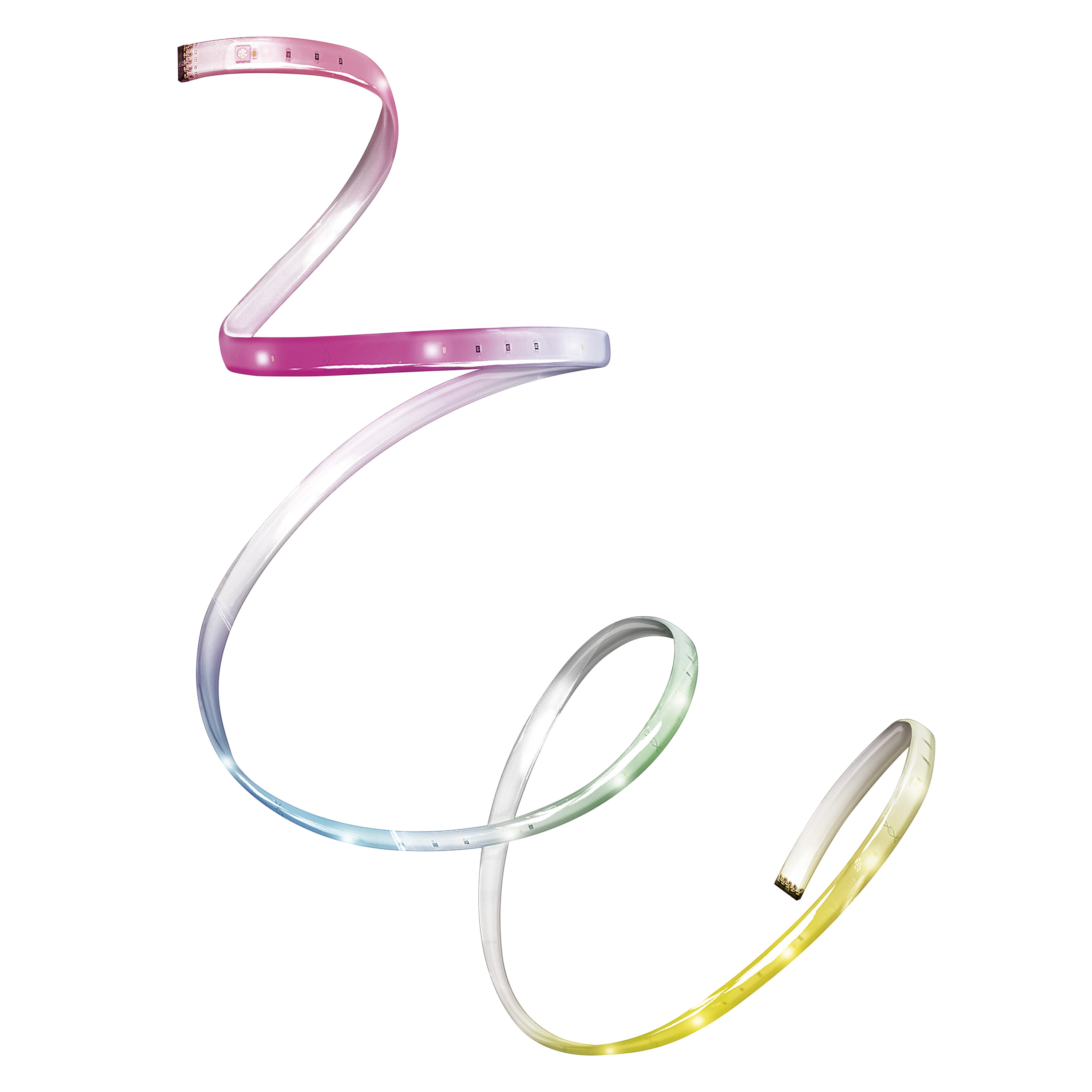

Product image: white background, upright
SMART+ ZB OUTDOOR FLEX RGBW
Product image: white background, upright, switched on
SMART+ ZB OUTDOOR FLEX RGBW

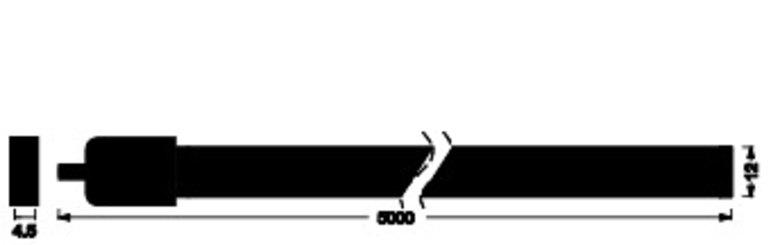

Product line drawing with letters
SMART+ ZB OUTDOOR FLEX RGBW
Product line drawing with numbers
SMART+ ZB OUTDOOR FLEX RGBW
Product line drawing, front, no dimensions
SMART+ ZB OUTDOOR FLEX RGBW

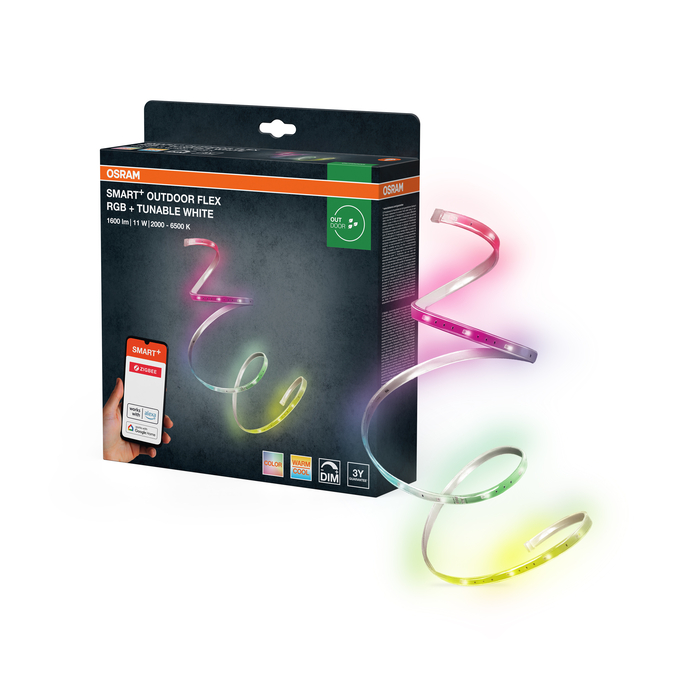

Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB OUTDOOR FLEX RGBW OSRAM
Packaging image, frontal
SH FC ZB OUTDOOR FLEX RGBW OSRAM
Packaging image, spacial
SH FC ZB OUTDOOR FLEX RGBW OSRAM

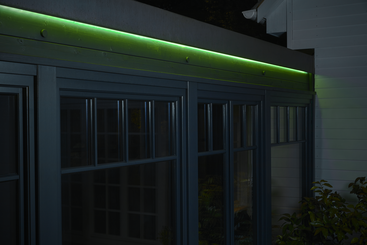

Application pictures
