SMART+ WIFI OUTDOOR FLEX

Smart+ Wifi Outdoor Flex IP44 3M RGB Tunable White

GTIN: 4099854483141 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Uses multi color and cold or warm white light for most flexible lighting scenes
Areas of application
  • Outdoor applications
  • Indirect lighting
Product features
  • Dimmable
  • RGB color control, approx. 16 million color options adjustable
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Flexible, bendable LED strips
  • Type of protection: IP44
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • Complete mounting and connecting accessories included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/en-int/home-lighting/services/faq
Electrical data
Nominal wattage 12.50 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 75.000 mA
Inrush current 25 mA
Power factor λ > 0.50
Total harmonic distortion < 100 %
Protection class II
Photometrical data
Luminous flux 740 lm
Total luminous flux of contained light sources 960 lm
Luminous efficacy 59 lm/W
Color temperature 2700…6500 K
Light color (designation) Red, Green, Blue, Tunable White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
Dimensions & Weight
Length 3000.00 mm
Height 4.50 mm
Width 11.50 mm
Product weight 370.00 g
Materials & Colors
Product color White
Housing color White
Body material Silicone
Cover material Silicone
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP44
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Outdoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000
Certificates & Standards
Standards CE
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854483141 Folding box
1
67 mm x 167 mm x 168 mm 428.00 g 1.88 dm³
4099854483158 Shipping box
4
350 mm x 185 mm x 155 mm 1964.00 g 10.04 dm³
User instruction / safety instructions
SMART WIFI Outdoor Flex
Declarations of conformity
SMART WIFI OUTD FLEX 3M RGB TW IP44
EU Data Act
SMART WiFi Lamps and Luminaires

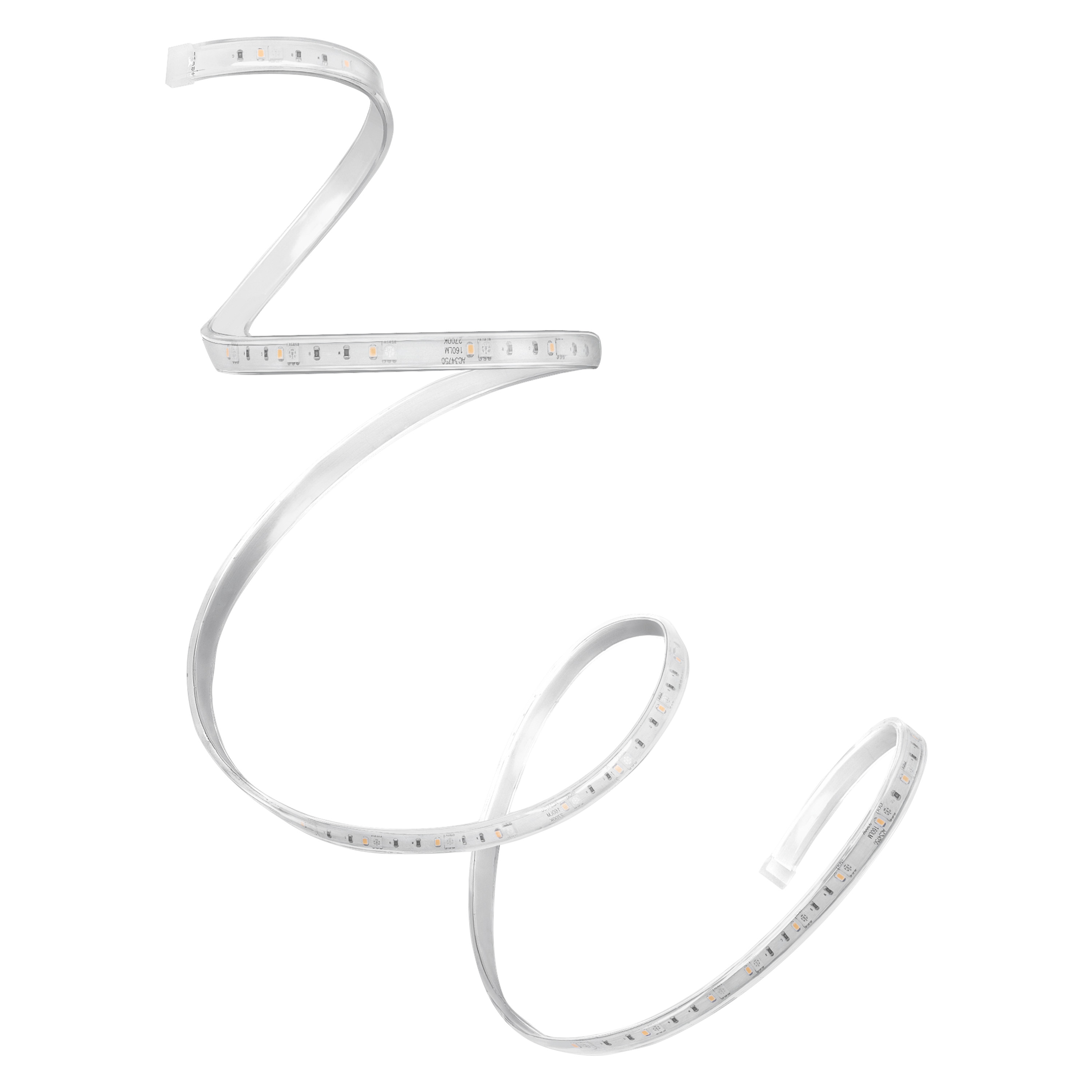

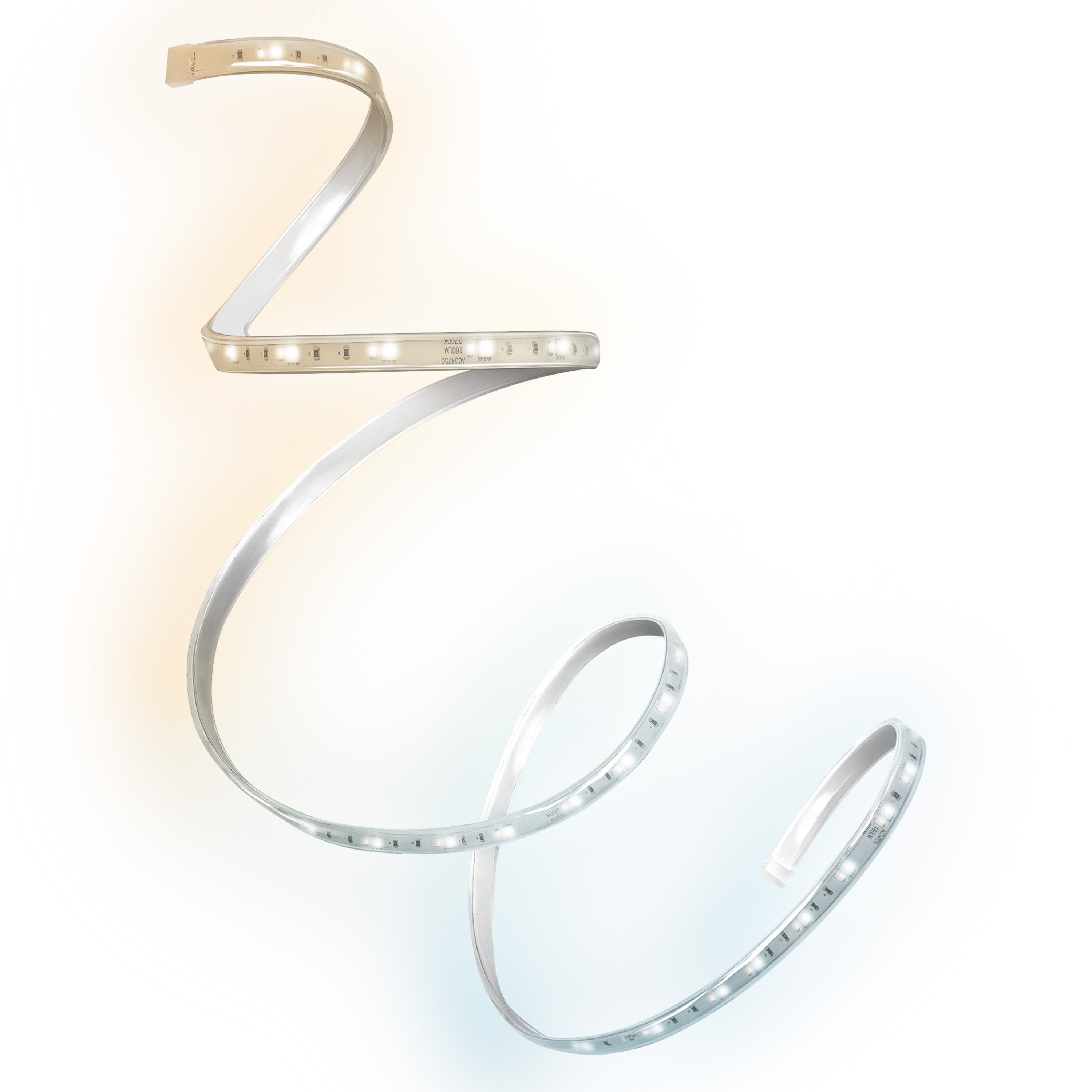

Product image: white background, upright
SMART WIFI OUTD FLEX 3M RGB TW

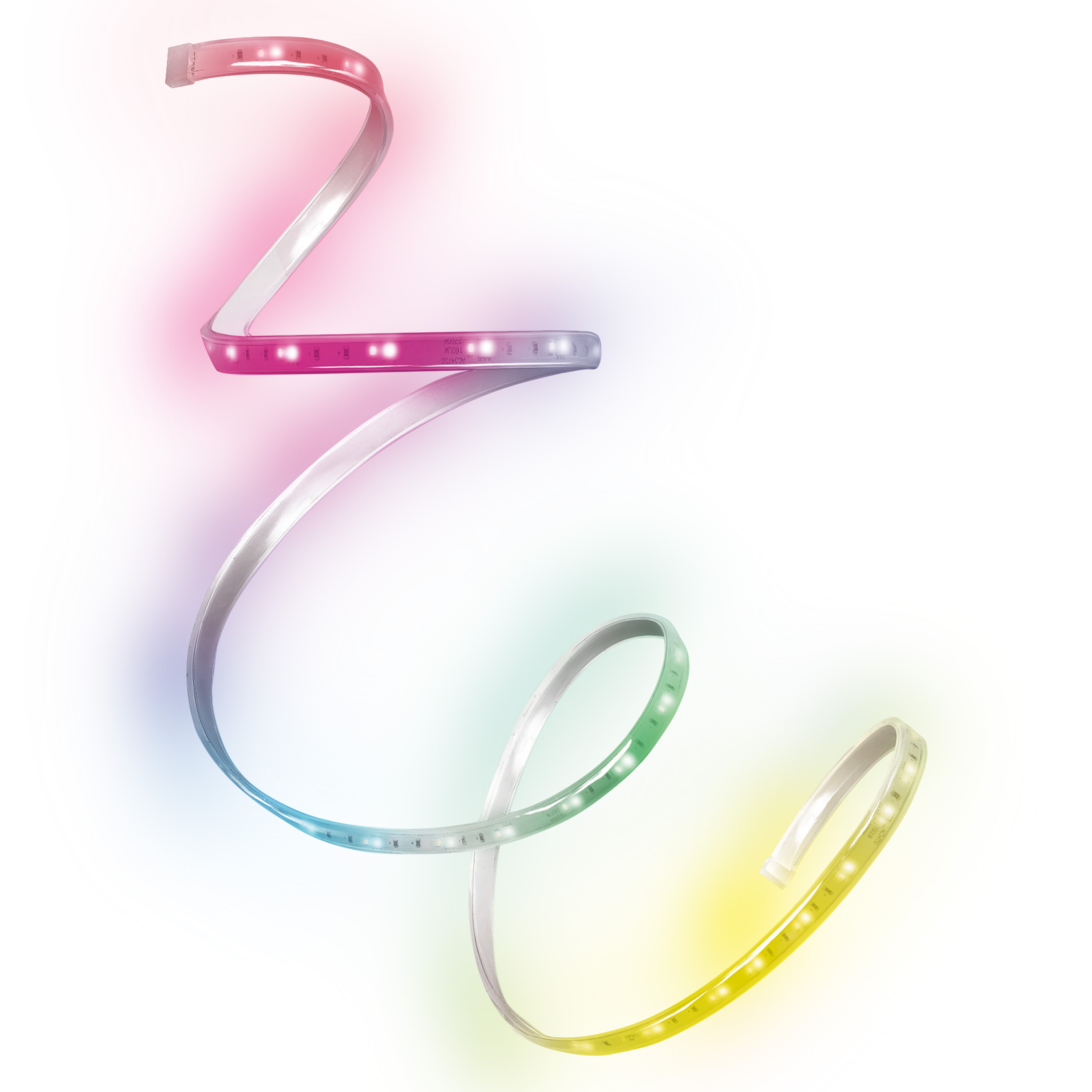

Product image: white background, upright, switched on
SMART WIFI OUTD FLEX 3M RGB TW
Product image: white background, upright, switched on
SMART WIFI OUTD FLEX 3M RGB TW
Product infographic (application image with text and graphic)
Stripes E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI OUTD FLEX 3M RGB TW
Product line drawing with numbers
SMART WIFI OUTD FLEX 3M RGB TW
Product line drawing, front, no dimensions
SMART WIFI OUTD FLEX 3M RGB TW

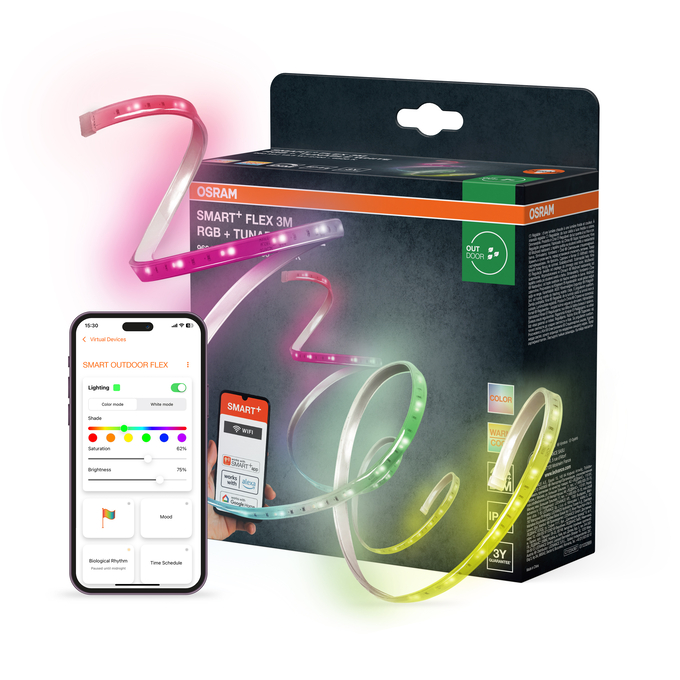

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF OD FLEX 3M RGBTW OSRAM
Packaging image, frontal
SH FC WF OD FLEX 3M RGBTW OSRAM
Packaging image, spacial
SH FC WF OD FLEX 3M RGBTW OSRAM

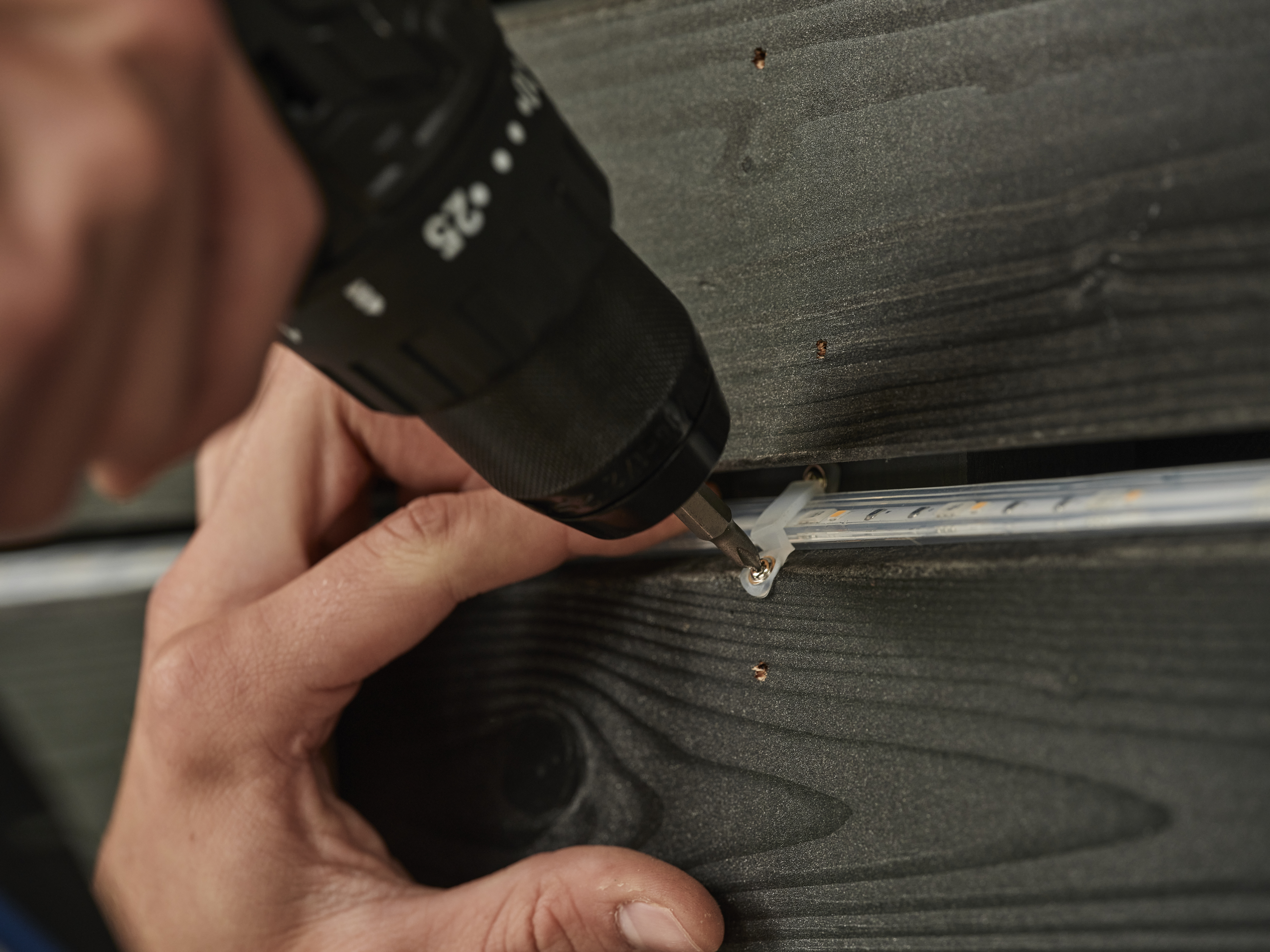

Application pictures
OSRAM FLEX Mounting 05

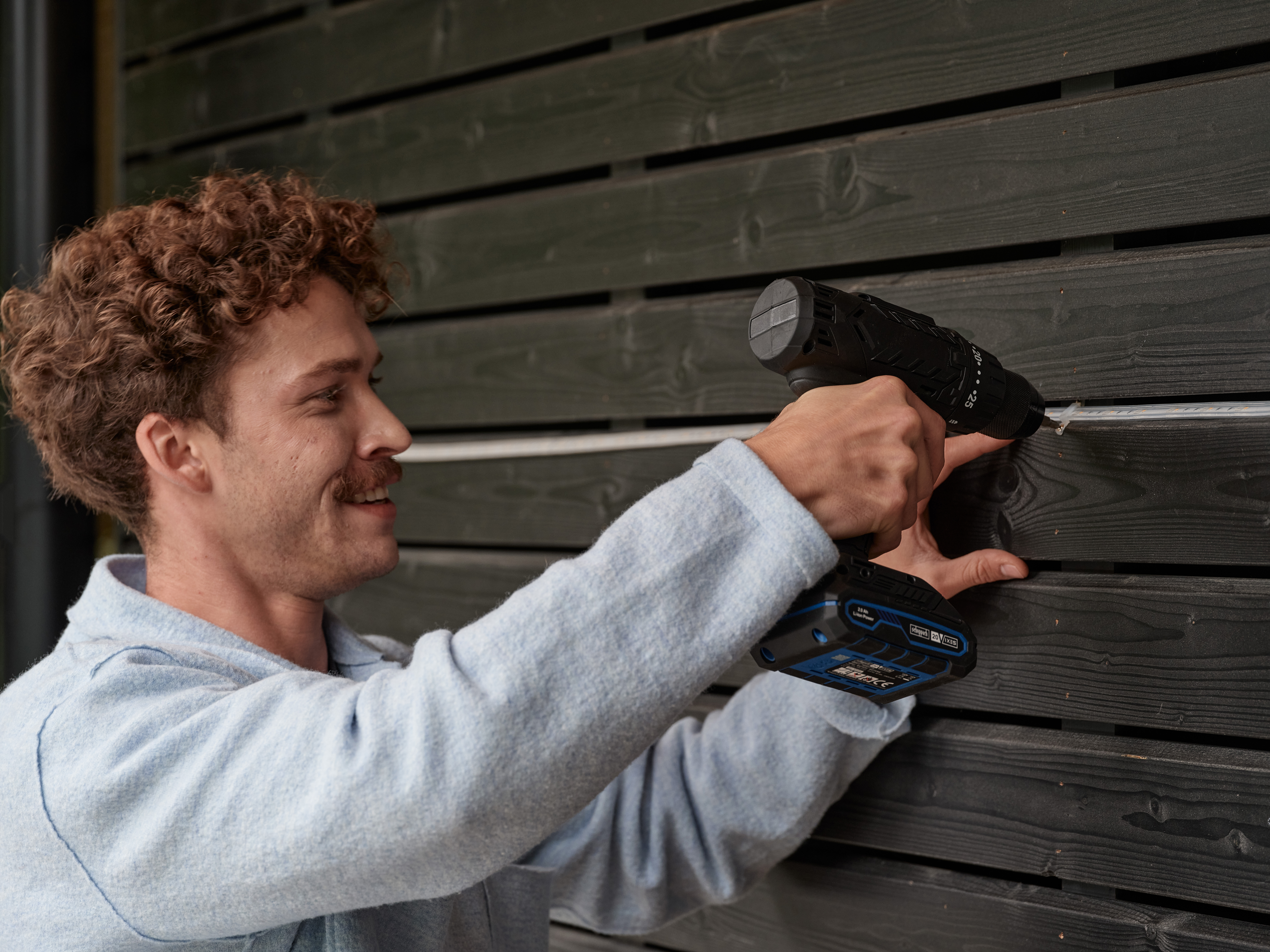

Application pictures
OSRAM FLEX Mounting 06

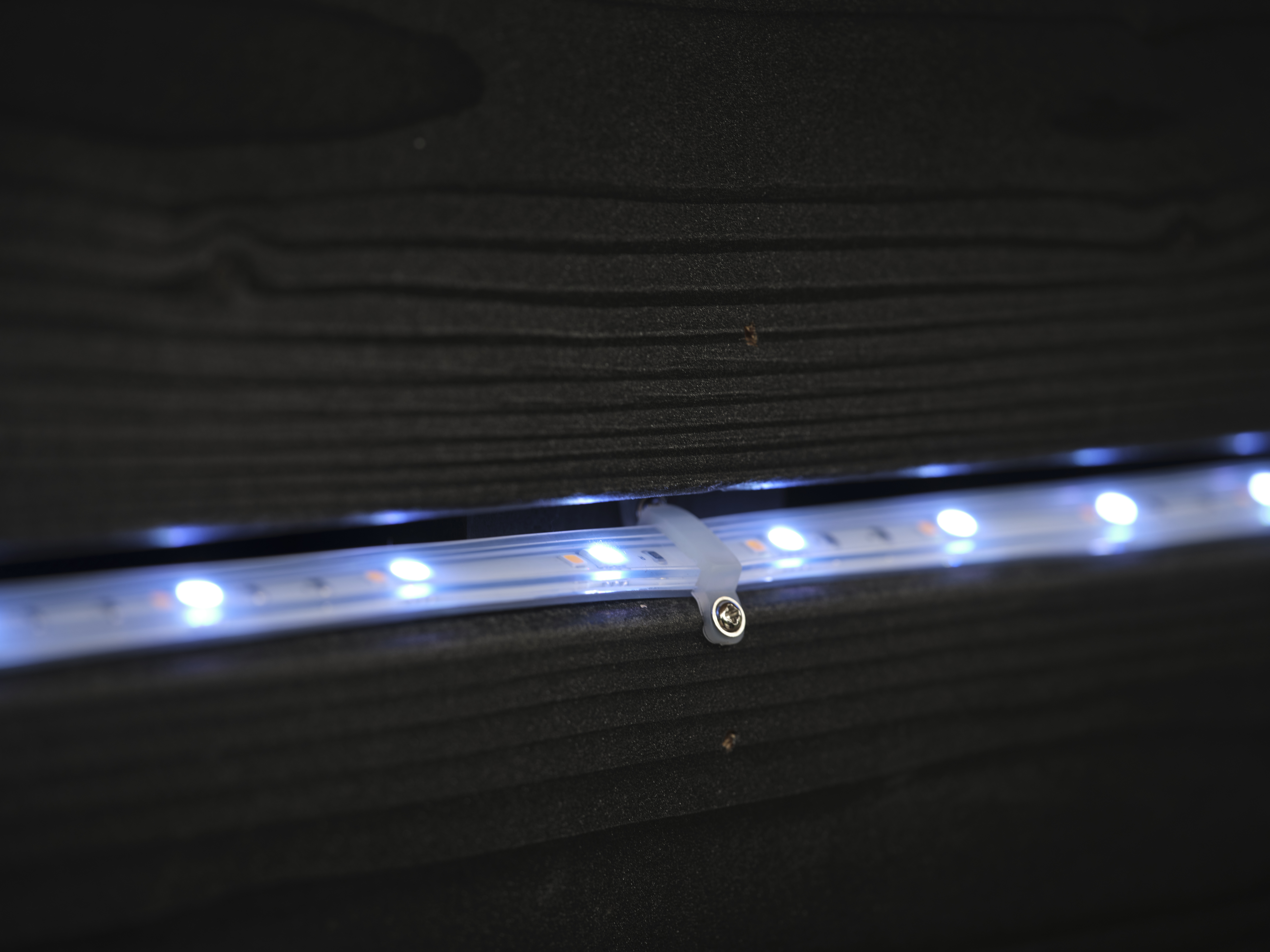

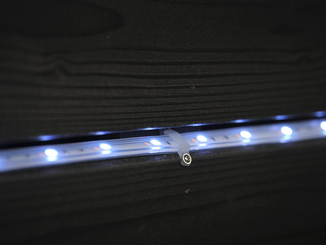

Application pictures
OSRAM FLEX Mounting 07

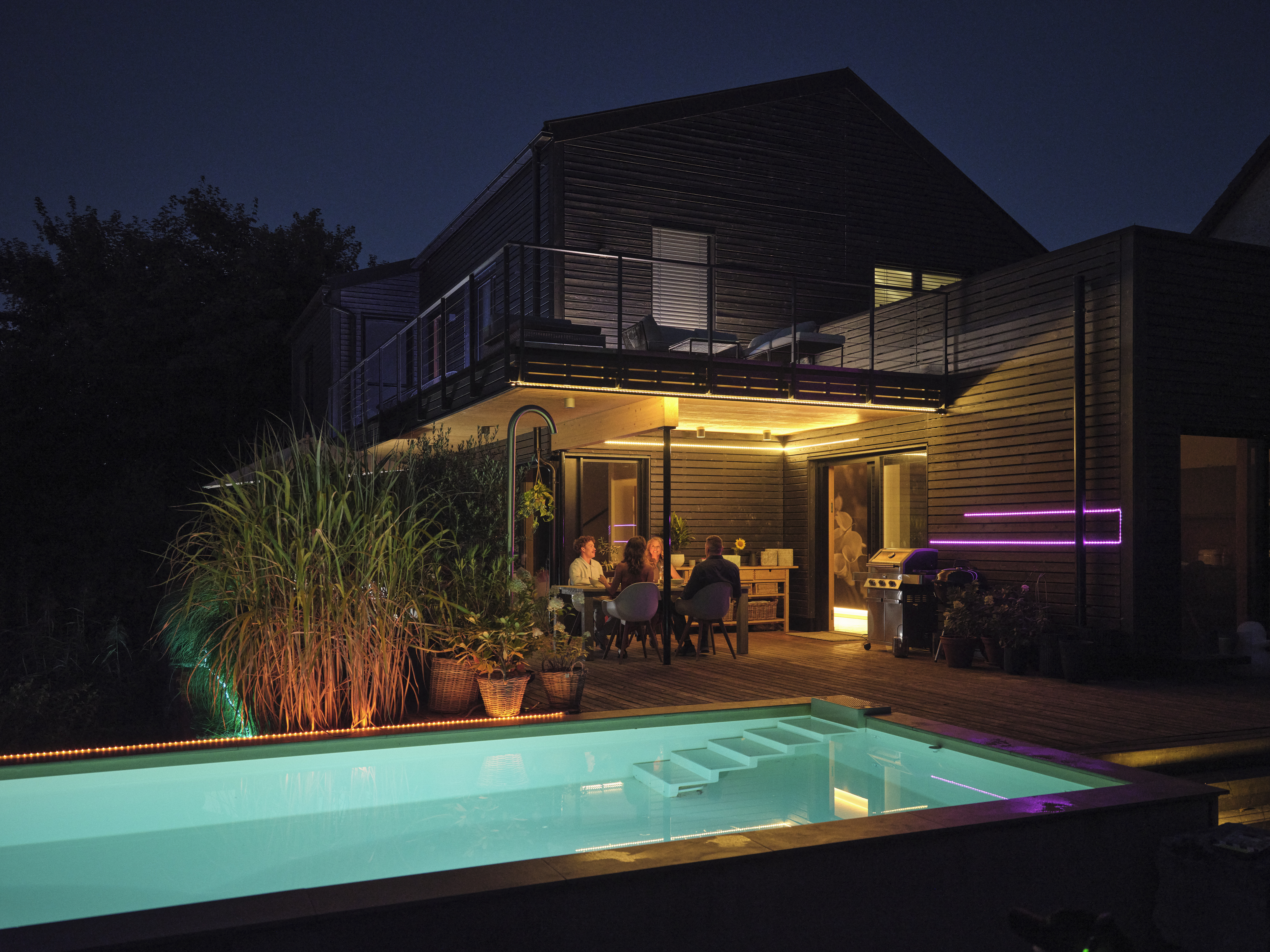

Application pictures
OSRAM FLEX OUTDOOR 02

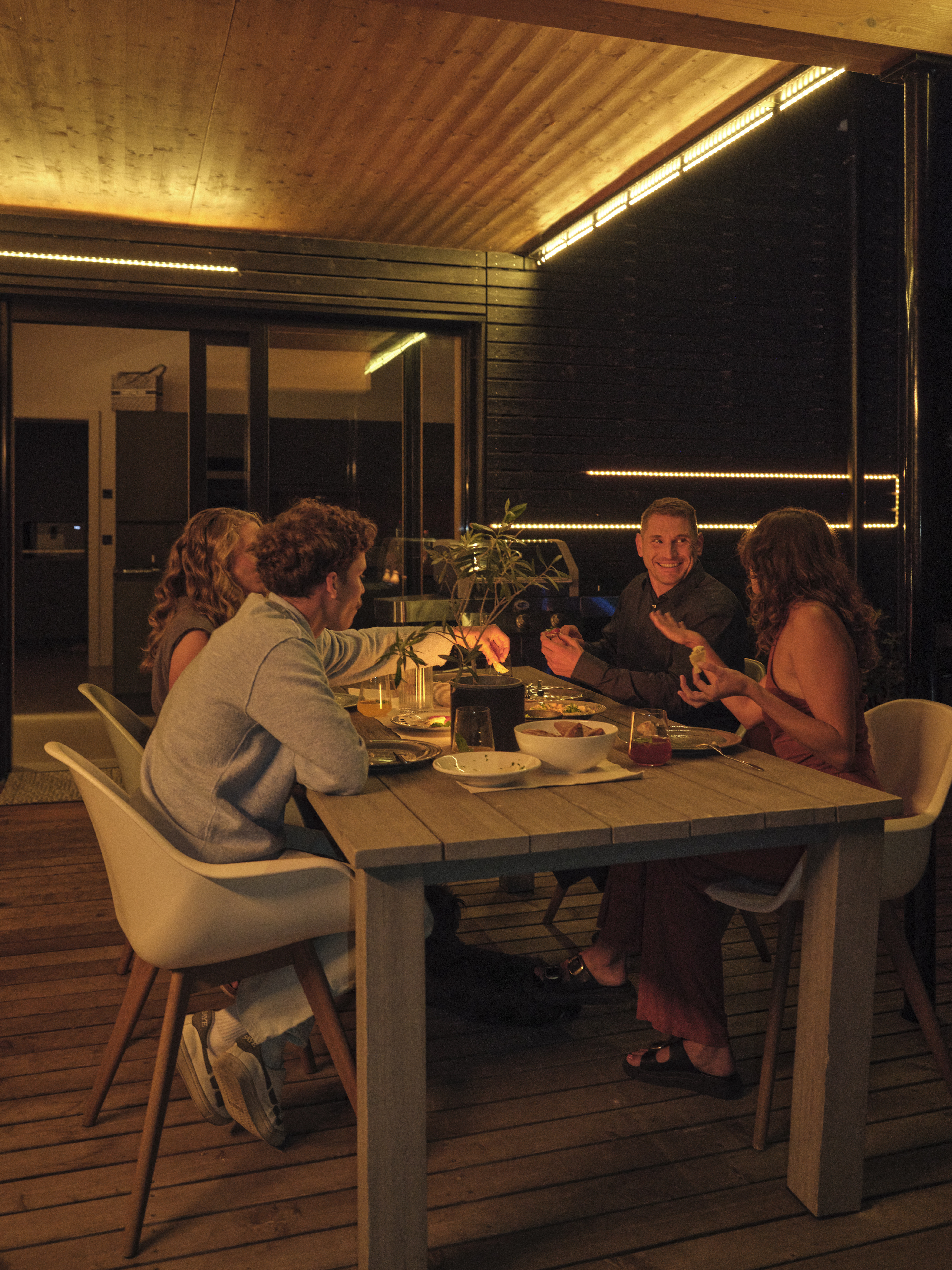

Application pictures
OSRAM FLEX OUTDOOR 04

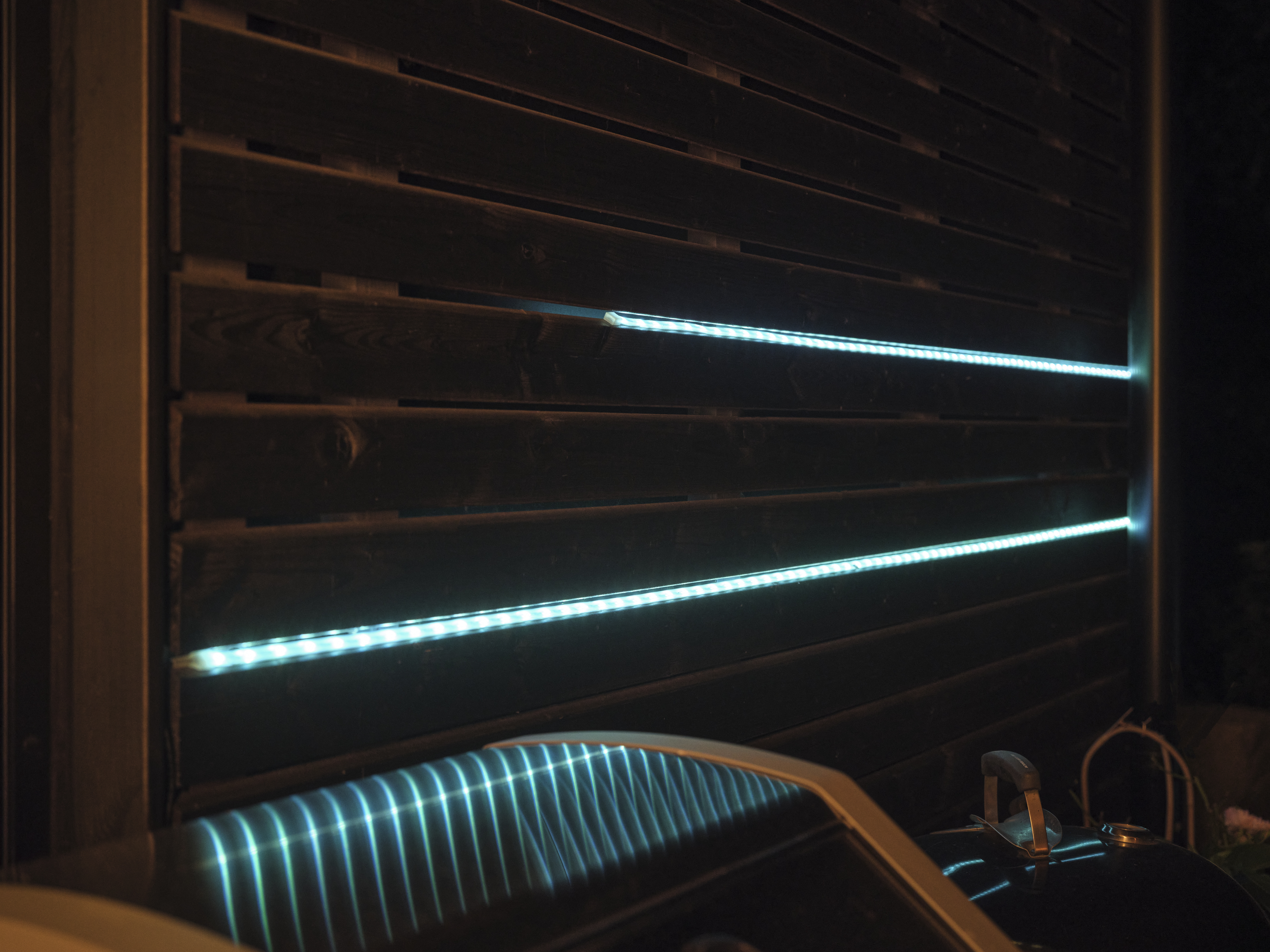

Application pictures
OSRAM FLEX OUTDOOR 05

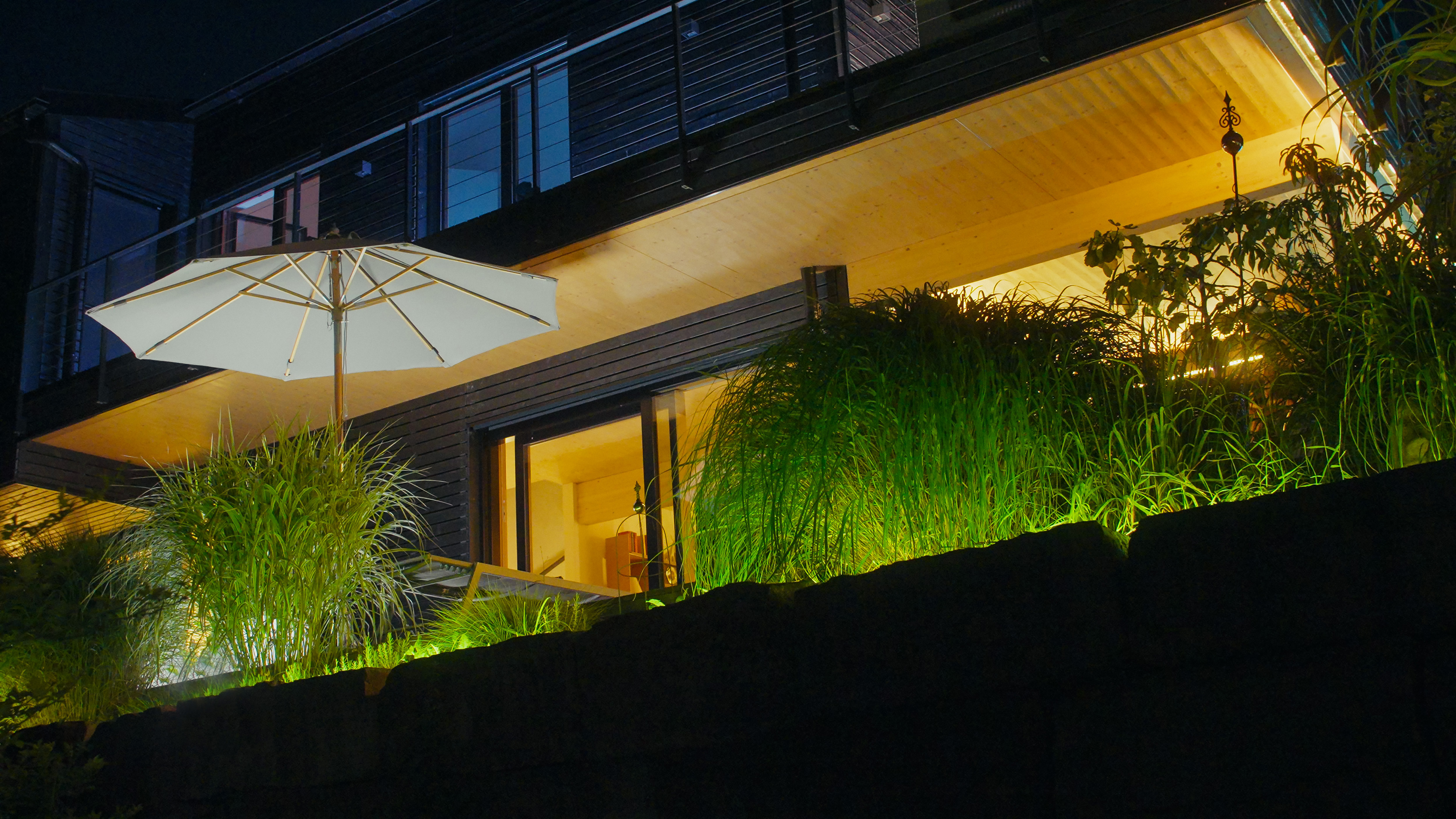

Application pictures
OSRAM FLEX OUTDOOR 06

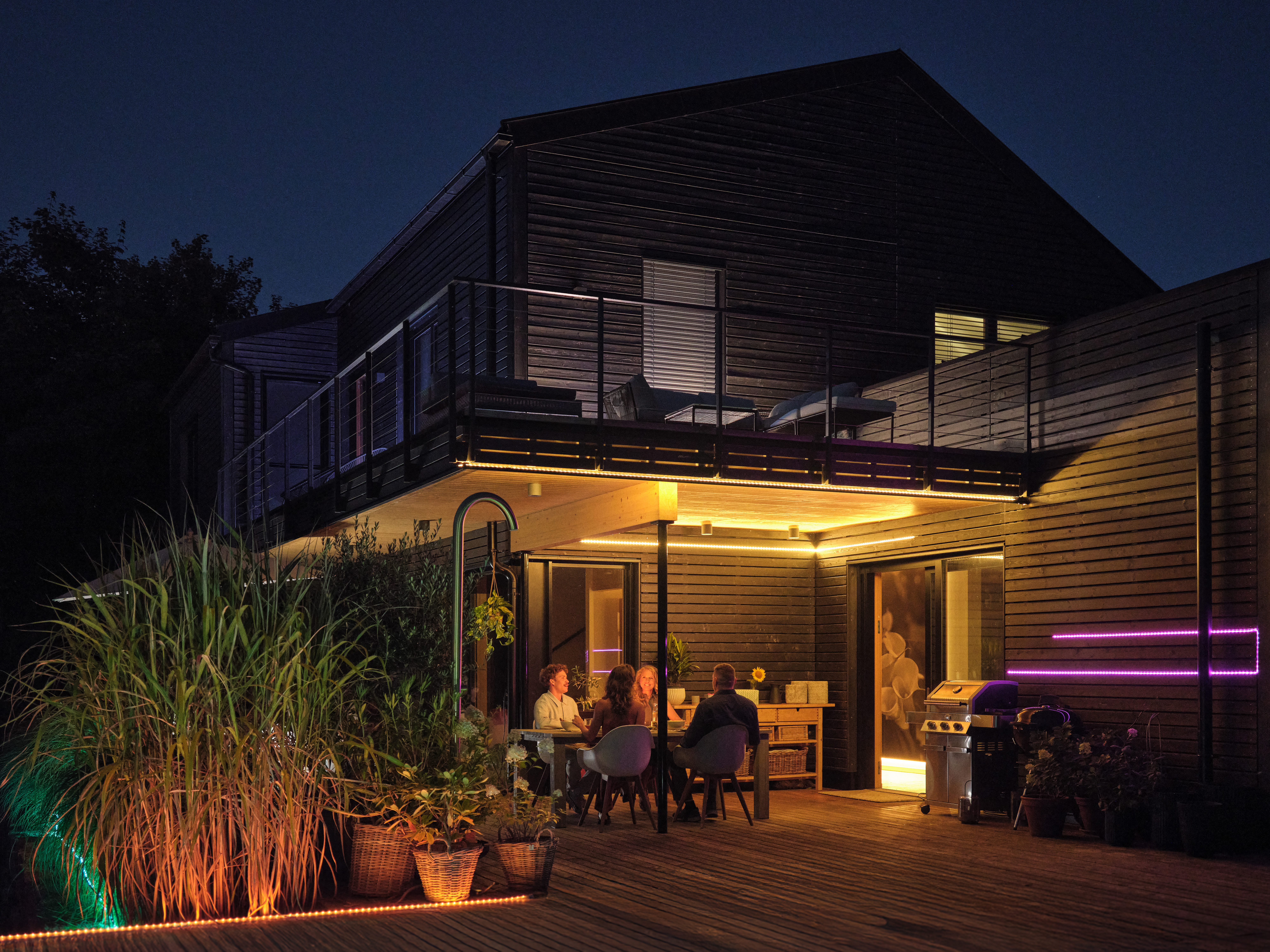

Application pictures
OSRAM FLEX OUTDOOR 07
Application pictures Getty
Smart WIFI Outdoorf Flex WW

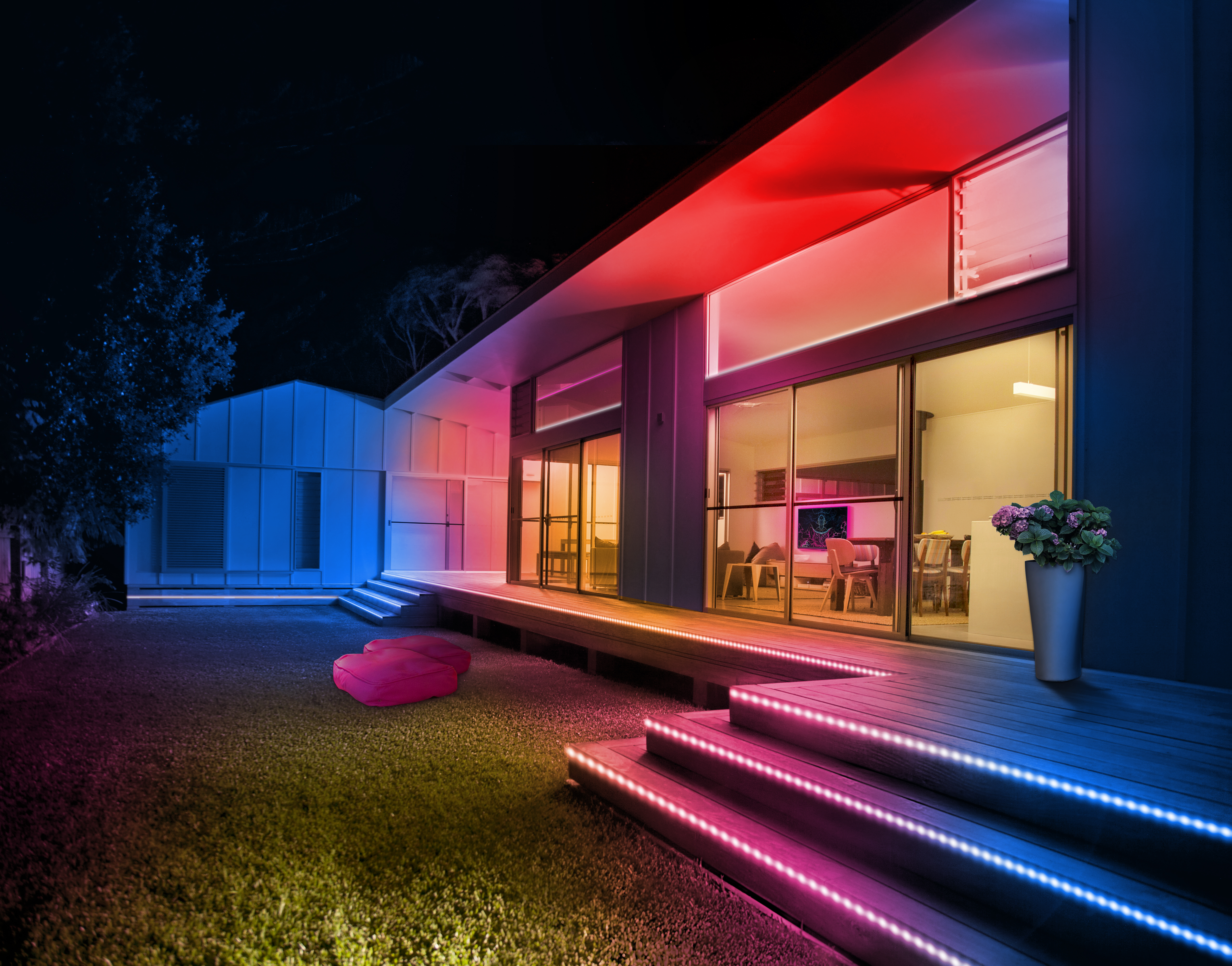

Application pictures Getty
Smart WIFI Outdoorf Flex RGBW

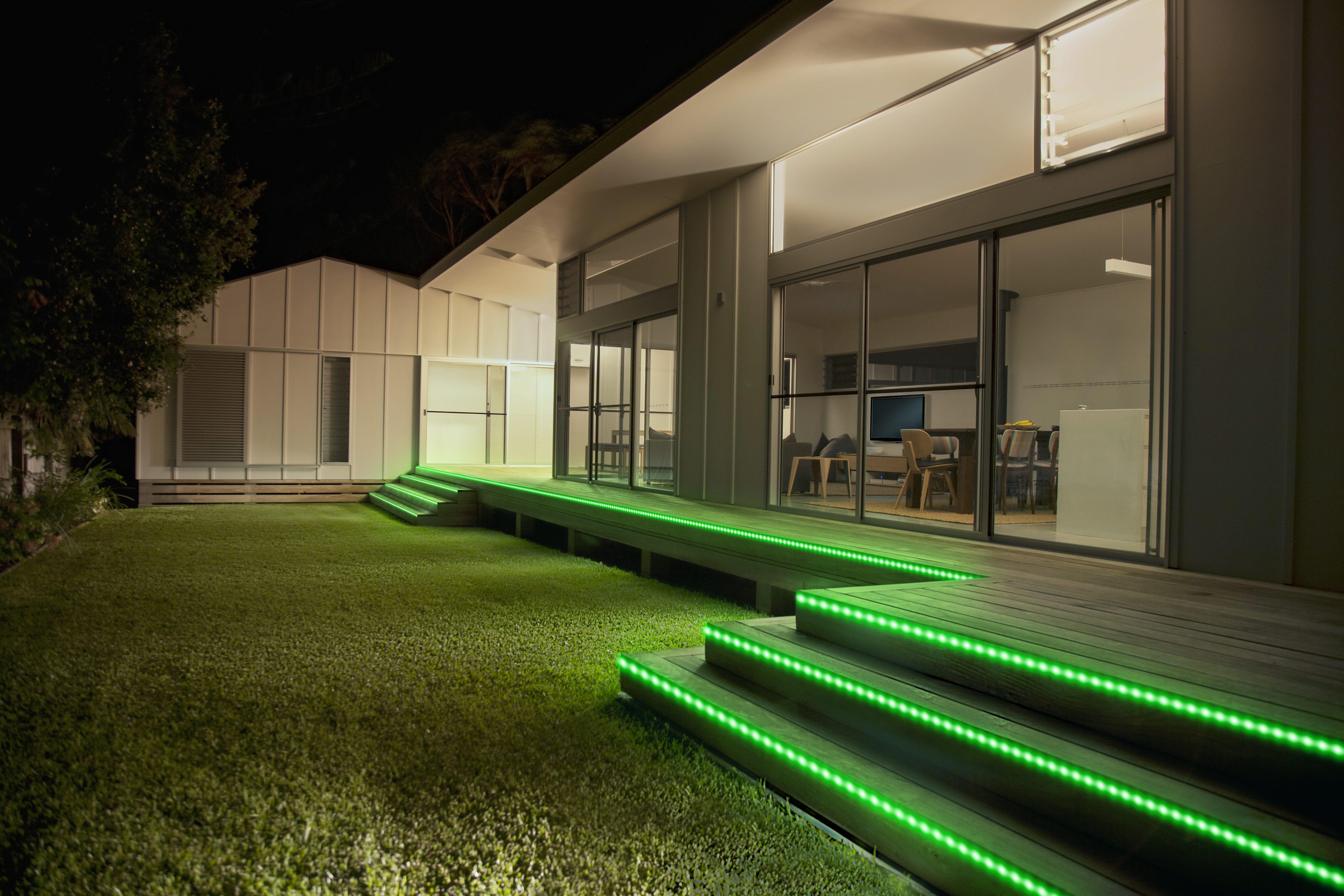

Application pictures Getty
