SMART+ Filament Globe Dimmable

SMART ZB Filament Globe 52 DIM 6W 824 230V Gold E27

GTIN: 4058075729247 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Control via compatible smart home system (gateway and app)
  • Control via voice control available: Google Assistant or Amazon Alexa, depending on the smart home system in use
  • Network protocol: ZigBee 3.0
  • Dimmable
  • Lifetime: up to 20,000 h
  • For full functionality connection to a compatible smart home System (gateway and app) required
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Nominal current 34 mA
Mains frequency 50/60 Hz
Power factor λ > 0.5
Claimed equiv. conventional lamp power 52 W
Operating mode AC Mains
Photometrical data
Light color (designation) Comfort warm white
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 680 lm
Luminous flux 680 lm
Luminous efficacy 113 lm/W
Adjustable color temperature 2400 K
Color temperature 2400 K
Color rendering index Ra 80
Flickering metric (Pst LM) <1.0
Stroboscope effect metric (SVM) <0.4
Light technical data
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 100.00 g
Diameter 125.00 mm
Maximum diameter 125 mm
Length 168.00 mm
Width 125.00 mm
Height 125.00 mm
Outer bulb [PICOS] G125
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Lumen maintenance at end of service lifetime 0.93
Colors & materials
Product color Gold
Housing color Gold
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant, Philips Hue
1) Via App
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 6.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.5 W
Networked standby power for CLS 0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.494
Chromaticity coordinate y 0.424
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 1160680
Model number AC41294
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075729247 Folding box
1
143 mm x 140 mm x 195 mm 188.00 g 3.90 dm³
4058075729254 Shipping box
4
304 mm x 290 mm x 207 mm 1016.00 g 18.25 dm³
Extended installation guide
G11201959_SMART_ZB
Declarations of conformity
SMART ZB FILAMENT
Declarations of conformity
LED SMART ZB CL

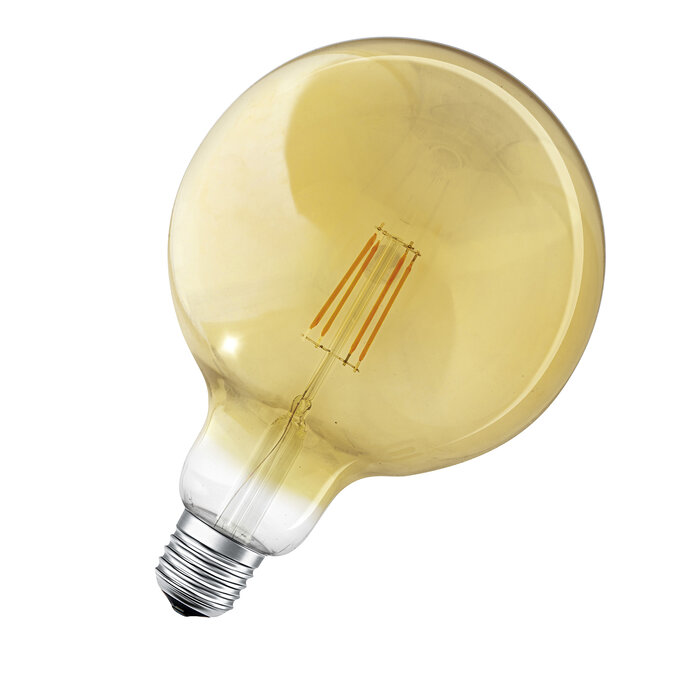

Product image: white background, diagonal
SMART BT FIL GLOBE E27 GD DIM 230V

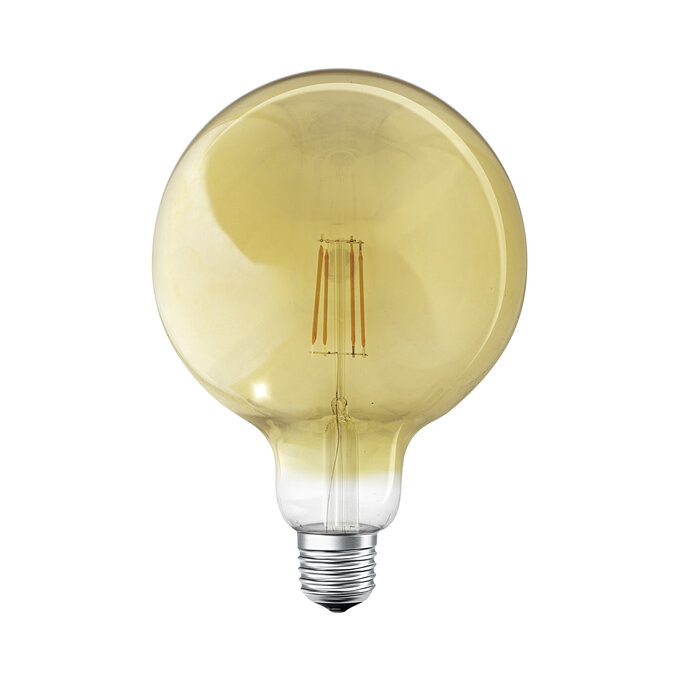

Product image: white background, upright
SMART BT FIL GLOBE E27 GD DIM 230V
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Bluethooth Zigbee assortment E-Com-Grafik 1200x1200 2023 EN
Product line drawing with letters
SMART BT FIL GLOBE E27 GD DIM 230V
Product line drawing with numbers
SMART BT FIL GLOBE E27 GD DIM 230V
Product line drawing, front, no dimensions
SMART BT FIL GLOBE E27 GD DIM 230V

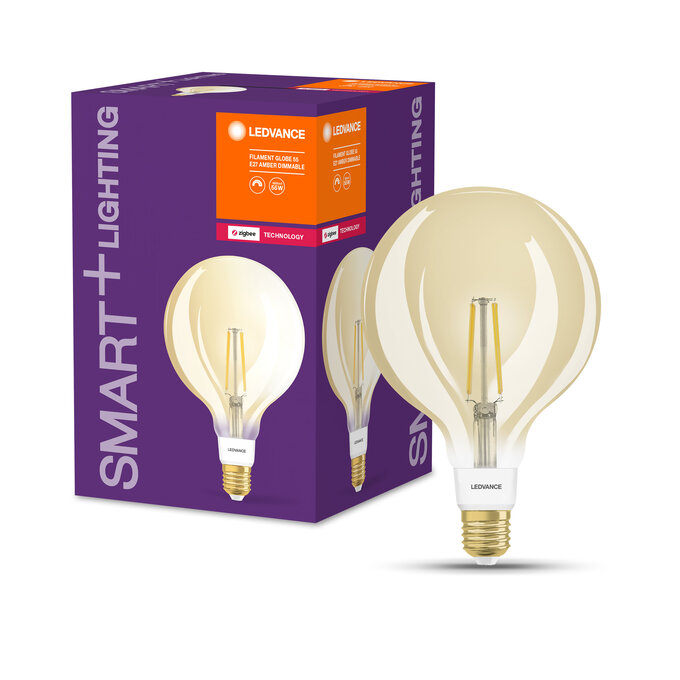

Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB G55D 6W FIL GD E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB G52D 6W FIL GD E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB G53D 6W FIL GD E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB G53D 6W 824 FILGD E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB G53D 6W 824 FILGD E27 MiPRC
Packaging image, frontal
SH FC ZB G55D 6W FIL GD E27 MiPRC
Packaging image, spacial
SH FC ZB G55D 6W FIL GD E27 MiPRC
Energy label
EL-4058075729247-AC412 94

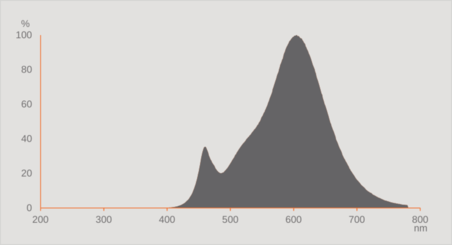

Spectral power distribution
LISO spectral power distribution 2700K CRI80 v1
EAN ELDAS number
4058075729247 941842240
