Easy control and automation of compatible SMART+ WiFi products based on contact status
Notification of contact status change
Monitors the history of contact status
Areas of application
Smart home indoors
Wherever smart control and automation are to be implemented in compatible smart home systems
Product features
Compatible with Amazon Alexa and Google Home

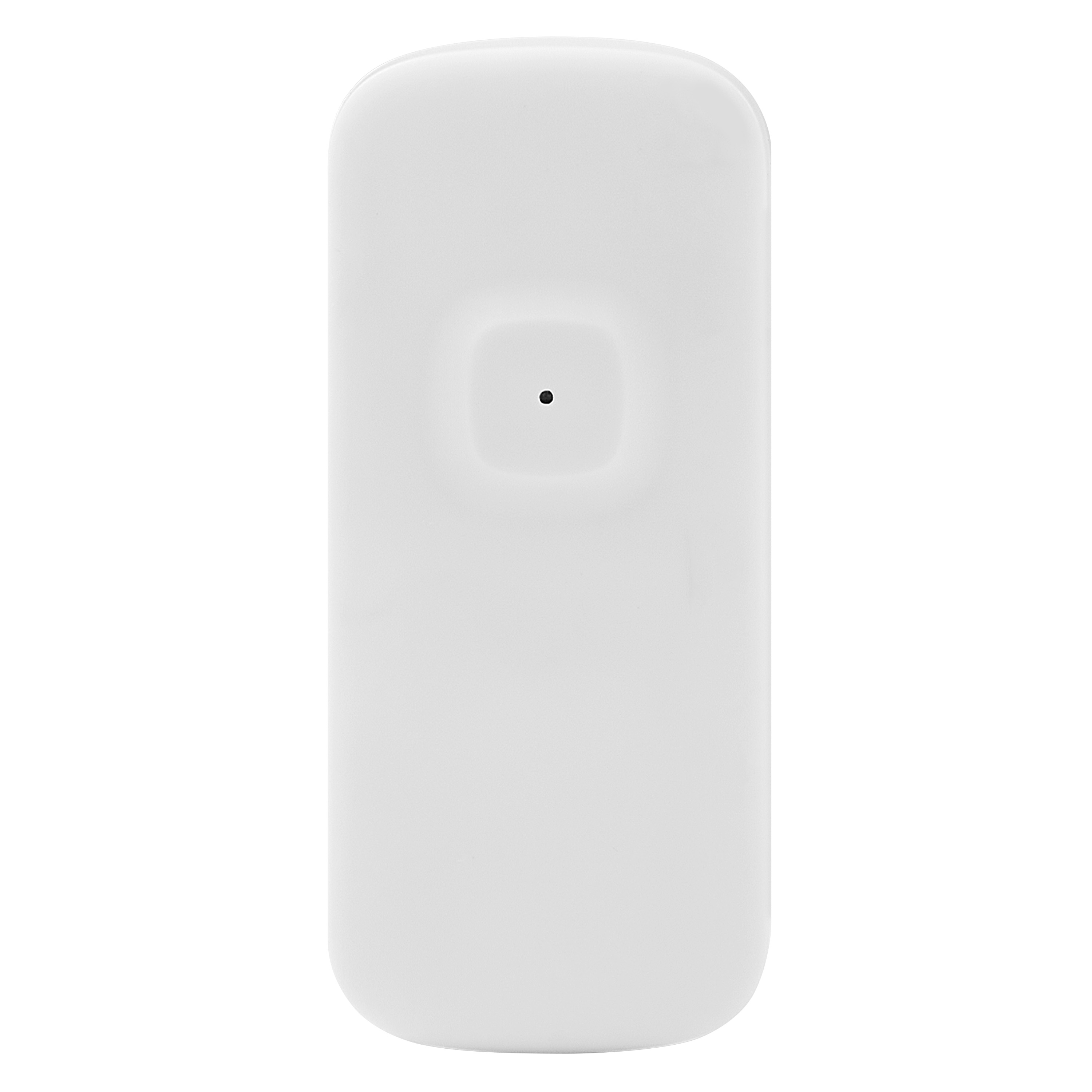

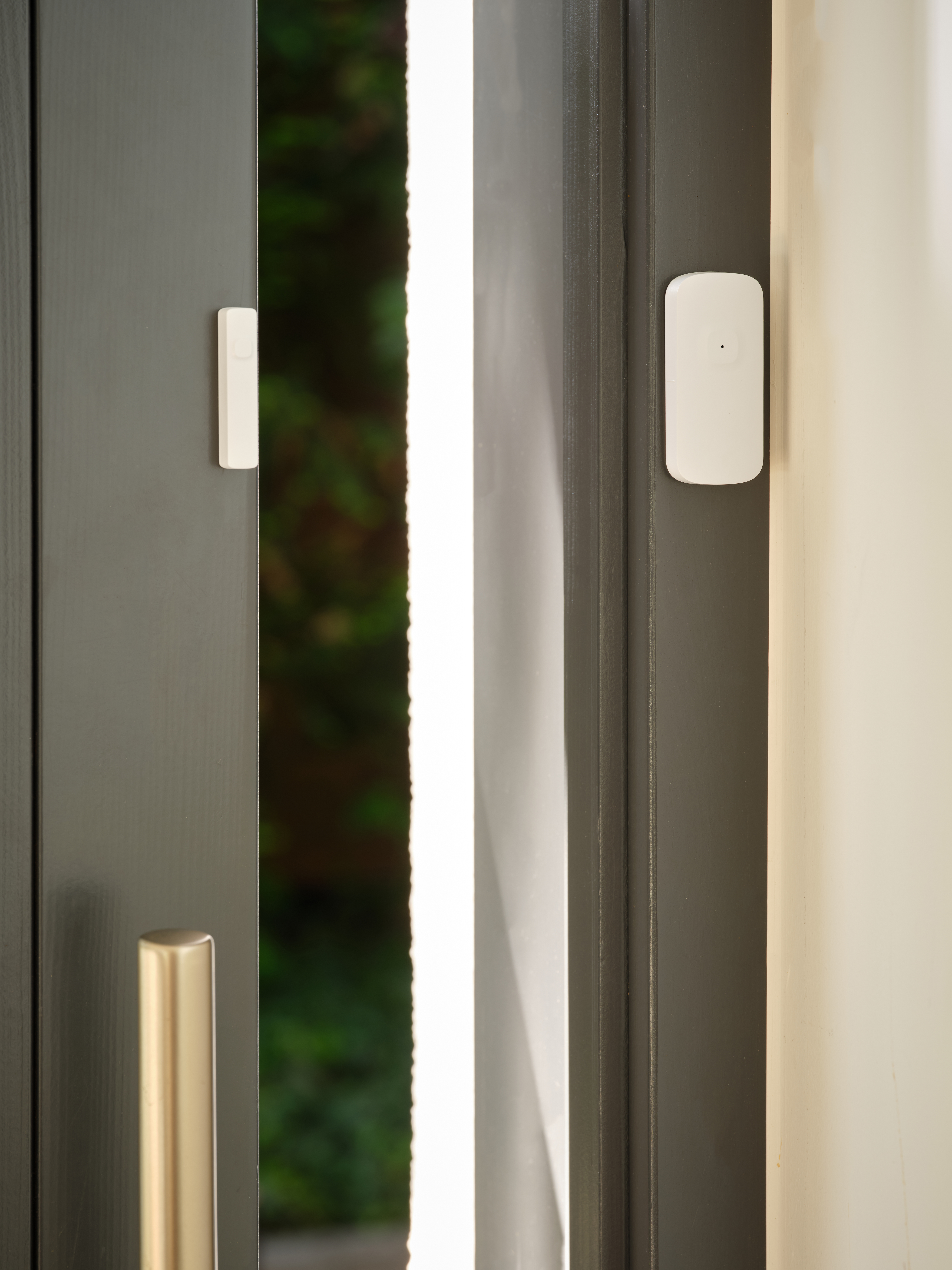

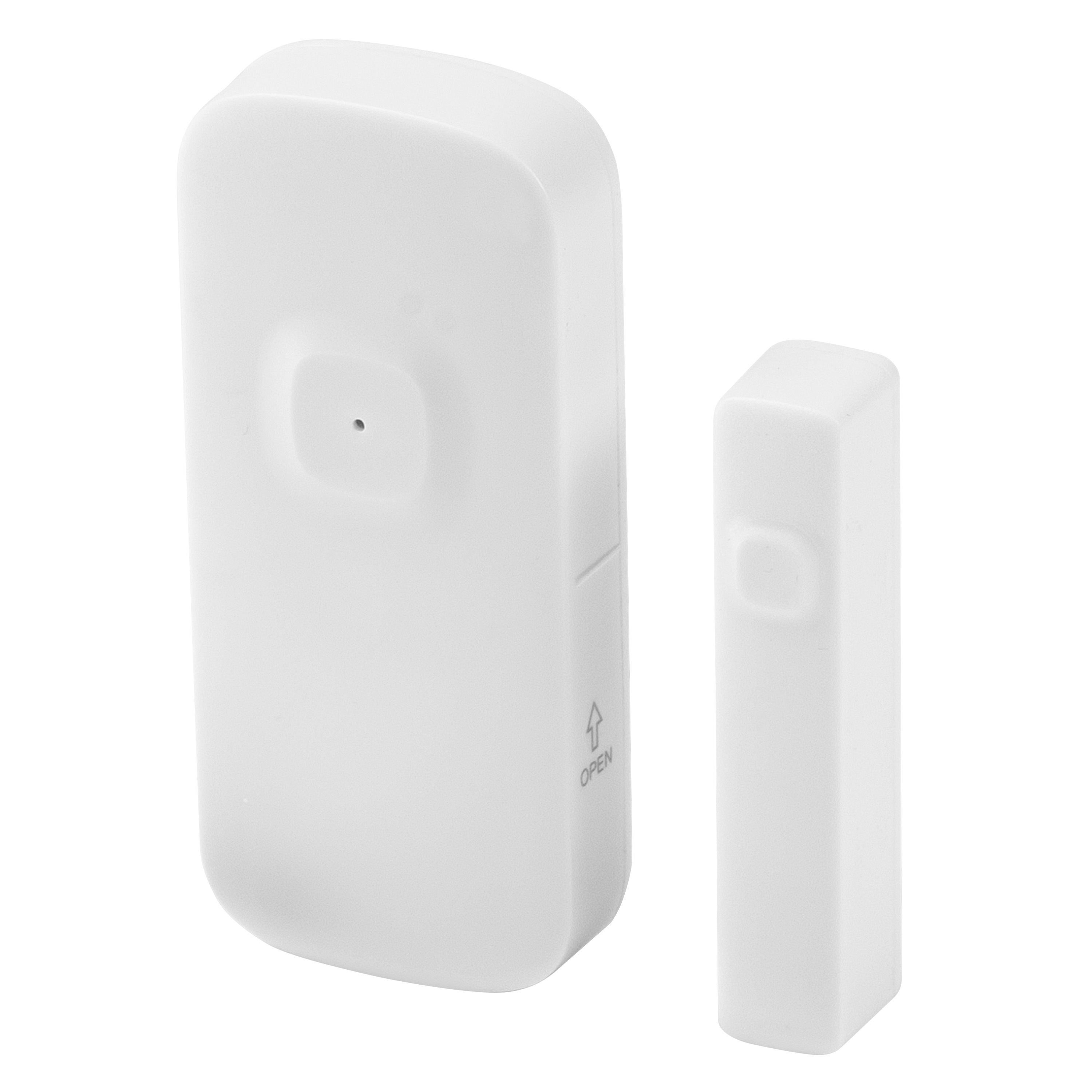

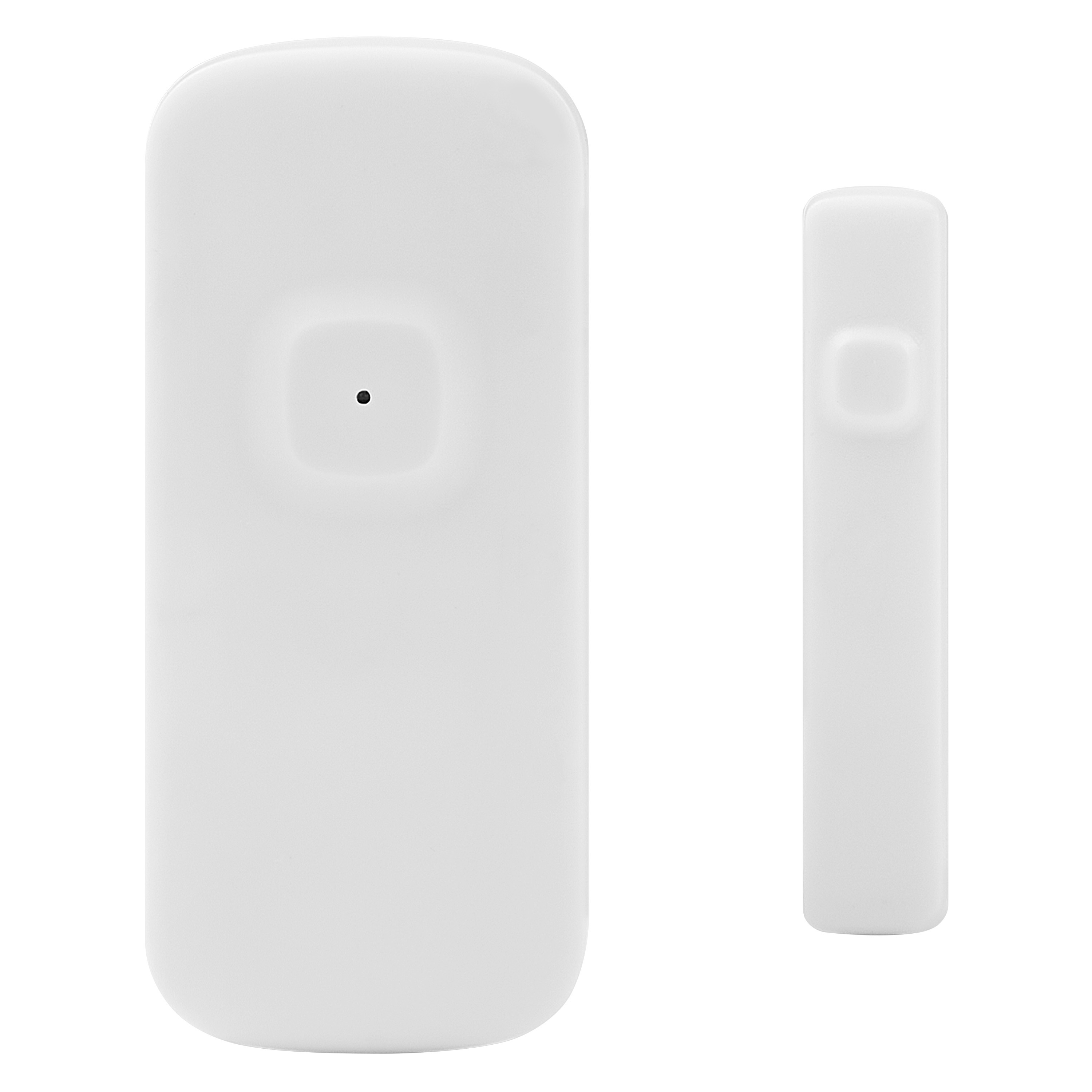

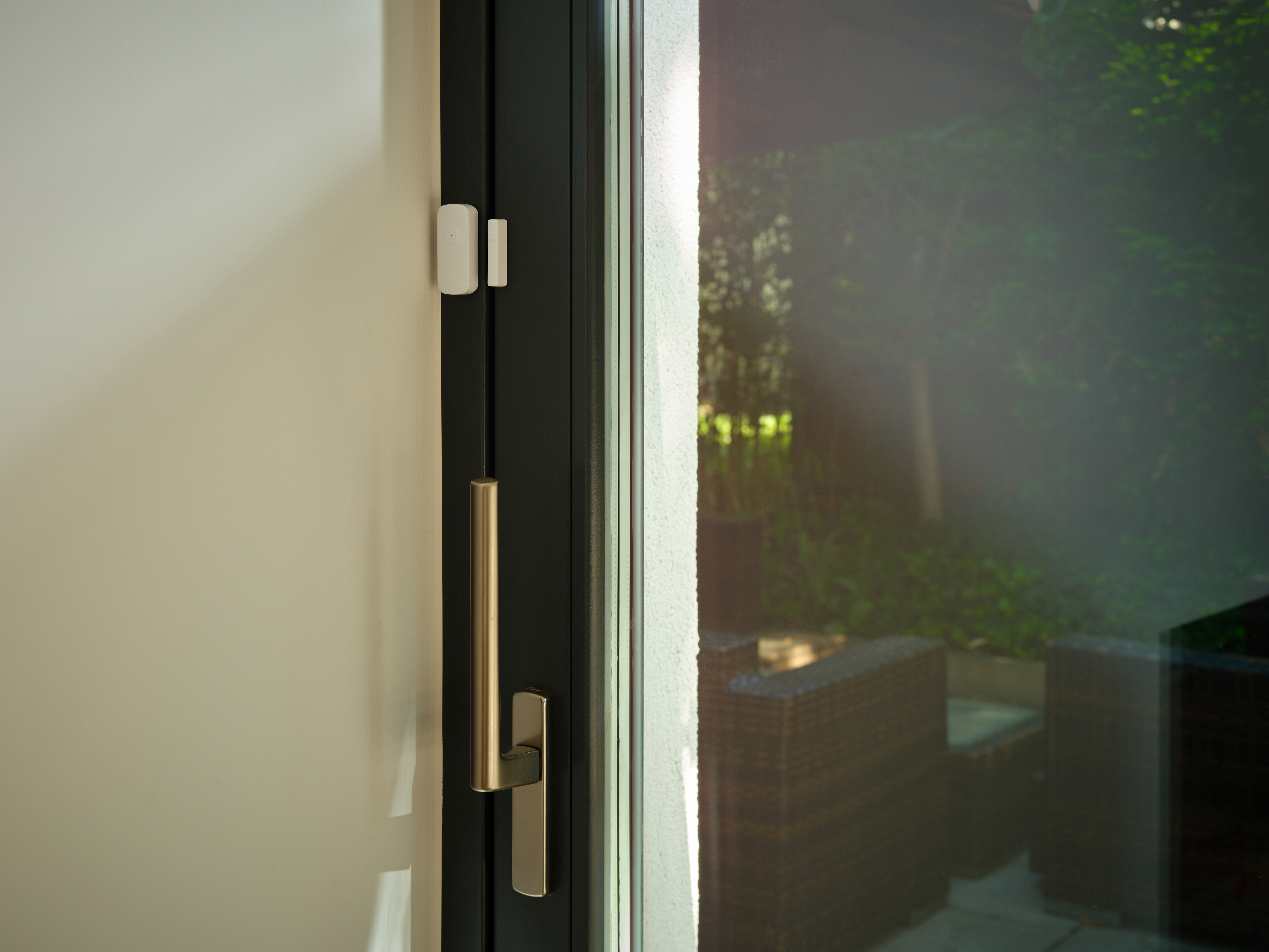

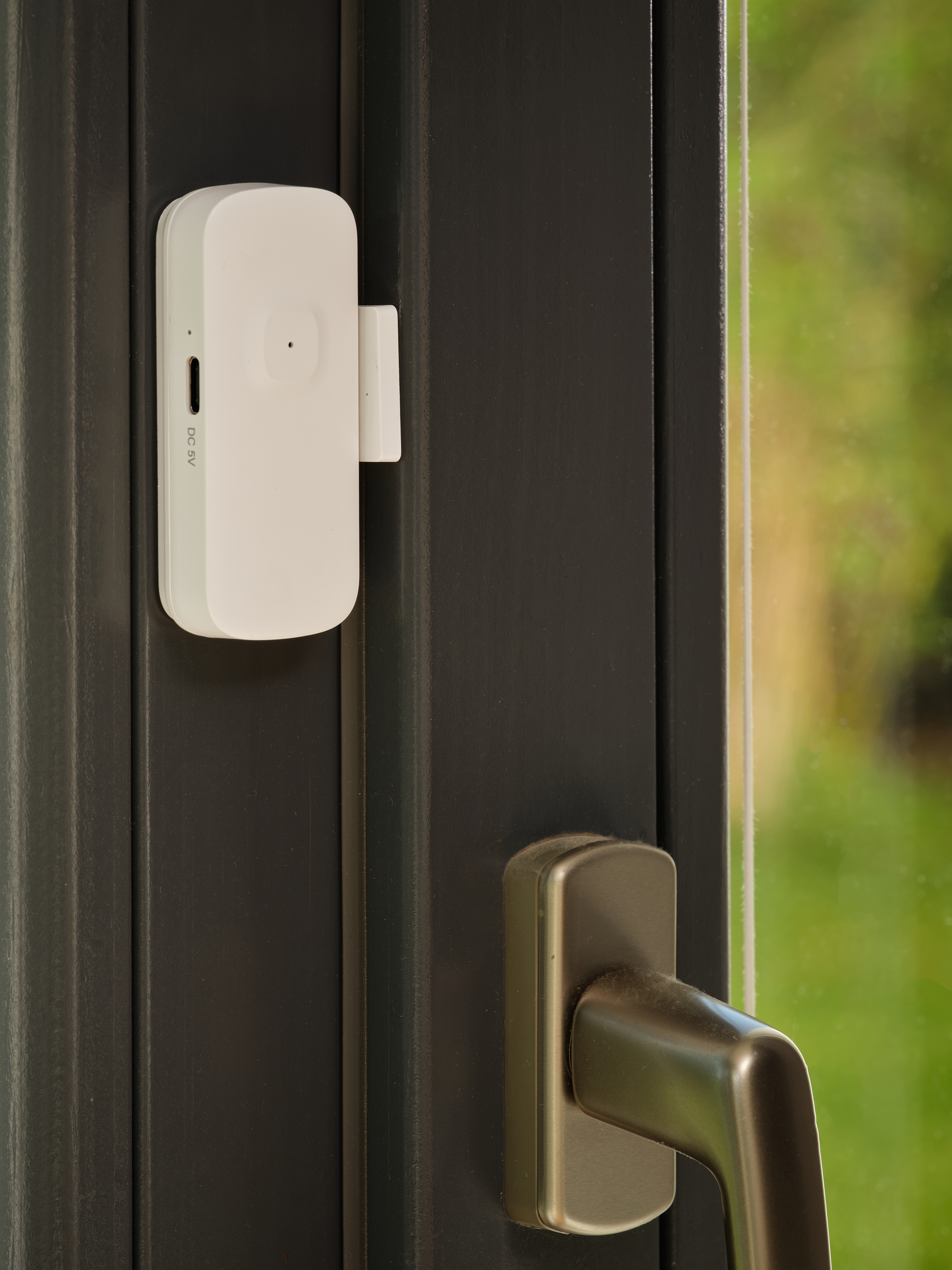

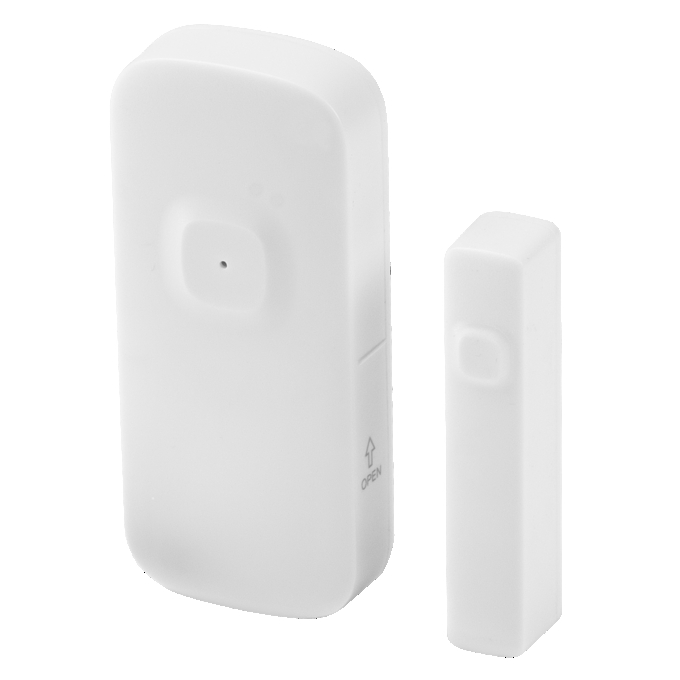

Wireless smart contact sensor for status of windows and doors (open/close)

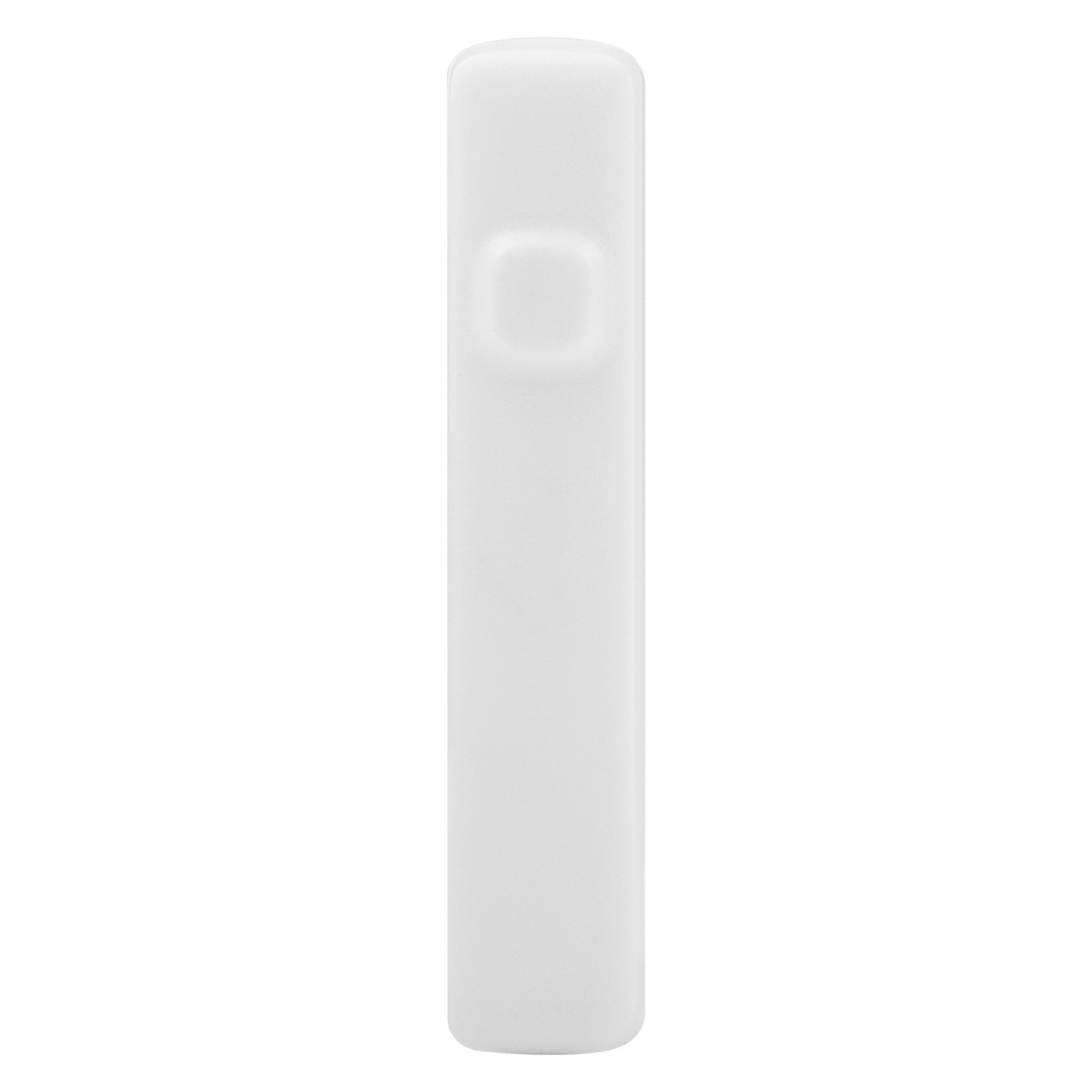

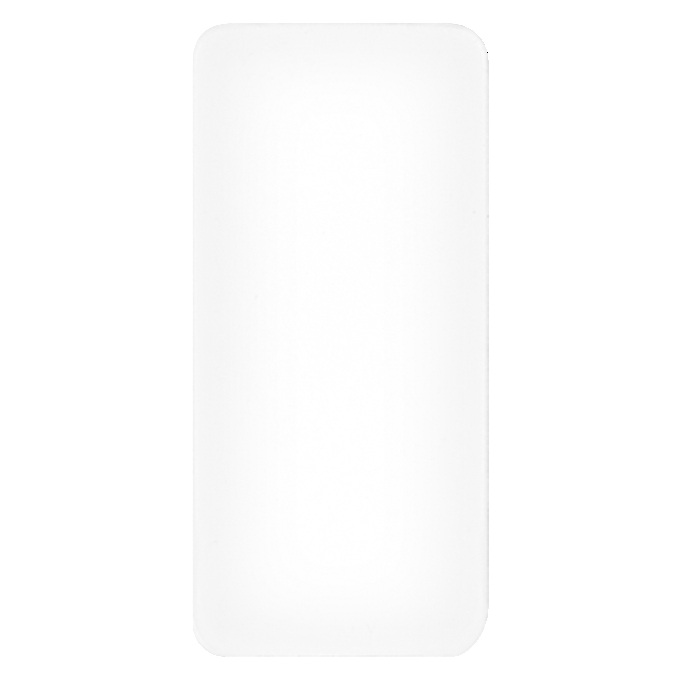

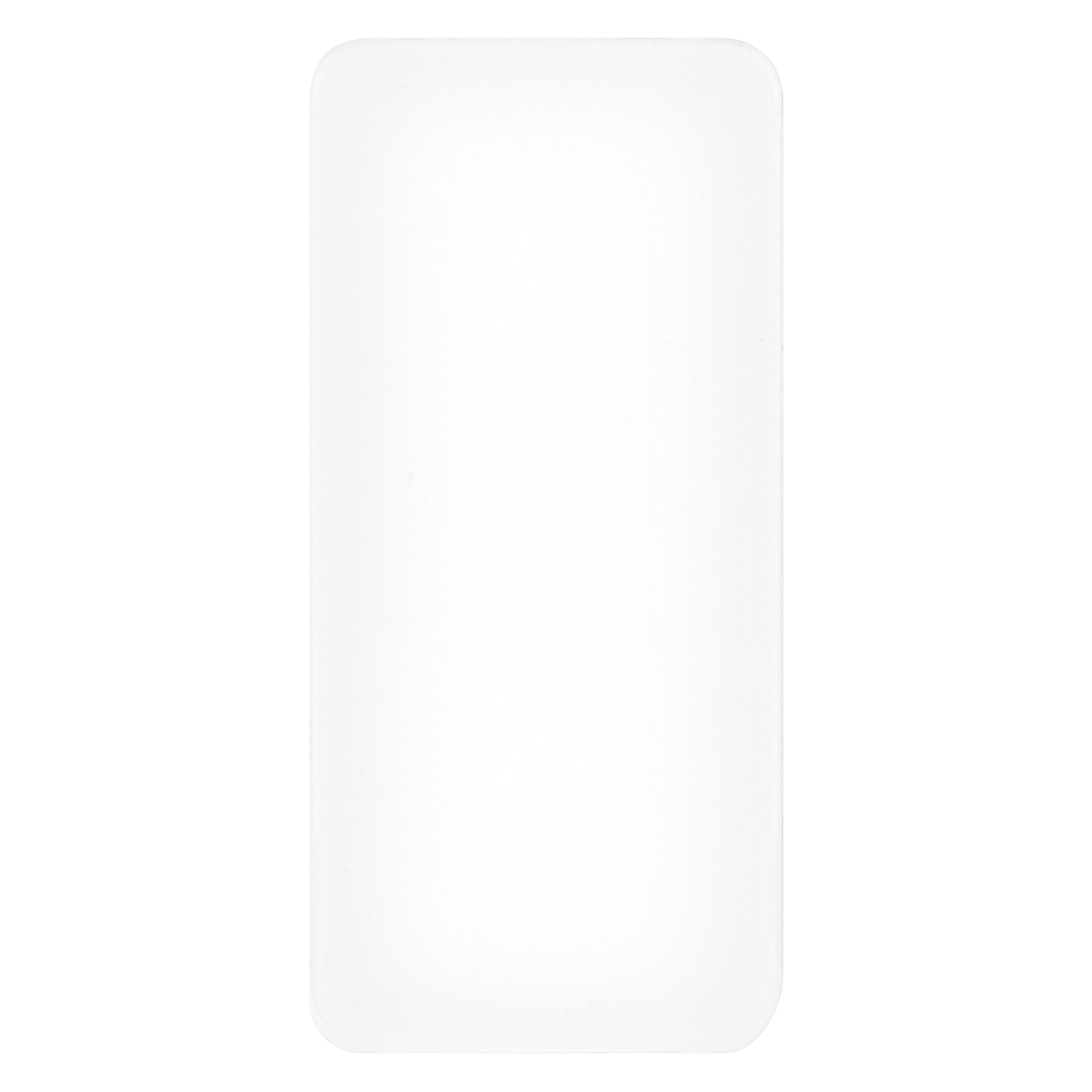

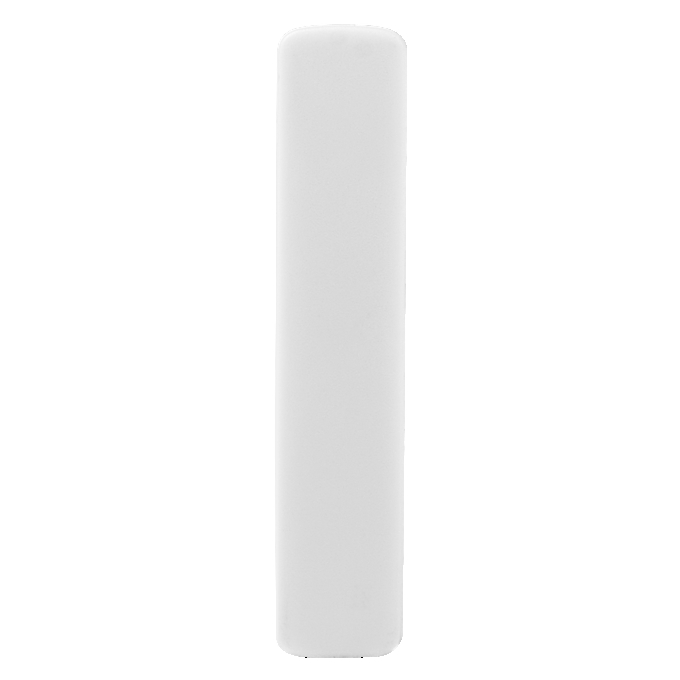

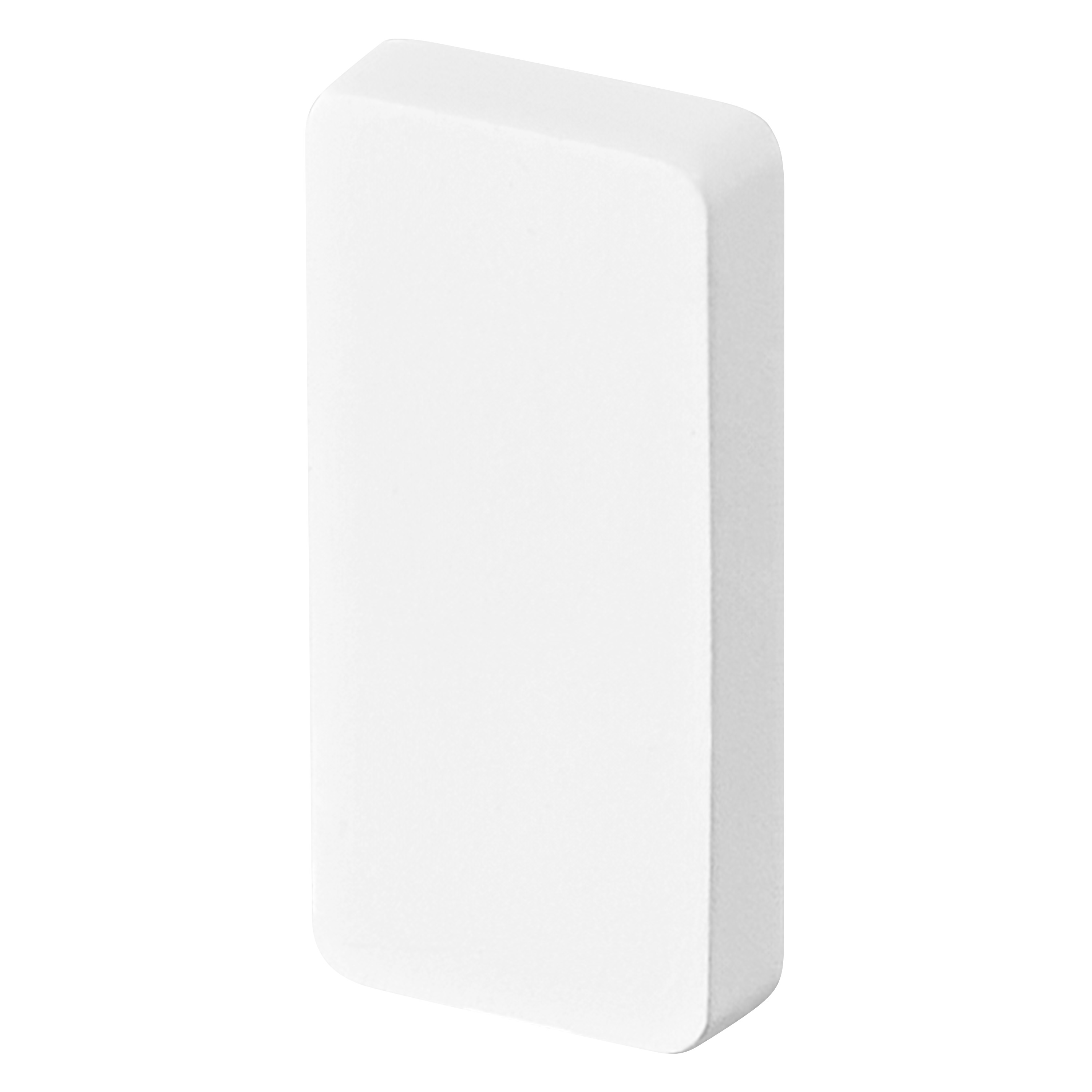

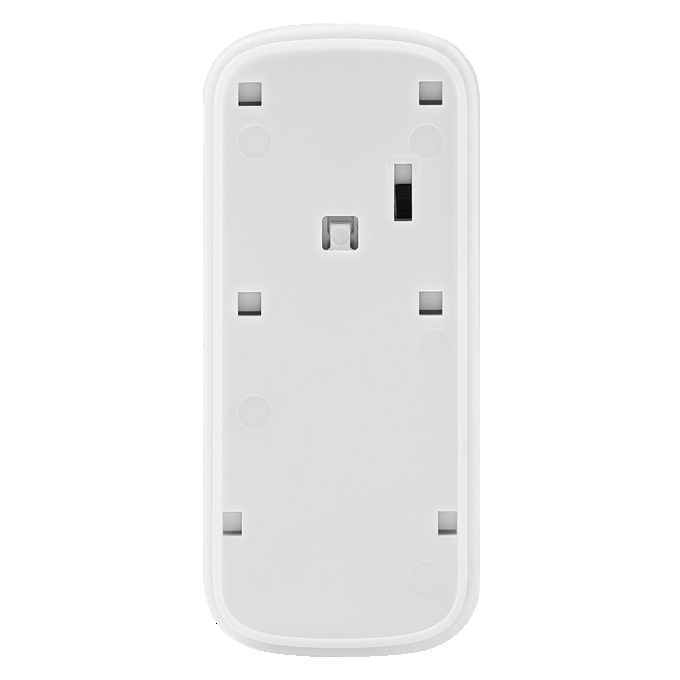

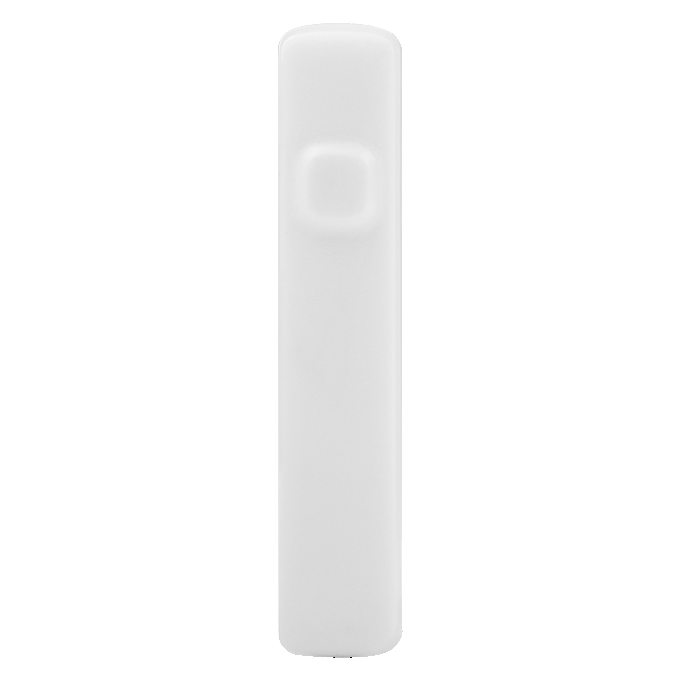

Simple and flexible mounting with adhesive tape and a choice of two magnet shapes depending on the application
Rechargeable battery and improved battery life (20 months operating time per charge with 5 detections per day)
Network protocol: WiFi (2.4 GHz)

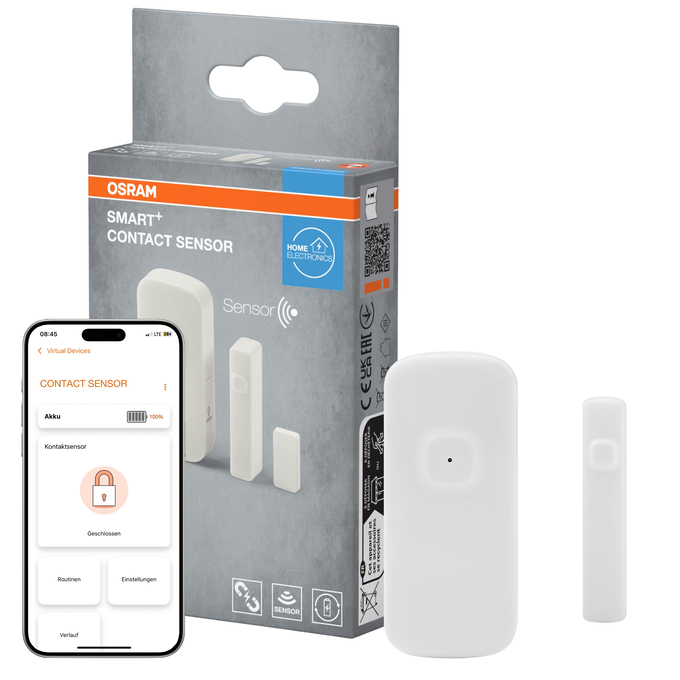

Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Check the battery level by SMART+ WiFi APP
Equipment / Accessories

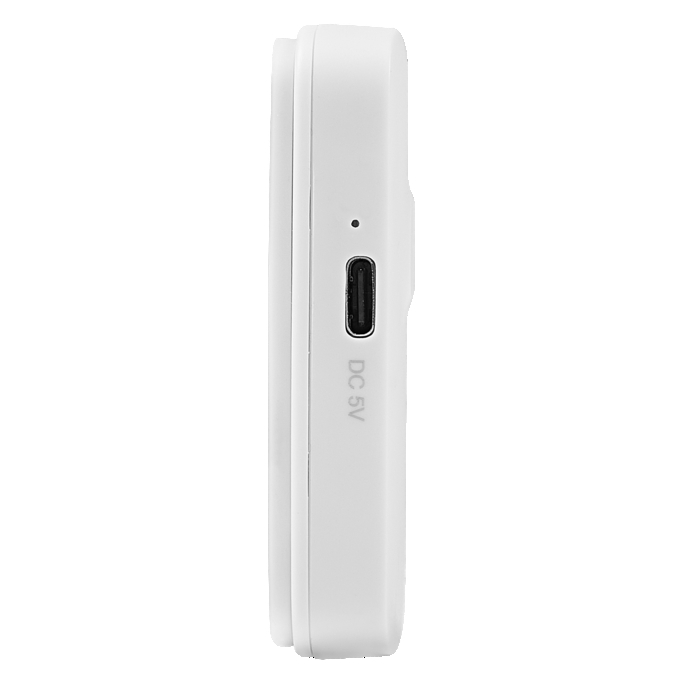

Rechargeable battery integrated and easy charging via USB-C

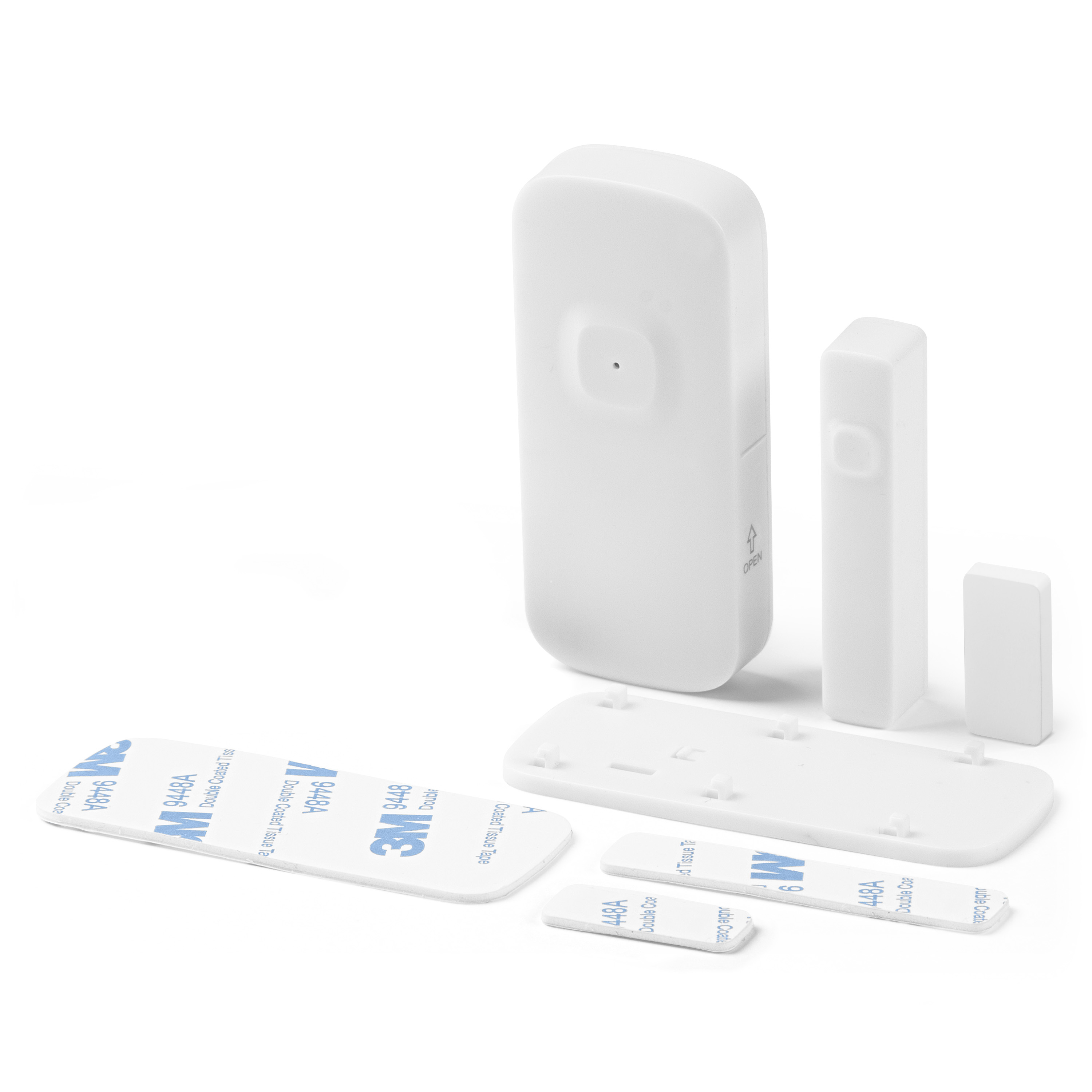

Charging cable and installation kit included
For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal voltage
5 V
Mains frequency
0 Hz
Dimensions & Weight
Product weight
46.8 g
Length
72.00 mm
Width
31.00 mm
Height
15.50 mm
Colors & materials
Product color
White
Body material
Plastic
Temperatures & operating conditions
Ambient temperature range
-10…+50 °C
Capabilities
Dimmable
No
Compatible smart home technology
Amazon Alexa, Google Assistant
BATTERY
Battery size [GMS]
Others
Certificates & Standards
Standards
CE, UKCA
Protection class
III
Type of protection
IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging
80 %
1)
Minimum percentage of recycled content in the product
0 %
1)
Product recyclability
Mostly recyclable product 1)
Packaging recyclability
Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code
Packaging unit (Pieces/Unit)
Dimensions (length x width x height)
Gross weight
Volume
4099854419188

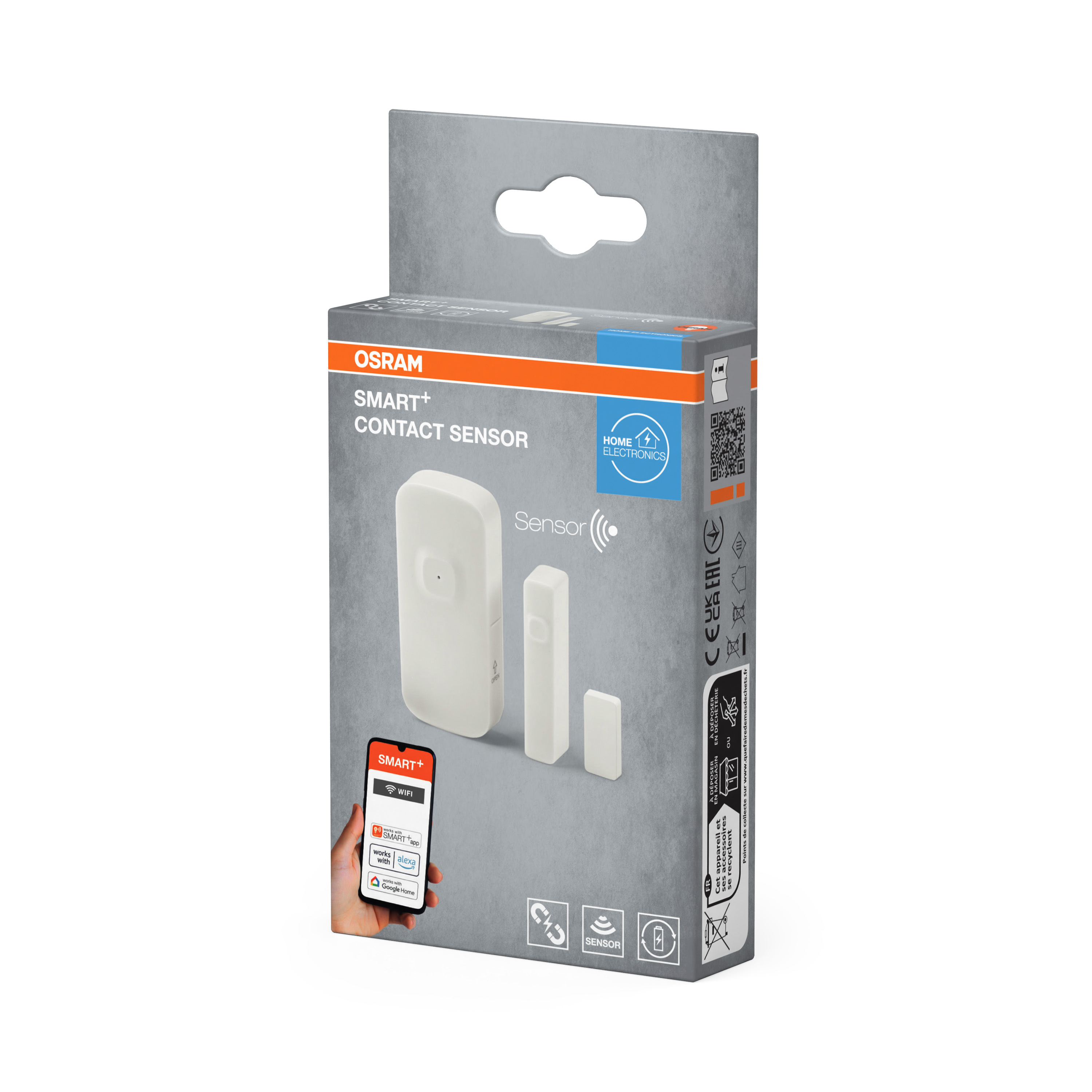

Folding box 1
23 mm x 78 mm x 149 mm
64.00 g
0.27 dm³
4099854419195
Shipping box 8
166 mm x 102 mm x 165 mm
590.00 g
2.79 dm³
