Easy control and automation of compatible SMART+ WiFi products based on detected motions
Notification of detected motion
Monitors the history of motion detections
Areas of application
Smart Home in indoor and outdoor
Wherever smart control and automation are to be implemented in compatible smart home systems
Product features
Compatible with Amazon Alexa and Google Home
Wireless smart PIR motion sensor for motion detection up to 5 meters

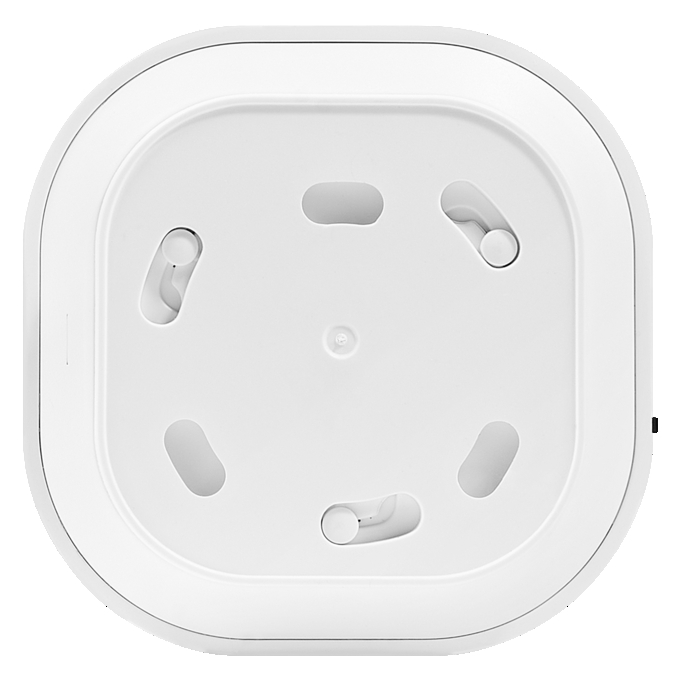

Simple and flexible installation with a choice between adhesive tape and screws
Rechargeable battery and improved battery life (8 months operating time per charge with 10 detections per day)
Product can optionally be supplied with permanent stationary power via USB-C
Network protocol: WiFi (2.4 GHz)
Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Check the battery level by SMART+ WiFi APP
Equipment / Accessories

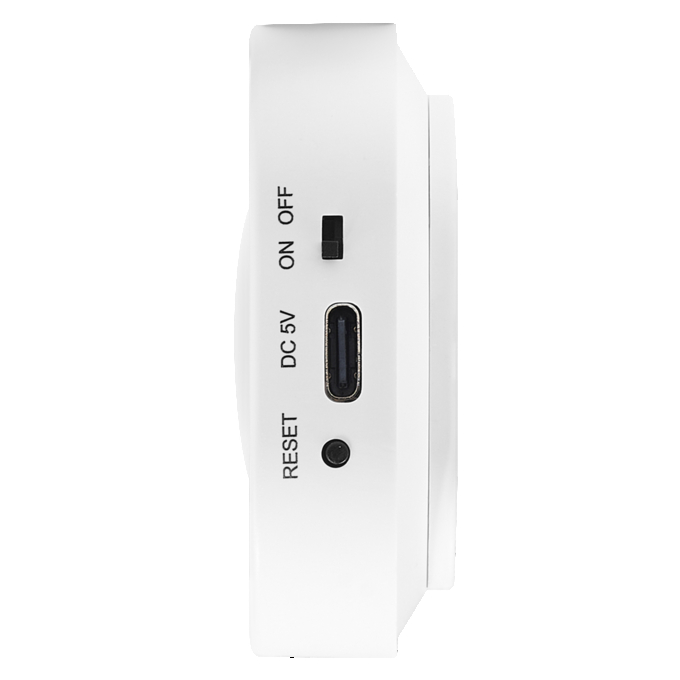

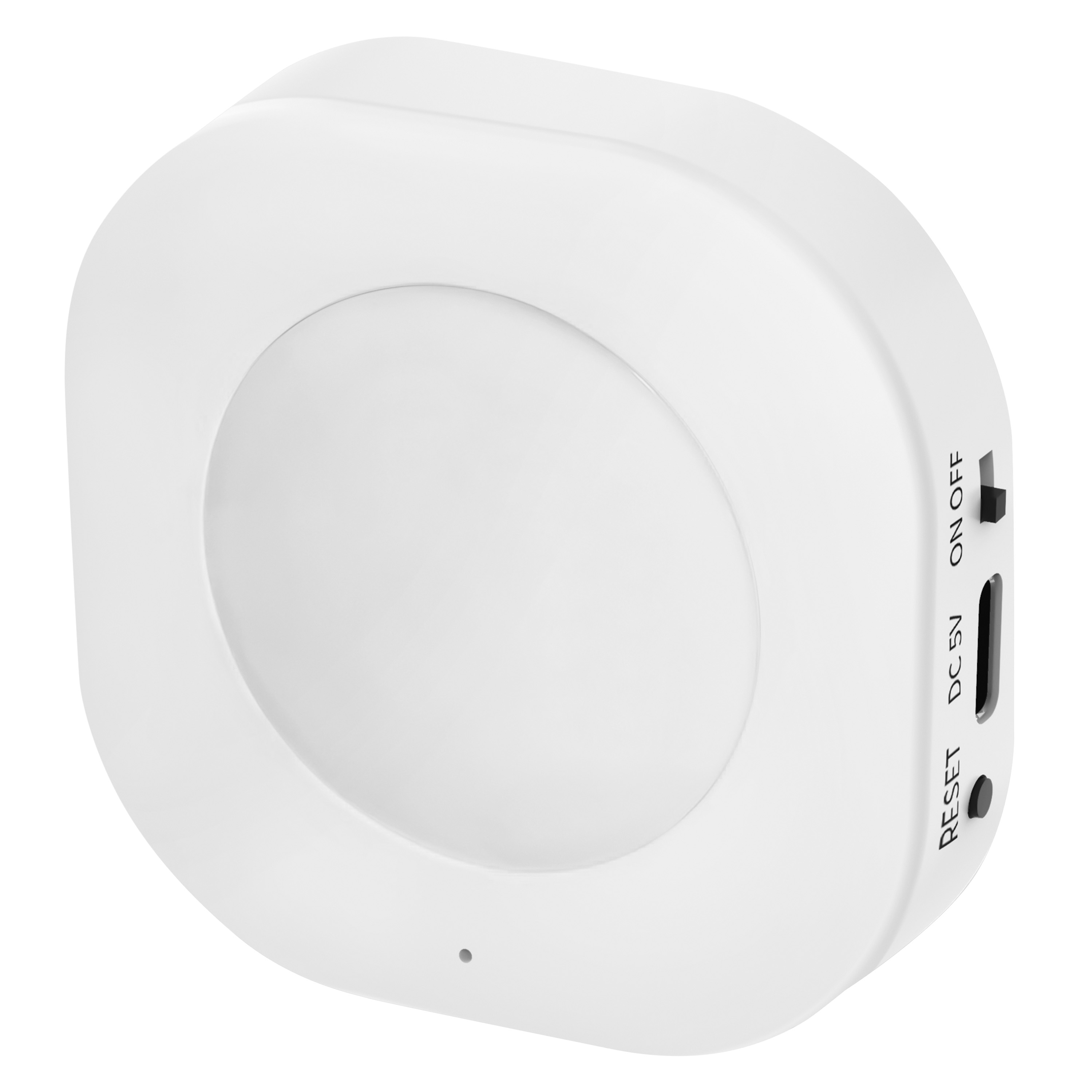

Rechargeable battery integrated and easy charging via USB-C

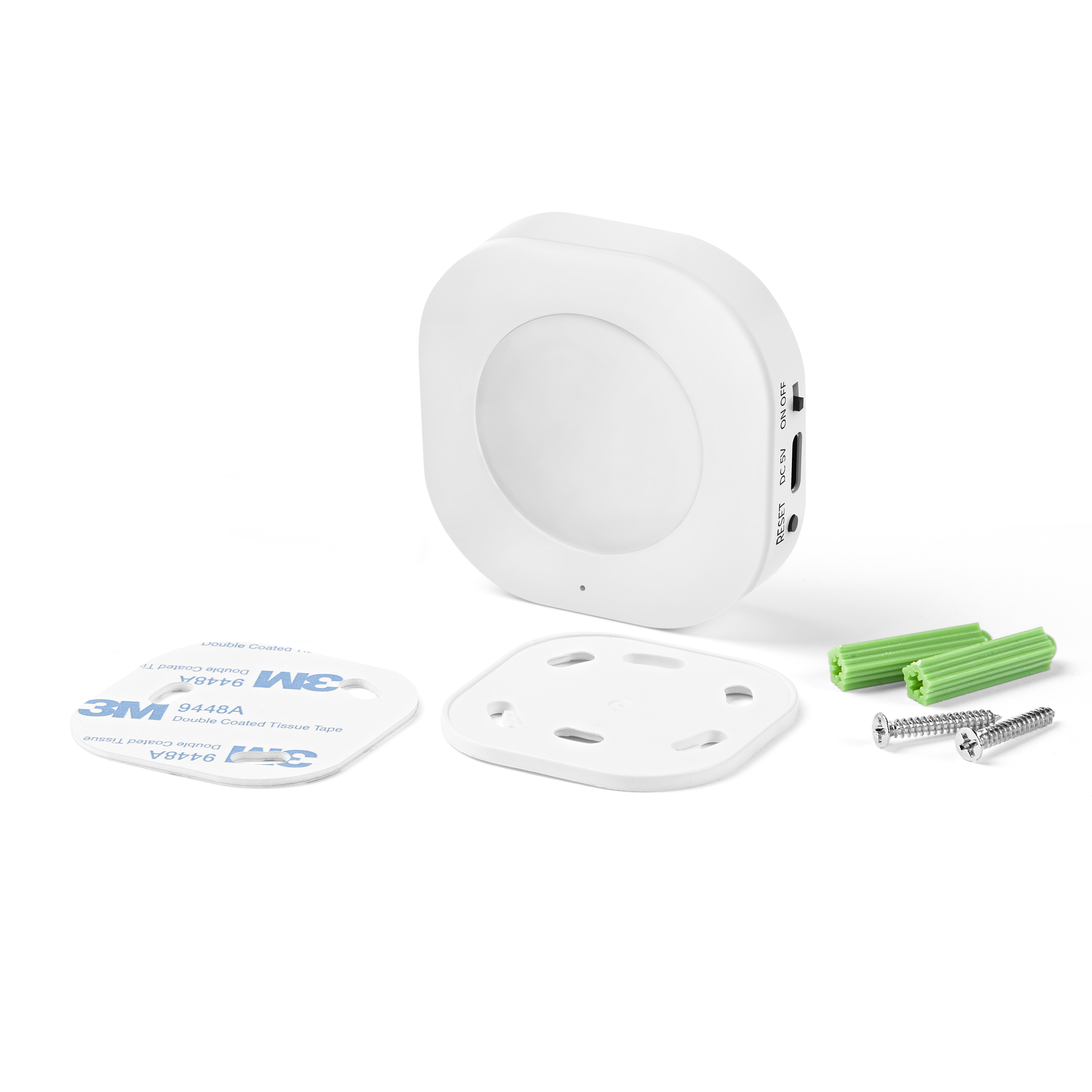

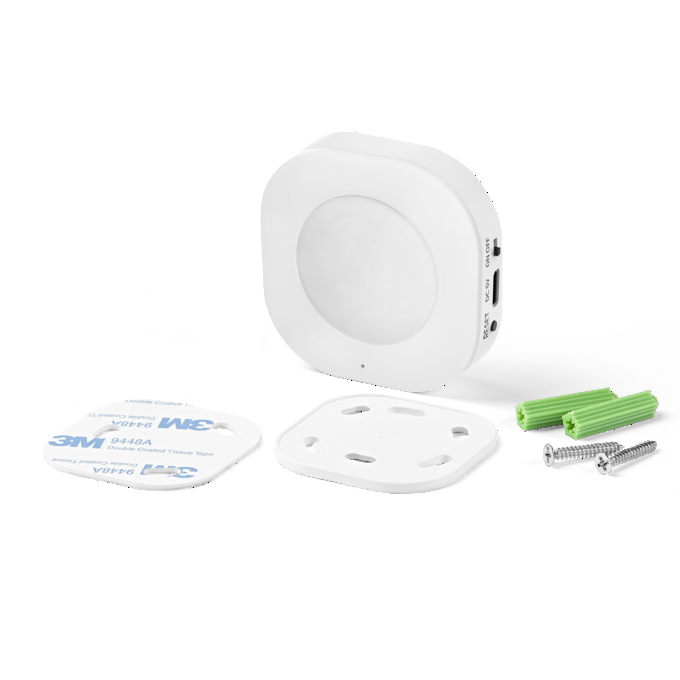

Charging cable and installation kit included
For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal voltage
5 V
Mains frequency
0 Hz
Dimensions & Weight
Product weight
47.2 g
Length
60.30 mm
Width
60.30 mm
Height
20.50 mm
Colors & materials
Product color
White
Body material
Plastic
Temperatures & operating conditions
Ambient temperature range
-10…+50 °C
Capabilities
Dimmable
No
Compatible smart home technology
Amazon Alexa, Google Assistant
BATTERY
Battery size [GMS]
Others
Certificates & Standards
Standards
CE, UKCA
Protection class
III
Type of protection
IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging
80 %
1)
Minimum percentage of recycled content in the product
0 %
1)
Product recyclability
Mostly recyclable product 1)
Packaging recyclability
Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code
Packaging unit (Pieces/Unit)
Dimensions (length x width x height)
Gross weight
Volume
4099854419164
Folding box 1
31 mm x 78 mm x 149 mm
64.00 g
0.36 dm³
4099854419171
Shipping box 8
166 mm x 134 mm x 165 mm
607.00 g
3.67 dm³
User instruction / safety instructions WIFI_MOTION_SENSOR
