WORKLIGHT TRIPOD CH PLUG
LED Worklight Tripod CH Plug 2X30W
GTIN: 4099854572357
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Foldable for easy storage
- Energy savings of up to 80% compared to halogen lamp worklights
- Semi-frosted, tempered glass cover for uniform illumination
Areas of application
- Renovation
- Garages
- Basement
- Workshops
Product features
- Available with 1 or 2 luminaire heads
- Rotation angle luminaire head: 360°, swiveling: 180°
- Type of protection, luminaire head and housing: IP65
- Type of protection, plug: IP55
- Height adjustment of tripod up to 1.8 m total height
- Quick-release fastener for adjustment of luminaire head angle
- Type J plug (SN 441011)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 60.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 290.000 mA |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 5400 lm |
| Total luminous flux of contained light sources | 6000 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Luminous intensity | 2000 cd |
| Flickering metric (Pst LM) | <1 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 780.00 mm |
| Height | 1750.00 mm |
| Width | 680.00 mm |
| Product weight | 3900.00 g |
| Cable length | 2000 mm |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum|Steel |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Plug type J (CH) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK04 |
| Dimmable | No |
| Mounting type | Standing |
| Mounting location | Floor |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854572357 | Folding box 1 |
189 mm x 189 mm x 644 mm | 4685.00 g | 23.00 dm³ |
| 4099854572364 | Shipping box 4 |
395 mm x 395 mm x 665 mm | 18740.00 g | 103.76 dm³ |
User instruction / safety instructions
LED WORKLIGHT TRIPOD
LED WORKLIGHT TRIPOD
Legal information
Safety insert G11220418
Safety insert G11220418
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration LED WORKLIGHT
CE Declaration LED WORKLIGHT

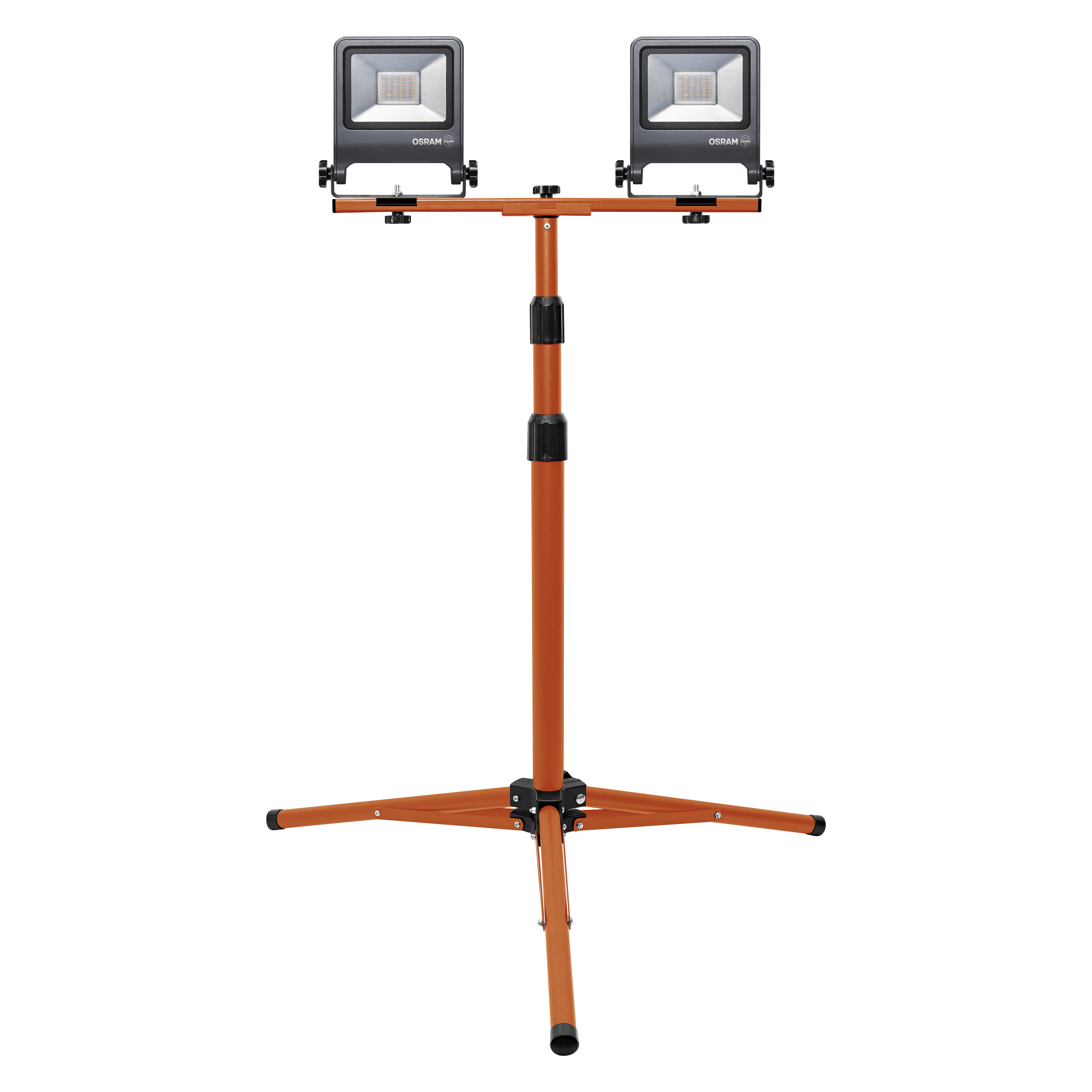

Product image: white background, upright
LED WORKLIGHT 2X30W TRIPOD CH PLUG
LED WORKLIGHT 2X30W TRIPOD CH PLUG

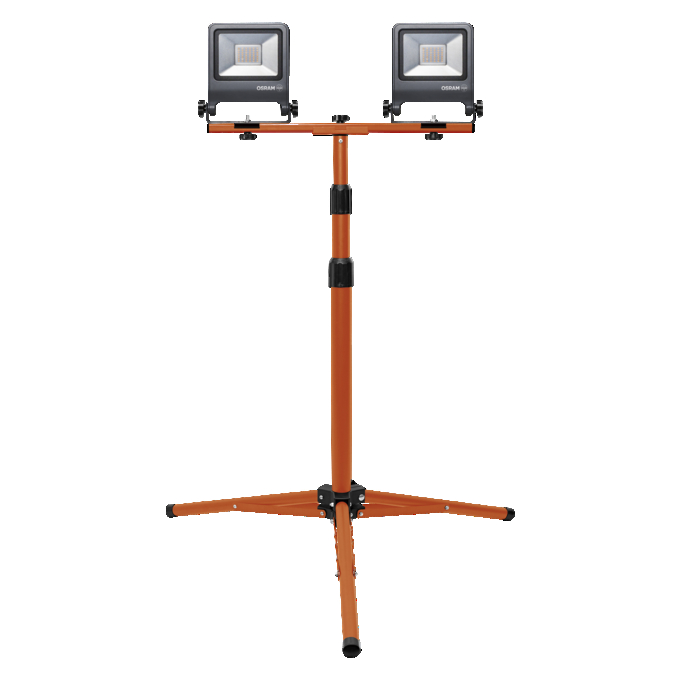

Product image: white background, upright, alternative image
LED WORKLIGHT 2X30W TRIPOD CH PLUG
LED WORKLIGHT 2X30W TRIPOD CH PLUG

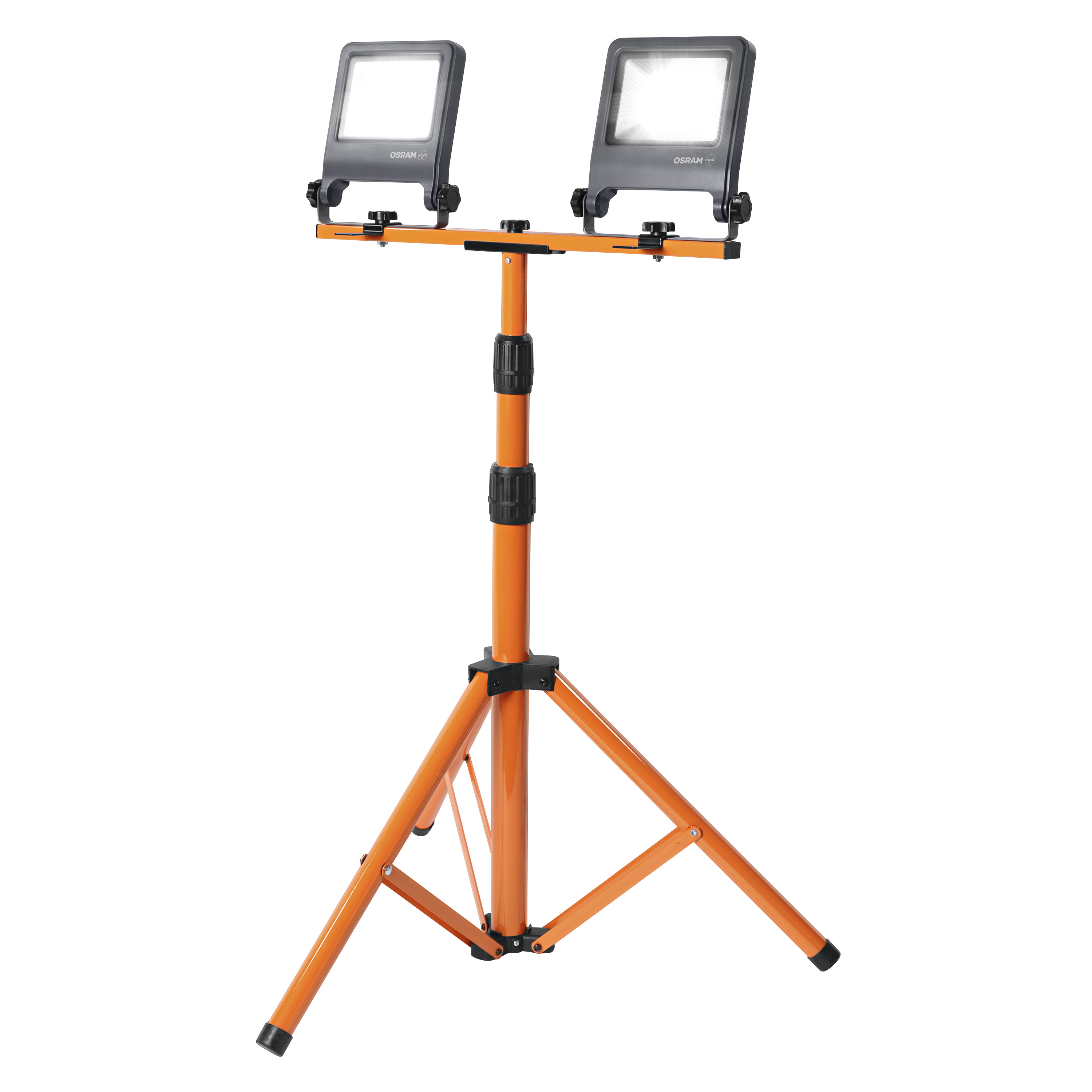

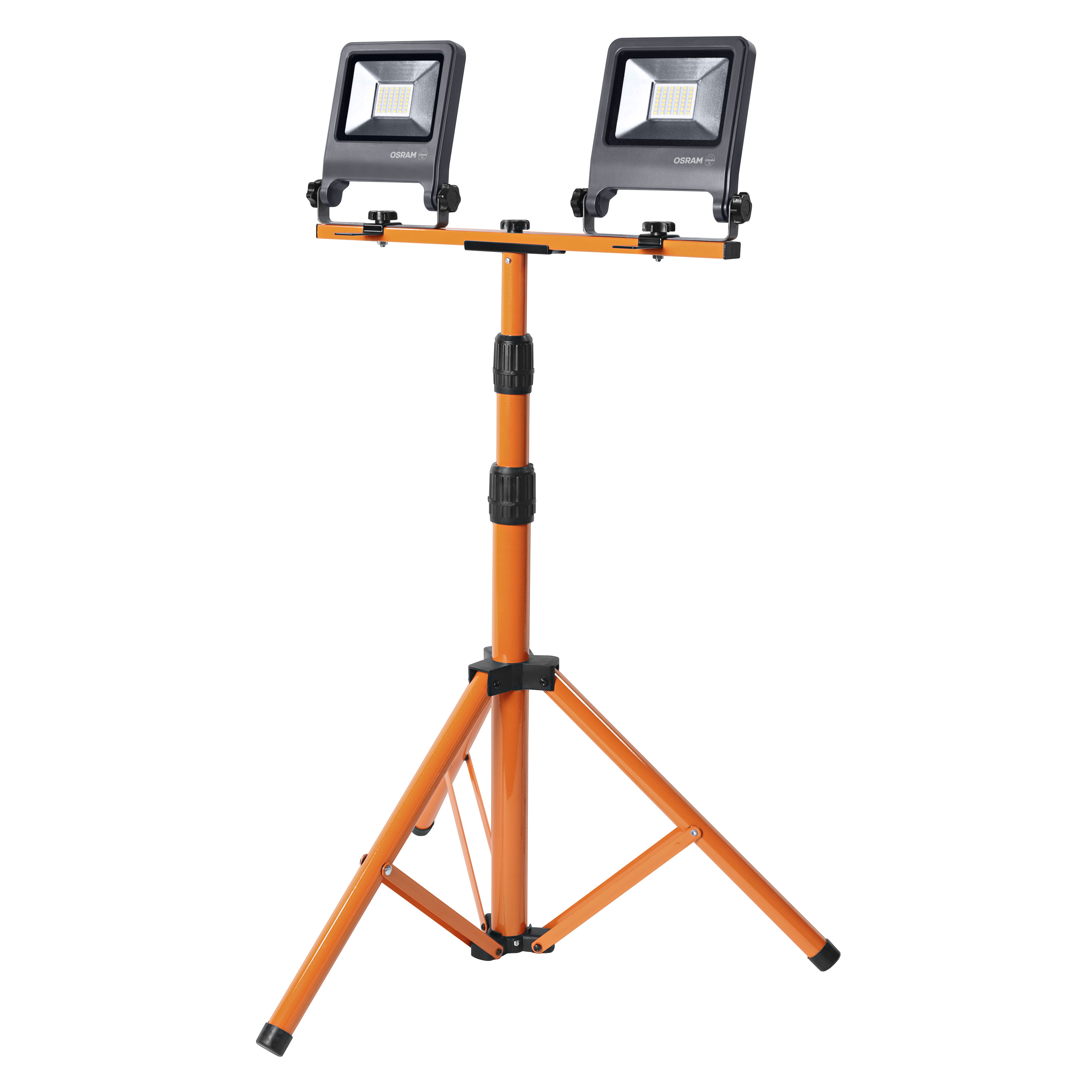

Product image: white background, upright, switched on
LED WORKLIGHT 2X30W TRIPOD CH PLUG
LED WORKLIGHT 2X30W TRIPOD CH PLUG
Product line drawing with letters
LED WORKLIGHT 2X30W TRIPOD CH PLUG OSRAM
LED WORKLIGHT 2X30W TRIPOD CH PLUG OSRAM
Product line drawing with numbers
LED WORKLIGHT 2X30W TRIPOD CH PLUG OSRAM
LED WORKLIGHT 2X30W TRIPOD CH PLUG OSRAM
Product line drawing, front, no dimensions
LED WORKLIGHT 2X30W TRIPOD CH PLUG OSRAM
LED WORKLIGHT 2X30W TRIPOD CH PLUG OSRAM

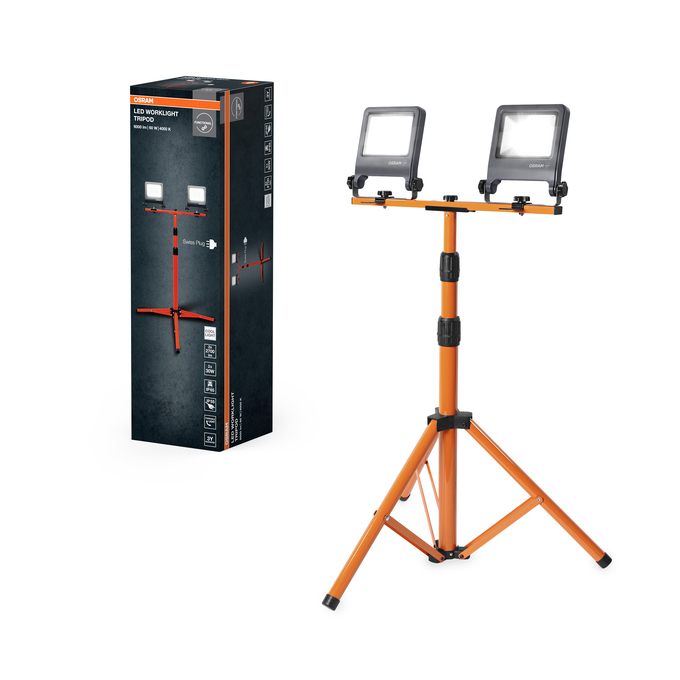

Combo Shot = Product Beauty Shot + Packaging Image
