ENDURA STYLE LANTERN MODERN
ENDURA Style Lantern Modern 90cm 12W
GTIN: 4099854453434
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
Areas of application
- Outdoor use (IP54)
- Building facades
- Gardens, balconies and other outdoor areas
- Pathway lighting
- Driveways
Product features
- Very bright and functional outdoor LED luminaires
- Die-cast aluminum housing
- Available as wall and bollard luminaires
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 65.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 28 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 70 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 610 lm |
| Luminous efficacy | 50 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 360 ° |
Dimensions & Weight
| Diameter | 110.00 mm |
| Height | 900.00 mm |
| Product weight | 3100.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854453434 | Folding box 1 |
194 mm x 194 mm x 936 mm | 4120.00 g | 35.23 dm³ |
| 4099854453441 | Shipping box 2 |
405 mm x 205 mm x 955 mm | 8240.00 g | 79.29 dm³ |
User instruction / safety instructions
ENDURA STYLE LANTERN MODERN
ENDURA STYLE LANTERN MODERN
Legal information
Safety insert G11219578
Safety insert G11219578
Declarations of conformity
ENDURA STYLE LUM
ENDURA STYLE LUM
Product image: white background, upright
ENDURA STYLE Lantern Modern 90CM 12W DG
ENDURA STYLE Lantern Modern 90CM 12W DG

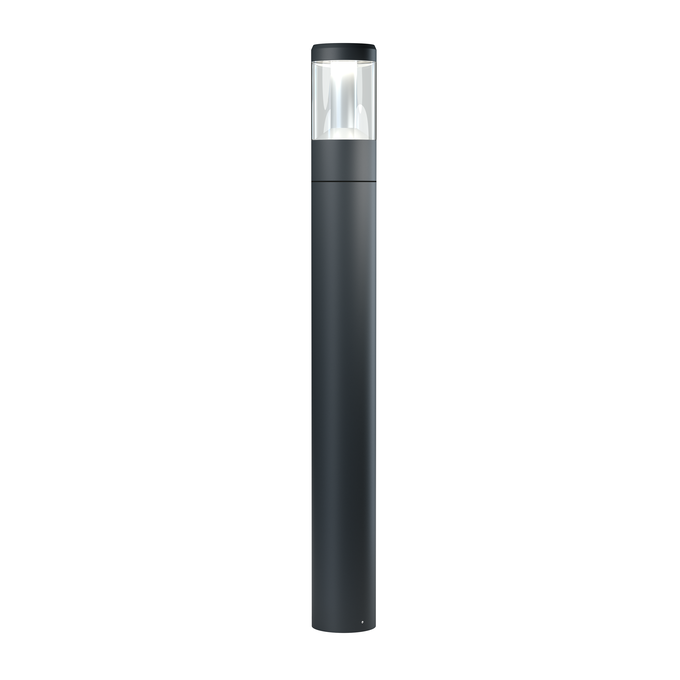

Product image: white background, upright, switched on
ENDURA STYLE Lantern Modern 90CM 12W DG (2)
ENDURA STYLE Lantern Modern 90CM 12W DG (2)
Product line drawing with letters
PG ENDURA STYLE Lantern Modern 90cm MIPRC
PG ENDURA STYLE Lantern Modern 90cm MIPRC
Product line drawing with numbers
PG ENDURA STYLE Lantern Modern 90cm MiPRC
PG ENDURA STYLE Lantern Modern 90cm MiPRC
Product line drawing, front, no dimensions
PG ENDURA STYLE Lantern Modern 90cm MIPRC
PG ENDURA STYLE Lantern Modern 90cm MIPRC

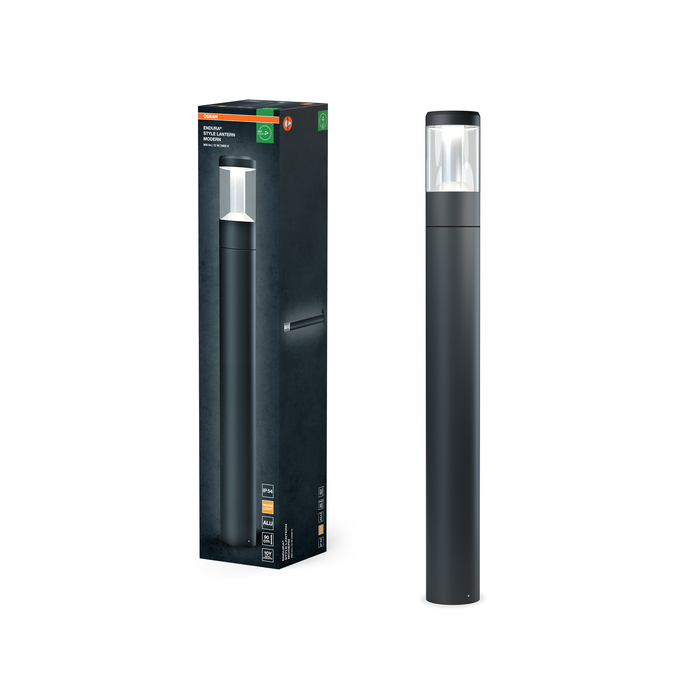

Combo Shot = Product Beauty Shot + Packaging Image
