Office Line Desk Cylinder
Office Line Desk Cylinder 4.8W CCT Dimmable White
GTIN: 4099854464270
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT
- Provides cold white light for an activating and warm white light for a relaxing atmosphere
- Switching and three step dimming via a touch sensitive sensor on the luminaire base
- Can be folded and bent to 170° for maximum flexibility
- Swivable luminaire head for individual orientation of light source
Areas of application
- Living areas
- Tables, Desks
- Home offices
Product features
- Desk luminaire in attractive design and with flexible lamp arm
- Adjustable light color: 3000 K, 4000 K, 6500 K
- Lifetime up to 25,000 h
Equipment / Accessories
- USB charging cable (cable length: 1.0 m) included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 4.8 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 1000 mA |
| Inrush current time Th50 | 100 µs |
| Power factor λ | 1.00 |
| Protection class | III |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 328 lm |
| Luminous efficacy | 68 lm/W |
| Color temperature | 3000 K / 4000 K / 6500 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 109 ° |
Dimensions & Weight
| Length | 135 mm |
| Height | 310.00 mm |
| Width | 180.00 mm |
| Product weight | 517.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Temperature range at storage | -20…+80 °C |
| Type of connection | USB |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | PWM |
| Mounting type | Standing |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854464270 | Folding box 1 |
157 mm x 157 mm x 268 mm | 665.00 g | 6.61 dm³ |
| 4099854464287 | Shipping box 8 |
644 mm x 330 mm x 295 mm | 6176.00 g | 62.69 dm³ |
User instruction / safety instructions
OFFICE LINE DESK CYLINDER
OFFICE LINE DESK CYLINDER
Legal information
Safety insert G11220499
Safety insert G11220499
Declarations of conformity
CE Declaration Desk Cylinder
CE Declaration Desk Cylinder

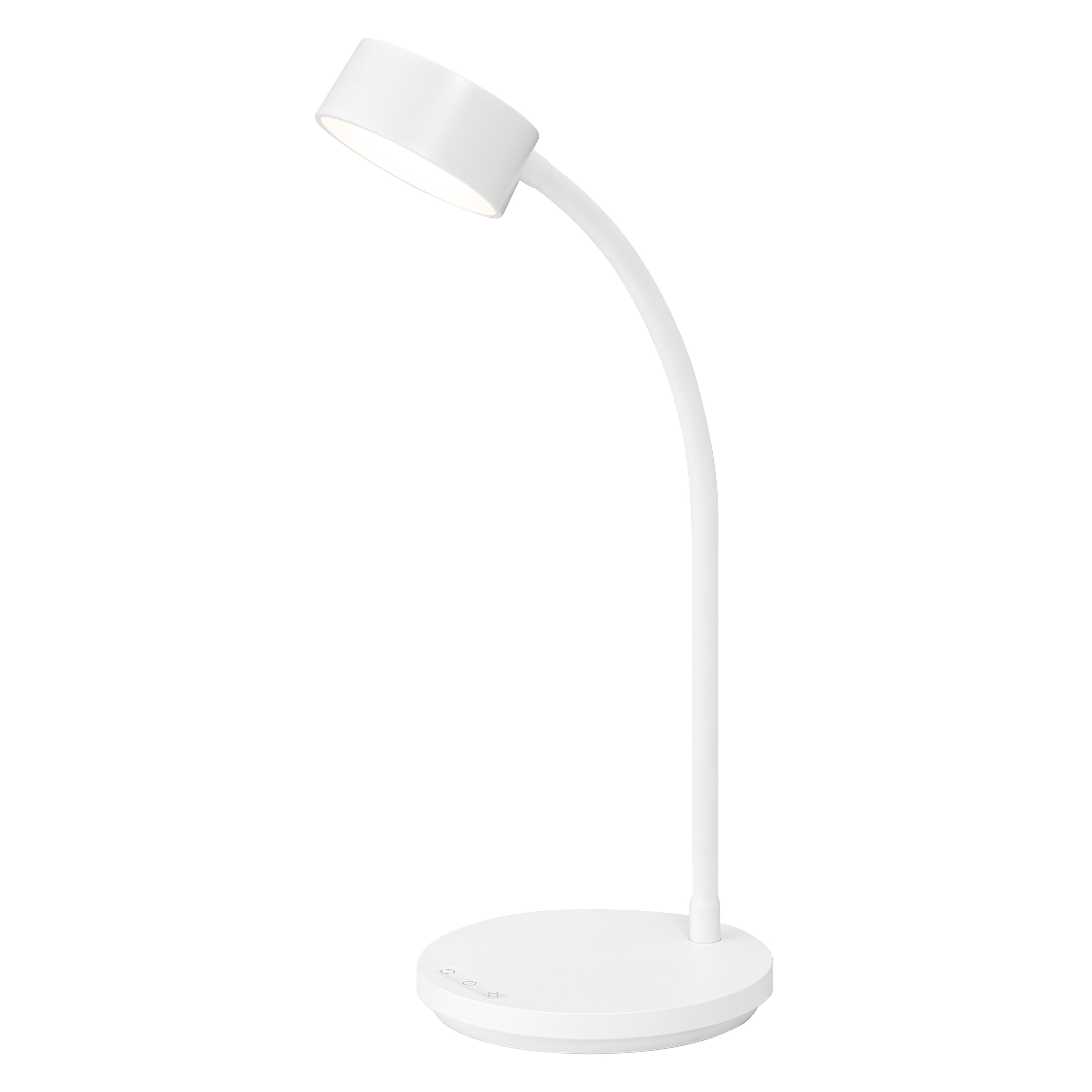

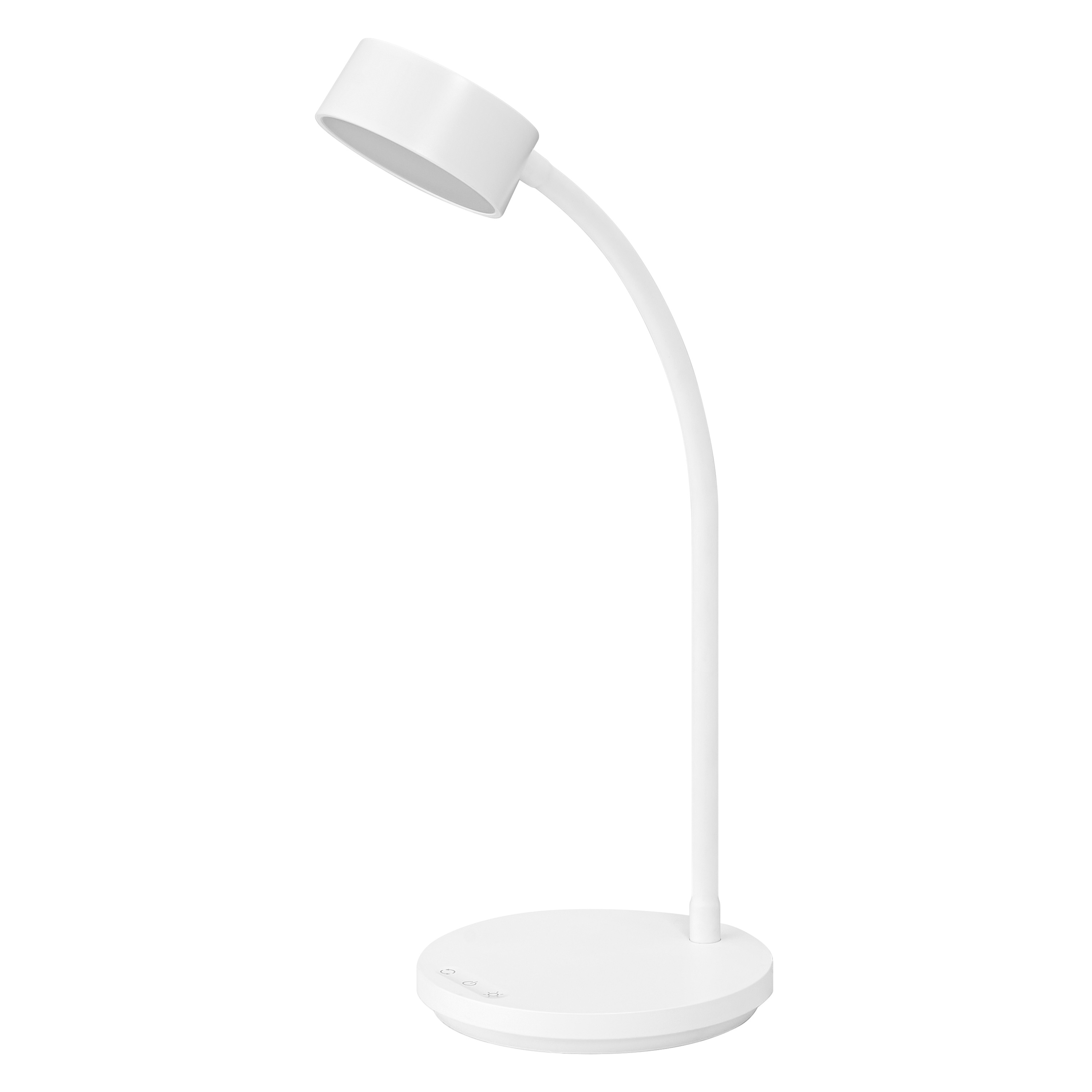

Product image: white background, upright
OFFICE LINE DESK CYL 4.8W CCT USB D WT
OFFICE LINE DESK CYL 4.8W CCT USB D WT

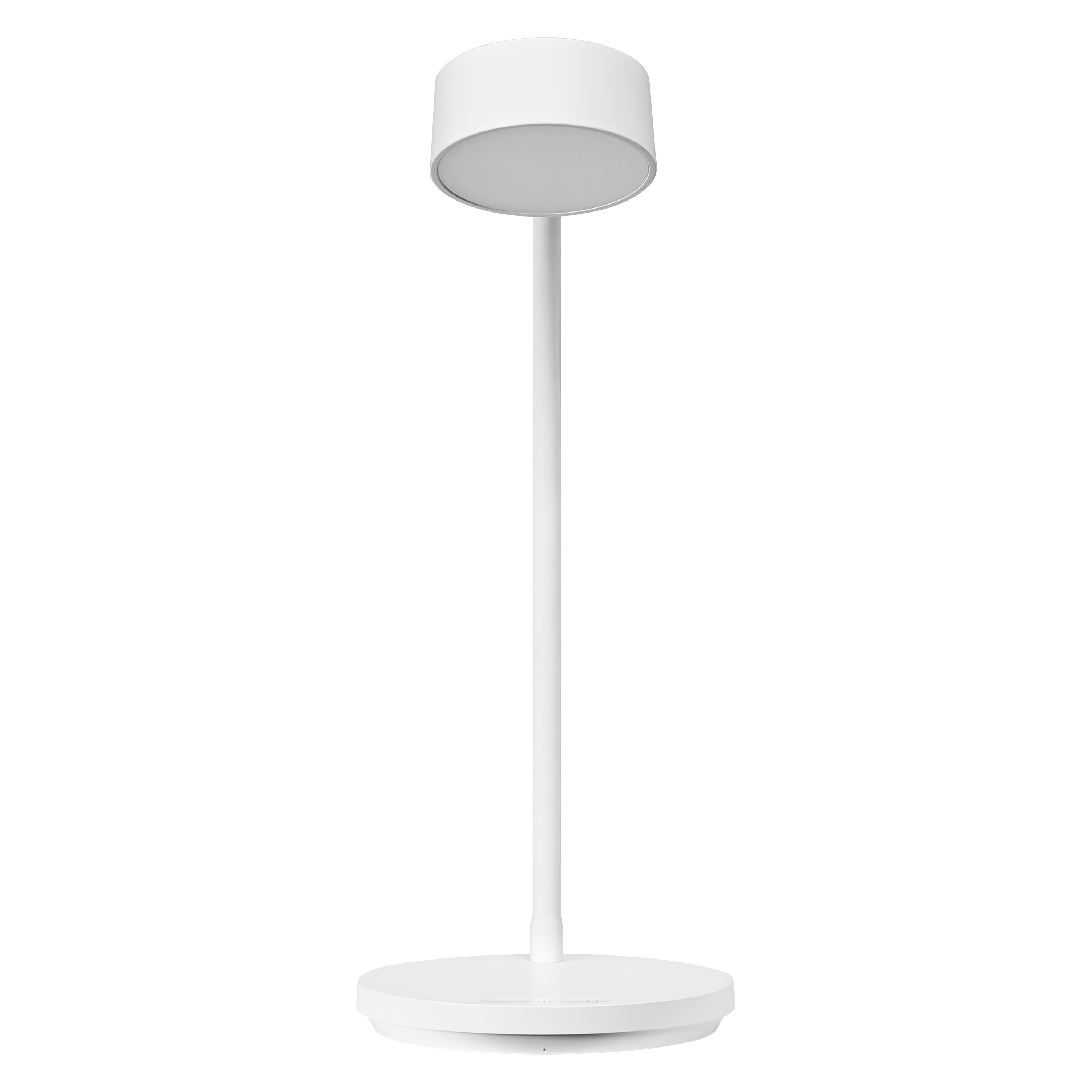

Product image: white background, upright, alternative image
