PANAN Alu CCT

Panan Alu CCT Black DIM

GTIN: 4099854507434 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Adjustable color temperature for a wide range of applications
  • Provides cold white light for an activating and warm white light for a relaxing atmosphere

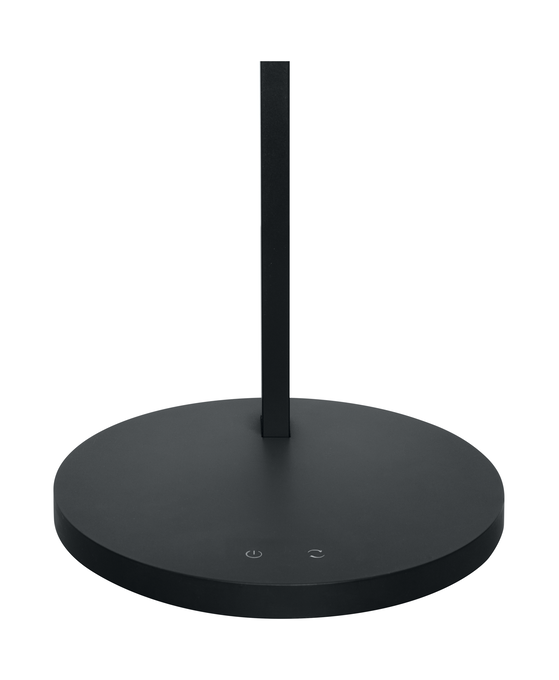

  • Switching and three step dimming via a touch sensitive sensor on the luminaire base
  • Made of high quality aluminum
Areas of application
  • Living areas
  • Tables, Desks
Product features
  • Table luminaire with minimalistic design and adjustable luminaire head
  • Adjustable light color: 3000 K, 4300 K, 6000 K
  • Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
  • External mains adapter (cable length: 1.5 m) included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
Nominal wattage 7.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 70.000 mA
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 310 lm
Luminous efficacy 44 lm/W
Color temperature 3000…6500 K
Light color (designation) Warm White, Cool White, Daylight
Color rendering index Ra ≥80
Beam angle 100 °
Dimensions & Weight
Length 407.00 mm
Height 430.00 mm
Width 170.00 mm
Product weight 718.00 g
Cable length 1800 mm
Materials & Colors
Product color Black
Housing color Black
Body material Aluminium|Acrylonitrile butadiene styrene (ABS)
Cover material Plastic
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Mounting type Surface
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, EAC
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854507434 Folding box
1		 176 mm x 176 mm x 446 mm 1220.00 g 13.82 dm³
4099854507441 Shipping box
4		 365 mm x 365 mm x 465 mm 4880.00 g 61.95 dm³
User instruction / safety instructions
PANAN ALU CCT
PDF (419.34 KB)
Legal information
Safety insert G11220442
PDF (207.16 KB)
Declarations of conformity
PANAN ALU CCT BK
PDF (224.95 KB)

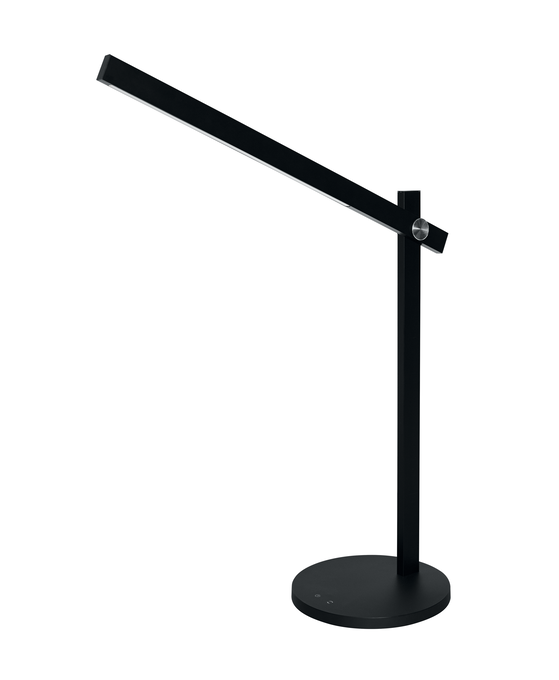

Product image: white background, upright
PANAN ALU CCT BK
TIF (4.79 MB)
Product image: white background, upright, alternative image
PANAN ALU CCT BK
TIF (8.58 MB)
Product image: white background, upright, switched on
PANAN ALU CCT BK
TIF (4.8 MB)
Product line drawing with letters
PANAN ALU CCT BK
SVG (12.79 KB)
Product line drawing with numbers
PANAN ALU CCT BK
SVG (12.91 KB)
Product line drawing, front, no dimensions
PANAN ALU CCT BK
SVG (8.23 KB)

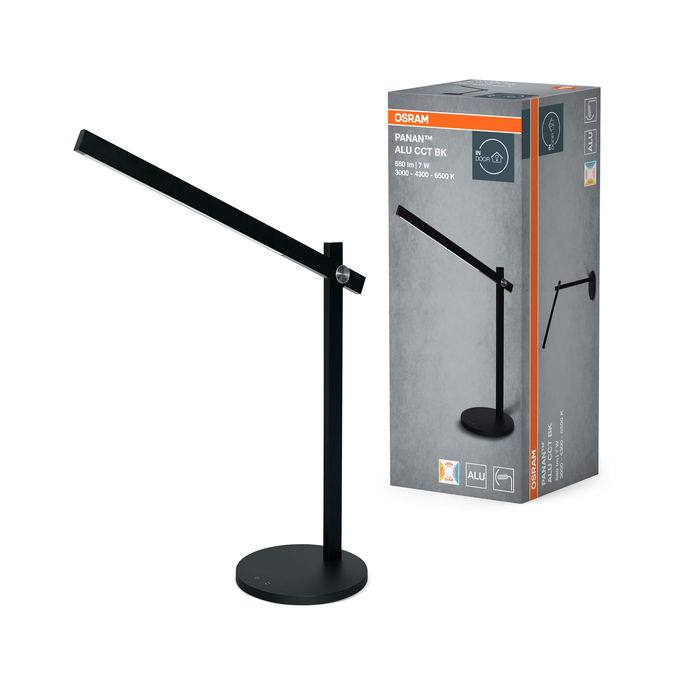

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC PANAN ALU CCT BK OSRAM
JPG (699.37 KB)
Packaging image, frontal
LUM FC PANAN ALU CCT BK OSRAM
JPG (632.16 KB)
Packaging image, spacial
LUM FC PANAN ALU CCT BK OSRAM
JPG (722.57 KB)
Application pictures
PANAN Alu CCT Application - rendering - retouched black
TIF (21.55 MB)

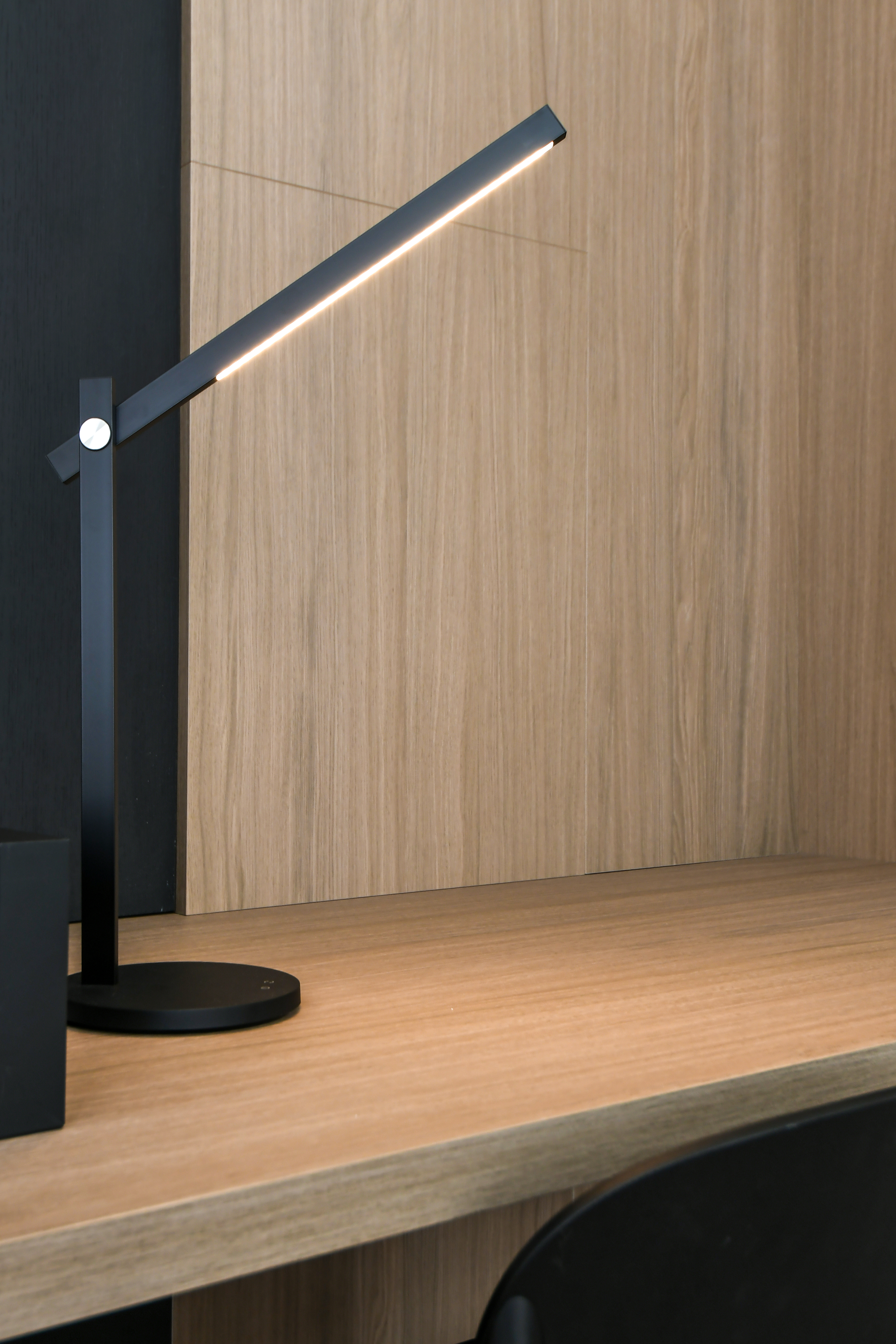

Application pictures
Case Wevershuis
JPG (5.17 MB)

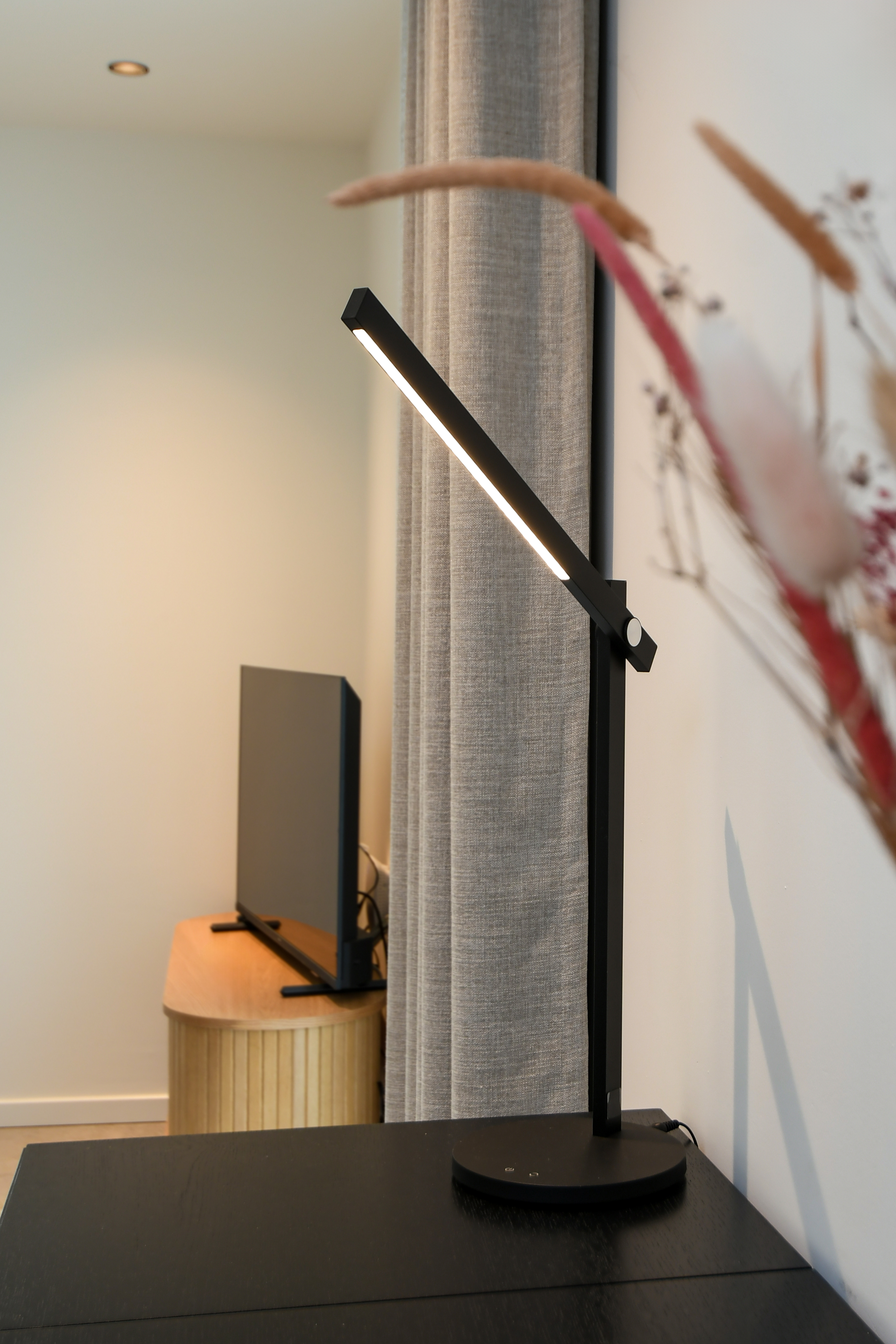

Application pictures
