Coming soon
LED Spot Set Recess CCT
Spot Set Recess CCT Adjustable 4.9W CCT 120° Black
GTIN: 4099854595769
Folding box / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT
- Can be rotated and swiveled for optimum illumination
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Recessed ceiling mounting
- Click-CCT version: color temperature adjustable in three steps by repeated switching
- Adjustable swivel angle
- With integrated LED module and driver
- Available with color temperature: 2,700 K, 4,000 K, 6,500 K
- Through wiring possible
- Type of protection: IP20
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 4.90 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 42.000 mA |
| Inrush current | 7.5 A |
| Max. number of luminaires per miniature circuit breaker B16 | 80 |
| Max. number of luminaires per miniature circuit breaker C10 | 63 |
| Max. number of luminaires per miniature circuit breaker C16 | 102 |
| Power factor λ | 0.40 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 200 lm |
| Total luminous flux of contained light sources | 420 lm |
| Luminous efficacy | 41 lm/W |
| Color temperature | 2700 K / 4000 K / 6500 K |
| Reference control setting of contained light source (Kelvin) | 2700 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 90.00 mm |
| Height | 27.50 mm |
| Product weight | 96.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum|Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Mounting diameter | 75 mm |
| Mounting depth | 40 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from November 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854595769 | Folding box 3 |
94 mm x 202 mm x 103 mm | 348.00 g | 1.96 dm³ |
| 4099854595776 | Shipping box 24 |
392 mm x 216 mm x 231 mm | 3242.00 g | 19.56 dm³ |
User instruction / safety instructions
Spotlights Adjustable CCT 3x4.9W 827
Spotlights Adjustable CCT 3x4.9W 827
Declarations of conformity
Spotlights
Spotlights

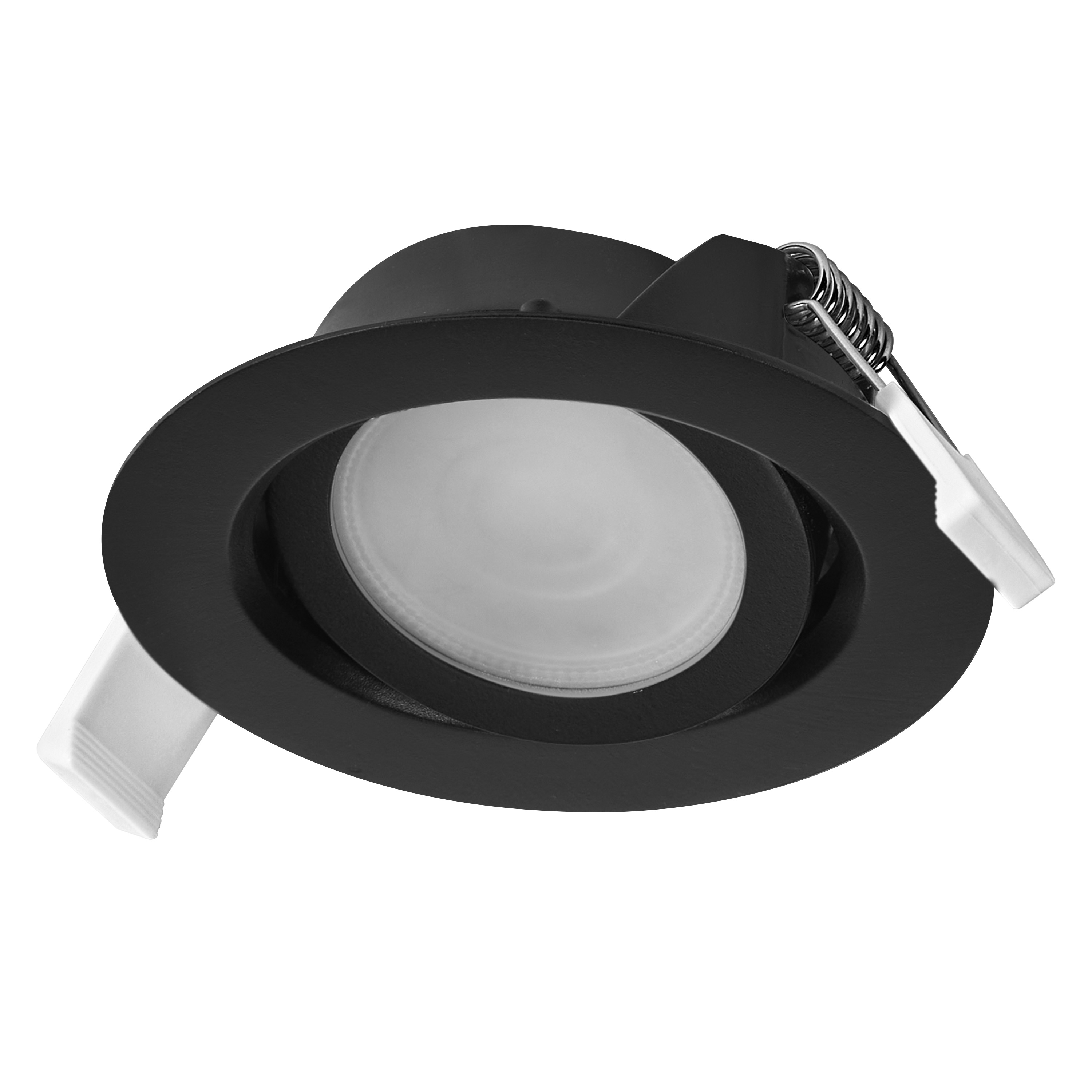

Product image: white background, upright
SPOT SET ADJ 4.9W CCT 120DEGBK 8X3
SPOT SET ADJ 4.9W CCT 120DEGBK 8X3

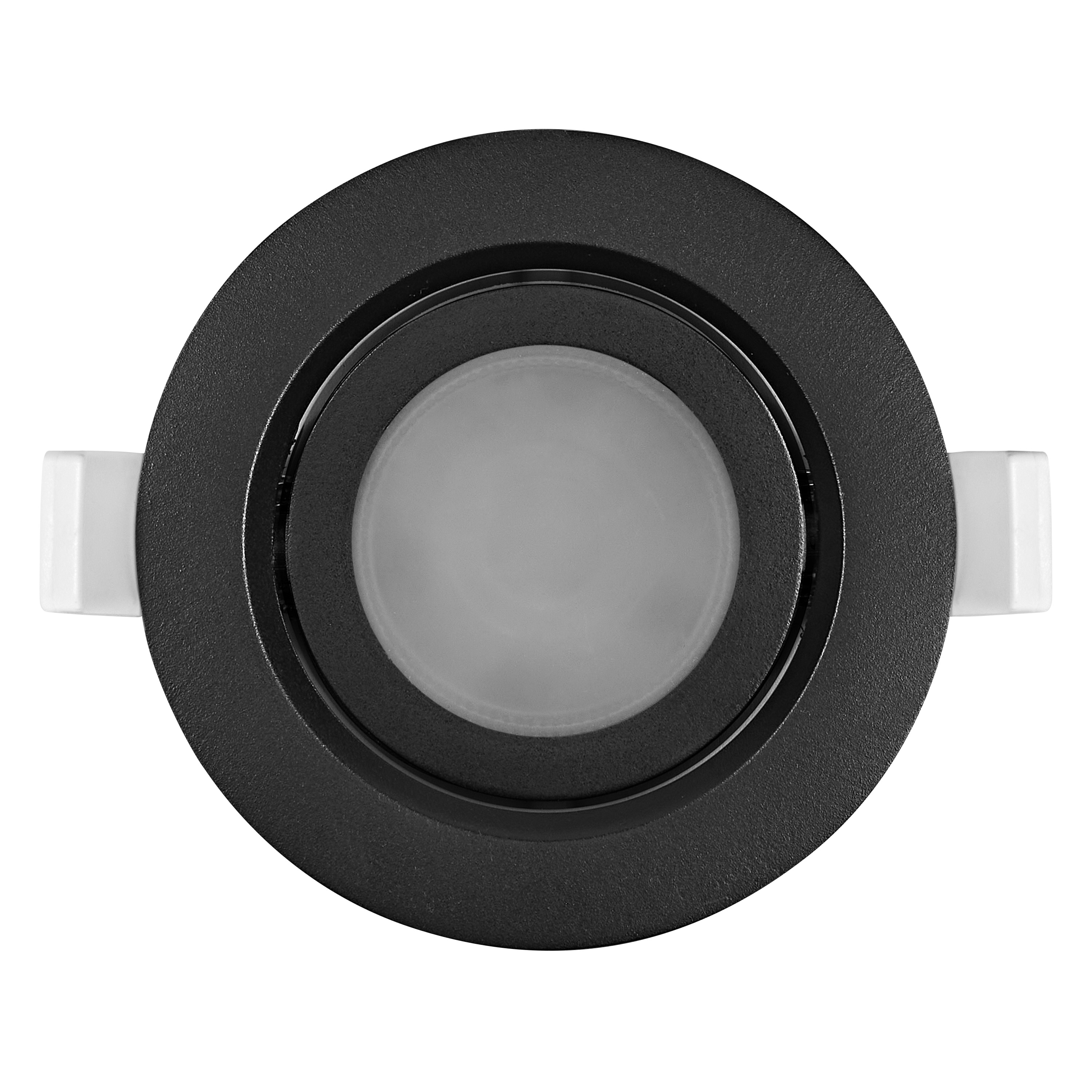

Product image: white background, upright, alternative image
SPOT SET ADJ 4.9W CCT 120DEGBK 8X3
SPOT SET ADJ 4.9W CCT 120DEGBK 8X3

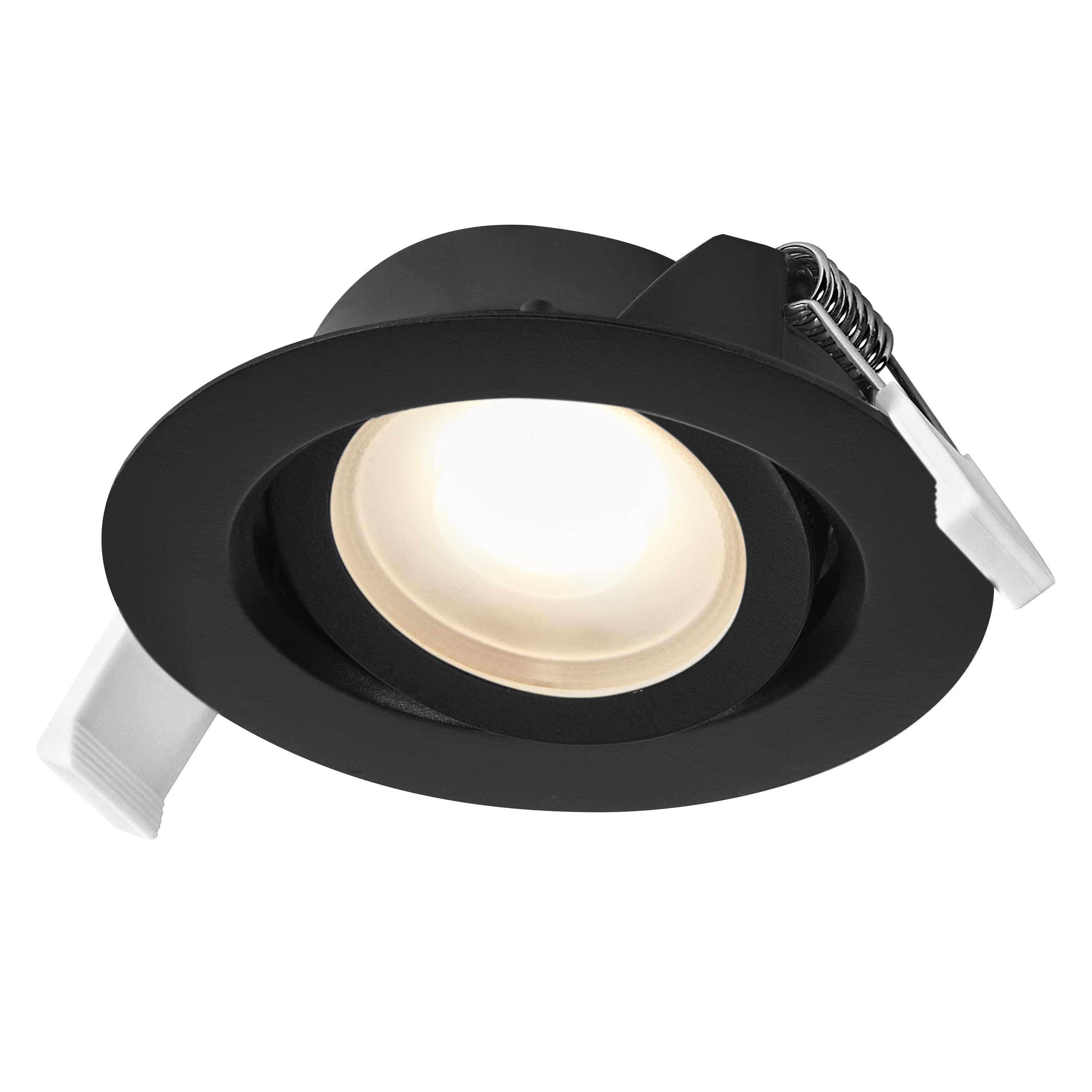

Product image: white background, upright, switched on
SPOT SET ADJ 4.9W CCT 120DEGBK 8X3
SPOT SET ADJ 4.9W CCT 120DEGBK 8X3
Product line drawing with letters
SPOT SET ADJ 4.9W CCT 120DEG
SPOT SET ADJ 4.9W CCT 120DEG
Product line drawing with numbers
SPOT SET ADJ 4.9W CCT 120DEG
SPOT SET ADJ 4.9W CCT 120DEG
Product line drawing, front, no dimensions
SPOT SET ADJ 4.9W CCT 120DEG
SPOT SET ADJ 4.9W CCT 120DEG
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SP SET A CCT 120DEG BK OSRAM
LUM FC SP SET A CCT 120DEG BK OSRAM
Packaging image, frontal
LUM FC SP SET A CCT 120DEG BK OSRAM
LUM FC SP SET A CCT 120DEG BK OSRAM
Packaging image, spacial
LUM FC SP SET A CCT 120DEG BK OSRAM
LUM FC SP SET A CCT 120DEG BK OSRAM

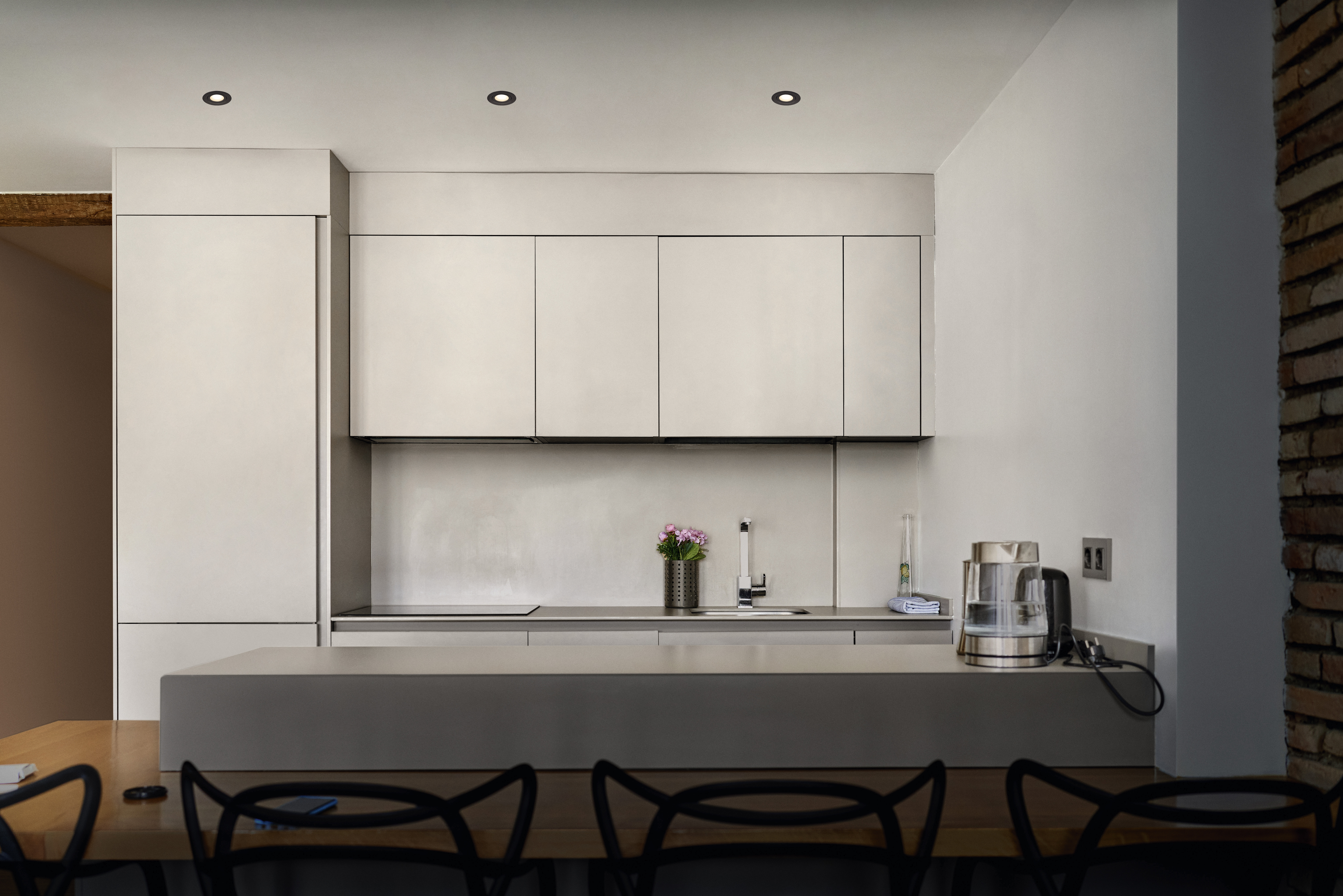

Application pictures Getty
SPOT SET ADJ 4.9W CCT 120DEG BK 3X 4000K
SPOT SET ADJ 4.9W CCT 120DEG BK 3X 4000K

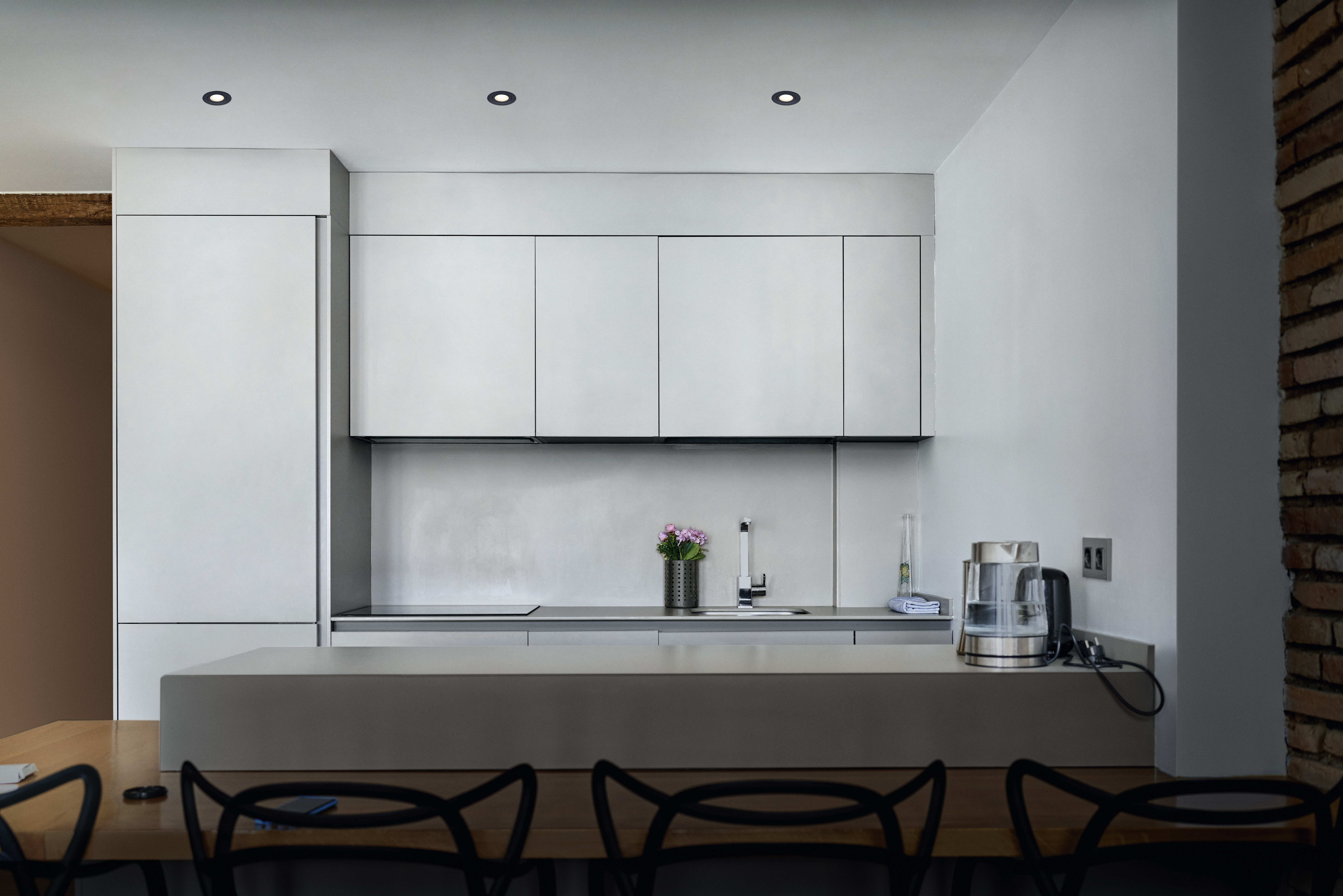

Application pictures Getty
