LED SPOT BRUSHED SILVER
LED Spot GU10 3 x 2.6W 2700K
GTIN: 4099854473562
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings of up to 90 % compared to halogen lamp spotlights
- Timeless design
- Flexible thanks to replaceable LED lamps
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features five versions with up to 6 spot heads
- Housing surface made of brushed nickel
- Adjustable head
Equipment / Accessories
- Equipped with OSRAM LED LAMP EAN 4058075233263
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 7.80 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 75.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Max. number of luminaires per miniature circuit breaker C10 | 17 |
| Max. number of luminaires per miniature circuit breaker C16 | 28 |
| Power factor λ | > 0.4 |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 690 lm |
| Total luminous flux of contained light sources | 690 lm |
| Luminous efficacy | 88 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 36 ° |
Dimensions & Weight
| Length | 486.00 mm |
| Height | 170.00 mm |
| Width | 90.00 mm |
| Product weight | 625.00 g |
Materials & Colors
| Product color | Silver |
| Housing color | Silver |
| Body material | Aluminum |
| Cover material | Glass |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | G10 |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 50 W |
| Number of illuminants | 3 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854473562 | Folding box 1 |
110 mm x 150 mm x 515 mm | 995.00 g | 8.50 dm³ |
| 4099854473579 | Shipping box 4 |
525 mm x 235 mm x 320 mm | 3980.00 g | 39.48 dm³ |
User instruction / safety instructions
LED SPOT GU10
LED SPOT GU10
Legal information
Safety insert G11219578
Safety insert G11219578
Declarations of conformity
LED SPOT GU10 G9
LED SPOT GU10 G9
Product image: white background, upright
LED SPOT GU10 3X2,6W 230V
LED SPOT GU10 3X2,6W 230V
Product image: white background, upright, switched on
LED SPOT GU10 3X2,6W 230V
LED SPOT GU10 3X2,6W 230V
Product infographic (application image with text and graphic)
LED-Spots E-Com Grafik 1200x1200px 2023 EN
LED-Spots E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
LED SPOT GU10 3X2,6W 230V
LED SPOT GU10 3X2,6W 230V
Product line drawing with numbers
LED SPOT GU10 3X2,6W 230V
LED SPOT GU10 3X2,6W 230V
Product line drawing, front, no dimensions
LED SPOT GU10 3X2,6W 230V
LED SPOT GU10 3X2,6W 230V

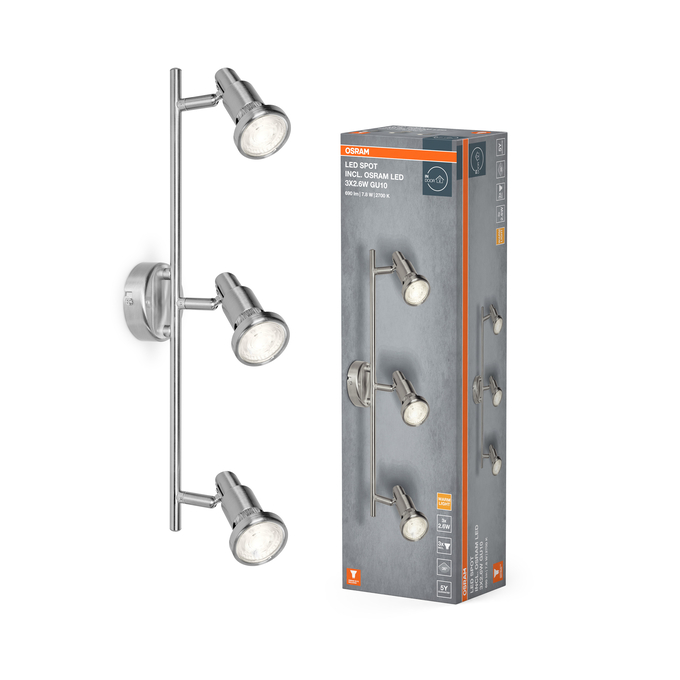

Combo Shot = Product Beauty Shot + Packaging Image
