LED SPOT BRUSHED SILVER

LED Spot GU10 2 x 2.6W 2700K

GTIN: 4099854473401 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Timeless design
  • Flexible thanks to replaceable LED lamps
  • Easy mounting
Areas of application
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
  • Kitchens, workspaces
  • Ceiling and wall surface mounting
Product features
  • Luminaire family features five versions with up to 6 spot heads
  • Housing surface made of brushed nickel
  • Adjustable head
Equipment / Accessories
  • Equipped with OSRAM LED LAMP EAN 4058075233263
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
Nominal wattage 5.20 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 50.000 mA
Max. number of luminaires per miniature circuit breaker B16 26
Max. number of luminaires per miniature circuit breaker C10 26
Max. number of luminaires per miniature circuit breaker C16 42
Power factor λ > 0.4
Protection class I
Operating mode Mains voltage
Photometrical data
Luminous flux 460 lm
Total luminous flux of contained light sources 460 lm
Luminous efficacy 88 lm/W
Color temperature 2700 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 36 °
Dimensions & Weight
Length 256.00 mm
Height 170.00 mm
Width 90.00 mm
Product weight 435.00 g
Materials & Colors
Product color Silver
Housing color Silver
Body material Aluminum
Cover material Glass
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screw terminal
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No
Holder designation G10
Lifespan
Lifespan L70/B50 at 25 °C 15000 h 1)
Number of switching cycles 10000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Additional product data
Product remark Maximum bulb wattage: 50 W
Number of illuminants 2
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854473401 Folding box
1		 110 mm x 150 mm x 285 mm 681.00 g 4.70 dm³
4099854473418 Shipping box
8		 470 mm x 295 mm x 320 mm 5450.00 g 44.37 dm³
User instruction / safety instructions
LED SPOT GU10
PDF (1.55 MB)
Legal information
Safety insert G11219578
PDF (266.48 KB)
Declarations of conformity
LED SPOT GU10 G9
PDF (175.09 KB)
Product image: white background, upright
LED SPOT GU10 2X2,6W 230V
JPG (627.46 KB)
Product image: white background, upright, switched on
LED SPOT GU10 2X2,6W 230V
JPG (615.32 KB)
Product infographic (application image with text and graphic)
LED-Spots E-Com Grafik 1200x1200px 2023 EN
JPG (588.29 KB)
Product line drawing with letters
LED SPOT GU10 2X2,6W 230V
EPS (2.47 MB)
Product line drawing with numbers
LED SPOT GU10 2X2,6W 230V
EPS (2.47 MB)
Product line drawing, front, no dimensions
LED SPOT GU10 2X2,6W 230V
EPS (2.45 MB)

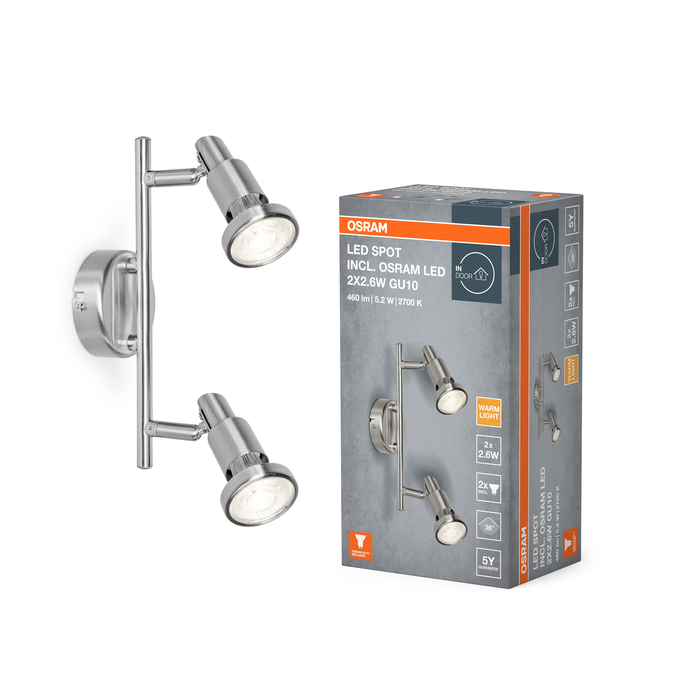

Combo Shot = Product Beauty Shot + Packaging Image
