Vintage 1906 PenduLum Bobbin
Vintage 1906 PenduLum Bobbin Black Matt
GTIN: 4099854419416
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Individual light scenarios through combination with decorative lamp
- Glossy finish with great look and feel
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Professional (hotels, bars, boutiques etc.)
Product features
- Modern minimalistic design
- Made of classic materials
- Special vintage appeal when combined with 1906 lamps
- Flexible mounting options
- Available in various colors
- 1,5 m textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information at www.ledvance.com/consumer/products/product-stories/vintage-edition-1906
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 100.00 mm |
| Height | 1625.00 mm |
| Product weight | 298.00 g |
| Cable length | 1,5 m |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal, 3-Pole |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 25 W (LED 15 W) |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854419416 | Folding box 1 |
100 mm x 105 mm x 145 mm | 359.00 g | 1.52 dm³ |
| 4099854419423 | Shipping box 4 |
230 mm x 220 mm x 170 mm | 1706.00 g | 8.60 dm³ |
User instruction / safety instructions
VINTAGE 1906 PENDULUM
VINTAGE 1906 PENDULUM
Legal information
Safety insert G11219601
Safety insert G11219601
Declarations of conformity
CE Declaration 1906
CE Declaration 1906

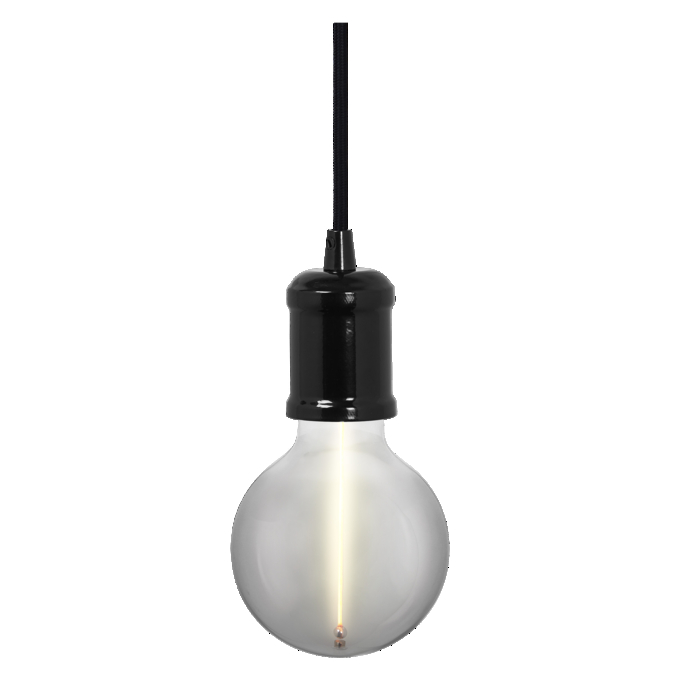

Product image: white background, upright
1906 PENDULUM BOBBIN E27 BK
1906 PENDULUM BOBBIN E27 BK

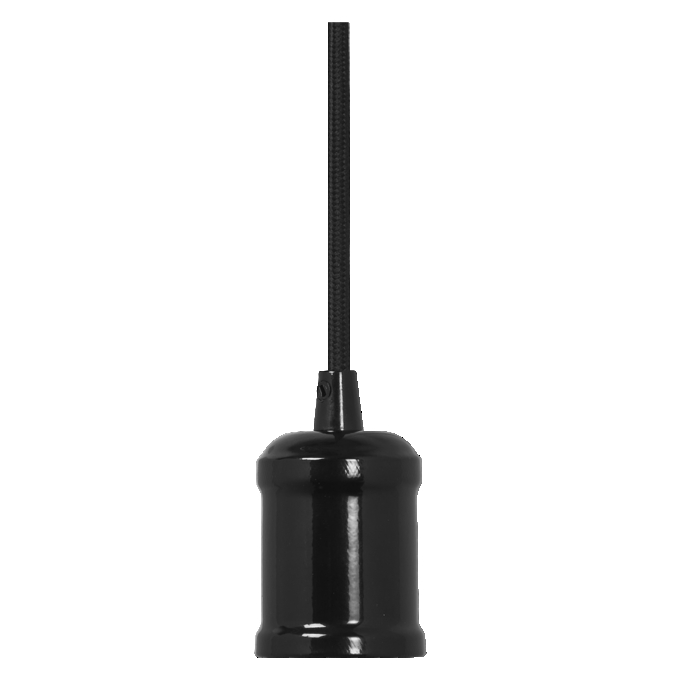

Product image: white background, upright, alternative image
1906 PENDULUM BOBBIN E27 BK
1906 PENDULUM BOBBIN E27 BK

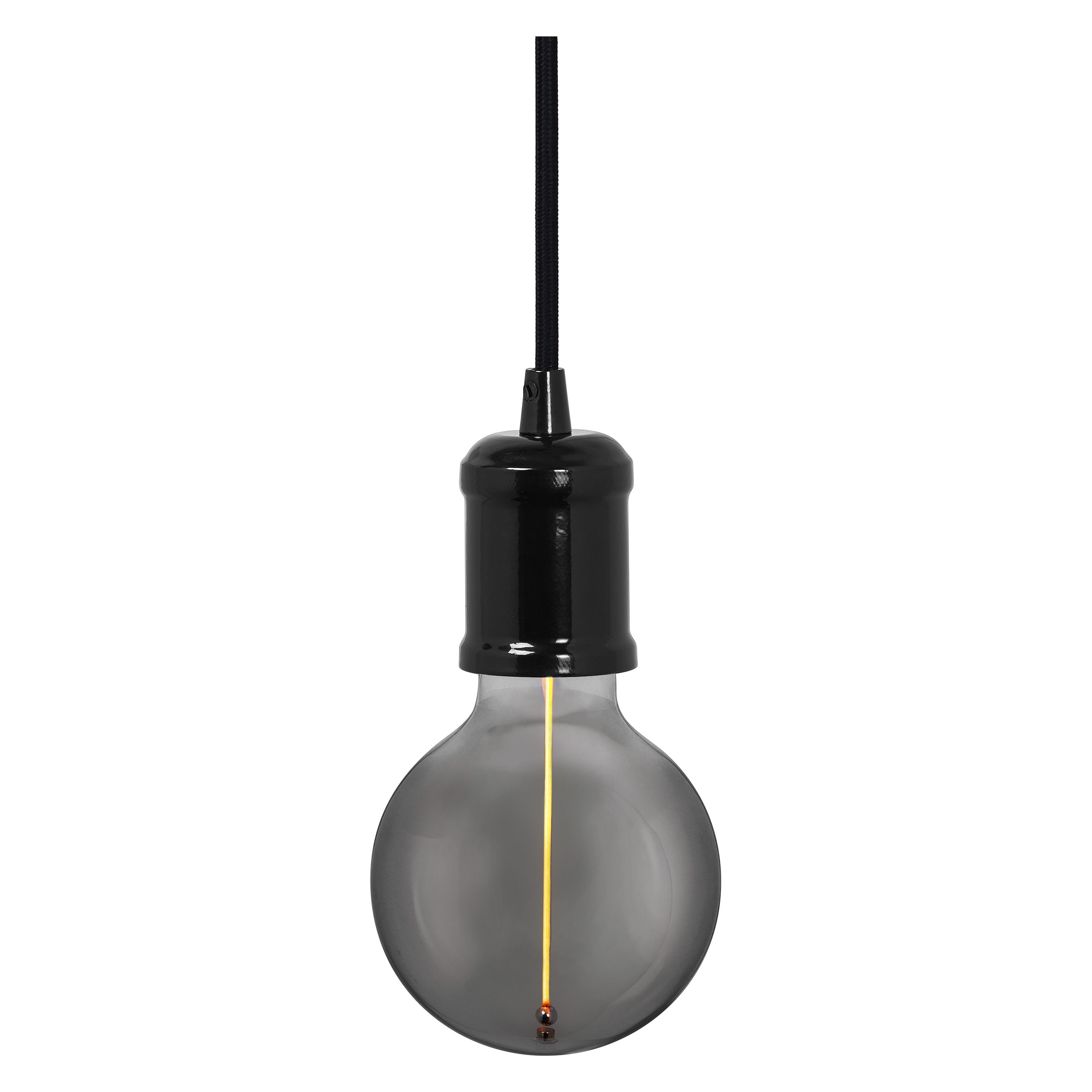

Product image: white background, upright, switched on
1906 PENDULUM BOBBIN E27 BK
1906 PENDULUM BOBBIN E27 BK
Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN
Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN
Product line drawing with letters
1906 PENDULUM
1906 PENDULUM
Product line drawing with numbers
1906 PENDULUM BOBBIN E27
1906 PENDULUM BOBBIN E27
Product line drawing, front, no dimensions
1906 PENDULUM
1906 PENDULUM

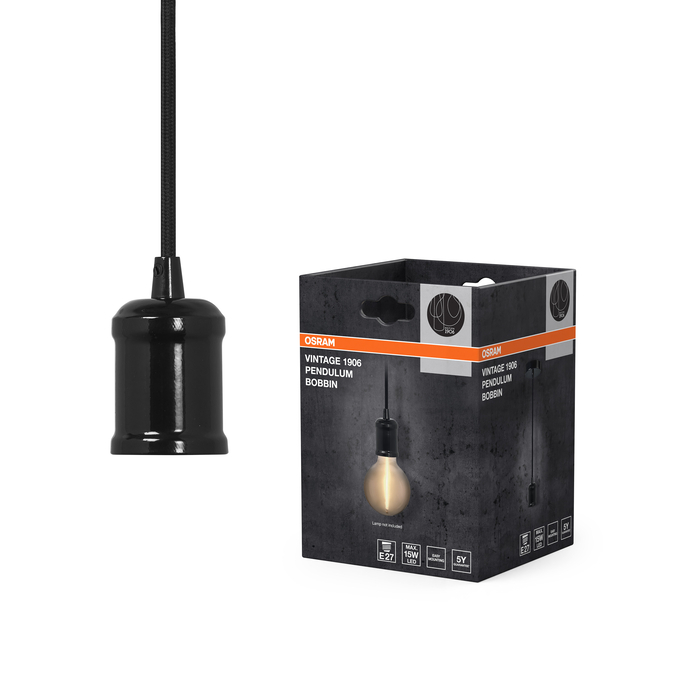

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC 1906 PEN BOBBIN E27 BK OSRAM
LUM FC 1906 PEN BOBBIN E27 BK OSRAM
Packaging image, frontal
LUM FC 1906 PEN BOBBIN E27 BK OSRAM
LUM FC 1906 PEN BOBBIN E27 BK OSRAM
Packaging image, spacial
LUM FC 1906 PEN BOBBIN E27 BK OSRAM
LUM FC 1906 PEN BOBBIN E27 BK OSRAM
Application pictures
Vintage 1906 Big Oval 10 Filament Magnetic 4W 818 Smoke E27
Vintage 1906 Big Oval 10 Filament Magnetic 4W 818 Smoke E27
Application pictures
Vintage 1906 Big Elipse Oval 12 Filament Magnetic 4W 818 Smoke E27
Vintage 1906 Big Elipse Oval 12 Filament Magnetic 4W 818 Smoke E27
Application pictures
Vintage 1906 Big Elipse 6 Filament Magnetic 4W 818 Smoke E27
Vintage 1906 Big Elipse 6 Filament Magnetic 4W 818 Smoke E27
Application pictures
Vintage 1906 magnetic
Vintage 1906 magnetic
Application pictures
Close-up DECOR LED STRAW FILAMENT GLOBE 125 12 BLACK
Close-up DECOR LED STRAW FILAMENT GLOBE 125 12 BLACK

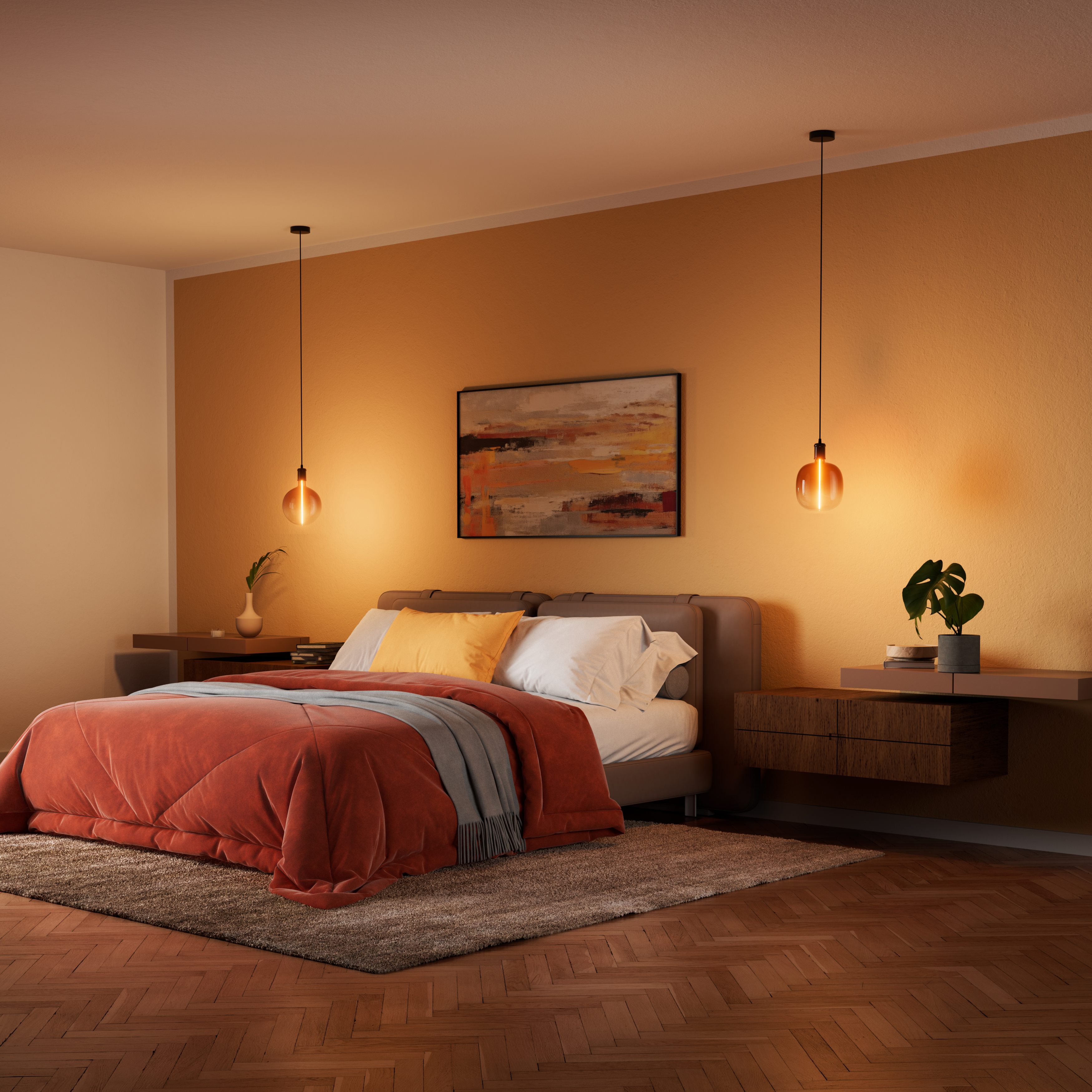

Application pictures
