FLEX SWEEP SENSOR
FLEX SWEEP SENSOR 1.5M 830
GTIN: 4099854370045
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Undercabinet lighting
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Flexible, bendable LED strips
- Light color: Cool White
Safety advice
- Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 5.50 W |
| Nominal voltage | 220…240 V |
| Nominal current | 40.000 mA |
| Power factor λ | > 0.5 |
| Protection class | II |
Photometrical data
| Luminous flux | 310 lm |
| Total luminous flux of contained light sources | 360 lm |
| Luminous efficacy | 56 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1500.00 mm |
| Height | 2.50 mm |
| Width | 8.00 mm |
| Product weight | 100.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polyurethane (PU) |
| Mercury content | 0.0 mg |
Application & Mounting
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Mounting type | Surface |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854370045 | Folding box 1 |
44 mm x 107 mm x 108 mm | 149.00 g | 0.51 dm³ |
| 4099854370052 | Shipping box 6 |
230 mm x 148 mm x 135 mm | 1000.00 g | 4.60 dm³ |
User instruction / safety instructions
FLEX SWEEP SENSOR
FLEX SWEEP SENSOR
Declarations of conformity
CE declaration FLEX SWEEP
CE declaration FLEX SWEEP

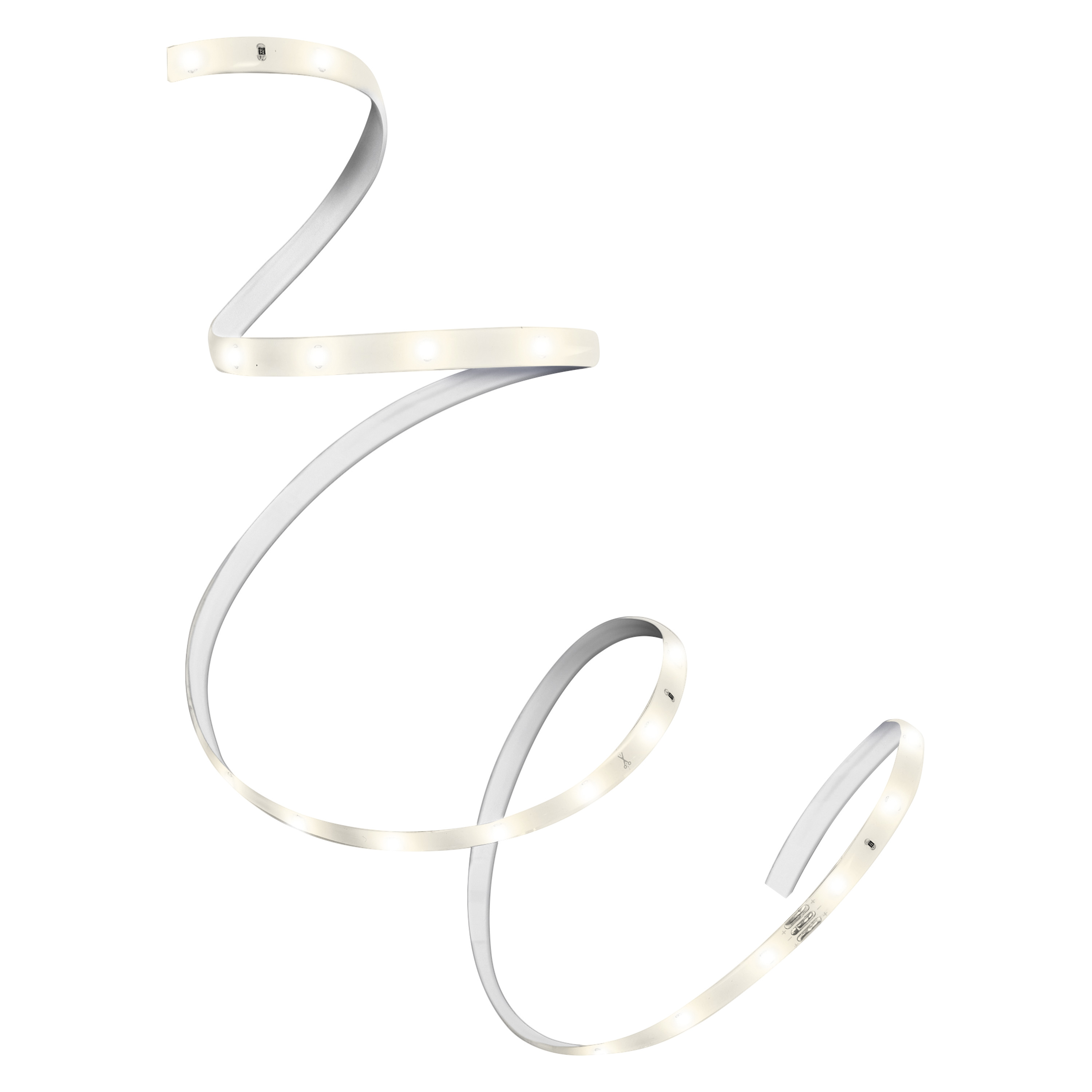

Product image: white background, upright
FLEX SWEEP SENSOR 1.5M 840
FLEX SWEEP SENSOR 1.5M 840
Product image: white background, upright, switched on
FLEX SWEEP SENSOR 1.5M 840
FLEX SWEEP SENSOR 1.5M 840
Product line drawing with letters
FLEX SWEEP SENSOR 1.5M 840
FLEX SWEEP SENSOR 1.5M 840
Product line drawing with numbers
FLEX SWEEP SENSOR 1.5M 840
FLEX SWEEP SENSOR 1.5M 840
Product line drawing, front, no dimensions
FLEX SWEEP SENSOR 1.5M 840
FLEX SWEEP SENSOR 1.5M 840
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FL SWEEP SENSOR 1 5M 830
LUM FC FL SWEEP SENSOR 1 5M 830
Packaging image, frontal
LUM FC FL SWEEP SENSOR 1 5M 830
LUM FC FL SWEEP SENSOR 1 5M 830
Packaging image, spacial
LUM FC FL SWEEP SENSOR 1 5M 830
LUM FC FL SWEEP SENSOR 1 5M 830

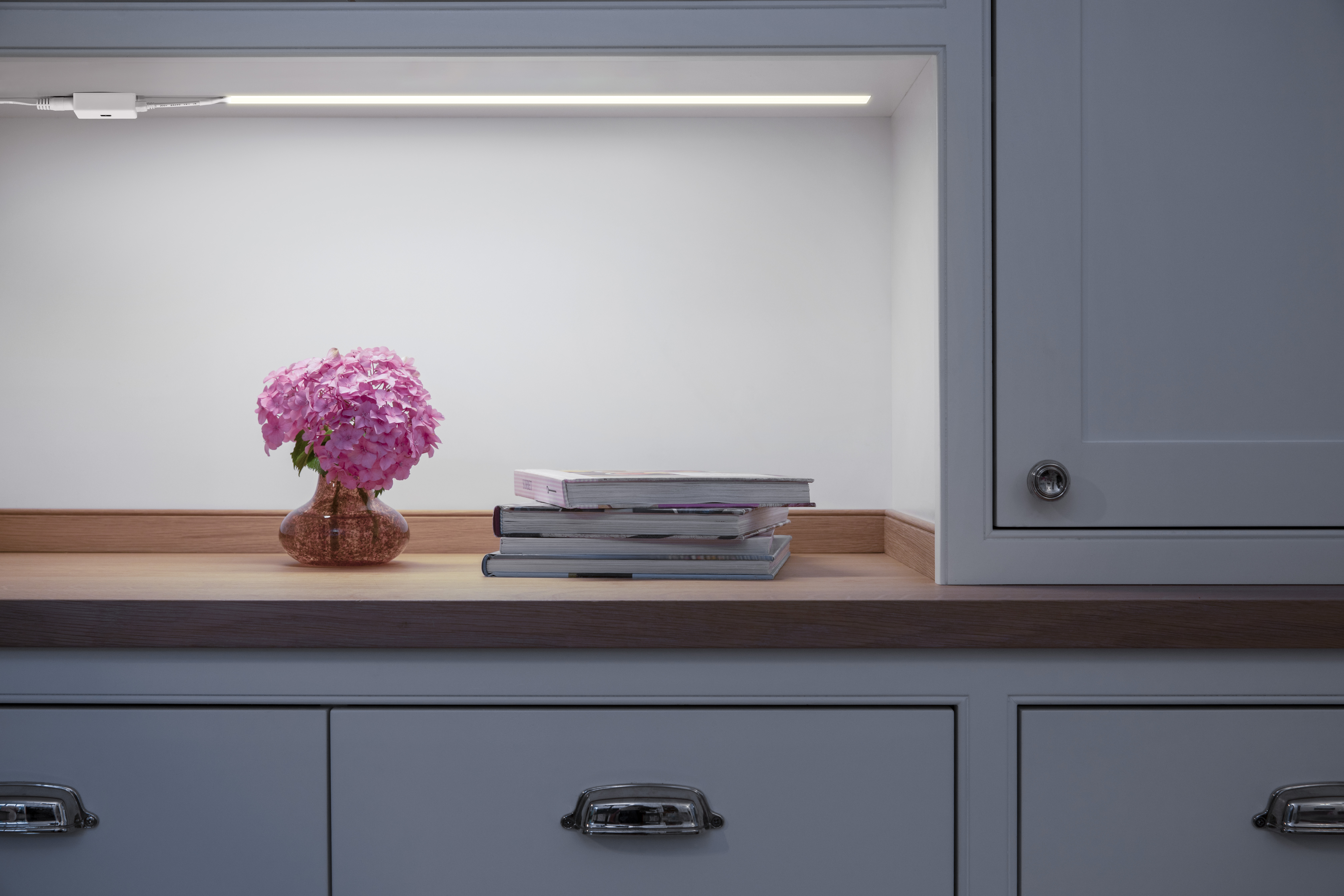

Application pictures
