Highbay Ufo

Highbay Ufo 80W 865 IP65 Black

GTIN: 4099854429354 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High light output thanks to high-power LED
  • Robust and long-lasting design
  • Suitable for high ceiling installations
Areas of application
  • Garages
  • Areas with high ceilings
Product features
  • Type of protection: IP65
  • Luminous flux up to 15000 lm
Equipment / Accessories
  • Mounting hook included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
Nominal wattage 80.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 366.000 mA
Inrush current time Th50 460 µs
Max. number of luminaires per miniature circuit breaker B16 13
Max. number of luminaires per miniature circuit breaker C10 14
Max. number of luminaires per miniature circuit breaker C16 22
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Mains voltage
Photometrical data
Luminous flux 9300 lm
Luminous efficacy 116 lm/W
Color temperature 6500 K
Color rendering index Ra > 70
Standard deviation of color matching 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Dimensions & Weight
Length 230.40 mm
Height 80.00 mm
Width 230.40 mm
Product weight 1020.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK05
Dimmable No
Mounting type Suspended
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 20000 h 1)
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854429354 Folding box
1
64 mm x 237 mm x 238 mm 1155.00 g 3.61 dm³
4099854429361 Shipping box
4
270 mm x 255 mm x 263 mm 4620.00 g 18.11 dm³
User instruction / safety instructions
HIGHBAY UFO
Legal information
HIGHBAY UFO 765 IP65 BK
Declarations of conformity
HIGHBAY UFO 865 IP65 BK

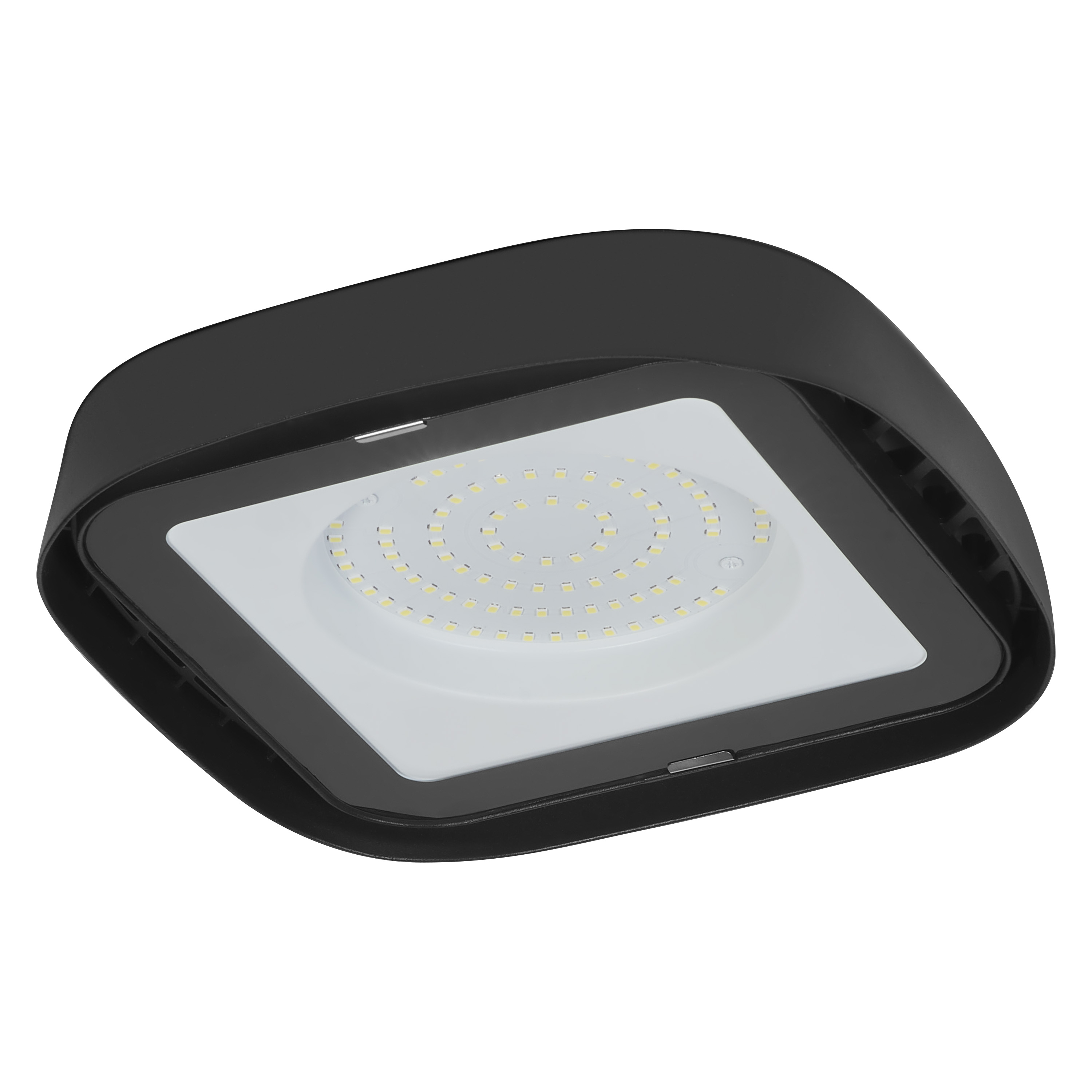

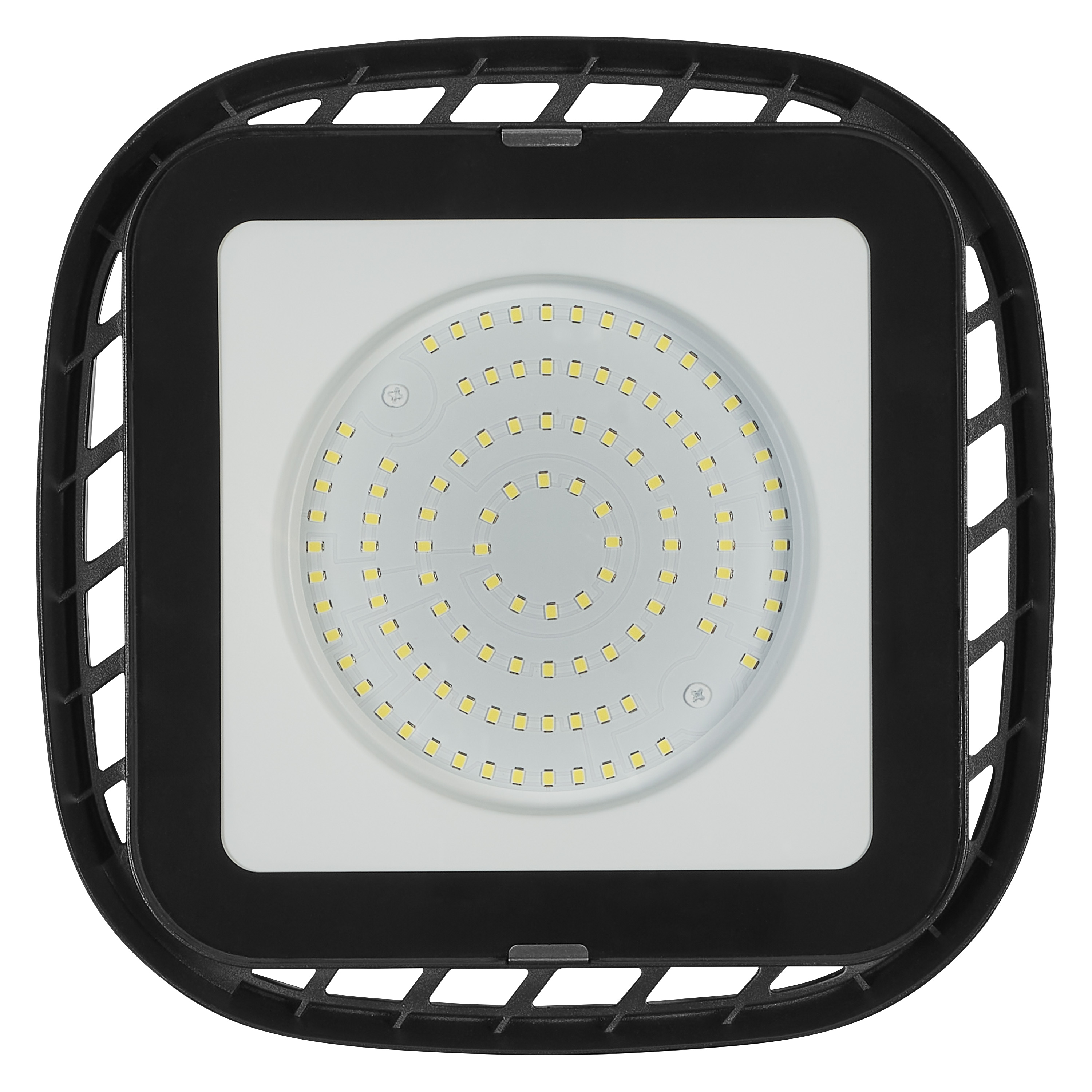

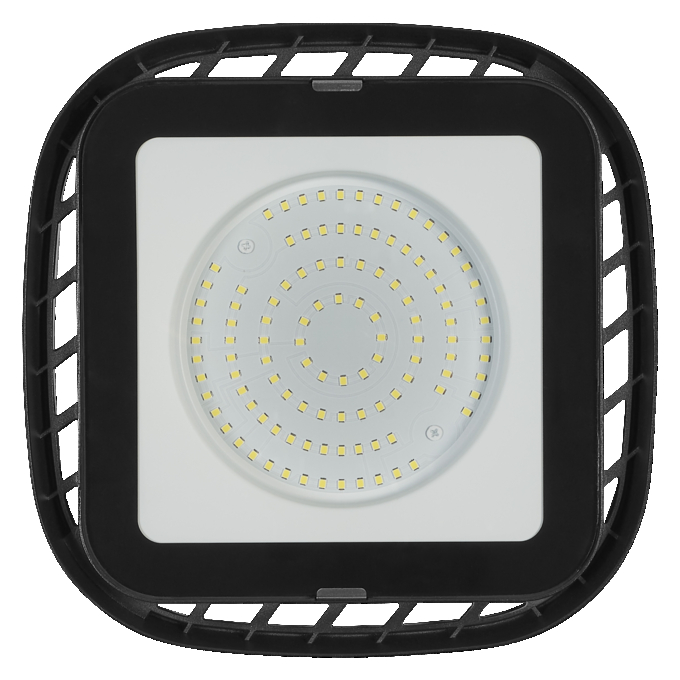

Product image: white background, upright
HIGHBAY UFO 80W 865 IP65 BK
Product image: white background, upright, alternative image
HIGHBAY UFO 80W 865 IP65 BK
Product image: white background, upright, switched on
HIGHBAY UFO 80W 865 IP65 BK
Product line drawing with letters
HIGHBAY UFO 130W 865 IP65 BK
Product line drawing with numbers
HIGHBAY UFO 80W 865 IP65 BK
Product line drawing, front, no dimensions
HIGHBAY UFO 130W 865 IP65 BK

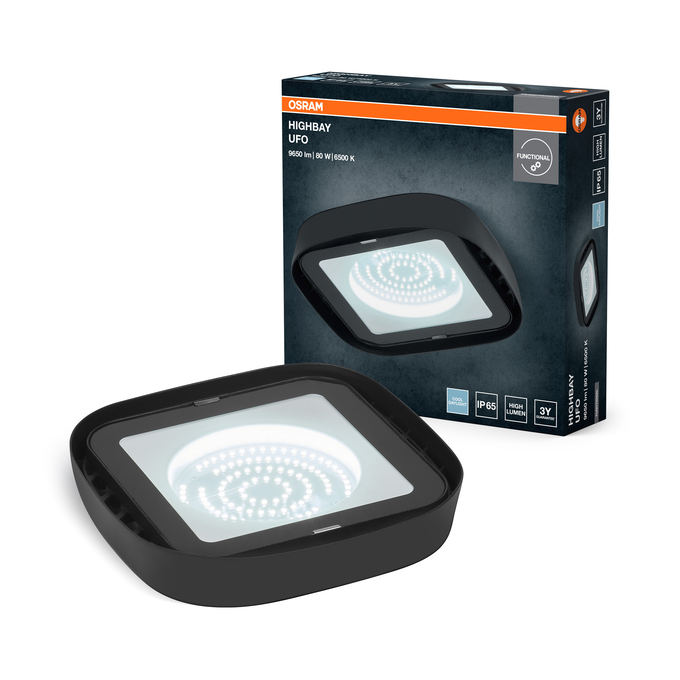

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC HIGHBAY UFO 80W 865
Packaging image, frontal
LUM FC HIGHBAY UFO 80W 865
Packaging image, spacial
LUM FC HIGHBAY UFO 80W 865
Application pictures

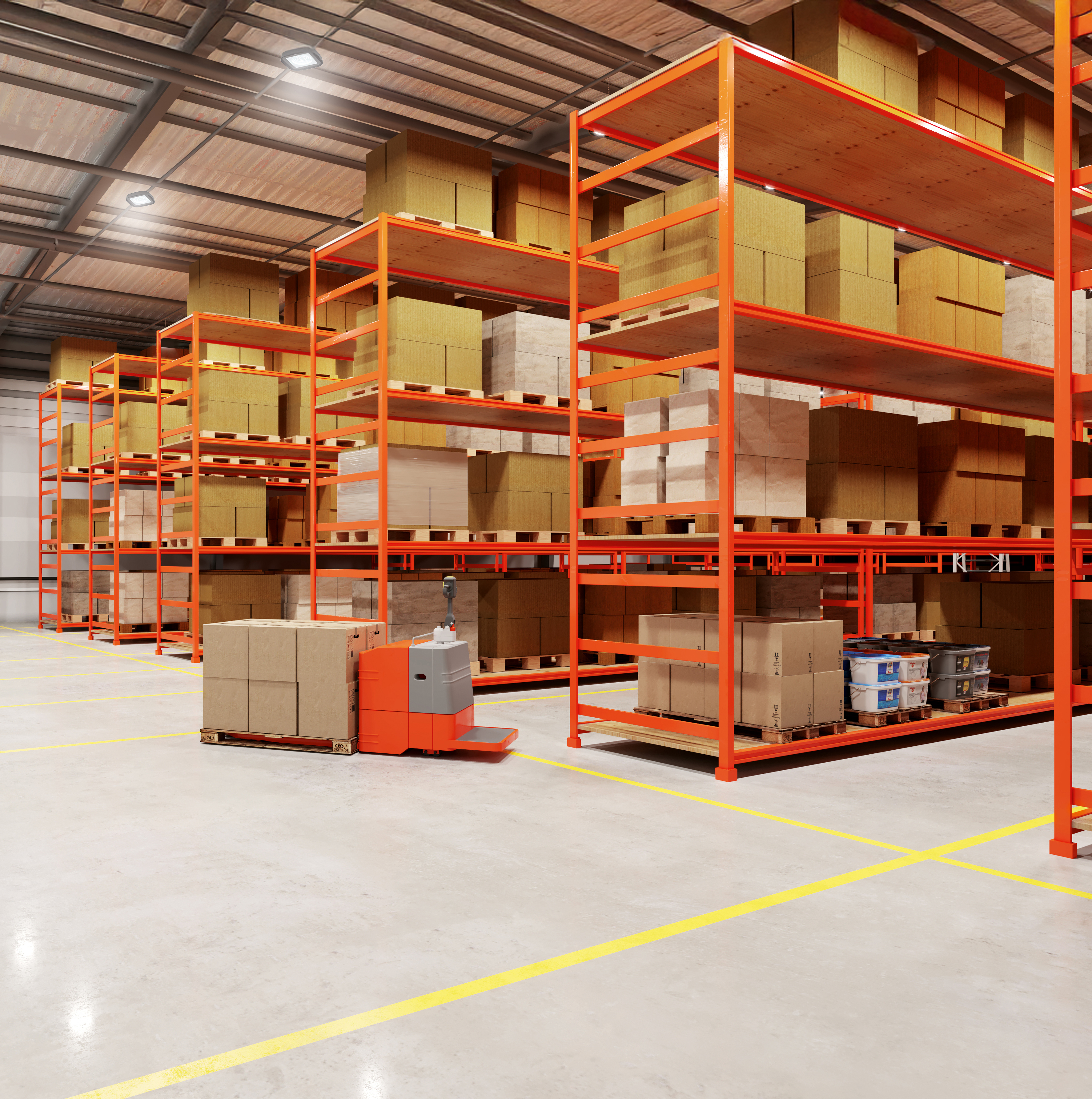

LEDVANCE warehouse highbay UFO
Application pictures Getty

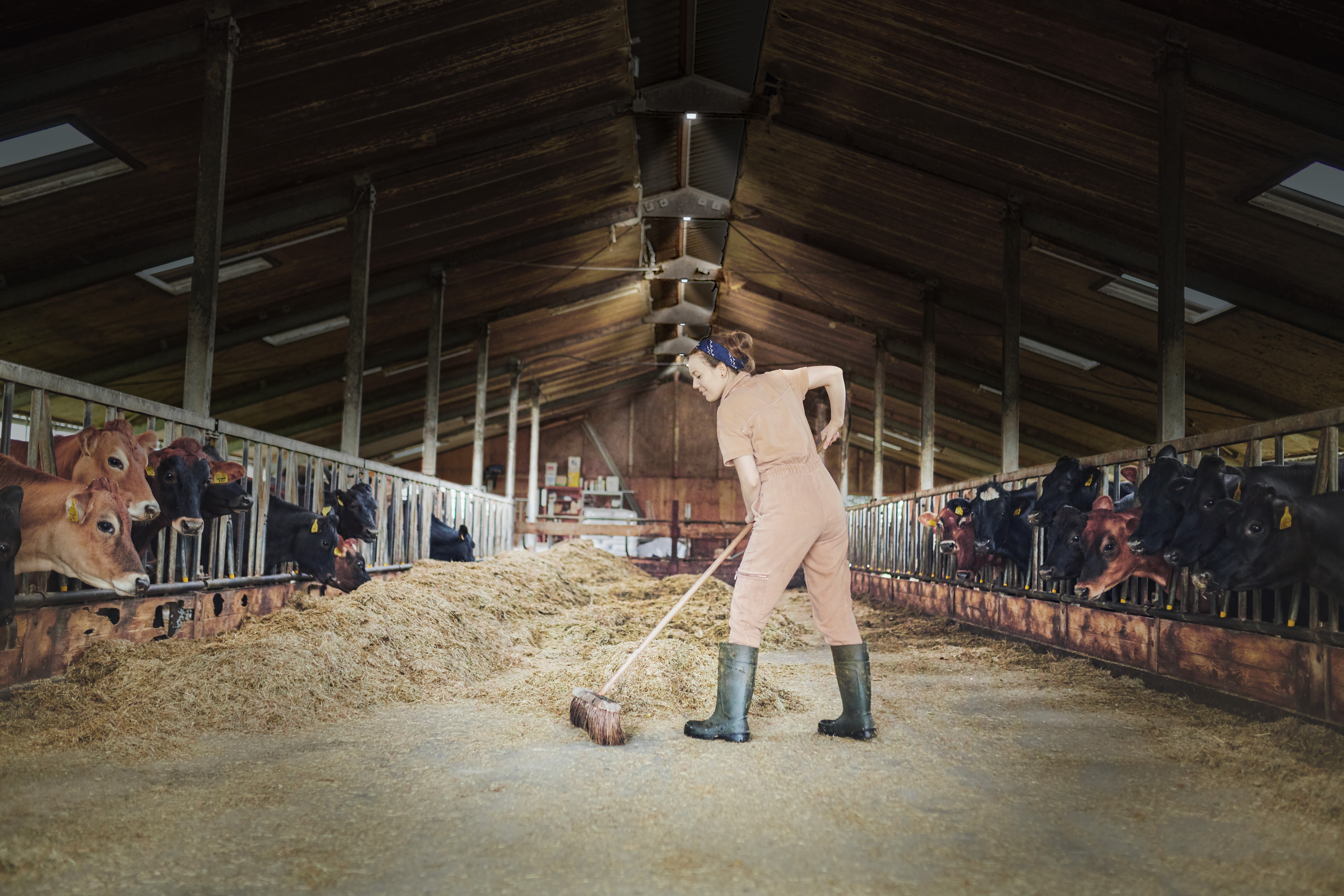

LED UFO Highbay Floodlight with high power
