Highbay Blade E27
Highbay Blade E27 23W 840 E27 Black
GTIN: 4099854429279
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- E27 Ceiling light with adjustable light-panels
- Easy installation in E27 lamp holders
- Perfect match for renovation purposes
Areas of application
- Renovation
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Type of protection: IP20
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 23 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 150 mA |
| Power factor λ | 0.66 |
| Total harmonic distortion | 105 % |
Photometrical data
| Luminous flux | 2350 lm |
| Luminous efficacy | 102 lm/W |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥ 82 |
| R9 Colour rendering index | 7 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 100 ° |
Dimensions & Weight
| Diameter | 231.00 mm |
| Length | 231.00 mm |
| Height | 91 mm |
| Width | 231.00 mm |
| Product weight | 130.00 g |
Materials & Colors
| Product color | Black |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Dimmable | No |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | E27 |
Lifespan
| Number of switching cycles | 10000 |
Certificates & Standards
| Standards | CE, UKCA, EAC |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854429279 | Folding box 1 |
117 mm x 117 mm x 117 mm | 240.00 g | 1.60 dm³ |
| 4099854429286 | Shipping box 4 |
482 mm x 131 mm x 151 mm | 960.00 g | 9.53 dm³ |
User instruction / safety instructions
HIGHBAY BLADE
HIGHBAY BLADE
Legal information
Safety insert G11220441
Safety insert G11220441
Declarations of conformity
HIGHBAY BLADE 840 E27 BK
HIGHBAY BLADE 840 E27 BK

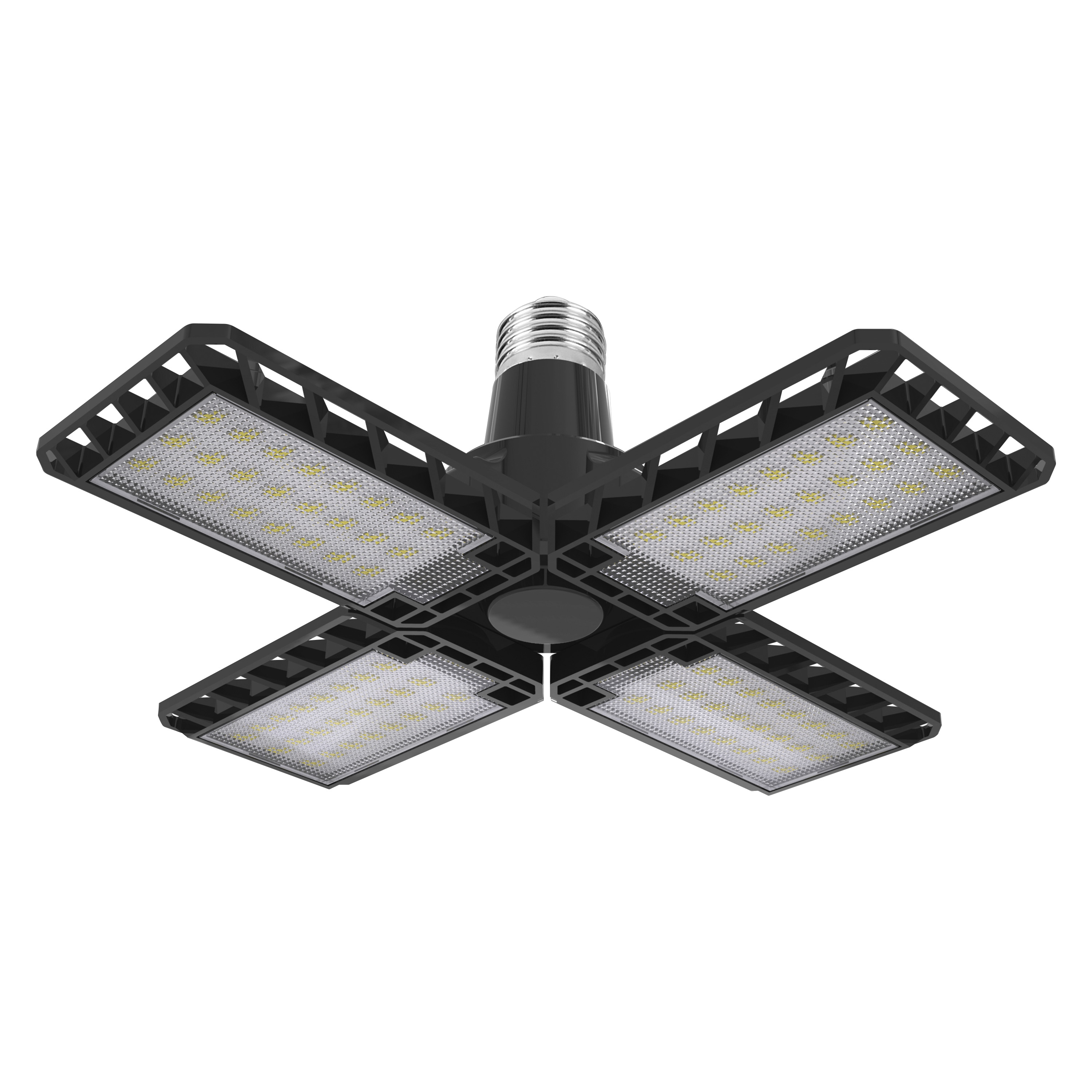

Product image: white background, upright
HIGHBAY BLADE 23W 840 E27 BK
HIGHBAY BLADE 23W 840 E27 BK

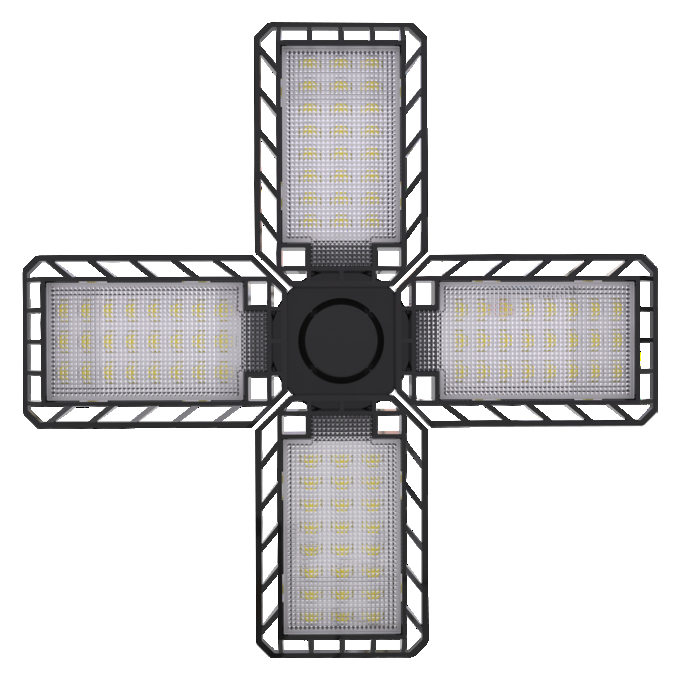

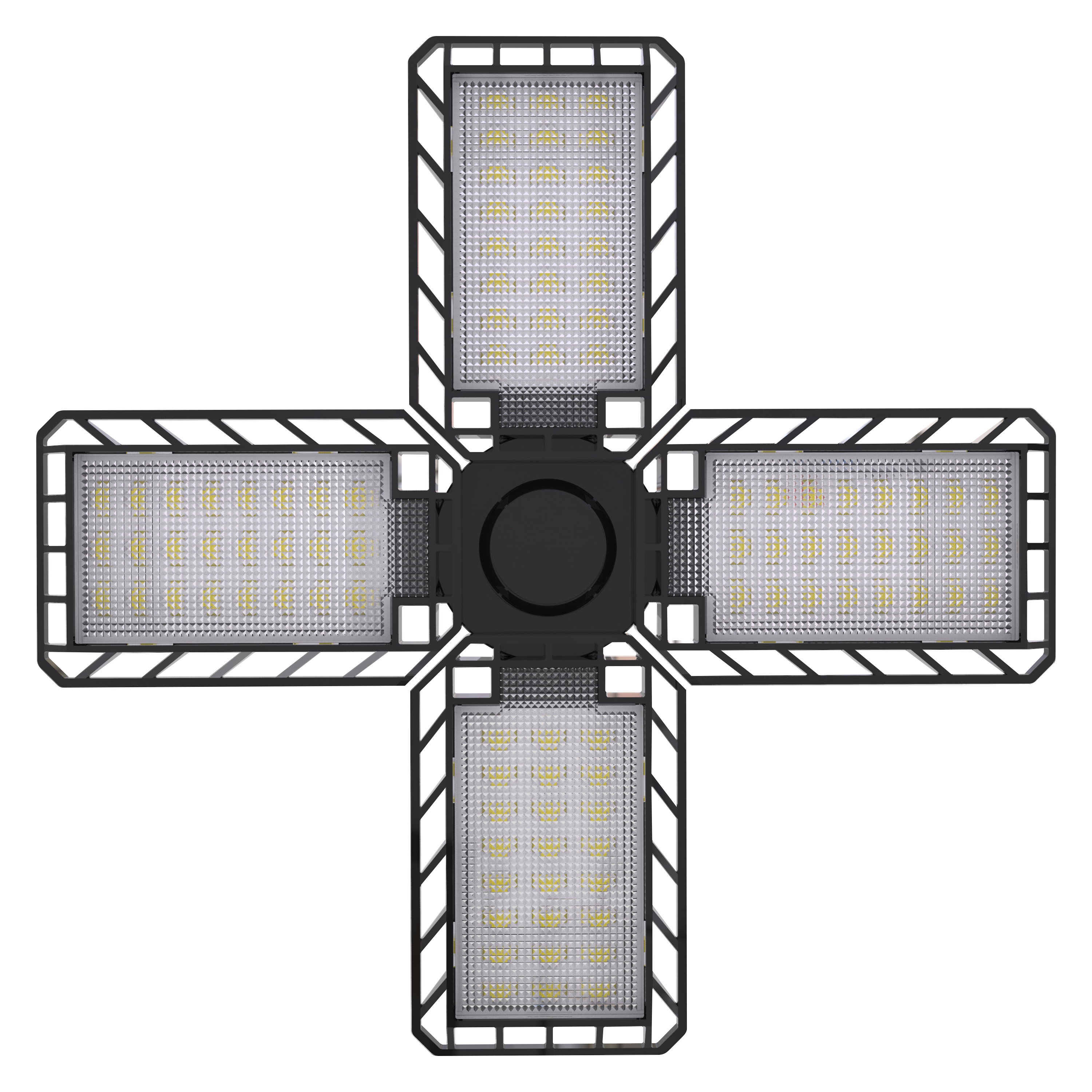

Product image: white background, upright, alternative image
HIGHBAY BLADE 23W 840 E27 BK
HIGHBAY BLADE 23W 840 E27 BK

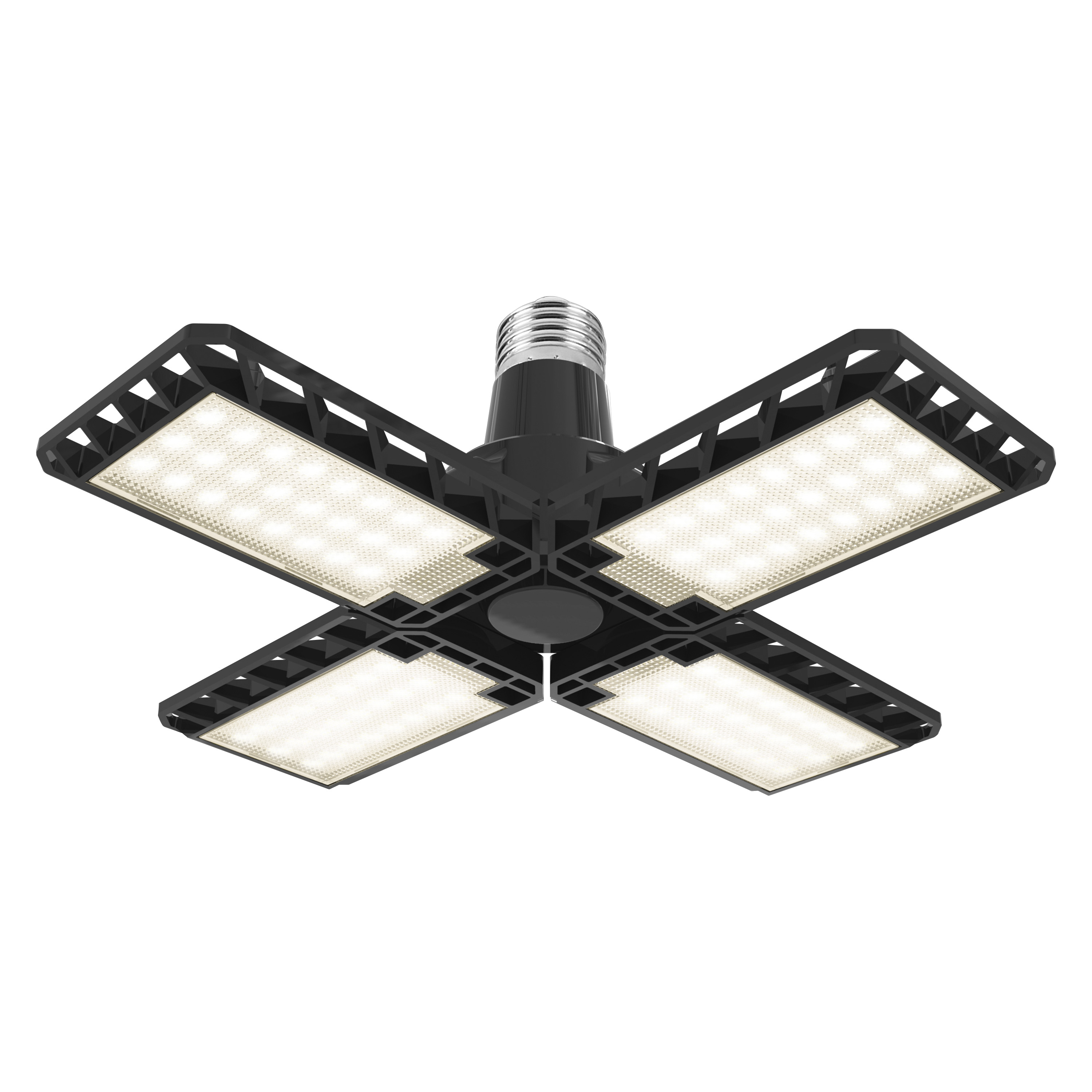

Product image: white background, upright, switched on
HIGHBAY BLADE 23W 840 E27 BK
HIGHBAY BLADE 23W 840 E27 BK
Product infographic (application image with text and graphic)
Highbay Blade e-Com graphic 1200x1200px 2024 EN
Highbay Blade e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
HIGHBAY BLADE 23W 840 E27 BK
HIGHBAY BLADE 23W 840 E27 BK
Product line drawing with numbers
HIGHBAY BLADE 23W 840 E27 BK
HIGHBAY BLADE 23W 840 E27 BK
Product line drawing, front, no dimensions
HIGHBAY BLADE 23W 840 E27 BK
HIGHBAY BLADE 23W 840 E27 BK

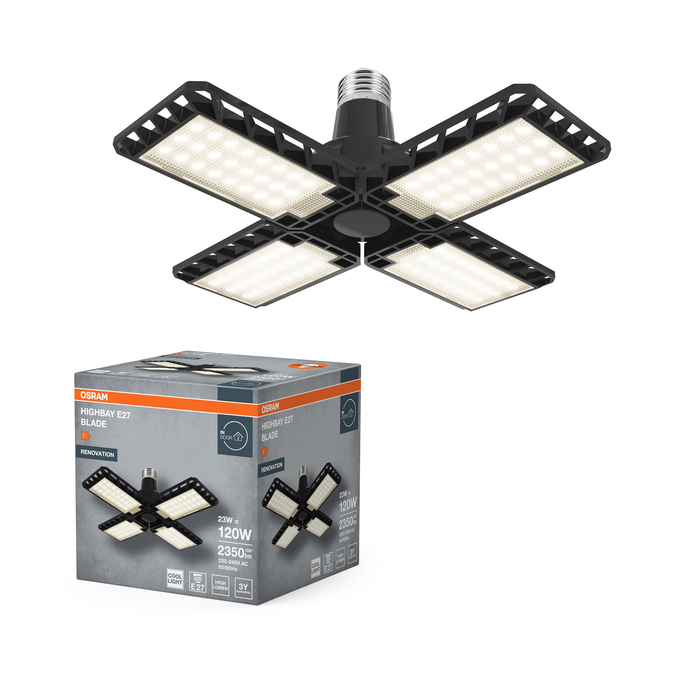

Combo Shot = Product Beauty Shot + Packaging Image
