Highbay Blade E27

Highbay Blade E27 40W 840 E27 Black

GTIN: 4099854429293 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • E27 Ceiling light with adjustable light-panels
  • Easy installation in E27 lamp holders
  • Perfect match for renovation purposes
Areas of application
  • Renovation
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Type of protection: IP20
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
Electrical data
Nominal wattage 40 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 170 mA
Power factor λ 0.97
Total harmonic distortion 8.3 %
Photometrical data
Luminous flux 4300 lm
Luminous efficacy 107 lm/W
Color temperature 4000 K
Color rendering index Ra ≥80
R9 Colour rendering index 14
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 100 °
Dimensions & Weight
Diameter 337.50 mm
Length 337.50 mm
Height 109 mm
Width 337.50 mm
Product weight 495.00 g
Materials & Colors
Product color Black
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Dimmable No
With light source Yes
Replaceable light source No
Holder designation E27
Lifespan
Number of switching cycles 10000
Certificates & Standards
Standards CE, UKCA, EAC
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854429293 Folding box
1		 197 mm x 197 mm x 148 mm 860.00 g 5.74 dm³
4099854429309 Shipping box
6		 609 mm x 412 mm x 173 mm 5160.00 g 43.41 dm³
User instruction / safety instructions
HIGHBAY BLADE
PDF (779.94 KB)
Legal information
Safety insert G11220441
PDF (208.92 KB)
Declarations of conformity
HIGHBAY BLADE
PDF (272.05 KB)

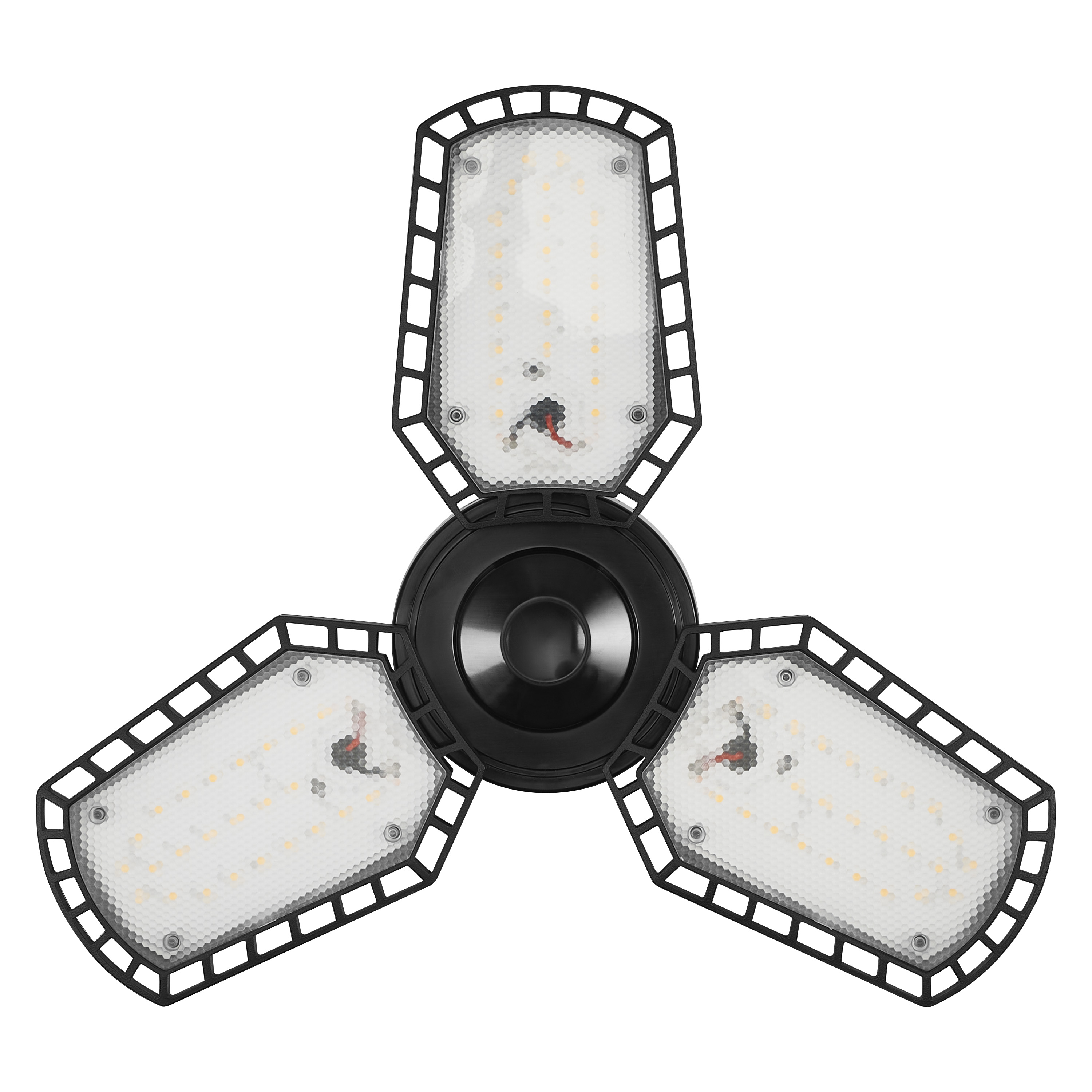

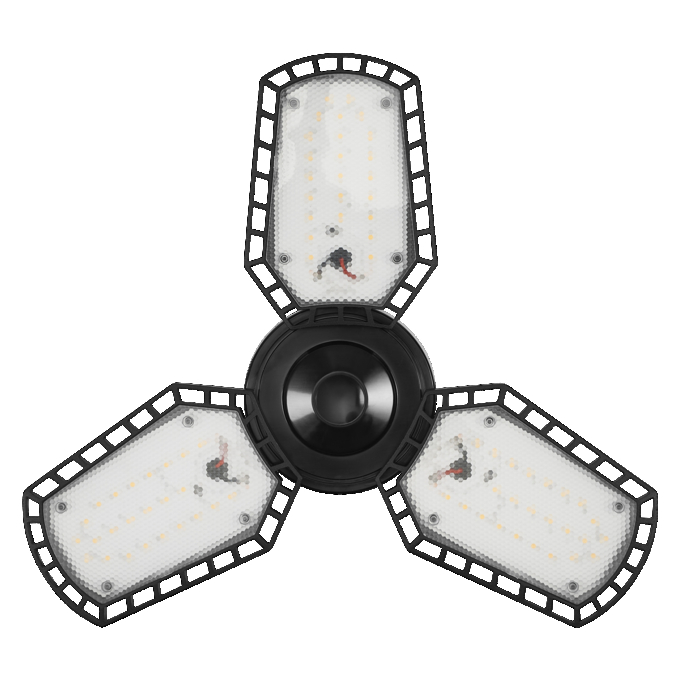

Product image: white background, upright
HIGHBAY BLADE 40W 840 E27 BK
JPG (644.05 KB)

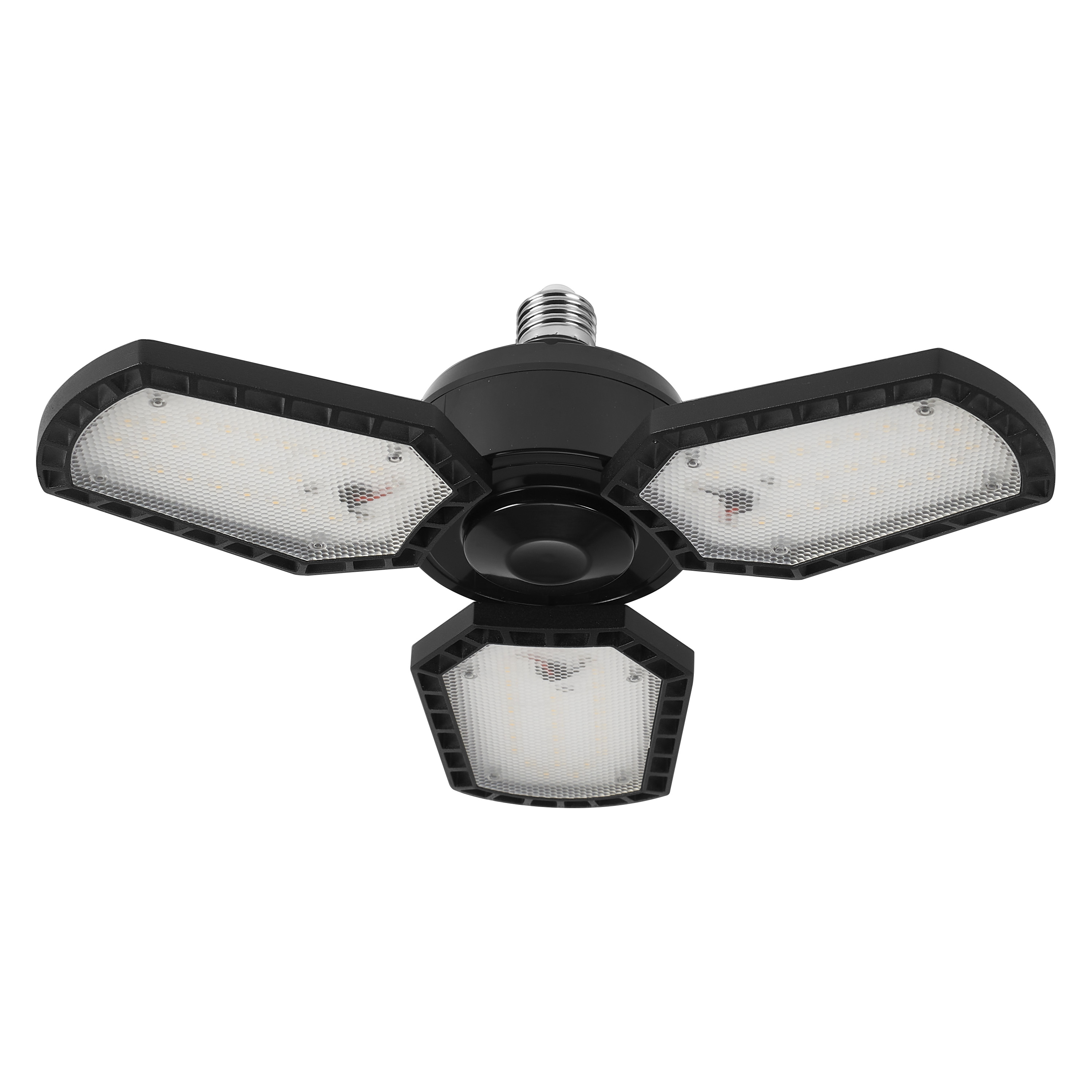

Product image: white background, upright, alternative image
HIGHBAY BLADE 40W 840 E27 BK
JPG (834.78 KB)

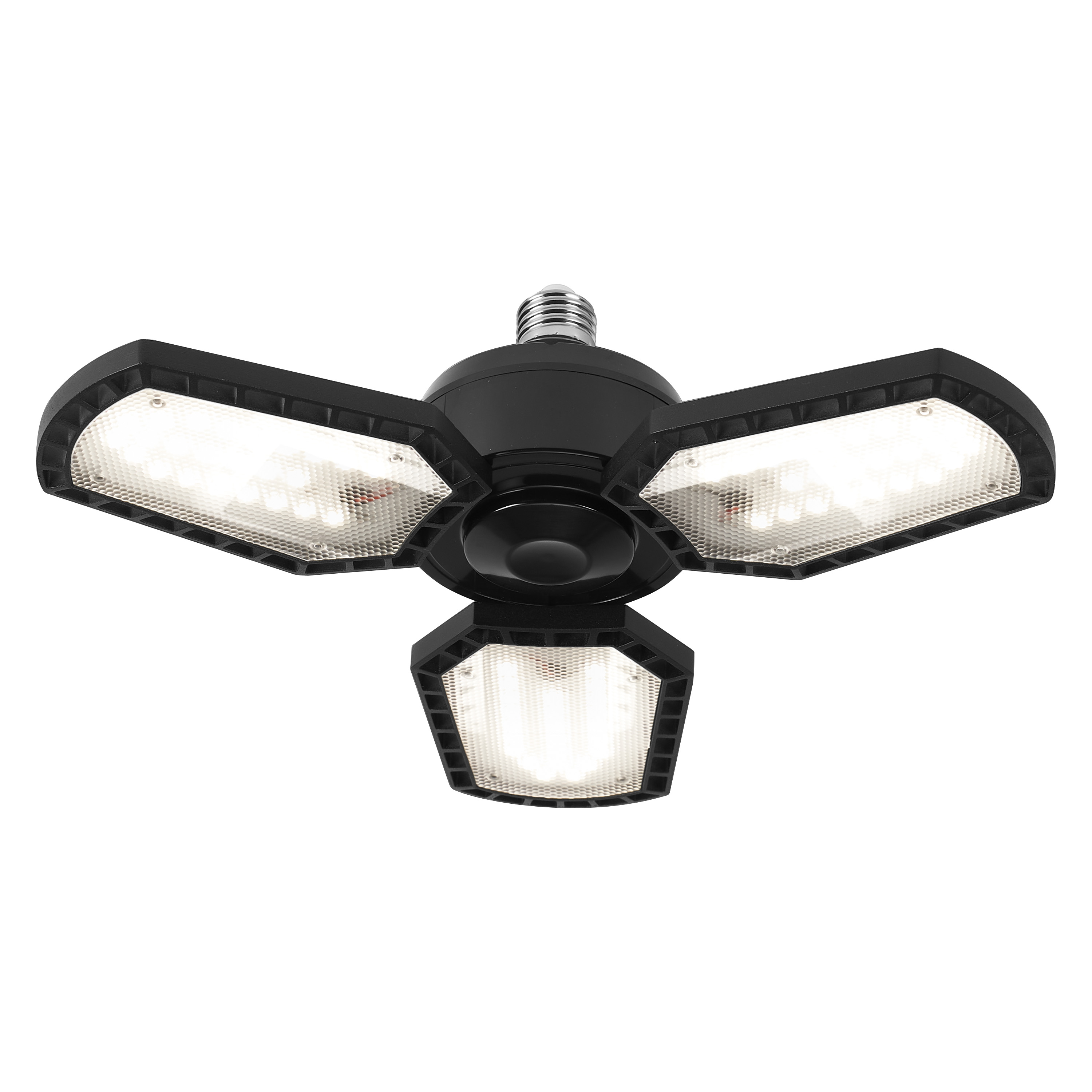

Product image: white background, upright, switched on
HIGHBAY BLADE 40W 840 E27 BK
JPG (615.72 KB)
Product infographic (application image with text and graphic)
Highbay Blade e-Com graphic 1200x1200px 2024 EN
JPG (758.04 KB)
Product line drawing with letters
HIGHBAY BLADE 40W/60W 840 E27 BK
SVG (345.76 KB)
Product line drawing with numbers
HIGHBAY BLADE 40W/60W 840 E27 BK
SVG (349.3 KB)
Product line drawing, front, no dimensions
HIGHBAY BLADE 40W/60W 840 E27 BK
SVG (330.04 KB)

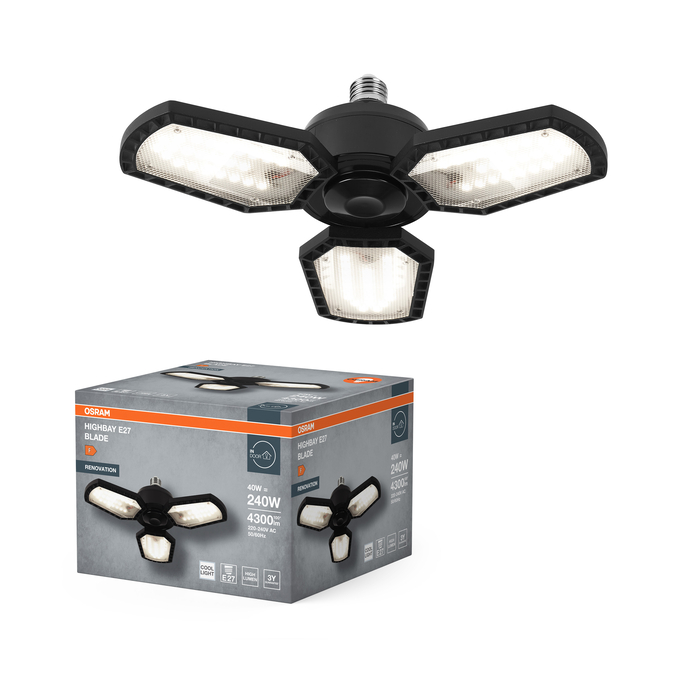

Combo Shot = Product Beauty Shot + Packaging Image
