Bulkhead Essential
Bulkhead Essential Oval E27 Black
GTIN: 4058075845589
Bundle / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Sustainable due to E27 base
- High-quality glass housing and integrated protective cage for increased safety
- Thanks to protection class IP44, the luminaire is splash-proof
Areas of application
- Basement
- Garages
- Corridors, stairways, entrance areas
Product features
- Impact resistance: IK06
- Type of protection: IP44
- Easy and quick installation
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Protection class | II |
Dimensions & Weight
| Length | 116.00 mm |
| Height | 207.00 mm |
| Width | 110.00 mm |
| Product weight | 520.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polyprophylene (PP) |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 10 W LED, Available from July 2025 |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075845589 | Bundle 1 |
209 mm x 119 mm x 108 mm | 525.00 g | 2.69 dm³ |
| 4058075845596 | Shipping box 10 |
607 mm x 237 mm x 274 mm | 7163.00 g | 39.42 dm³ |
User instruction / safety instructions
BULKHEAD ESSENTIAL
BULKHEAD ESSENTIAL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11219301
Safety insert G11219301
Declarations of conformity
CE declaration Bulkheads Essential E27
CE declaration Bulkheads Essential E27

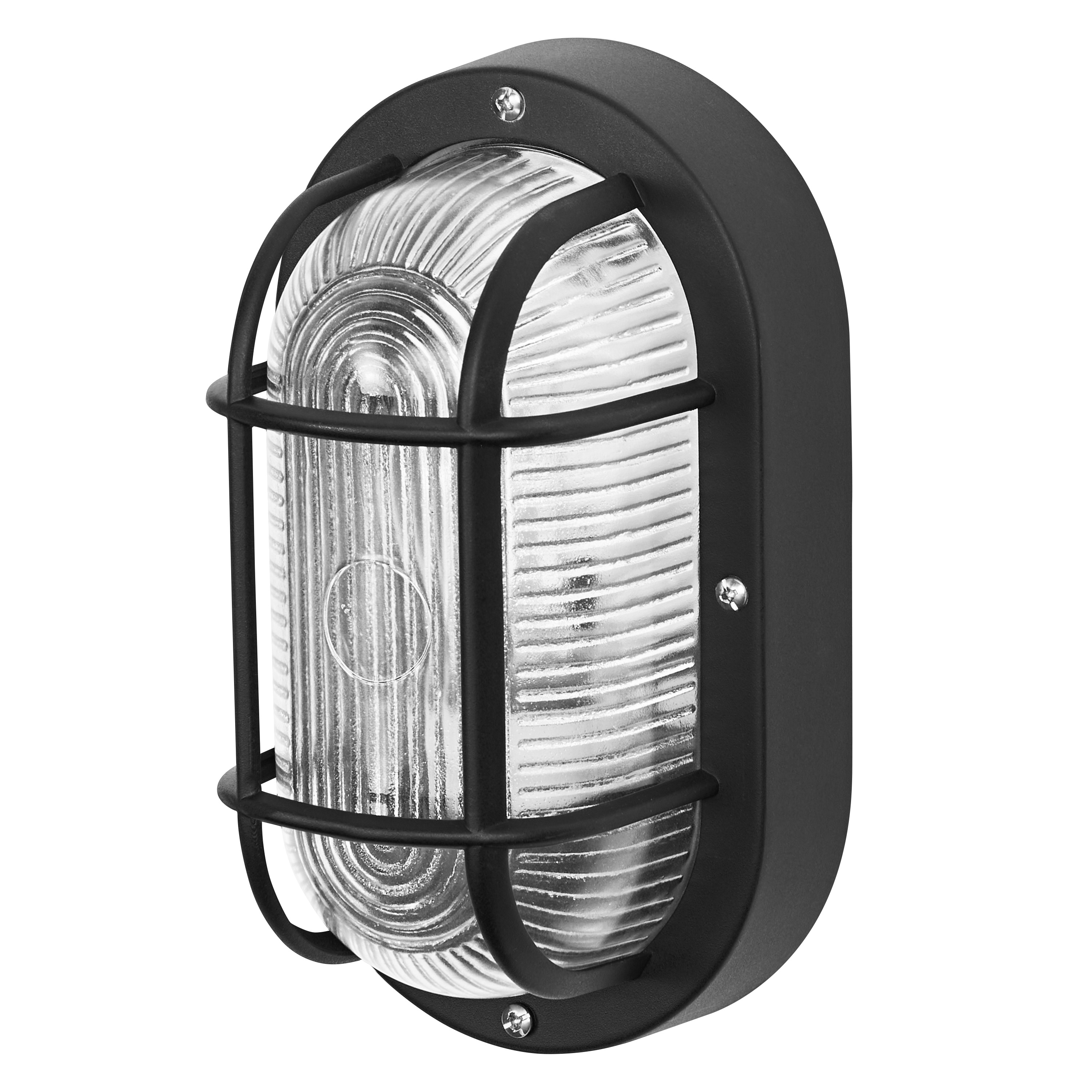

Product image: white background, upright
BULKHEAD ESSENTIAL OVAL E27 BK
BULKHEAD ESSENTIAL OVAL E27 BK

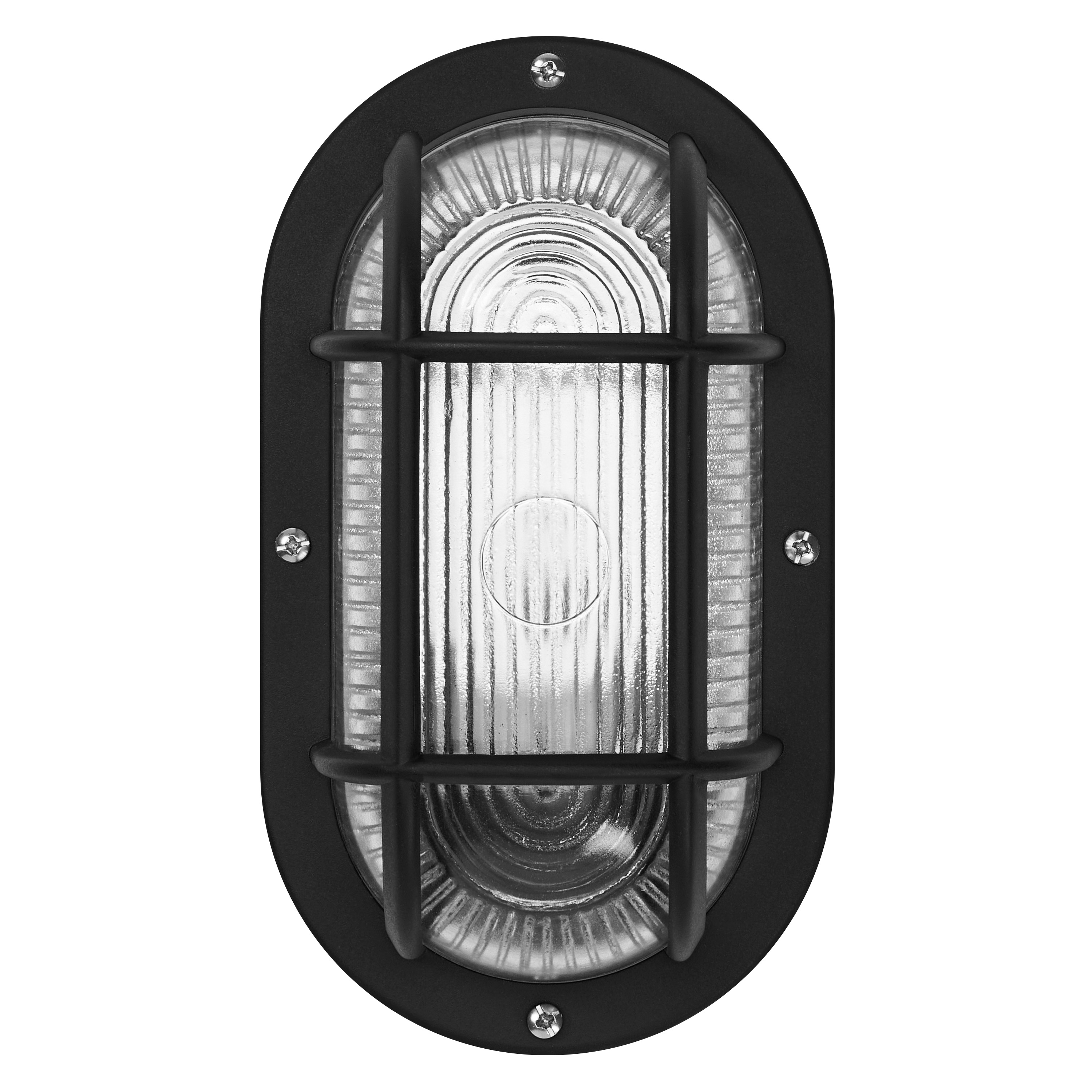

Product image: white background, upright, alternative image
BULKHEAD ESSENTIAL OVAL E27 BK
BULKHEAD ESSENTIAL OVAL E27 BK

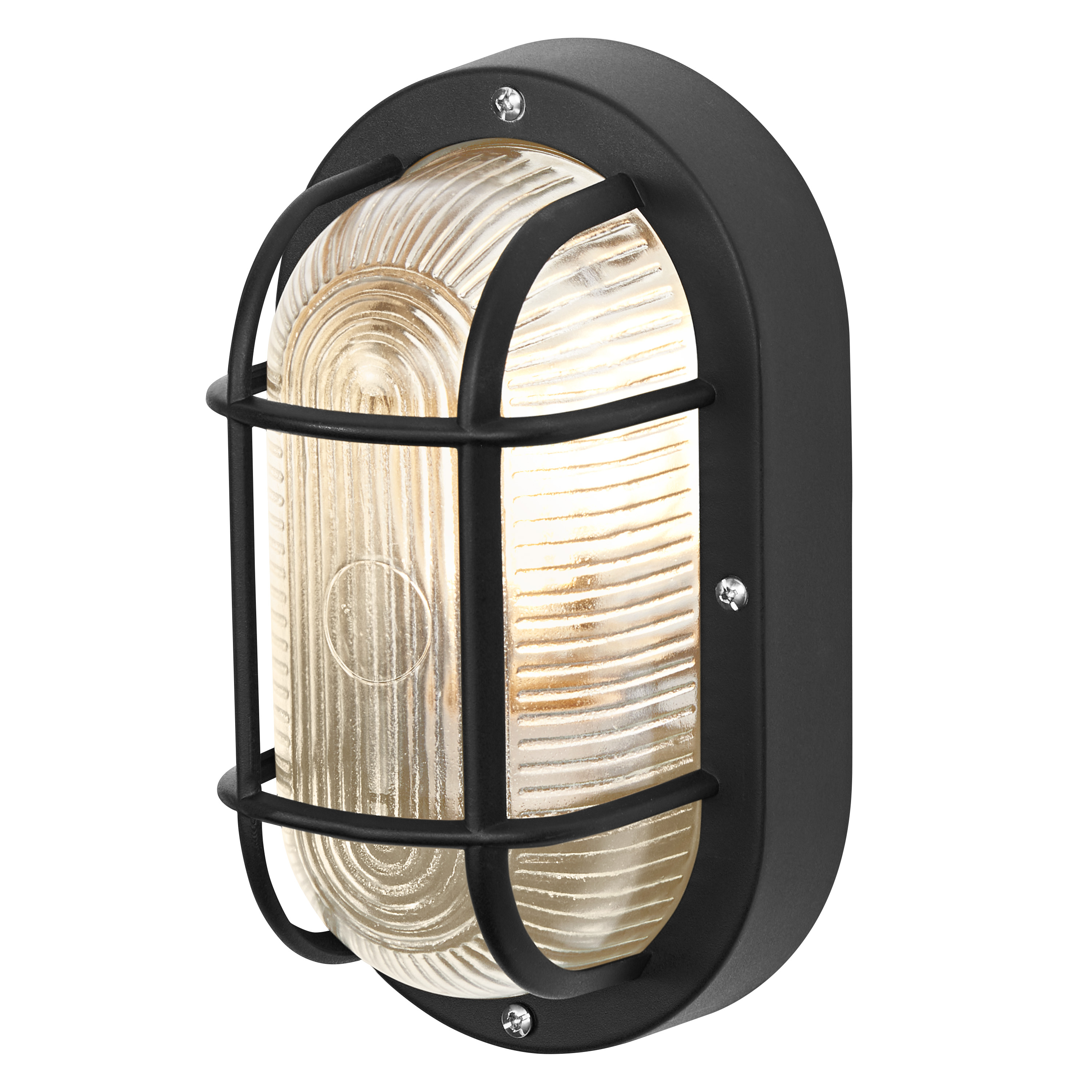

Product image: white background, upright, switched on
BULKHEAD ESSENTIAL OVAL E27 BK
BULKHEAD ESSENTIAL OVAL E27 BK
Product line drawing with letters
BULKHEAD ESSENTIAL OVAL E27
BULKHEAD ESSENTIAL OVAL E27
Product line drawing with numbers
BULKHEAD ESSENTIAL OVAL E27
BULKHEAD ESSENTIAL OVAL E27
Product line drawing, front, no dimensions
BULKHEAD ESSENTIAL OVAL E27
BULKHEAD ESSENTIAL OVAL E27
Packaging image, spacial
LUM StickerFS ESS BH OV E27 B OSRAM
LUM StickerFS ESS BH OV E27 B OSRAM

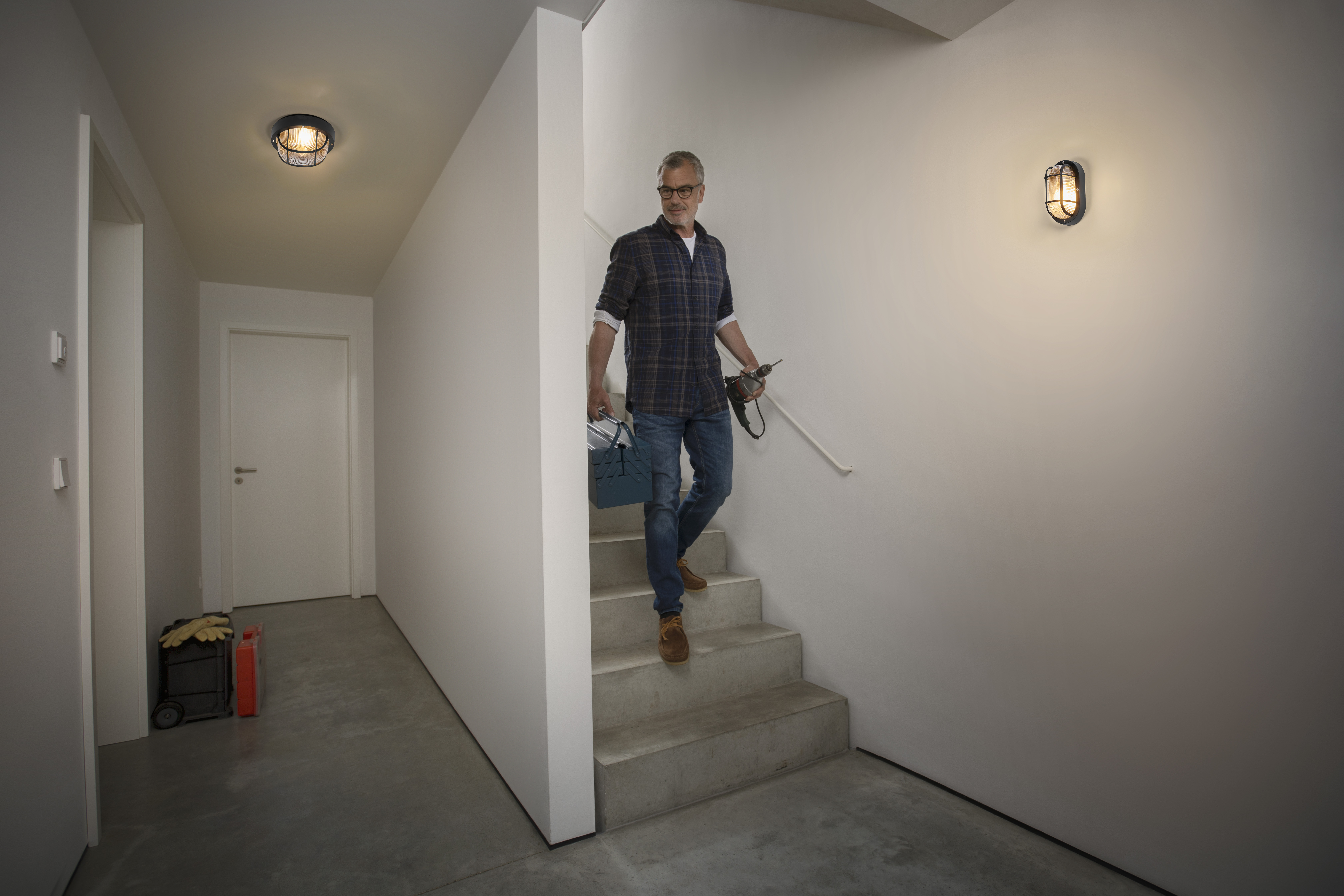

Application pictures
