Decor Plaster Routes
Decor Plaster Routes Bell Pendant 1XE27 White
GTIN: 4058075848443
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- High flexibility in the choice of the light source
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal and plaster
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 1200.00 mm |
| Product weight | 2500.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plaster |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-pole |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, UKCA |
Additional product data
| Product remark | Maximum bulb wattage: 10 W LED |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075848443 | Folding box 1 |
370 mm x 370 mm x 375 mm | 3945.00 g | 51.34 dm³ |
| 4058075848450 | Shipping box 2 |
760 mm x 388 mm x 403 mm | 9311.00 g | 118.84 dm³ |
User instruction / safety instructions
DECOR PLASTER ROUTES PENDANT E27
DECOR PLASTER ROUTES PENDANT E27
Declarations of conformity
LUM DECOR holder series
LUM DECOR holder series
Product image: white background, upright

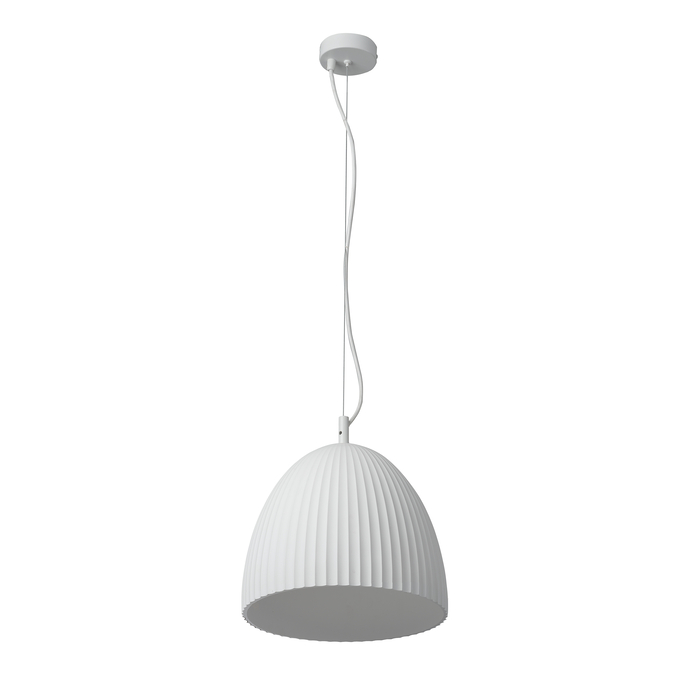

DECOR PLASTER ROUTES BELL PENDANT 1XE27 side off
DECOR PLASTER ROUTES BELL PENDANT 1XE27 side off
Product image: white background, upright, alternative image

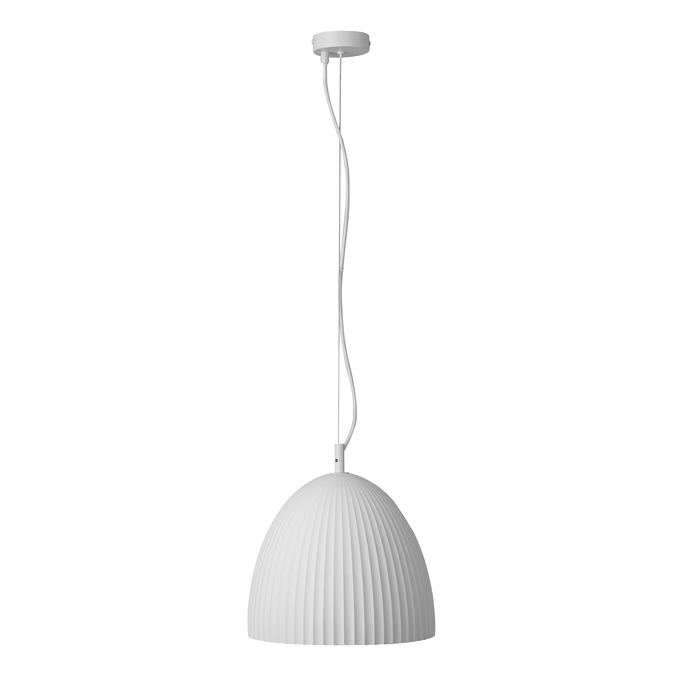

DECOR PLASTER ROUTES BELL PENDANT 1XE27 front
DECOR PLASTER ROUTES BELL PENDANT 1XE27 front
Product image: white background, upright, switched on

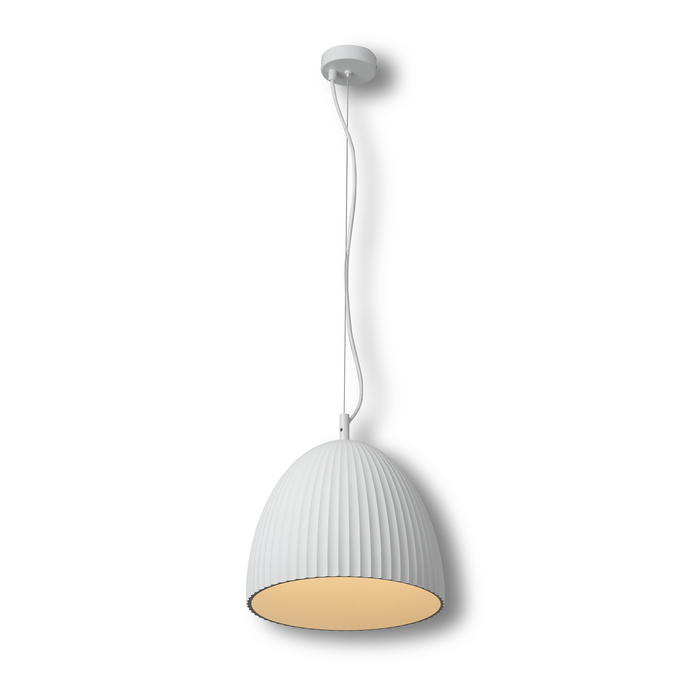

DECOR PLASTER ROUTES BELL PENDANT 1XE27 side on
DECOR PLASTER ROUTES BELL PENDANT 1XE27 side on
Product infographic (application image with text and graphic)
Decor Hard Stuff 3 e-Com graphic 1200x1200px 2024 EN
Decor Hard Stuff 3 e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
DECOR PLASTER ROUTES BELL PEND1XE27
DECOR PLASTER ROUTES BELL PEND1XE27
Product line drawing with numbers
DECOR PLASTER ROUTES BELL PEND1XE27
DECOR PLASTER ROUTES BELL PEND1XE27
Product line drawing - technical
DECOR PLASTER ROUTES BELL PEND1XE27
DECOR PLASTER ROUTES BELL PEND1XE27

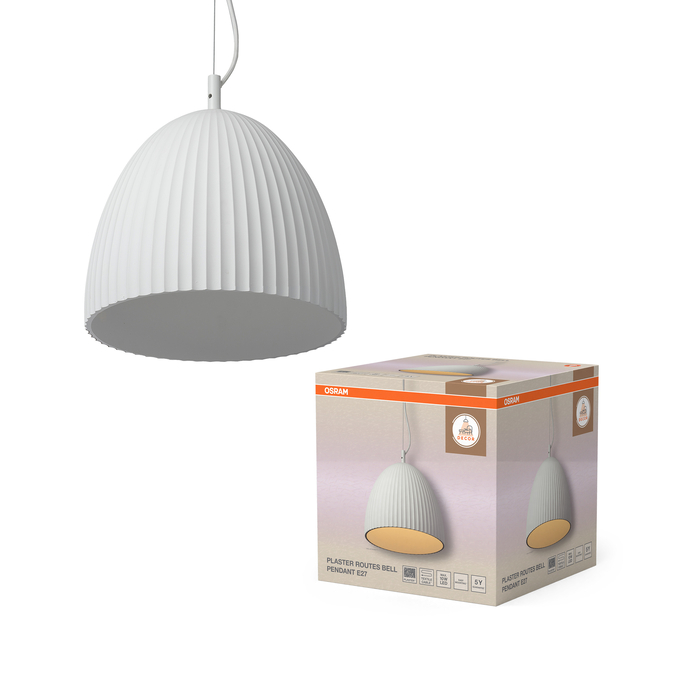

Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 PLASTER ROUTES BELL PENDANT E27
FC DECOR24 PLASTER ROUTES BELL PENDANT E27
Packaging image, frontal
FC DECOR24 PLASTER ROUTES BELL PENDANT E27
FC DECOR24 PLASTER ROUTES BELL PENDANT E27
Packaging image, spacial
FC DECOR24 PLASTER ROUTES BELL PENDANT E27
FC DECOR24 PLASTER ROUTES BELL PENDANT E27
Application pictures

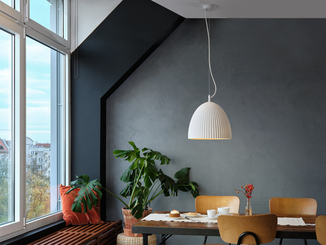

DECOR PLASTER ROUTES BELL PENDANT 1XE27 ambient
DECOR PLASTER ROUTES BELL PENDANT 1XE27 ambient
Application pictures
DECOR PLASTER ROUTES BELL PENDANT 1XE27 close-up off
DECOR PLASTER ROUTES BELL PENDANT 1XE27 close-up off
Application pictures
DECOR PLASTER ROUTES BELL PENDANT 1XE27 close-up on
DECOR PLASTER ROUTES BELL PENDANT 1XE27 close-up on
