Decor Yoyo Pendant
Decor Yoyo Pendant 6.5W 830 Beige
GTIN: 4058075846982
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Adjustable height
- Minimalistic style fits to every room
- Geometric shapes meet even illumination
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal and plastic
- High-power LED
- Color temperature: 3,000 K
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 6.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 45.000 mA |
| Inrush current | 0.045 A |
| Inrush current time Th50 | 3 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 284 |
| Max. number of luminaires per miniature circuit breaker C10 | 177 |
| Max. number of luminaires per miniature circuit breaker C16 | 284 |
| Power factor λ | 0.50 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 390 lm |
| Total luminous flux of contained light sources | 800 lm |
| Luminous efficacy | 60 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Diameter | 150.00 mm |
| Height | 1890.00 mm |
| Product weight | 530.00 g |
Materials & Colors
| Product color | Beige |
| Housing color | Beige |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Tripnehyl Phosphate (115-86-6) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075846982 | Folding box 1 |
202 mm x 202 mm x 147 mm | 834.00 g | 6.00 dm³ |
| 4099854476167 | Shipping box 4 |
430 mm x 215 mm x 325 mm | 3796.00 g | 30.05 dm³ |
User instruction / safety instructions
DECOR YOYO PENDANT+LINEAR
DECOR YOYO PENDANT+LINEAR
Declarations of conformity
DECOR YOYO LUM
DECOR YOYO LUM

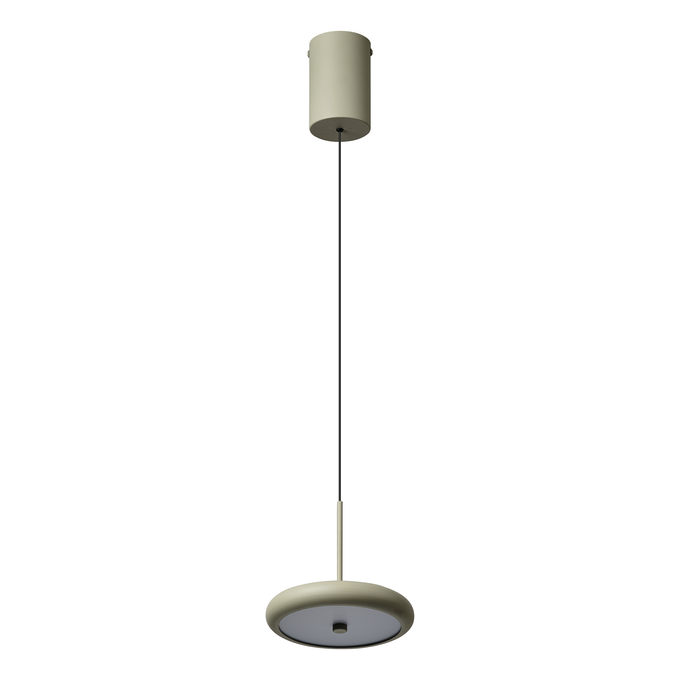

Product image: white background, upright
DECOR YOYO PENDANT 6.5W 830 BG side off
DECOR YOYO PENDANT 6.5W 830 BG side off

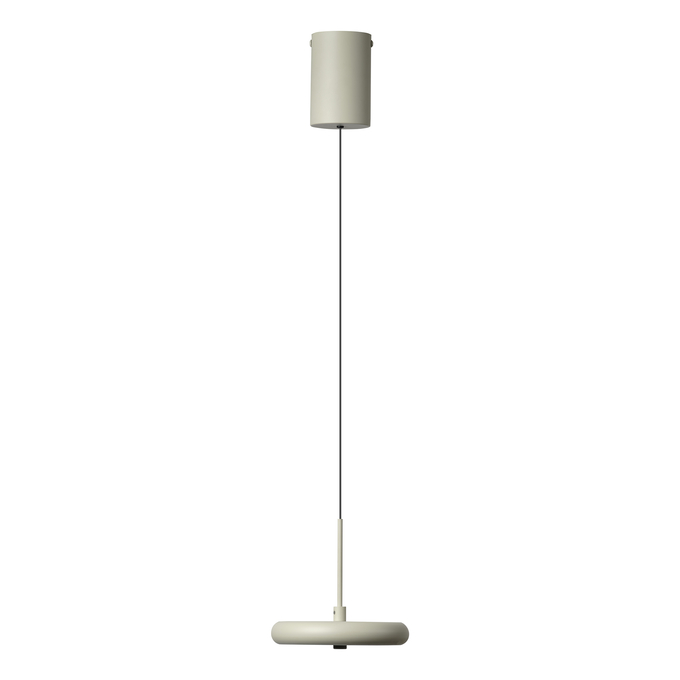

Product image: white background, upright, alternative image
DECOR YOYO PENDANT 6.5W 830 BG front
DECOR YOYO PENDANT 6.5W 830 BG front

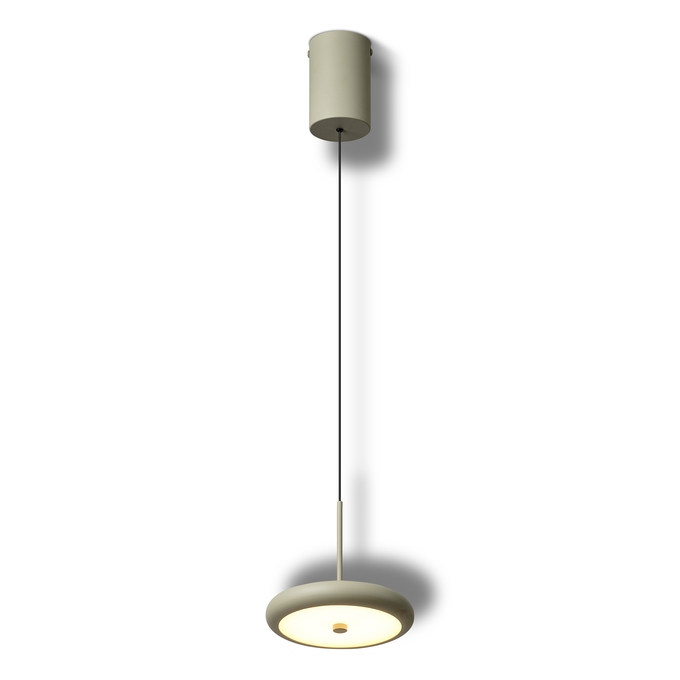

Product image: white background, upright, switched on
DECOR YOYO PENDANT 6.5W 830 BG side on
DECOR YOYO PENDANT 6.5W 830 BG side on
Product line drawing with letters
DECOR YOYO PENDANT 6.5W 830 BG
DECOR YOYO PENDANT 6.5W 830 BG
Product line drawing with numbers
DECOR YOYO PENDANT 6.5W 830 BG
DECOR YOYO PENDANT 6.5W 830 BG
Product line drawing - technical
DECOR YOYO PENDANT 6.5W 830 BG
DECOR YOYO PENDANT 6.5W 830 BG
Combo Shot = Product Beauty Shot + Packaging Image
FC DECOR24 YOYO PENDANT
FC DECOR24 YOYO PENDANT
Packaging image, frontal
FC DECOR24 YOYO PENDANT
FC DECOR24 YOYO PENDANT
Packaging image, spacial
FC DECOR24 YOYO PENDANT
FC DECOR24 YOYO PENDANT
Product infographic with environment and dimensions
DECOR YOYO PENDANT 6.5W 830 BG
DECOR YOYO PENDANT 6.5W 830 BG
Product image with graphic and measurements
DECOR YOYO PENDANT 6.5W 830 BG
DECOR YOYO PENDANT 6.5W 830 BG

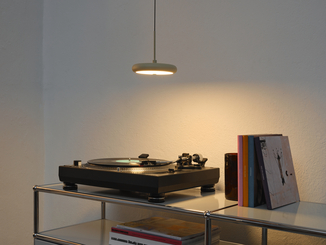

Application pictures
