Orbis Tube Bubble Glass
Orbis Tube Bubble Glass 40CM Click CCT DIM IP44 Black
GTIN: 4099854450501
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy to install and use
- Highly versatile due to selectable CCT
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Bathrooms (IP44)
Product features
- Type of protection: IP44
- Lifetime up to 30,000 h
- Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
- Stepless dimming via a touch control
- Click-CCT version: color temperature adjustable in two steps by repeated switching
- 2 different lengths available
- Housing material: aluminum
- Polycarbonate (PC) diffuser
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 9.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 70.000 mA |
| Inrush current time Th50 | 192 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 52 |
| Max. number of luminaires per miniature circuit breaker C10 | 44 |
| Max. number of luminaires per miniature circuit breaker C16 | 71 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 150 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 820 lm |
| Total luminous flux of contained light sources | 1000 lm |
| Luminous efficacy | 91 lm/W |
| Color temperature | 3000 … 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 400.00 mm |
| Height | 54.00 mm |
| Width | 70.00 mm |
| Product weight | 500.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | ABS/Polycarbonate (PC)/Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Dimmable | Yes |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854450501 | Folding box 1 |
97 mm x 422 mm x 83 mm | 685.00 g | 3.40 dm³ |
| 4099854450518 | Shipping box 4 |
440 mm x 212 mm x 191 mm | 2740.00 g | 17.82 dm³ |
User instruction / safety instructions
ORBIS TUBE
ORBIS TUBE
Legal information
Safety insert G11219301
Safety insert G11219301
Declarations of conformity
ORBIS MIRROR ORBIS TUBE ORBIS DISC
ORBIS MIRROR ORBIS TUBE ORBIS DISC

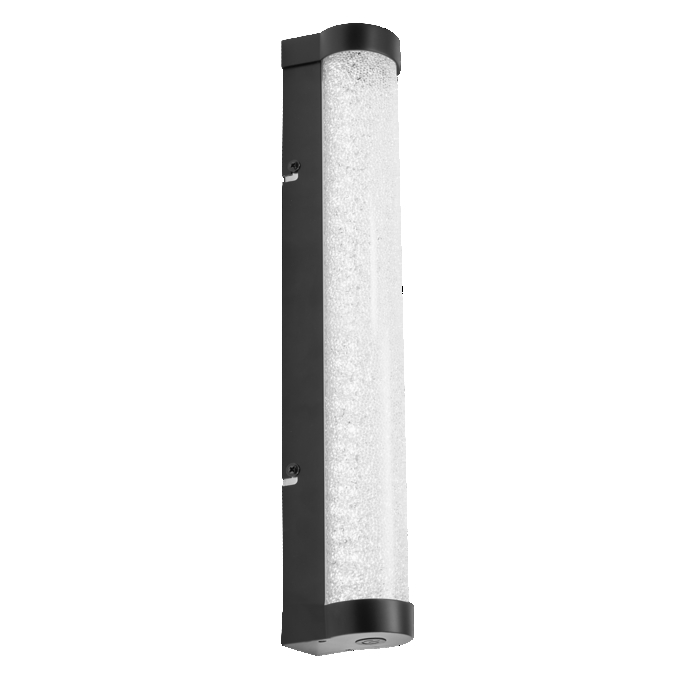

Product image: white background, upright
ORBIS TUBE 40CMCLICKCCTDIMIP44 BUBK
ORBIS TUBE 40CMCLICKCCTDIMIP44 BUBK

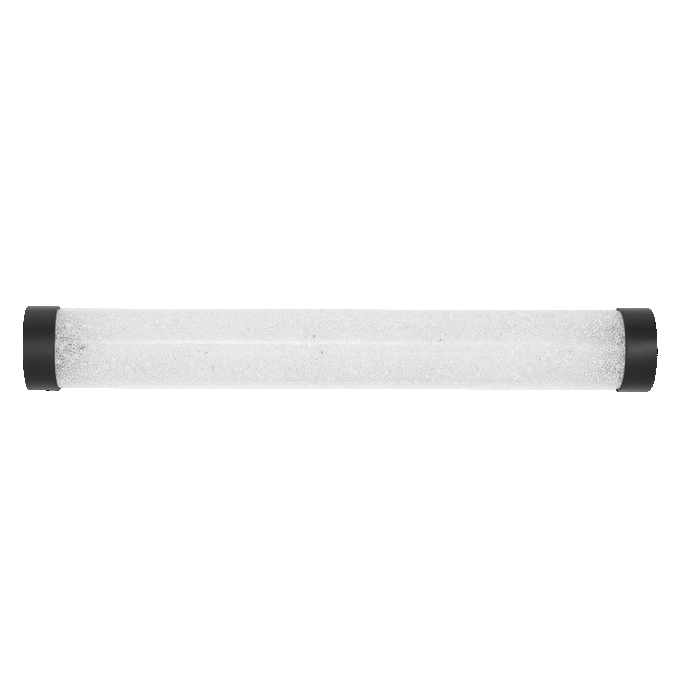

Product image: white background, upright, alternative image
ORBIS TUBE 40CMCLICKCCTDIMIP44 BUBK
ORBIS TUBE 40CMCLICKCCTDIMIP44 BUBK
Product image: white background, upright, switched on
ORBIS TUBE 40CMCLICKCCTDIMIP44 BUBK
ORBIS TUBE 40CMCLICKCCTDIMIP44 BUBK
Product line drawing with letters
ORBIS TUBE 40CM CLICKCCTDIMIP44
ORBIS TUBE 40CM CLICKCCTDIMIP44
Product line drawing with numbers
ORBIS TUBE 40CM CLICKCCTDIMIP44
ORBIS TUBE 40CM CLICKCCTDIMIP44
Product line drawing, front, no dimensions
ORBIS TUBE 40CM CLICKCCTDIMIP44
ORBIS TUBE 40CM CLICKCCTDIMIP44

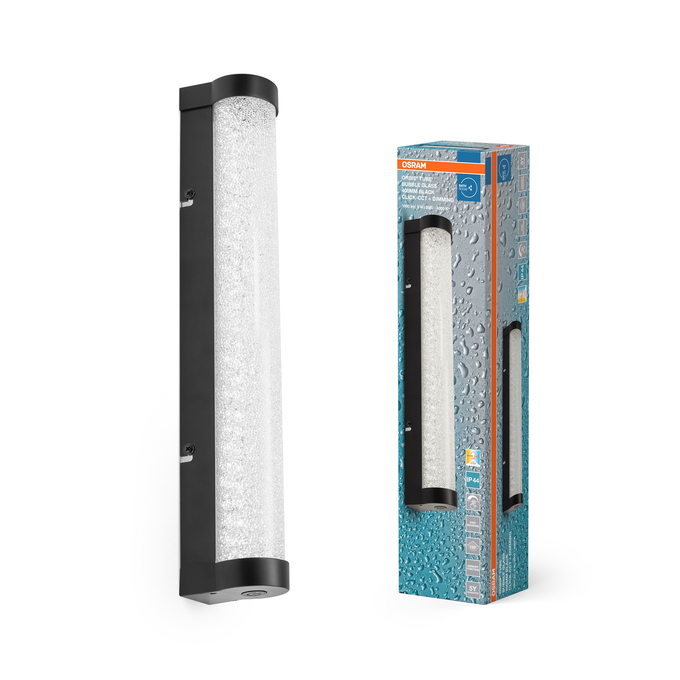

Combo Shot = Product Beauty Shot + Packaging Image
