Phase out
Starters for series operation at 230 V AC ( ST 151, ST 172)

ST 151 LONGLIFE

GTIN: 4050300092638 Blister / 2 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • Temperature range for reliable cut-out: -20…+80 °C
Electrical data
Nominal wattage 22.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Dimensions & Weight
Diameter 21,5 mm
Product weight 6.43 g
Additional product data
Mercury content 0.0 mg
Product remark Starters are available in two different designs, with identical technical features
Capabilities
Dimmable No
Country-specific categorizations
Order reference ST 151 LONGLIFE
Energy labelling regulation data acc EU 2019/2015
Length 40.30 mm
Height 21,5 mm
Width 21.50 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300092638 Blister
2		 111 mm x 24 mm x 68 mm 26.10 g 0.18 dm³
4050300119595 Shipping box
20		 165 mm x 154 mm x 133 mm 308.67 g 3.38 dm³
Declarations of conformity
CE Declaration Starter
PDF (169.68 KB)

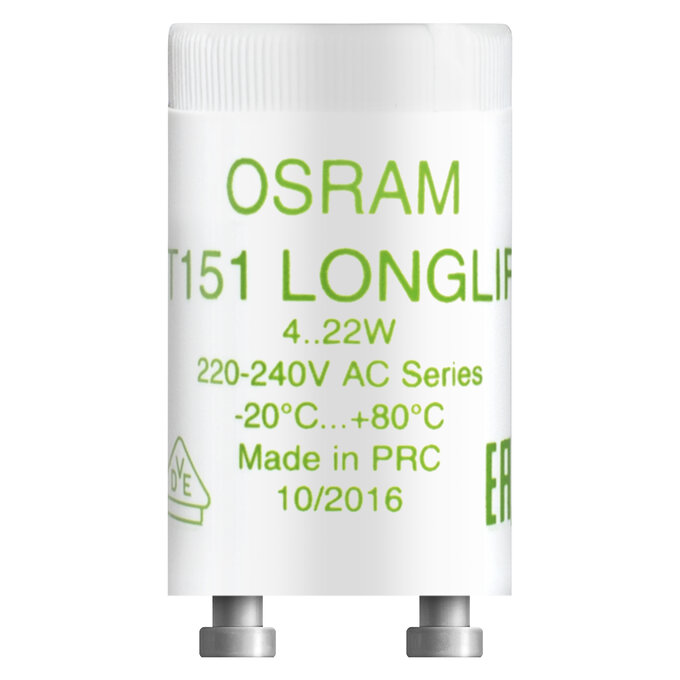

Product image: white background, diagonal
ST 151 LONGLIFE
JPG (993.08 KB)
Product image: white background, upright
ST 151 LONGLIFE
JPG (1.52 MB)
Product line drawing with letters
327970_STARTER 111/151 LONGLIFE, 111/151 BASIC
SVG (9.67 KB)
Product line drawing, front, no dimensions
327969_STARTER 111/151 LONGLIFE, 111/151 BASIC
SVG (6.04 KB)
Packaging image, frontal
ST 151 LONGLIFE 10XBLI2 OSRAM
JPG (1.18 MB)
EAN EFO number
4050300092638 3843105
