SPOT FIREPROOF

SPOT FP FIX 7 W 3000 K IP65/IP20 WT

Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • High luminous efficacy
  • Design matches the LEDVANCE DOWNLIGHT luminaire family
  • Energy savings of up to 90 % compared to halogen lamp spotlights
  • Functional and minimalistic design
  • Easy installation with fast connection
  • External driver for extended flexibility (compatible with selected dim. drivers)
  • Designed for extra IP protection
  • 5 years guarantee
Areas of application
  • Replacement of halogen lamp spotlights
  • Hotel rooms
  • Bars, restaurants
  • Bathrooms
  • Accent lighting
  • Galleries, museums
  • General illumination
  • Outdoor
Product features
  • Fire-resistant (up to 90 minutes, tested in accordance with EN 1365-2:2014 'fire resistance tests for loadbearing elements - Part 2: Floors and roofs')
  • Outdoor use and fire-resistant (up to 90 minutes, BS476-20:1987 and BS476-21:1987)
  • Compatible with standard ceiling cutouts of 68 mm
  • Initial color consistency: ≤ 4 SDCM
  • Type of protection, front side: IP65
Safety advice
  • Coordination with your responsible fire safety inspector is required in advance
References / Links
Electrical data
Nominal wattage 7.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 30 mA
Max. number of luminaires per miniature circuit breaker B16 32
Max. number of luminaires per miniature circuit breaker C10 25
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode Electronic control gear (ECG)
Photometrical data
Luminous flux 530 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤4 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 38 °
Dimensions & Weight
Diameter 90.00 mm
Height 72.00 mm
Product weight 289.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP65/IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 90 mm
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075127333 Folding box
1		 190 mm x 100 mm x 110 mm 398.00 g 2.09 dm³
4058075190627 Folding box
1		 190 mm x 100 mm x 110 mm 398.00 g 2.09 dm³
4058075127340 Shipping box
20		 525 mm x 400 mm x 250 mm 8720.00 g 52.50 dm³
4058075190634 Shipping box
20		 525 mm x 400 mm x 250 mm 8720.00 g 52.50 dm³
User instruction / safety instructions
SPOT LED
PDF (789.48 KB)
User instruction / safety instructions
714115_User Instruction SPOT LED
PDF (2.68 MB)
On-Pack-Info
Legal Insert Spot LED
PDF (1.59 MB)
Legal information
LSI SPOT LED ADJUST AND LED FIX
PDF (1.34 MB)
Declarations of conformity
Attestation-of-Conform ity-Spot LED -Fix-Adjust +Downlight LED TÜV
PDF (2.15 MB)
PRODUCT DATASHEET
SPOT LED 68 7 W 3000 K IP65 FP WT
PDF (280.04 KB)
Product image: white background, diagonal
707506_LEDVANCE Spot-FP LED fix 7W
TIF (33.33 MB)

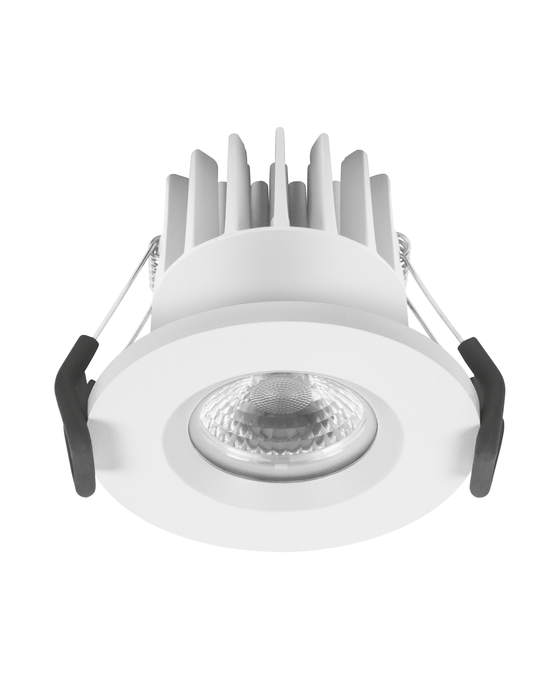

Product image: white background, upright
707515_LEDVANCE Spot-FP LED fix 7W
TIF (33.33 MB)
Product line drawing with letters
707999_LEDVANCE Spot-FP LED fix 7W
SVG (27.58 KB)
Product line drawing with numbers
707988_LEDVANCE Spot-FP LED fix 7W
SVG (27.2 KB)
Product line drawing, front, no dimensions
708013_LEDVANCE Spot-FP LED fix 7W
SVG (21.82 KB)

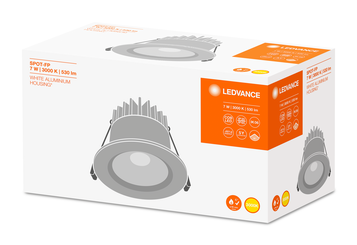

Packaging image, spacial
Spot FP white 7W 830 MiCh Side
TIF (21.81 MB)
Catalog info 2
Spot LED
SVG (94.98 KB)
Catalog info 6
Spot LED
SVG (47.49 KB)
IES file (IES)
Spot-FP LED fix 7W 3000K 230V IP65
IES (23.08 KB)
LDT file (Eulumdat)
Spot-FP LED fix 7W 3000K 230V IP65
LDT (26.8 KB)
ULD file (DIALux)
SPOTFIREPROOF7W3000KIP 65WT
ULD (1.57 MB)
UGR file (UGR table)
4058075000209 Spot-FP LED fix 7W 3000K 230V IP65
PNG (59.91 KB)
Light distribution curve type cone
4058075000209 Spot-FP LED fix 7W 3000K 230V IP65
SVG (84.4 KB)
Light distribution curve type polar
4058075000209 Spot-FP LED fix 7W 3000K 230V IP65
SVG (277.76 KB)
EAN SEG number STK number EFO number ELDAS number
4058075127333 7451272 4110680 3241041 941400740
