SPOT DIM
SPOT FIX DIM 8 W 4000 K IP44/IP20 WT
GTIN: 4058075127104
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- High luminous efficacy
- Design matches the LEDVANCE DOWNLIGHT luminaire family
- Energy savings of up to 90 % compared to halogen lamp spotlights
- Functional and minimalistic design
- Easy and quick installation
- External driver for extended flexibility (compatible with selected DALI drivers)
- 5 years guarantee
Areas of application
- Replacement of halogen lamp spotlights
- General illumination
- Hotel rooms
- Bars, restaurants
- Accent lighting
- Galleries, museums
- Residential interiors
Product features
- Initial color consistency: ≤ 4 SDCM
- Housing material: aluminum
- Lens material: PMMA
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 200 |
| Max. number of luminaires per miniature circuit breaker C10 | 100 |
| Max. number of luminaires per miniature circuit breaker C16 | 200 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | 20 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 670 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 36 ° |
Dimensions & Weight
| Diameter | 81.00 mm |
| Height | 51.00 mm |
| Product weight | 268.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | Yes |
| Type of dimming | LEA/TR.EDG |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 68 mm |
| Mounting depth | 90 mm |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| ECG - Length | 120 mm |
| ECG - Height | 35 mm |
Certificates & Standards
| Standards | CE, CB, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075127104 | Folding box 1 |
142 mm x 102 mm x 112 mm | 354.00 g | 1.62 dm³ |
| 4058075127111 | Shipping box 27 |
440 mm x 320 mm x 360 mm | 10083.00 g | 50.69 dm³ |
User instruction / safety instructions
User Instruction Spot LED DIM
User Instruction Spot LED DIM
On-Pack-Info
Legal Insert Spot LED
Legal Insert Spot LED
Legal information
LSI SPOTFP LED FIX AND SPOT LED FIX
LSI SPOTFP LED FIX AND SPOT LED FIX
Declarations of conformity
Attestation-of-Conform ity-Spot LED -Fix DIM +Downlight LED 35W TÜV
Attestation-of-Conform ity-Spot LED -Fix DIM +Downlight LED 35W TÜV
Declarations of conformity
CE Declaration_Spot FP LED fix_Spot LED fix
CE Declaration_Spot FP LED fix_Spot LED fix
Product image: white background, diagonal
Spot FP LED DIM 8W white
Spot FP LED DIM 8W white
Product line drawing with letters
Spot LED DIM 8W ml k
Spot LED DIM 8W ml k
Product line drawing with numbers
Spot LED DIM 8W mn k
Spot LED DIM 8W mn k
Product line drawing, front, no dimensions
Spot LED DIM 8W k
Spot LED DIM 8W k

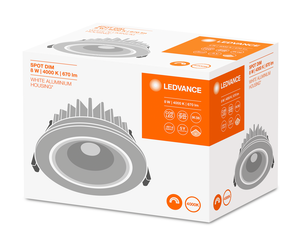

Packaging image, spacial
Spot fix DIM white 8W 840 MiCh Side
Spot fix DIM white 8W 840 MiCh Side
Catalog info 2
Spot LED DIM
Spot LED DIM
Catalog info 6
Spot LED DIM
Spot LED DIM
IES file (IES)
Spot LED fix 8W 4000K WT DIM IP44
Spot LED fix 8W 4000K WT DIM IP44
LDT file (Eulumdat)
Spot LED fix 8W 4000K WT DIM IP44
Spot LED fix 8W 4000K WT DIM IP44
ULD file (DIALux)
SPOTDIM8W4000KIP44WT
SPOTDIM8W4000KIP44WT
ROLF file (RELUX)
SPOT LED FIX 8W-4000K
SPOT LED FIX 8W-4000K
Light distribution curve type cone
4058075811270 Spot LED fix 8W 4000K WT DIM IP44
4058075811270 Spot LED fix 8W 4000K WT DIM IP44
Light distribution curve type polar
4058075811270 Spot LED fix 8W 4000K WT DIM IP44
4058075811270 Spot LED fix 8W 4000K WT DIM IP44
Application pictures
Restroom illumination
Restroom illumination
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075127104 | 7451248 | 4125301 | 941400720 |
