SPOT DK FIX 7 W 3000 K IP44/IP20 WTSPOT DARKLIGHT

SPOT DARKLIGHT

SPOT DK FIX 7 W 3000 K IP44/IP20 WT

GTIN: 4058075127166 Folding box / 1 Show all packages

Download data sheet

Contact sales

5-year warranty

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Design matches the LEDVANCE DOWNLIGHT luminaire family
Energy savings of up to 90 % compared to halogen lamp spotlights
Functional and minimalistic design
Easy installation with fast connection
External driver for extended flexibility (compatible with selected dim. drivers)
Designed for extra performance
70° cut off angle - perfect for shelf lighting
5 years guarantee

Areas of application

Replacement of conventional 50 W halogen spotlights
Hotel rooms
Bars, restaurants
Bathrooms
Shelf and undercabinet lighting
Galleries, museums
General illumination

Product features

Luminous efficacy: 85 lm/W
Luminous flux: 580 lm
Diameter of required ceiling cut-out: 63 mm
Color temperature: 3,000 K
Initial color consistency: ≤ 4 SDCM
Beam angle: 36°
Type of protection, front side: IP44

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	7.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	30 mA
Max. number of luminaires per miniature circuit breaker B16	32
Max. number of luminaires per miniature circuit breaker C10	25
Max. number of luminaires per miniature circuit breaker C16	40
Power factor λ	> 0.90
Total harmonic distortion	< 15 %
Protection class	II
Operating mode	Electronic control gear (ECG)

Photometrical data

Luminous flux	580 lm
Luminous efficacy	85 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 80
Standard deviation of color matching	≤4 sdcm
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	36 °

Dimensions & Weight

Diameter	70.00 mm
Height	58.00 mm
Product weight	200.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Aluminum
Light emitting surface material	PMMA
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C
Type of connection	Screw terminal, 2-Pole (L,N)
Type of protection	IP44/IP20
Protection class IK (shock resistance)	IK06
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting diameter	63 mm
Mounting depth	90 mm
With light source	Yes

Lifespan

Lifespan L70/B50 at 25 °C	50000 h ¹⁾
Lifespan L80/B10 at 25 °C	40000 h ¹⁾
Lifespan L90/B10 at 25 °C	20000 h
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards	CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075127166	Folding box 1	105 mm x 100 mm x 85 mm	268.00 g	0.89 dm³
4058075127173	Shipping box 20	550 mm x 220 mm x 200 mm	5745.00 g	24.20 dm³

User instruction / safety instructions
SPOT LED

PDF (789.48 KB)

On-Pack-Info
Legal Insert Spot LED

PDF (1.59 MB)

Legal information
LSI SPOT LED ADJUST AND LED FIX

PDF (1.34 MB)

Declarations of conformity
Attestation-of-Conform ity-Spot LED -Fix-Adjust +Downlight LED TÜV

PDF (2.15 MB)

Product image: white background, diagonal
707507_LEDVANCE Spot-DK LED fix 7W

TIF (26.3 MB)

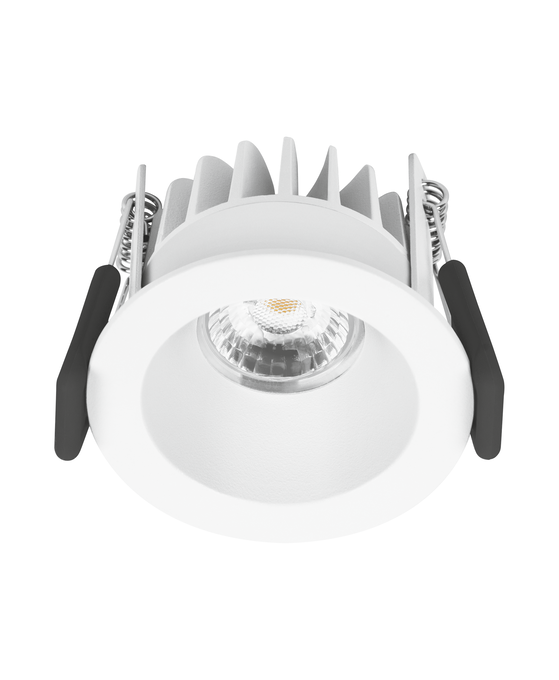

Product image: white background, upright
707516_LEDVANCE Spot-DK LED fix 7W

TIF (26.3 MB)

Product line drawing with letters
708000_LEDVANCE Spot-DK LED fix 7W

SVG (29.35 KB)

Product line drawing with numbers
707989_LEDVANCE Spot-DK LED fix 7W

SVG (28.98 KB)

Product line drawing, front, no dimensions
708014_LEDVANCE Spot-DK LED fix 7W

SVG (23.54 KB)

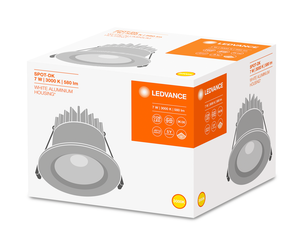

Packaging image, spacial
