SMART+ Tubes with WiFi technology

SMART+ WiFi Tube T8EM 600 9W 865

GTIN: 4058075625990 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Network protocol: WiFi
  • Lifetime up to 50,000 h
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Nominal current 75 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ ≥ 0.50
Claimed equiv. conventional lamp power 18 W
Operating mode AC Mains
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.70
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 1100 lm
Luminous flux 1100 lm
Luminous efficacy 122 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 83
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 160 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 120.00 g
Diameter 27.00 mm
Length 604.00 mm
Width 27.00 mm
Height 27.00 mm
Outer bulb [PICOS] T8
Lifespan
Number of switching cycles 200000
Lifespan 50000 h
Colors & materials
Product color White
Housing color White
Body material Glass with shatter protection
Temperatures & operating conditions
Ambient temperature range -20…+50 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) G13
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant
1) Via App
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 9.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power <0.5 W
Networked standby power for CLS <0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 83
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.70
LED light source replaces a fluorescent light source Yes
EPREL ID 715349
Model number AC35121
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075625990 Folding box
1
27 mm x 27 mm x 710 mm 161.00 g 0.52 dm³
4058075626003 Shipping box
10
765 mm x 212 mm x 130 mm 2442.00 g 21.08 dm³
Extended installation guide
SMART+ WIFI TUBE T8
Declarations of conformity
SMART WIFI LEDTUBE T8 EM 865 TW
Product image: white background, diagonal with LEDVANCE logo
LEDVANCE LED TUBE T8 EM
Product image: white background, upright LEDVANCE logo
LEDVANCE LED TUBE T8 EM
Product infographic (application image with text and graphic)
LED TUBE E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
338276_SubstiTUBE Basic ST8-HB
Product line drawing with letters
LEDTUBE T8 EM

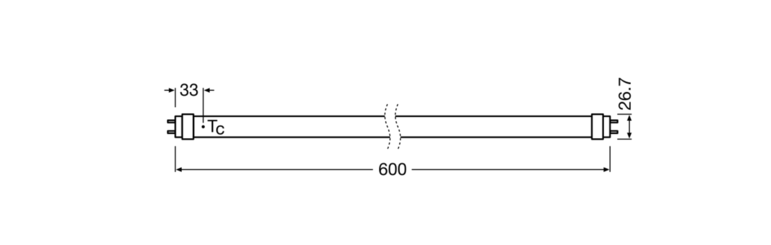

Product line drawing with numbers
LEDTUBE T8 EM PRO 600 6.7W
Product line drawing - technical
638401_Technical drawing TC point LED TUBE T8 EM
Combo Shot = Product Beauty Shot + Packaging Image
SH SLV WIFI ST8 TW-EM 2ft G13 MiPRC
Packaging image, frontal
SH SLV WIFI ST8 TW-EM 2ft G13 MiPRC
Packaging image, spacial
SH SLV WIFI ST8 TW-EM 2ft G13 MiPRC
Energy label
EL-4058075625990-AC351 21

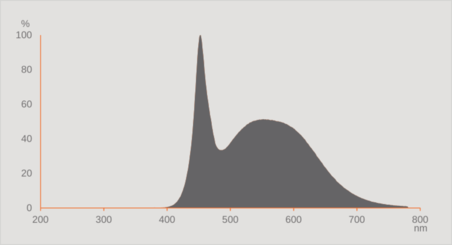

Spectral power distribution
LISO spectral power distribution 6500K CRI80 v1

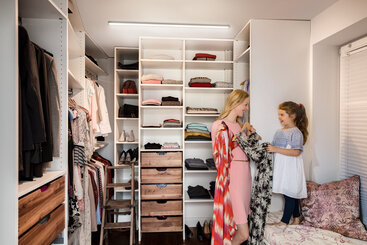

Application pictures
LEDVANCE LED TUBE T8 EM SMART+
Application pictures
LED TUBE T8 EM
EAN ELDAS number
4058075625990 941841360
