SMART+ WiFi Mini Bulb Tunable White

SMART+ WiFi Mini bulb 40 4.9 W/2700…6500 K E14

GTIN: 4058075485617 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor applications only in suitable luminaires
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android™️ 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Network protocol: WiFi
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • Dimmable
  • Lifetime: up to 20,000 h
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp with bare fingers.
  • Must not be used if outer bulb is defective.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 230 V
Nominal current 45 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.5
Claimed equiv. conventional lamp power 40 W
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.70
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 470 lm
Luminous flux 470 lm
Luminous efficacy 95 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.9
Light technical data
Beam angle 180 °
Starting time < 0.5 s
Dimensions & Weight
Product weight 32.00 g
Diameter 46.50 mm
Length 89.50 mm
Width 46.50 mm
Height 46.50 mm
Outer bulb [PICOS] P46
Lifespan
Lifespan 20000 h
Lumen maintenance at end of service lifetime 0.70
Colors & materials
Housing color White
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E14
Capabilities
Dimmable Yes 1)
Compatible smart home technology Google Assistant, Amazon Alexa
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power 0.50
Networked standby power for CLS 0.50
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 1403141,528210
Model number AC33923,AC27517
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075485617 Folding box
1
61 mm x 96 mm x 154 mm 133.00 g 0.90 dm³
4058075485624 Shipping box
4
210 mm x 165 mm x 135 mm 656.00 g 4.68 dm³
Extended installation guide
SMART+ WIFI INSTALLATION GUIDE
Declarations of conformity
EC Declaration of Conformity SMART+ WIFI CLB CLP HS
Declarations of conformity
SMART WIFI B40/P40/PAR16
Declarations of conformity
SMART WIFI P40 TW
Product image: white background, diagonal with LEDVANCE logo
SMARTWIFIP40 5W/827 230V TWFRE14
Product image: white background, upright LEDVANCE logo
SMARTWIFIP40 5W/827 230V TWFRE14
Product line drawing with letters
SMARTWIFIP40 5W/827 230V TWFRE14
Product line drawing with numbers
SMARTWIFIP40 5W/827 230V TWFRE14
Product line drawing, front, no dimensions
SMARTWIFIP40 5W/827 230V TWFRE14

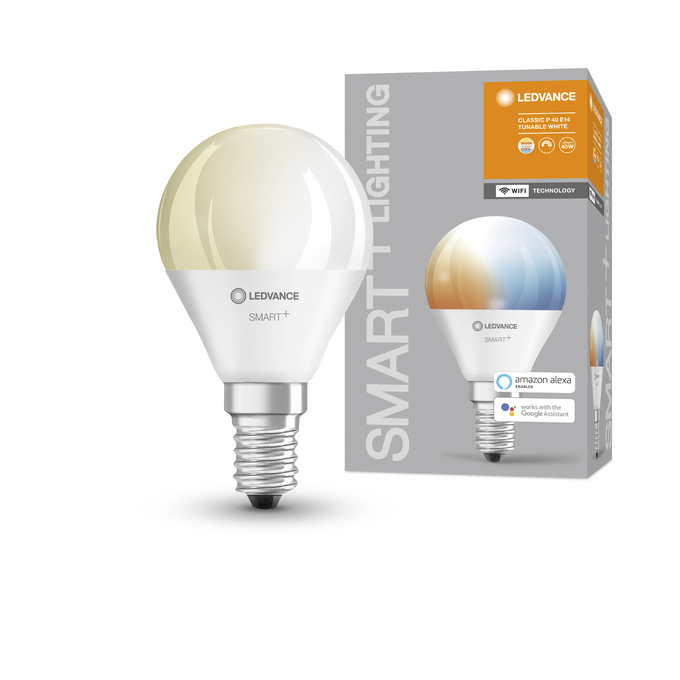

Combo Shot = Product Beauty Shot + Packaging Image
SMARTWIFIP40 5W827 230V TWFRE144X1LEDV
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI P40 5W TW E14 MiPRC
Packaging image, frontal
SMARTWIFIP40 5W827 230V TWFRE144X1LEDV
Packaging image, spacial
SMARTWIFIP40 5W827 230V TWFRE144X1LEDV
Energy label
EL-4058075485617-AC339 23
Energy label
EL-4058075485617-AC275 17
Spectral power distribution
Everlight 67-23ST KKE 2700K
EAN SEG number EFO number ELDAS number
4058075485617 8296156 3766212 941808450
