SMART+ WiFi Filament Classic Tunable White

SMART WF A60 TW 6W 827 230V GL FR E27

GTIN: 4058075619036 Folding box / 1 Show all packages
5-year warranty

PRODUCT DETAILS

Product benefits
  • Wireless control via app
  • Easy to install and use
  • Contains no mercury
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination
  • Residential interiors
  • Professional (hotels, bars, boutiques etc.)
  • Outdoor applications only in suitable luminaires
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via Google Assistant and Amazon Alexa possible
  • Network protocol: WiFi
  • Adjustable light color via Tunable White: Warm Comfort White to Cool White (2,200 K … 5,000 K)
  • Dimmable
  • Lifetime up to 15,000 h
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 220…240 V
Nominal current 36 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Claimed equiv. conventional lamp power 60 W
Operating mode AC Mains
Photometrical data
Light color (designation) Tunable White
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 806 lm
Luminous flux 806 lm
Luminous efficacy 134 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra 80
Flickering metric (Pst LM) <1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 31.00 g
Diameter 60.00 mm
Maximum diameter 60 mm
Length 105.00 mm
Width 60.00 mm
Height 60.00 mm
Outer bulb [PICOS] A60
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Colors & materials
Product color White
Housing color White
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant
1) Via App
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 6.00 kWh/1000h
Standards CE
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power 0.5 W
Networked standby power for CLS 0.50
Claim of equivalent power Yes
Chromaticity coordinate x 0.4630
Chromaticity coordinate y 0.4200
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,9
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 644696
Model number AC34821
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075619036 Folding box
1
66 mm x 96 mm x 154 mm 116.00 g 0.98 dm³
4058075619043 Shipping box
4
210 mm x 165 mm x 145 mm 577.00 g 5.02 dm³
Extended installation guide
SH Insert WIFI StartUpG Lamps RGBTW LDV
Declarations of conformity
SMART CLASSIC BT/WIFI TW

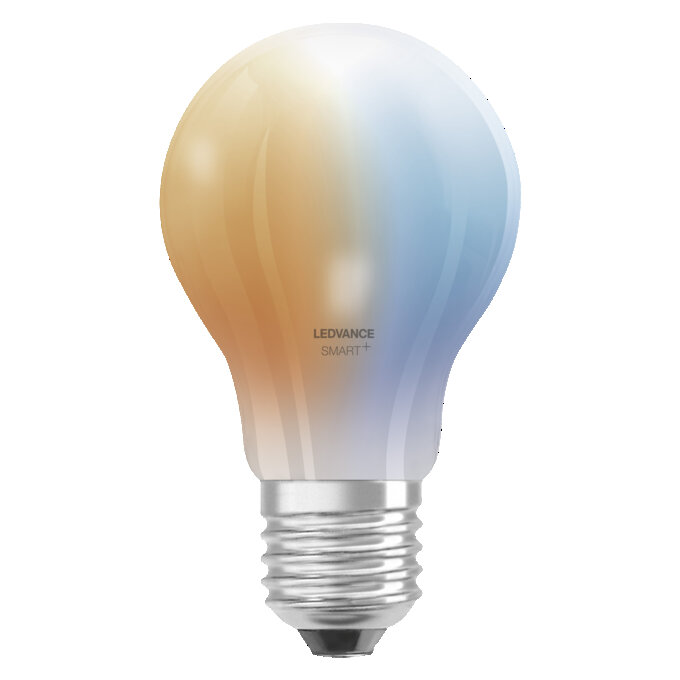

Product image: white background, upright
SMART TW CLASSIC A60 GL FR E27
Product image: white background, upright, switched on
SMART TW CLASSIC A60 GL FR E27
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN

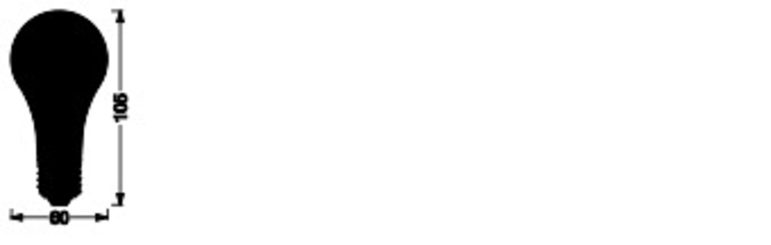

Product line drawing with letters
SMART TW CLASSIC A60 GL FR E27
Product line drawing with numbers
SMART TW CLASSIC A60 GL FR E27
Product line drawing, front, no dimensions
SMART TW CLASSIC A60 GL FR E27
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI A60TW 6W GLFR E27 MiPRC
Packaging image, frontal
SH FC WIFI A60TW 6W GLFR E27 MiPRC
Packaging image, spacial
SH FC WIFI A60TW 6W GLFR E27 MiPRC
Energy label
EL-4058075619036-AC348 21
Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
EAN EFO number ELDAS number
4058075619036 3760279 941842210
