SMART+ WiFi Filament Classic RGBW
SMART+ Filament Classic RGBW 30 4.5 W/2700 K E27
GTIN: 4058075619012
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Wireless control via app
- Easy to install and use
- Contains no mercury
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- General illumination
- Residential interiors
- Professional (hotels, bars, boutiques etc.)
- Outdoor use in suitable outdoor luminaires only
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android™️ 8.0 or iOS 14.0)
- Controllable via Google Assistant and Amazon Alexa possible
- Network protocol: WiFi
- Dimmable
- Lifetime up to 15,000 h
- Light color: Warm White (2,700 K)
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 4.5 W |
| Construction wattage | 4.50 W |
| Nominal voltage | 220…240 V |
| Nominal current | 38 mA |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.50 |
| Claimed equiv. conventional lamp power | 30 W |
| Operating mode | AC Mains |
Photometrical data
| Light color (designation) | Warm White |
| Lumen main.fact.at end of nom.life time | 0.93 |
| Standard deviation of color matching | ≤6 sdcm |
| Nominal luminous flux | 300 lm |
| Luminous flux | 300 lm |
| Luminous efficacy | 66 lm/W |
| Adjustable color temperature | 2700 K |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Light technical data
| Beam angle | 300 ° |
| Starting time | < 0.5 s |
| Warm-up time (60 %) | ‹ 0.50 s |
Dimensions & Weight
| Product weight | 31.00 g |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Length | 105.00 mm |
| Width | 60.00 mm |
| Height | 60.00 mm |
| Outer bulb [PICOS] | A60 |
Lifespan
| Number of switching cycles | 100000 |
| Lifespan | 15000 h |
Colors & materials
| Product color | Transparent |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Additional product data
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Base (standard designation) | E27 |
Capabilities
| Dimmable | Yes 1) |
| Compatible smart home technology | Amazon Alexa, Google Assistant |
1) Via App
Certificates & Standards
| Energy efficiency class | G 1) |
| Energy consumption | 5.00 kWh/1000h |
| Standards | CE |
| Type of protection | IP20 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | Yes |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0.50 |
| Networked standby power for CLS | 0.50 |
| Claim of equivalent power | Yes |
| Chromaticity coordinate x | 0.458 |
| Chromaticity coordinate y | 0.410 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 644695 |
| Model number | AC34820 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075619012 | Folding box 1 |
66 mm x 96 mm x 154 mm | 116.00 g | 0.98 dm³ |
| 4058075619029 | Shipping box 4 |
210 mm x 165 mm x 145 mm | 577.00 g | 5.02 dm³ |
Extended installation guide
SH Insert WIFI StartUpG Lamps RGBTW LDV
SH Insert WIFI StartUpG Lamps RGBTW LDV
Declarations of conformity
EU Declaration of Conformity – Smart WiFi CL RFBW
EU Declaration of Conformity – Smart WiFi CL RFBW

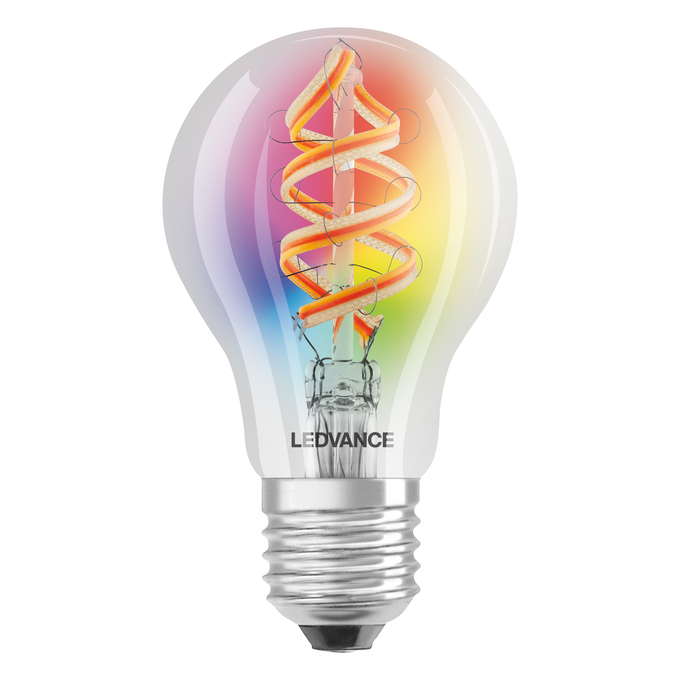

Product image: white background, diagonal with LEDVANCE logo
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
Product image: white background, upright LEDVANCE logo
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27

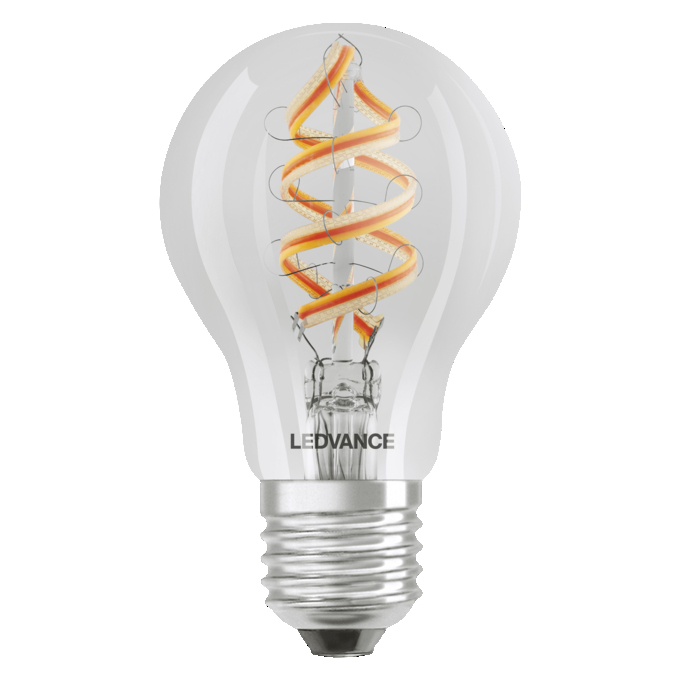

Product image: white background, upright, alternative image
SMT WF A30 D 4,5W-827 230V FIL RGBW E27
SMT WF A30 D 4,5W-827 230V FIL RGBW E27
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
Product line drawing with numbers
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
Product line drawing - technical
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
SMART+ WiFi CL A FIL RGBW 30 4,5W/827 E27
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
Packaging image, frontal
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
Packaging image, spacial
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
SH FC WIFI A30D 4 5W RGBW E27 MiPRC
Energy label
EL-4058075619012-AC348 20
EL-4058075619012-AC348 20
Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
EPREL data spectral diagram PROF LEDr 2700K
Application pictures
Smart+ RGBW Filament Composing in the dark
Smart+ RGBW Filament Composing in the dark
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075619012 | 8297240 | 4736621 | 3752198 | 941841310 |
