EMERGENCY BULKHEAD HLO
EM BULKHEAD HLO E 10W 3H AT
GTIN: 4099854230691
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Easy maintenance with automatic test function or integrated test switch
Areas of application
- Antipanic lighting
- Industry
- Warehouses
Product features
- Luminous flux: 1500 lm
- Type of protection: IP66
- Battery discharge time: 3 h
- Battery technology: LiFePO4
- Function test: manual (MA) or automatic (AT)
- With integrated test switch for manual testing
- Operation mode: non-maintained (NM)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 51.000 mA |
| Inrush current | 4.4 A |
| Inrush current time Th50 | 16 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 170 |
| Max. number of luminaires per miniature circuit breaker C10 | 136 |
| Max. number of luminaires per miniature circuit breaker C16 | 218 |
| Power factor λ | 0.3 |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 1500 lm |
| Luminous efficacy | 150 lm/W |
| Color temperature | 5700 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | > 80 |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | ≤ 0,4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 70 ° x 140 ° |

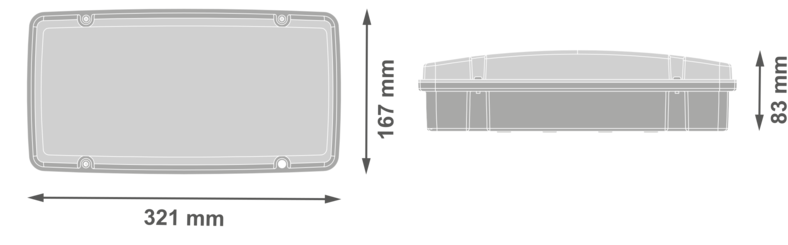

Dimensions & Weight
| Length | 321.00 mm |
| Height | 83.00 mm |
| Width | 167.00 mm |
| Product weight | 1470.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…+45 °C |
| Temperature range at storage | 0…+35 °C |
| Type of connection | Terminal |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting depth | 0 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Number of switching cycles | 50000 |
Control gear
| Output current | 900 mA |
| ECG - Output ripple current | 8 % |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 6.4 V |
| Nominal capacity of battery | 6600 mAh |
| Battery charging time | 24 h |
Emergency lighting
| Type of Emergency Lighting (EL) | EL unit (battery and controller) for decentral operation included |
| Area of emergency application | Anti-panic lighting |
| Type of emergency light operation | Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in emergency operation mode | 10 W |
| Luminous flux in emergency operation mode | 1500 lm |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | Yes |
Certificates & Standards
| Standards | CE, CB, EAC, UKCA, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854230691 | Folding box 1 |
172 mm x 88 mm x 328 mm | 1571.00 g | 4.96 dm³ |
| 4099854230707 | Shipping box 6 |
360 mm x 345 mm x 285 mm | 10006.00 g | 35.40 dm³ |
User instruction / safety instructions
EM BULKHEAD HLO E 10W 3H AT
EM BULKHEAD HLO E 10W 3H AT
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11218810
Safety Insert G11218810
Legal information
Legal Insert G11231524
Legal Insert G11231524
Declarations of conformity
EM BULKHEAD HLO E 10W 3H AT
EM BULKHEAD HLO E 10W 3H AT

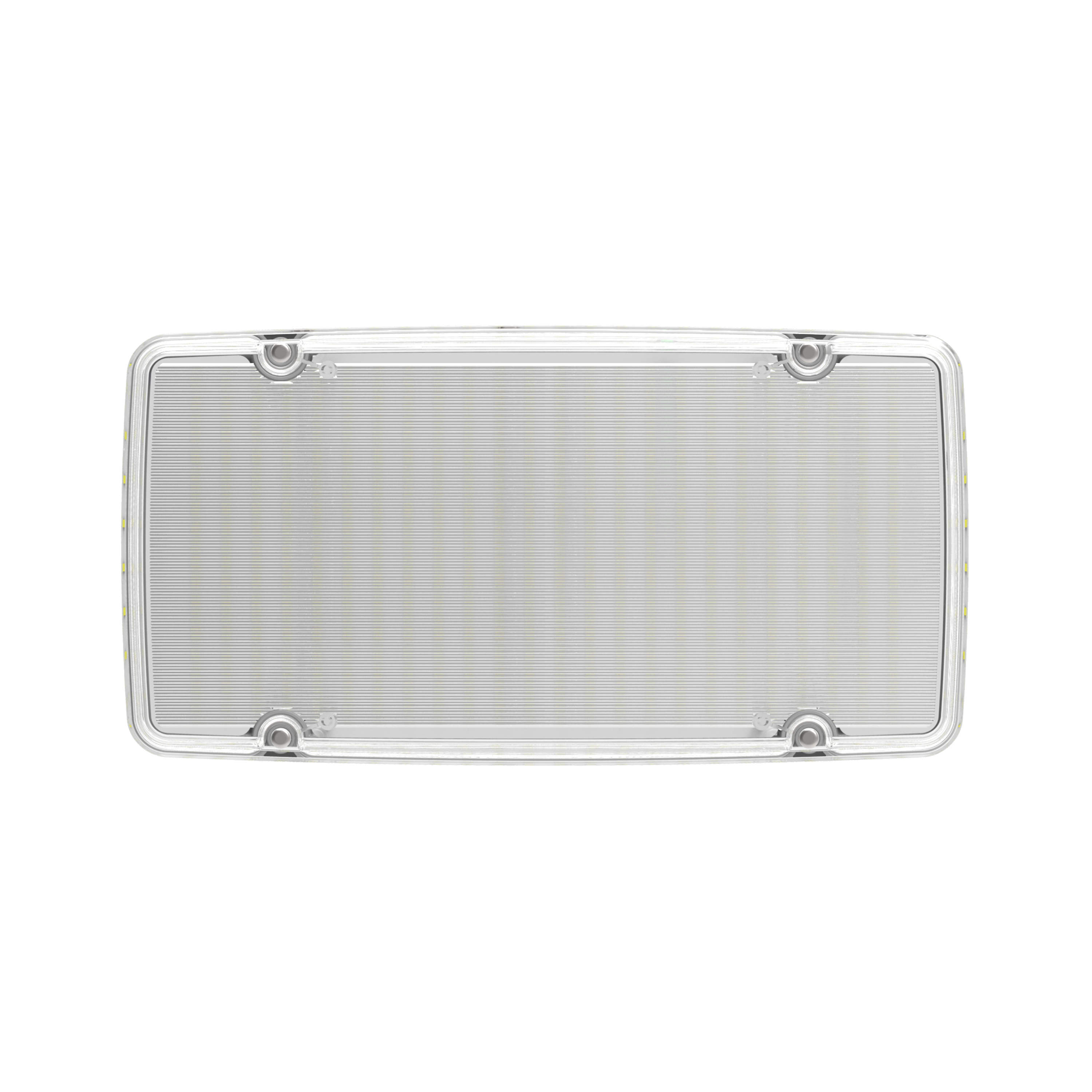

Product image: white background, diagonal
EM BULKHEAD HLO E 10W 3H AT
EM BULKHEAD HLO E 10W 3H AT

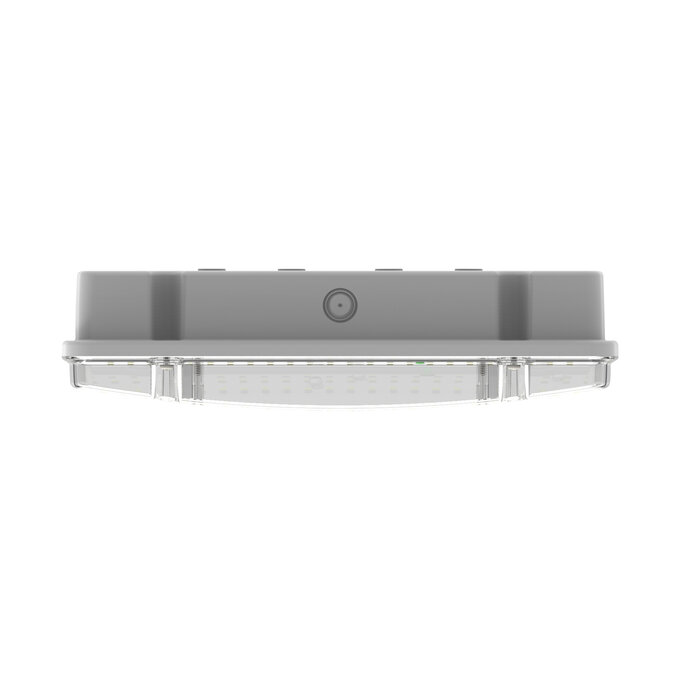

Product image: white background, horizontal
