DAMP PROOF COMBO
DP CBO 1200 V 32W MS 840 IP66 GY
GTIN: 4099854521379
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
- Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 153 lm/W
- Type of protection: IP66
- Impact resistance: IK10
- Luminous flux: up to 9,000 lm
- Push wire terminal for tool-free connection
- Lifetime (L70/B50) up to 50,000 h (at 25 °C)
- Ambient temperature in operation: -20…+40 °C
- Through wiring possible
Equipment / Accessories
- Plug & Upgrade high frequency sensor and emergency kit separately available
- Mounting screws and dowels included
Safety advice
- Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 32 W / 26 W / 21 W / 16 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 152mA / 125mA / 105ma / 82 mA |
| Inrush current | 13.75 A |
| Inrush current time Th50 | 118 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 48 |
| Max. number of luminaires per miniature circuit breaker C10 | 36 |
| Max. number of luminaires per miniature circuit breaker C16 | 58 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 4800 lm / 3920 lm / 3190 lm / 2450 lm |
| Luminous efficacy | 150 lm/W / 151 lm/W / 152 lm/W / 153 lm/W |
| Color temperature | 4000 K / 6500 K |
| Light color (designation) | Cool White, Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 32 W | 4000 K | 4800 lm | 150 lm/W |
| 32 W | 6500 K | 4800 lm | 150 lm/W |
| 26 W | 4000 K | 3920 lm | 151 lm/W |
| 26 W | 6500 K | 3920 lm | 151 lm/W |
| 21 W | 4000 K | 3190 lm | 152 lm/W |
| 21 W | 6500 K | 3190 lm | 152 lm/W |
| 16 W | 4000 K | 2450 lm | 153 lm/W |
| 16 W | 6500 K | 2450 lm | 153 lm/W |
Dimensions & Weight
| Length | 1270.00 mm |
| Height | 78.00 mm |
| Width | 97.00 mm |
| Product weight | 1430.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push-in |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 54000 h 1) |
| Lifespan L80/B10 at 25 °C | 30000 h 1) |
| Lifespan L90/B10 at 25 °C | 25000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 140mA / 190mA / 230mA / 270 mA |
Emergency lighting
| Type of Emergency Lighting (EL) | Optional EL unit (battery and controller) for decentral operation available separately |
Certificates & Standards
| Standards | CE, CB, ERP, UKCA, EAC |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from May 2025 |
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854521379 | Folding box 1 |
1,278 mm x 103 mm x 86 mm | 1712.00 g | 11.32 dm³ |
| 4099854521386 | Shipping box 6 |
1,296 mm x 321 mm x 186 mm | 11374.00 g | 77.38 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
DP BATTEN CBO SENSOR LS PD 8 MW INT | 4099854521461 |
|
DP BATTEN CBO EL CG 200V 3H MT AT | 4099854521430 |
|
DP BATTEN CBO EL BAT 6.4V 1.8AH 2WH | 4099854521515 |
User instruction / safety instructions
DP CBO
DP CBO
Legal information
DP COMBO
DP COMBO
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205497
Safety Insert G11205497
Legal information
Legal Insert DP CBO AND BATTEN CBO
Legal Insert DP CBO AND BATTEN CBO

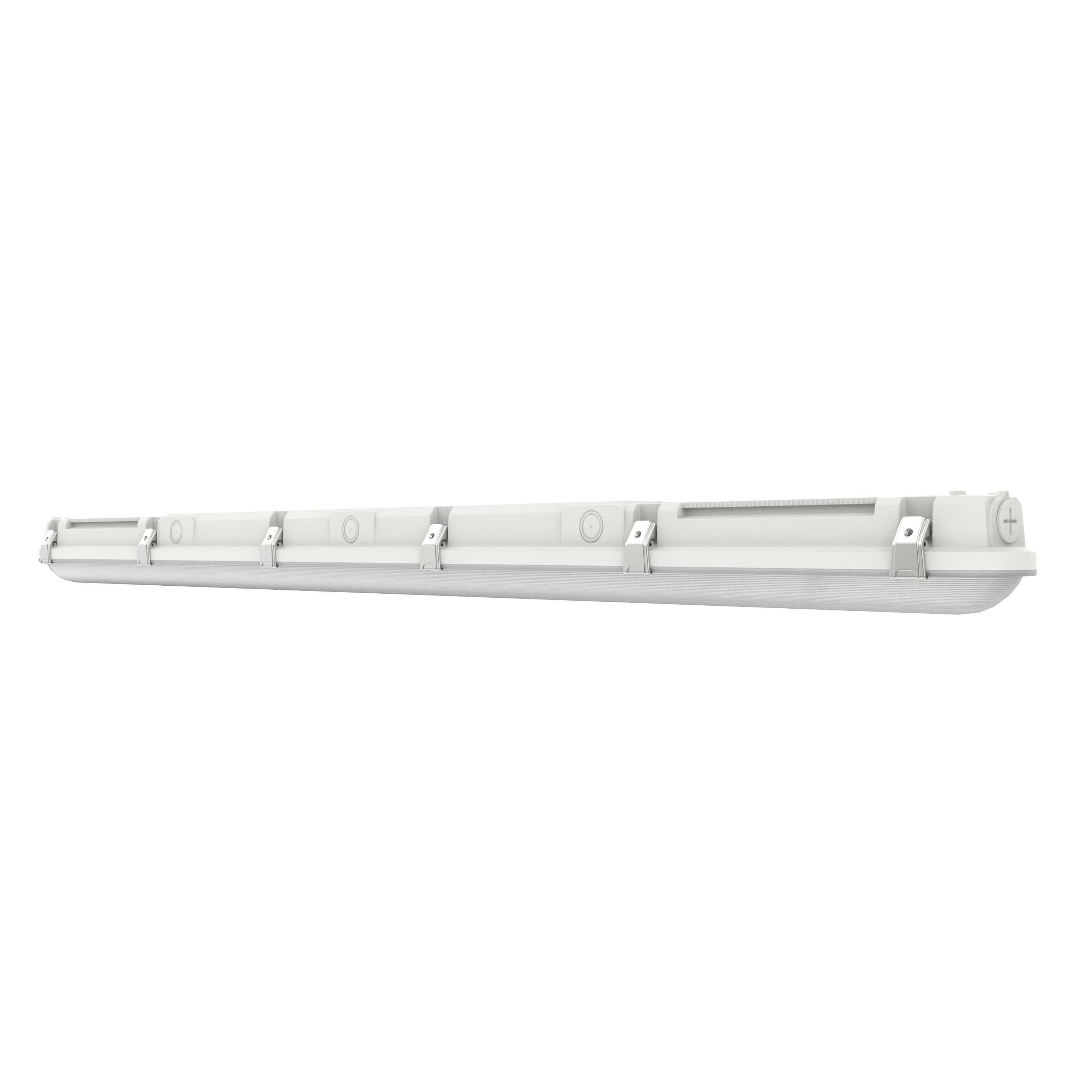

Product image: white background, diagonal
DP COMB diagonal 1200
DP COMB diagonal 1200

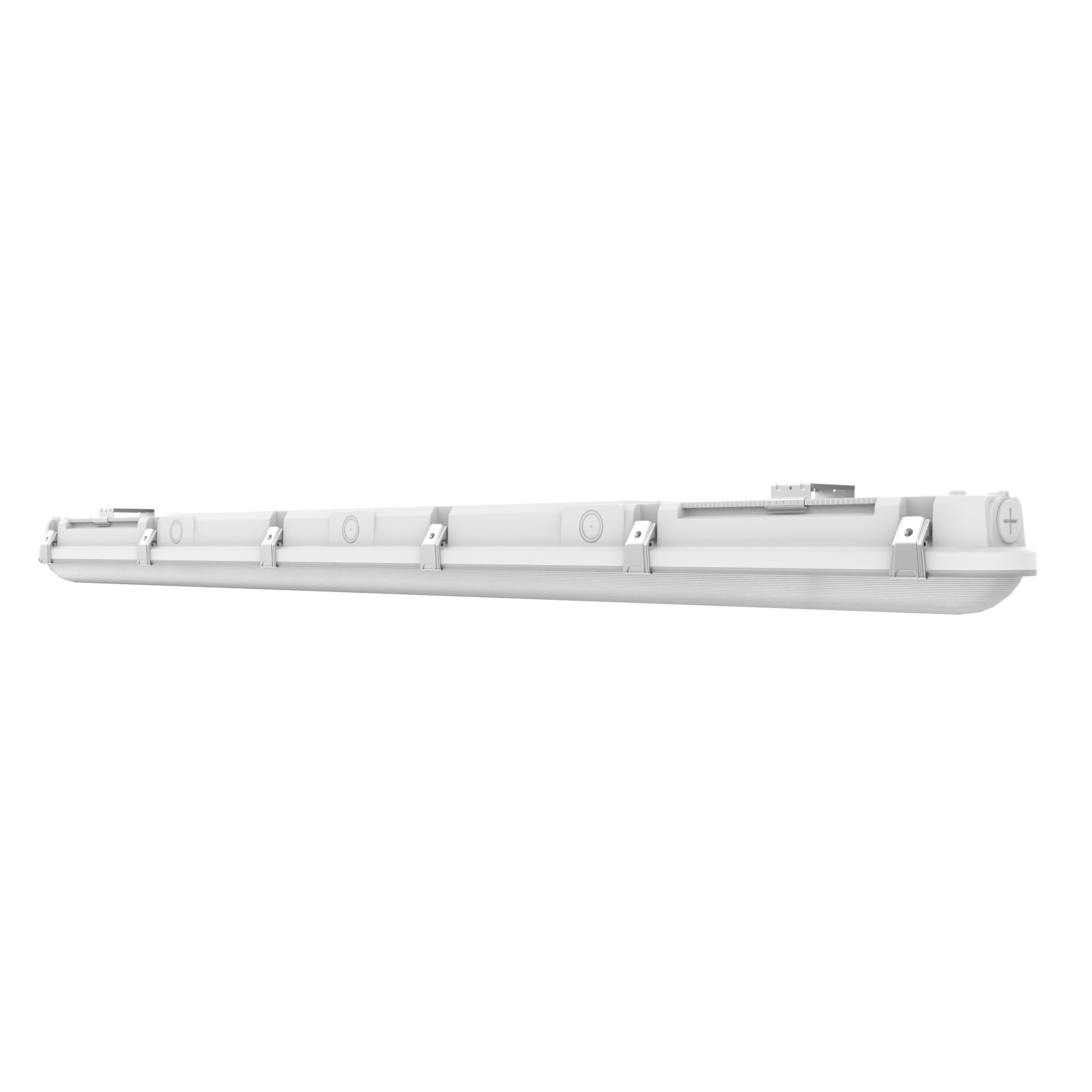

Product image: white background, diagonal
DP COMB diagonal 1200 bracket
DP COMB diagonal 1200 bracket

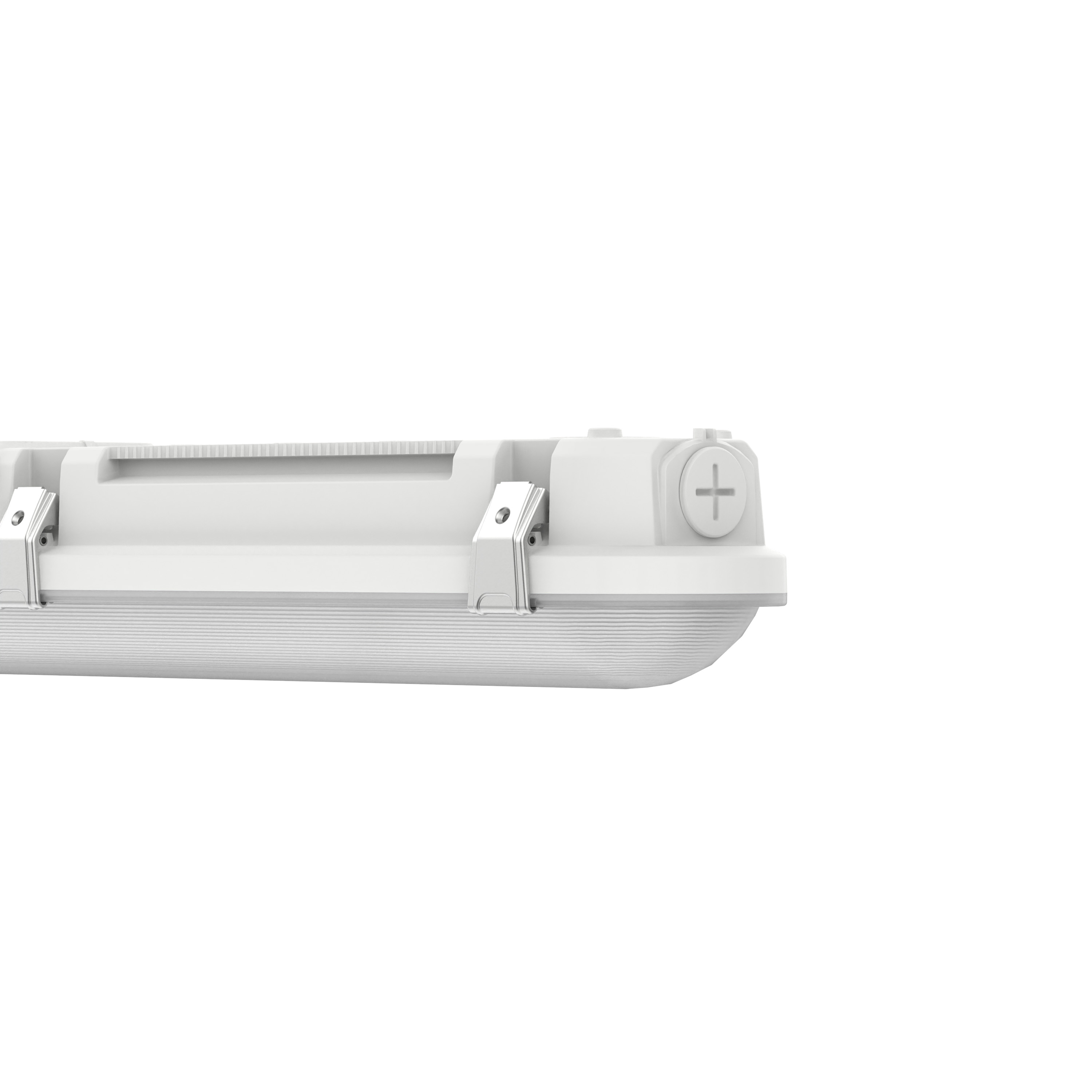

Product image: white background, diagonal, alternative image
DP COMB diagonal alternative 1200
DP COMB diagonal alternative 1200

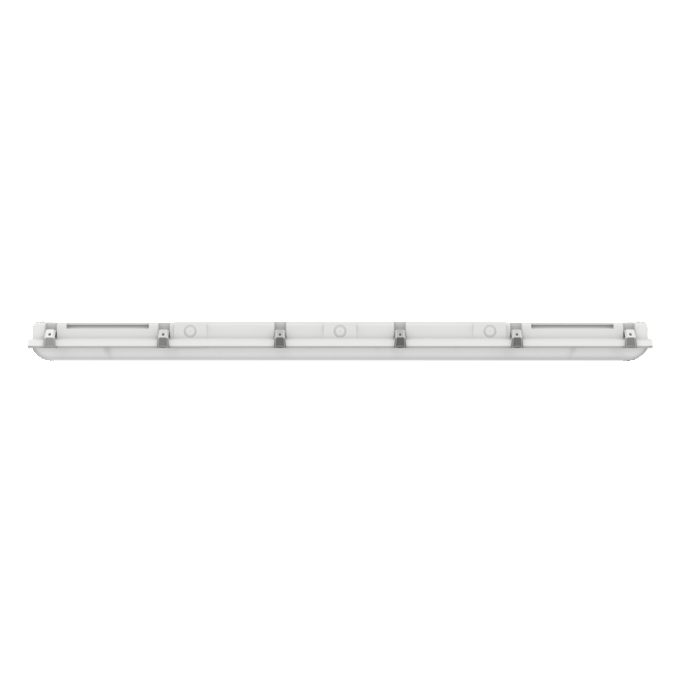

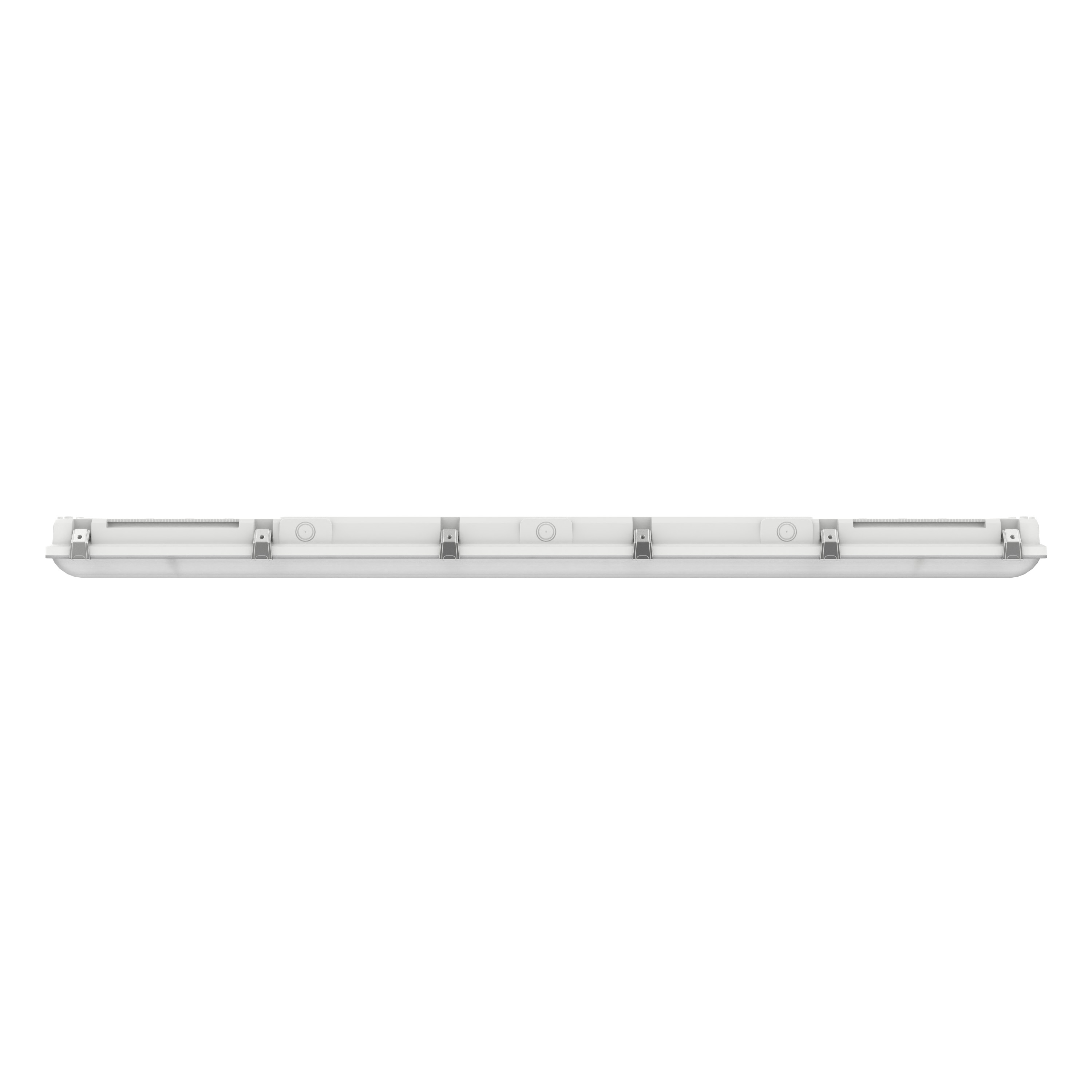

Product image: white background, horizontal
DP COMB horizontal 1200
DP COMB horizontal 1200

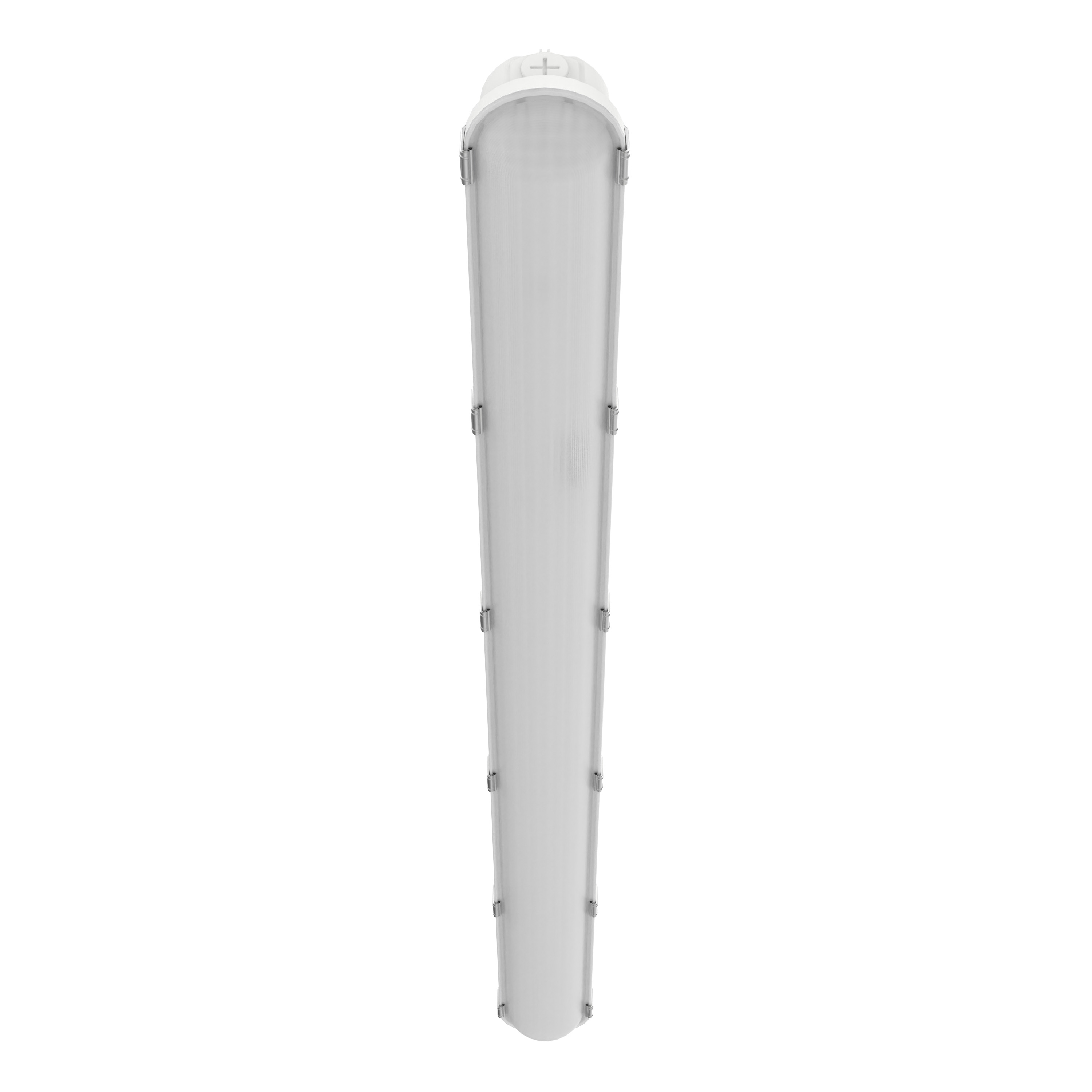

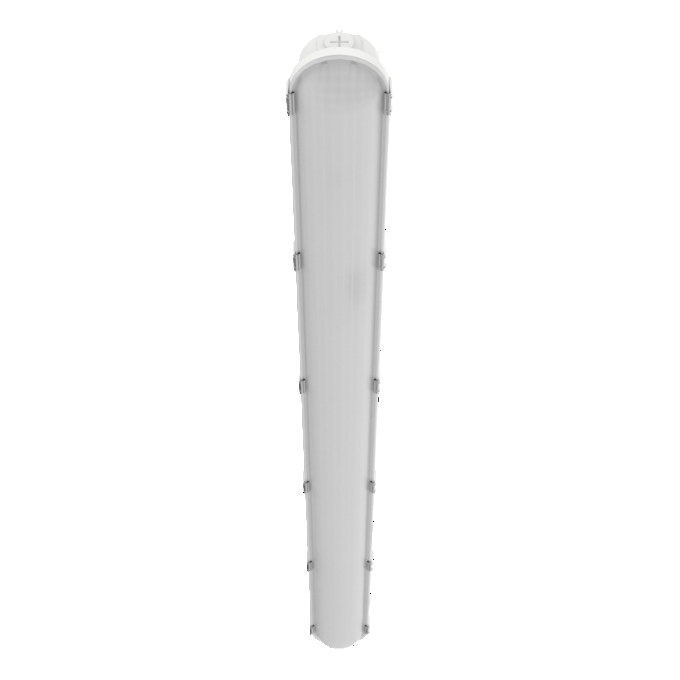

Product image: white background, upright
