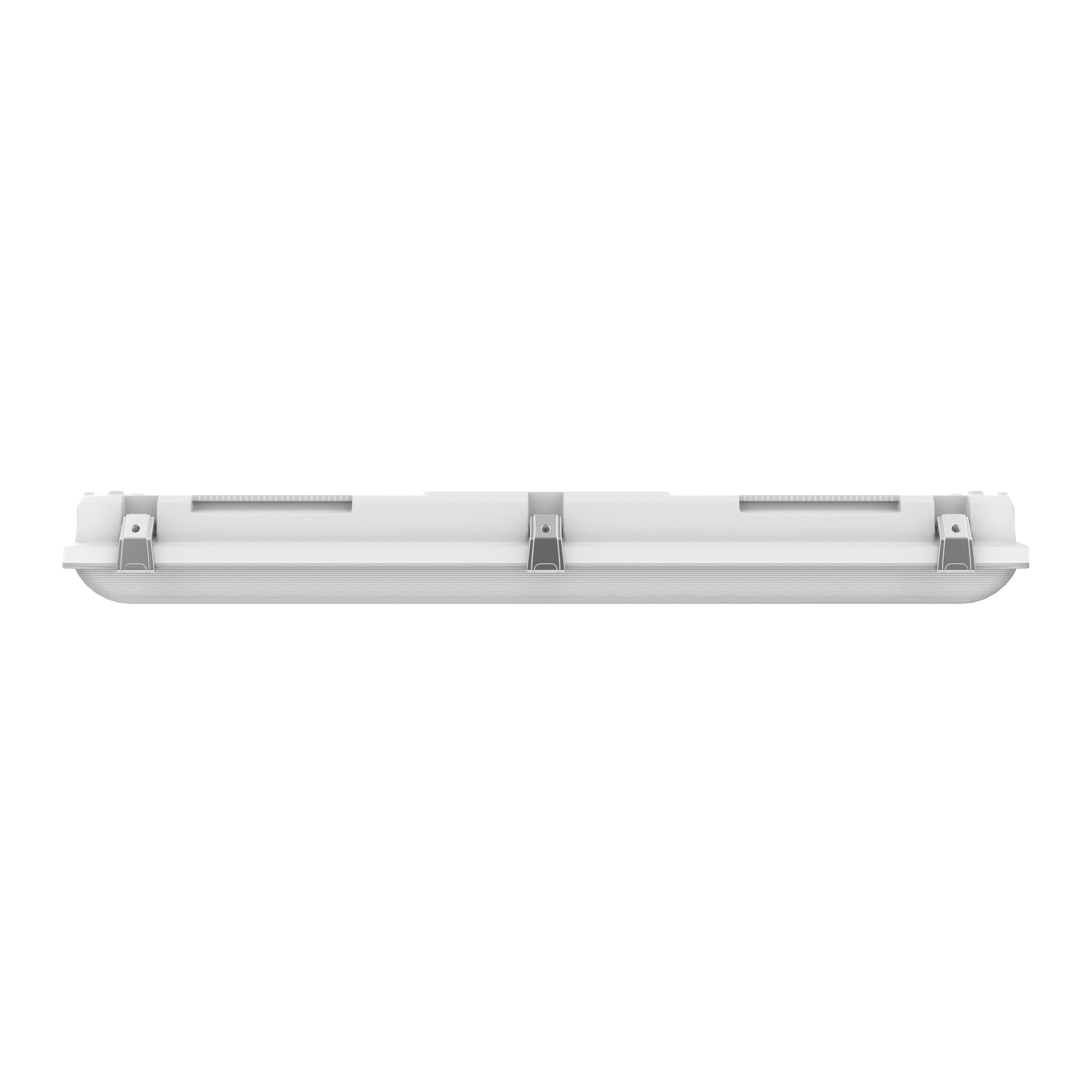

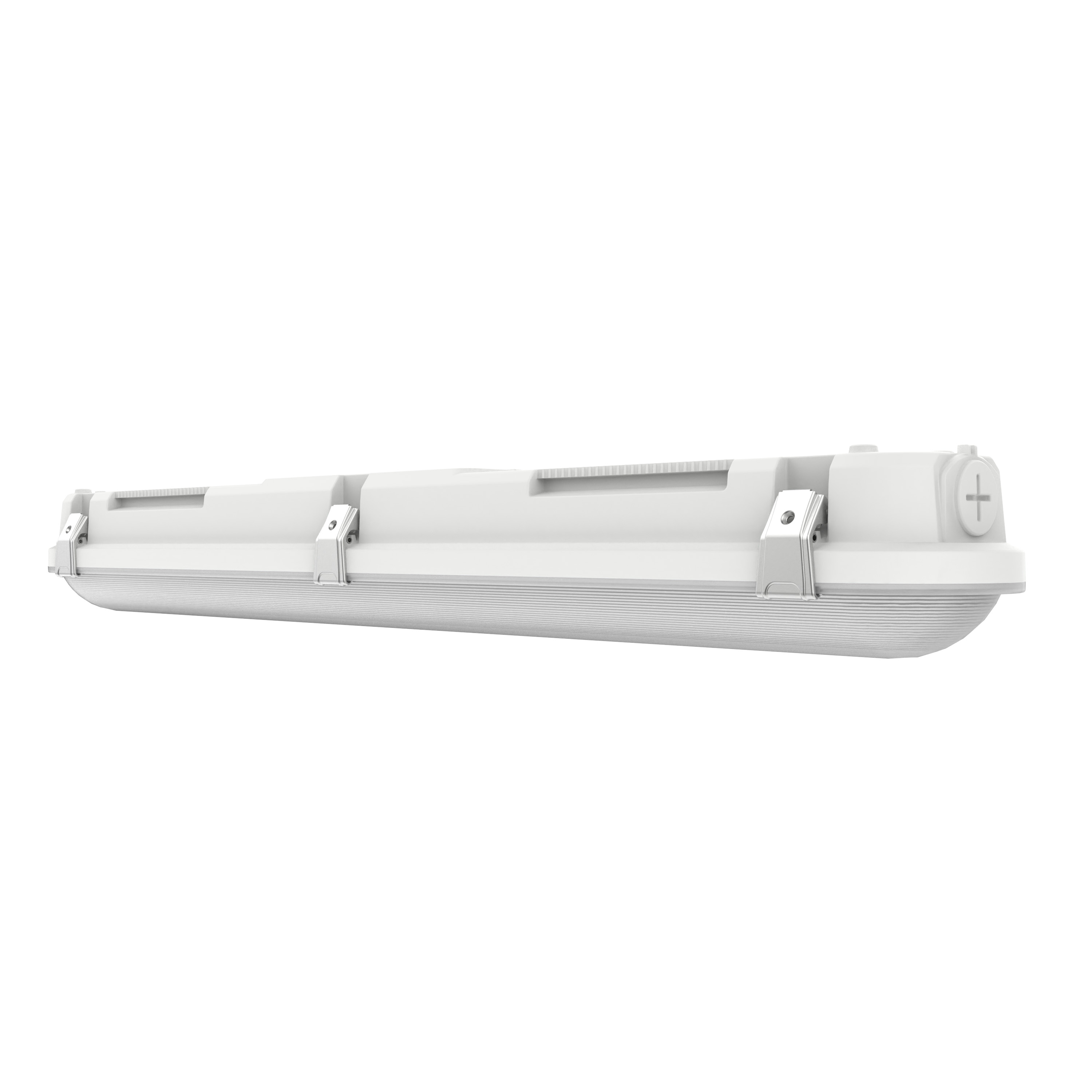

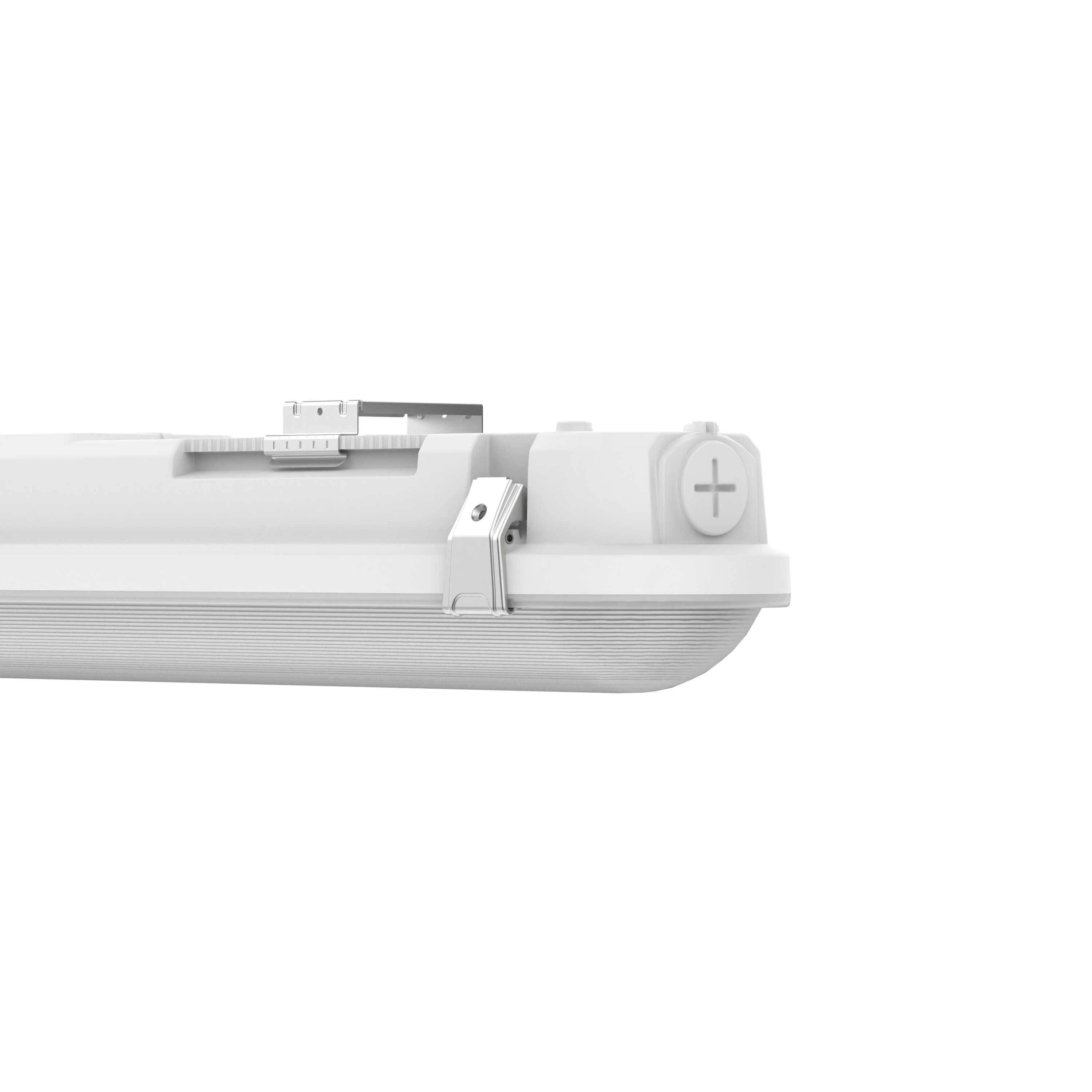

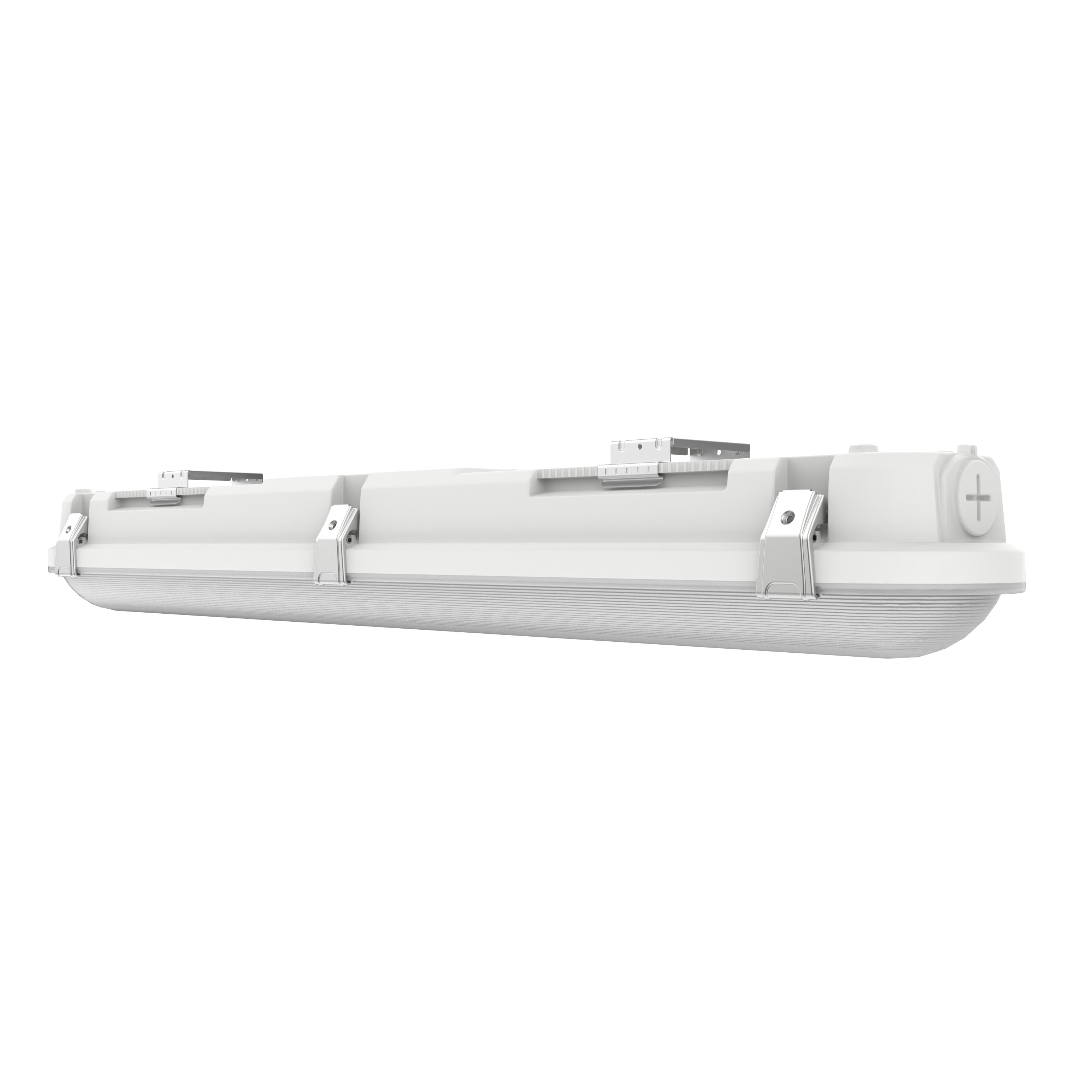

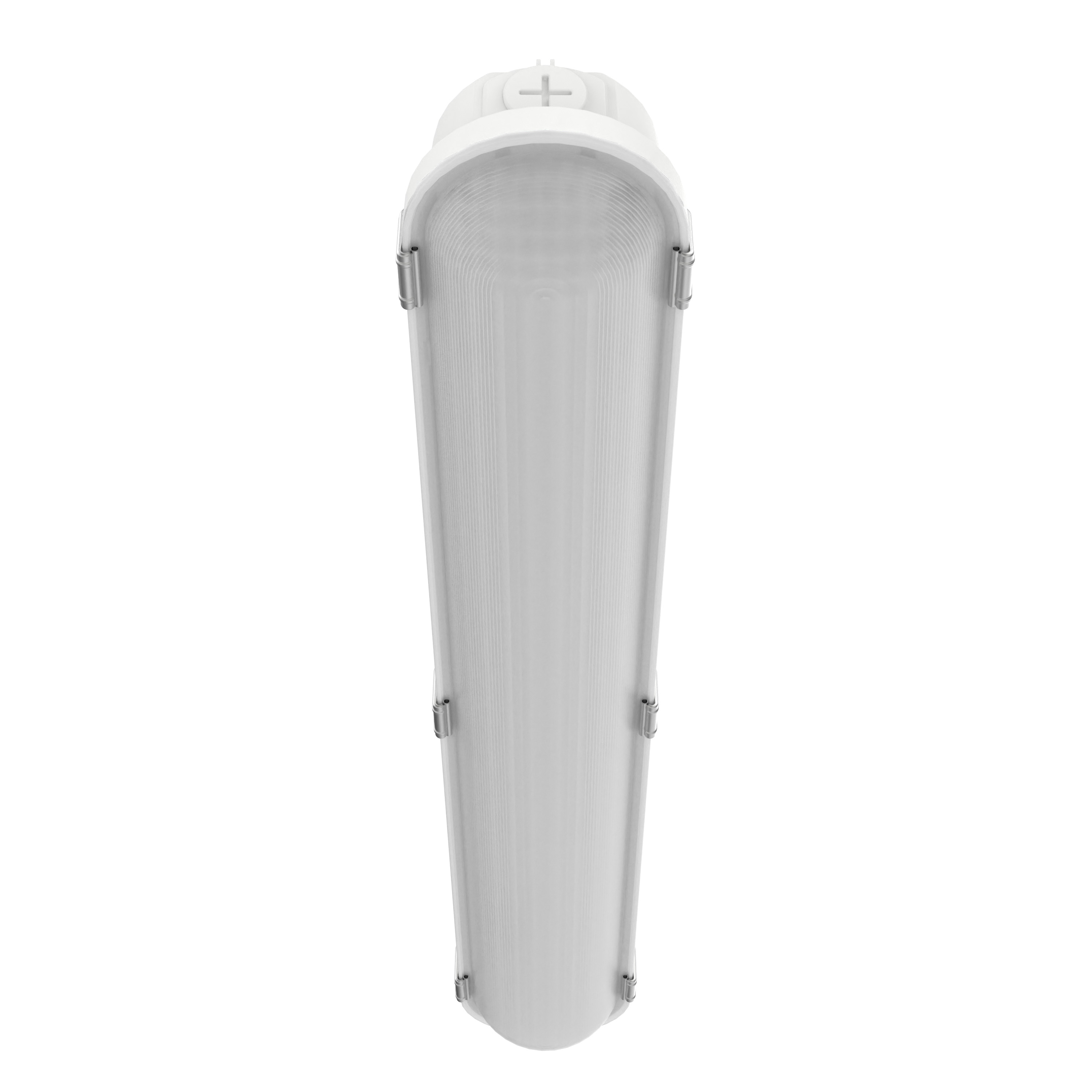

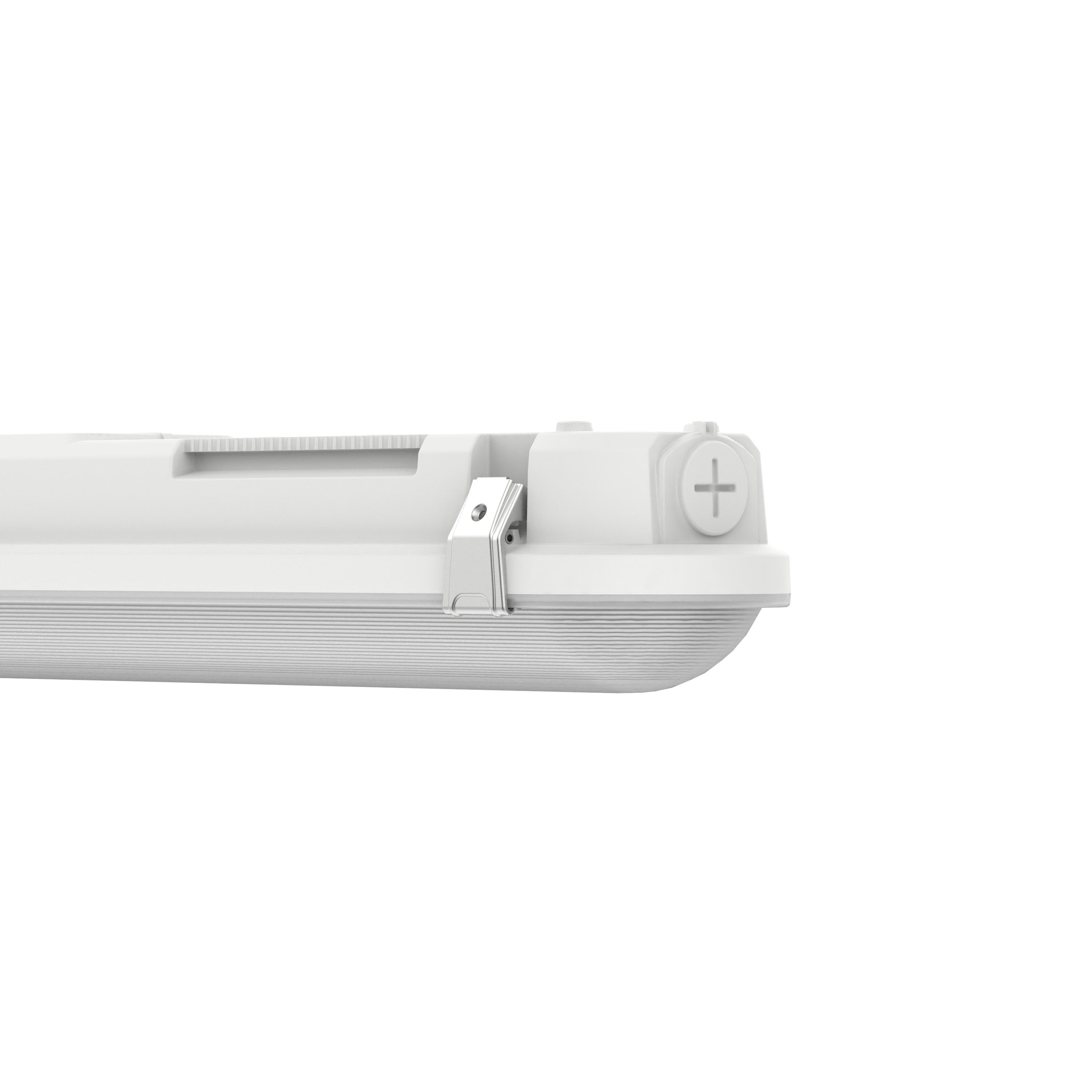

DP CBO 600 V 16W MS 840 IP66 GY

Coming soon

GTIN: 4099854521355 Folding box / 1 Show all packages

Contact sales

Tools

Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
Suitable for use in dusty and damp locations thanks to high IP rating
Suitable for use in public areas thanks to high IK rating

Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.

Nominal wattage	16 W / 13 W / 11 W / 8 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	78mA / 65mA / 52mA / 38 mA
Inrush current	9.75 A
Inrush current time T_h50	94 µs
Max. number of luminaires per miniature circuit breaker B16	72
Max. number of luminaires per miniature circuit breaker C10	61
Max. number of luminaires per miniature circuit breaker C16	98
Power factor λ	> 0.70
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	2400 lm / 1960 lm / 1670 lm / 1220 lm
Luminous efficacy	150 lm/W / 151 lm/W / 152 lm/W / 153 lm/W
Color temperature	4000 K / 6500 K
Light color (designation)	Cool White, Cool Daylight
Color rendering index Ra	≥80
Standard deviation of color matching	< 5 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG1
Beam angle	110 °

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
16 W	4000 K	2400 lm	150 lm/W
16 W	6500 K	2400 lm	150 lm/W
13 W	4000 K	1960 lm	151 lm/W
13 W	6500 K	1960 lm	151 lm/W
11 W	4000 K	1670 lm	152 lm/W
11 W	6500 K	1670 lm	152 lm/W
8 W	4000 K	1220 lm	153 lm/W
8 W	6500 K	1220 lm	153 lm/W

Product color	Gray
Housing color	Gray
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Push-in
Type of protection	IP66
Protection class IK (shock resistance)	IK10
Dimmable	No
Mounting type	Suspended/Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
With light source	Yes

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Output current

120mA/165mA /195m /230 mA

Type of Emergency Lighting (EL)

Optional EL unit (battery and controller) for decentral operation available separately

Standards	CE, CB, ERP, UKCA, EAC
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Product remark	Available from May 2025
Added function	MULTI SELECT

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
