DALI COUPLER PB G2
DALI Coupler Pushb G2
GTIN: 4062172087575
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Standard pushbuttons/switches can be used
- DALI-2 certified
- DALI Bus powered (No mains connection necessary)
- Multiple couplers connectable to the same DALI line
Areas of application
- Suitable for installation in flush-type boxes
- Individual offices
- Classrooms
- Conference rooms
- Production and assembly facilities
Product features
- DALI pushbutton coupler
- 4 floating inputs
Electrical data
| Nominal wattage | 0.10 W |
| Nominal voltage | 16 V |
| Mains frequency | 0 Hz |
Dimensions & Weight
| Length | 43.00 mm |
| Width | 43.00 mm |
| Height | 21.00 mm |
| Product weight | 25.00 g |
Colors & materials
| Product color | Light grey |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
Capabilities
| Dimmable | No |
| Dimming interface | DALI-2 |
| Type of installation | Integrated in flush device box |
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172087575 | Folding box 1 |
81 mm x 81 mm x 46 mm | 42.00 g | 0.30 dm³ |
| 4062172087582 | Shipping box 60 |
344 mm x 254 mm x 278 mm | 3187.00 g | 24.29 dm³ |
User instruction / safety instructions
DALI COUPLER PUSHB G2
DALI COUPLER PUSHB G2
Declarations of conformity
DALI COUPLER PUSHB G2
DALI COUPLER PUSHB G2
Product image: white background, diagonal
320301_DALI PRO PB Coupler
320301_DALI PRO PB Coupler

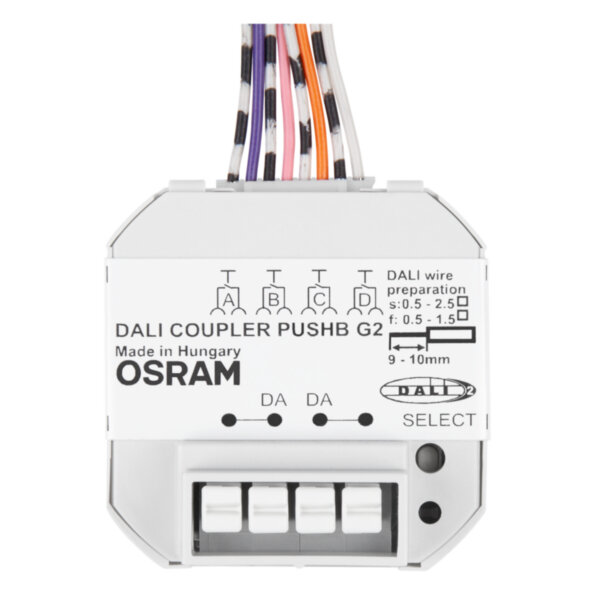

Product image: white background, horizontal
DALI Coupler Pushb G2
DALI Coupler Pushb G2
Product line drawing with letters
326384_DALI PRO PB COUPLER
326384_DALI PRO PB COUPLER
| EAN | SEG number | ELDAS number |
|---|---|---|
| 4062172087575 | 7985358 | 535958410 |
