Power Supply PS 30
POWER SUPPLY PS 30
GTIN: 4052899553880
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Large input voltage range
Areas of application
- Wide range of applications
Product features
- Output voltage: 24 V DC
- Output current: 1.3 A
Electrical data
| Nominal wattage | 30.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 90.00 mm |
| Width | 36.00 mm |
| Height | 58.00 mm |
| Product weight | 120.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+55 °C |
Capabilities
| Dimmable | No |
| Type of installation | DIN rail mounting |
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899553880 | Folding box 1 |
92 mm x 71 mm x 60 mm | 138.00 g | 0.39 dm³ |
| 4052899553897 | Shipping box 200 |
610 mm x 460 mm x 540 mm | 29400.00 g | 151.52 dm³ |
Declarations of conformity
PS30-24 SO
PS30-24 SO
Product image: white background, diagonal
Power Supply 30W SO
Power Supply 30W SO

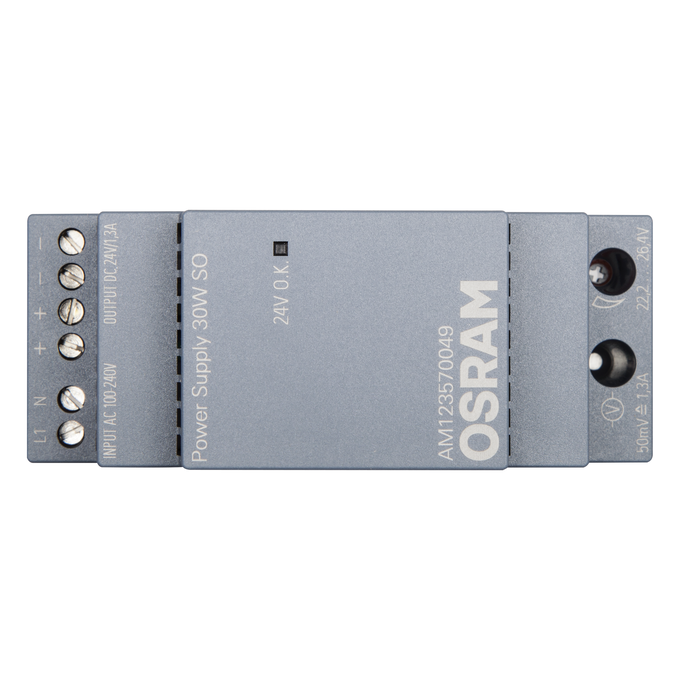

Product image: white background, horizontal
Power Supply 30W SO
Power Supply 30W SO

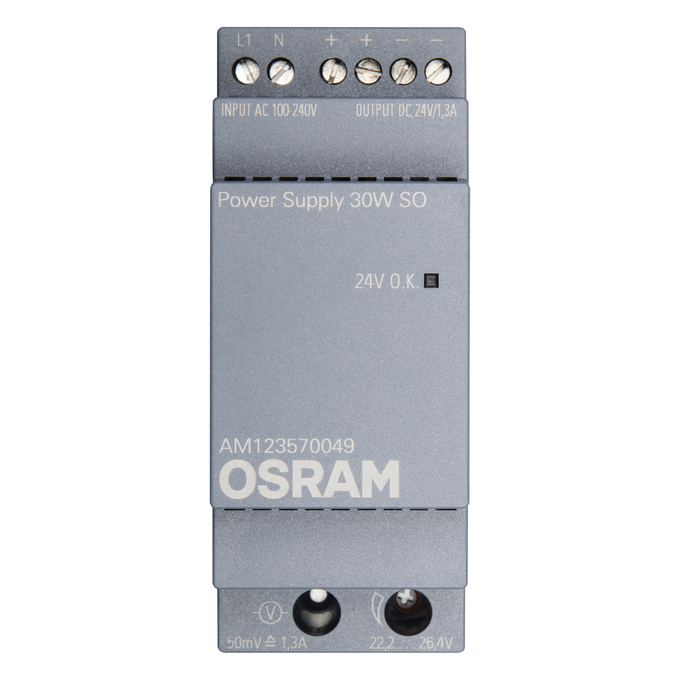

Product image: white background, upright
Power Supply 30W SO
Power Supply 30W SO
Product line drawing with letters
Power Supply 30W SO
Power Supply 30W SO
Product line drawing with numbers
Power Supply 30W SO
Power Supply 30W SO
