HALOLINE PRO
HALOLINE PRO 80 W 240 V R7S
GTIN: 4008321325396
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Brilliant accent lighting
- Direct replacement for standard tubular halogen lamps
- Significantly lower CO2 emissions compared to standard version
- Lower thermal output (compared with the standard reference product)
- No transformer required
- Contains no mercury
Areas of application
- General illumination
- Entrance lighting
- Pathway lighting
- Outdoor applications only in suitable luminaires
- Traffic areas
- Shops
- Restaurants, hotels and similar prestigious applications
- Offices, public buildings
- Ideal for emphasizing and accentuating the structure of a room
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Electrical data
| Nominal wattage | 80 W |
| Construction wattage | 80.00 W |
| Nominal voltage | 240 V |
| Nominal current | 330 mA |
| Power factor λ | 1.00 |
Photometrical data
| Luminous flux | 1385 lm |
| Luminous efficacy | 17 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 2900 K |
| Color rendering index Ra | 100 |
| Light color | 1029 |
| UV protection | No |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 78.00 mm |
| Diameter | 12.00 mm |
| Product weight | 5.5 g |
Lifespan
| Lifespan L70/B50 at 25 °C | 2000 h |
Additional product data
| Base (standard designation) | R7s |
| Mercury-free | Yes |
| Design / version | Tube |
| Product remark | Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required |
Capabilities
| Dimmable | Yes |
| Burning position | Any |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 80.00 kWh/1000h |
Country-specific categorizations
| ILCOS | HDG-80-240-R7s-74,9 |
| Order reference | 64690 ECO |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | R7s |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Standby power | 0 W |
| Networked standby power for CLS | not applicable |
| Claim of equivalent power | No |
| Length | 78.00 mm |
| Height | 12.00 mm |
| Width | 12.00 mm |
| Chromaticity coordinate x | 0.444 |
| Chromaticity coordinate y | 0.406 |
| Beam angle correspondence | SPHERE_360 |
| Displacement factor | 1 |
| EPREL ID | 714452,1553998 |
| Model number | AC35329,AC51813 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321325396 | Folding box 1 |
20 mm x 21 mm x 97 mm | 8.50 g | 0.04 dm³ |
| 4008321325402 | Shipping box 20 |
103 mm x 111 mm x 90 mm | 211.00 g | 1.03 dm³ |
| 4099854147623 | Shipping box 720 |
347 mm x 323 mm x 385 mm | 8055.00 g | 43.15 dm³ |
| 4052899401150 | Shipping box 720 |
Product datasheet -> old version of product
HALOLINEPRO80W240VR7Se n
HALOLINEPRO80W240VR7Se n
Product image: white background, diagonal
339675_HALOLINE 48W/80W
339675_HALOLINE 48W/80W
Product image: white background, upright
339674_HALOLINE 48W/80W
339674_HALOLINE 48W/80W
Product line drawing with letters
620_HALOLINE
620_HALOLINE
Product line drawing with letters
339687_HALOLINE 48W / 80W
339687_HALOLINE 48W / 80W
Product line drawing, front, no dimensions
325064_HALOLINE FOR POWER SUPPLY VOLTAGE
325064_HALOLINE FOR POWER SUPPLY VOLTAGE
Product line drawing, front, no dimensions
339686_HALOLINE 48W / 80W
339686_HALOLINE 48W / 80W

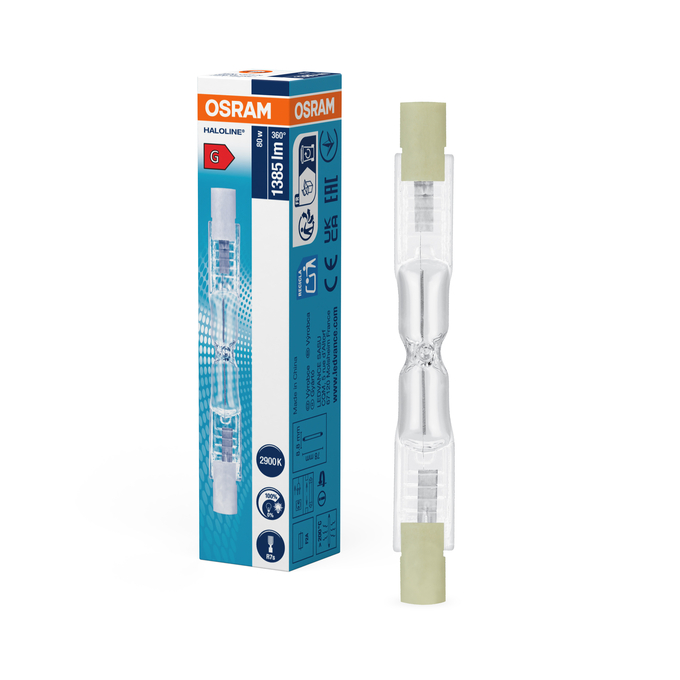

Combo Shot = Product Beauty Shot + Packaging Image
U3 HALOLINE 64690 80W 240V R7s
U3 HALOLINE 64690 80W 240V R7s

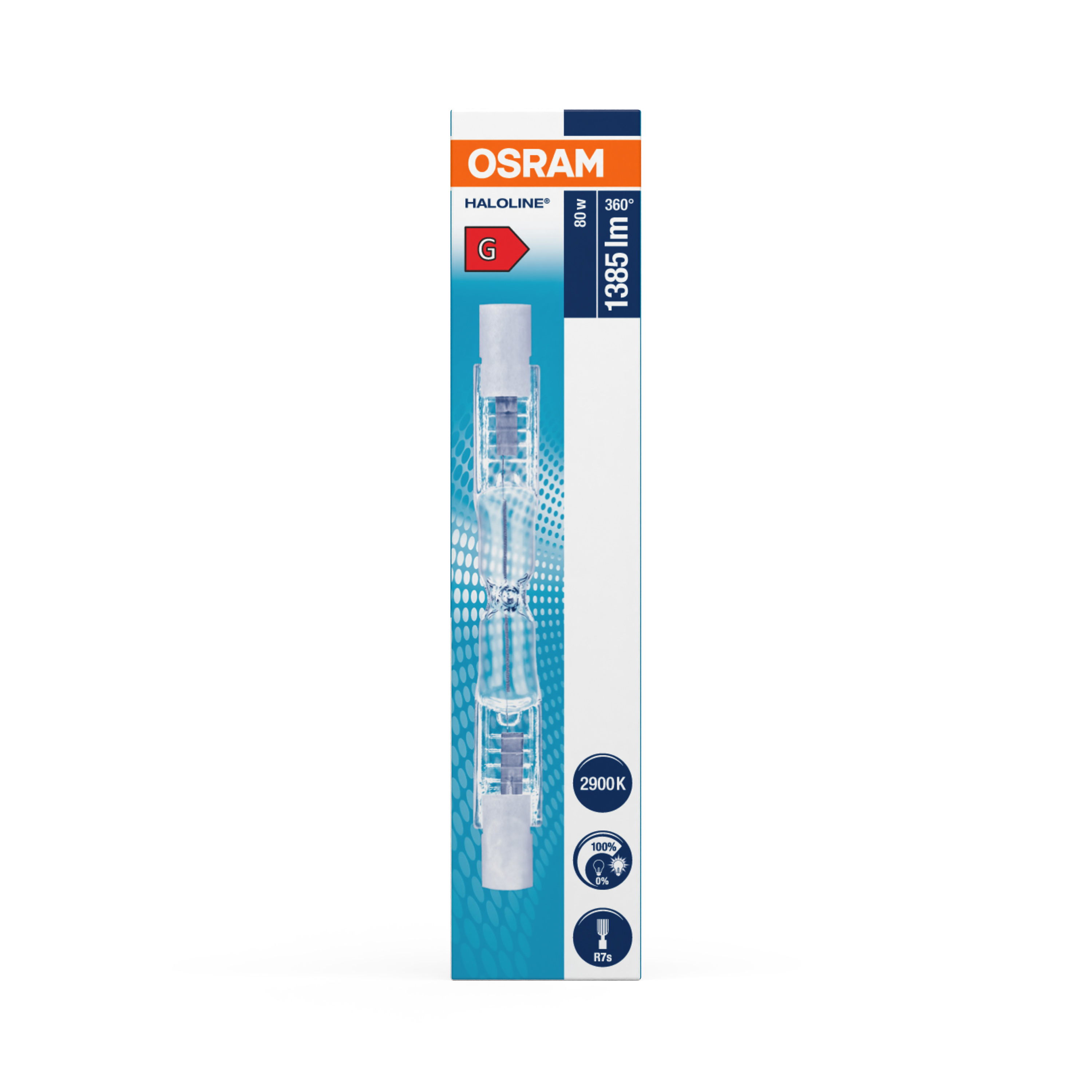

Packaging image, frontal
U3 HALOLINE 64690 80W 240V R7s
U3 HALOLINE 64690 80W 240V R7s
Packaging image, spacial
U3 HALOLINE 64690 80W 240V R7s
U3 HALOLINE 64690 80W 240V R7s
Energy label
EL-4008321325396-AC353 29
EL-4008321325396-AC353 29
Energy label
EL-4008321325396-AC518 13
EL-4008321325396-AC518 13
Spectral power distribution
349635_HAL_ohne_UVS
349635_HAL_ohne_UVS
| EAN | STK number | EFO number | ELDAS number | AU model number |
|---|---|---|---|---|
| 4008321325396 | 4739677 | 3720244 | 940306181 | OSR64690 |
