HALOLINE PRO

HALOLINE PRO 120 W 230 V R7S

GTIN: 4008321928092 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
  • Contains no mercury
Areas of application
  • General illumination
  • Entrance lighting
  • Pathway lighting
  • Outdoor applications only in suitable luminaires
  • Traffic areas
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Ideal for emphasizing and accentuating the structure of a room
Product features
  • Average life: 2,000 h
  • Dimmable
  • Color rendering index Ra: 100
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 120 W
Construction wattage 120.00 W
Nominal voltage 230 V
Nominal current 0.52 A
Photometrical data
Luminous flux 2245 lm
Luminous efficacy 18 lm/W
Light color (designation) Warm White
Color temperature 2900 K
Color rendering index Ra 100
Light color 1029
UV protection No
Light technical data
Starting time 0 s
Dimensions & Weight
Overall length 78.00 mm
Diameter 12.00 mm
Product weight 5.6 g
Lifespan
Lifespan L70/B50 at 25 °C 2000 h
Additional product data
Base (standard designation) R7s
Mercury-free Yes
Design / version Tube
Product remark Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required
Capabilities
Dimmable Yes
Burning position Any
Certificates & Standards
Energy efficiency class G
Energy consumption 120.00 kWh/1000h
Country-specific categorizations
ILCOS HDG-120-230-R7s-74,9
Order reference 64695 ECO
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Networked standby power for CLS not applicable
Claim of equivalent power No
Length 78.00 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0.444
Chromaticity coordinate y 0.406
Beam angle correspondence SPHERE_360
Displacement factor 1
EPREL ID 777539,1553999
Model number AC35330,AC51814
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321928092 Folding box
1		 20 mm x 21 mm x 97 mm 8.60 g 0.04 dm³
4008321327772 Shipping box
20		 103 mm x 111 mm x 90 mm 213.00 g 1.03 dm³
4052899401181 Shipping box
720
4099854147630 Shipping box
720		 347 mm x 323 mm x 385 mm 8127.00 g 43.15 dm³
Declarations of conformity
Traditional lamp
PDF (276.75 KB)
Product image: white background, diagonal
324591_HALOLINE FOR MAINS VOLTAGE
TIF (4.41 MB)
Product line drawing with letters
620_HALOLINE
SVG (7.18 KB)
Product line drawing, front, no dimensions
325064_HALOLINE FOR POWER SUPPLY VOLTAGE
SVG (4.5 KB)
Combo Shot = Product Beauty Shot + Packaging Image
U3 HALOLINE 64695 118W 230V R7s
JPG (1.04 MB)
Packaging image, frontal
U3 HALOLINE 64695 118W 230V R7s
JPG (830.43 KB)

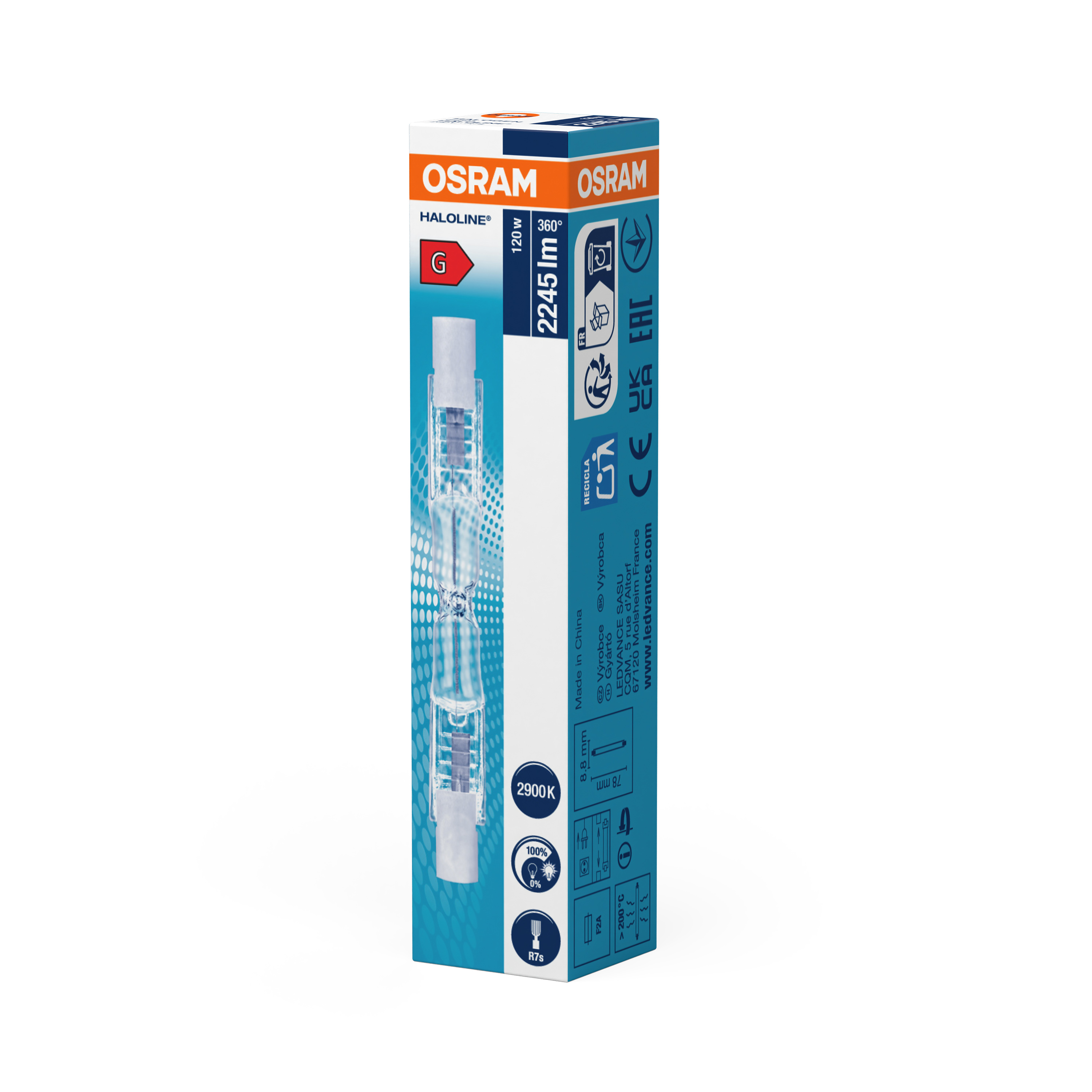

Packaging image, spacial
U3 HALOLINE 64695 118W 230V R7s
JPG (968.94 KB)
Energy label
EL-4008321928092-AC353 30
PDF (21.43 KB)
Energy label
EL-4008321928092-AC518 14
PDF (21.47 KB)
Spectral power distribution
349635_HAL_ohne_UVS
PNG (104.62 KB)
EAN SEG number STK number ELDAS number
4008321928092 8327680 4739405 940306172
