SURFACE COMPACT PRODUCT HIGHLIGHT

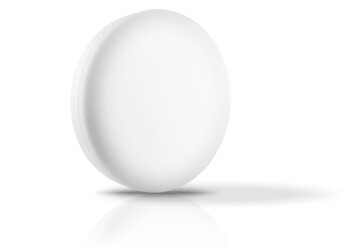

Surface Compact

Product benefits


  • Compact surface luminaire for demanding applications
  • Highly resistant to vandalism thanks to TORX screws and IK10
  • Slim polycarbonate luminaire design
  • Simple installation thanks to enclosed IP65 luminaire and rear wiring with quick-connect terminal
  • Extremely homogeneous light distribution with a beam angle of 120°
  • Glow wire test according to IEC 695-2-1: 850°C
Product catalog: Surface Compact

NO SCREW LOOSE!

The LEDVANCE Surface Compact has an impact resistance of IK10, which means it can withstand a force of 20 joules, corresponding to a weight of 5 kg falling from a height of 40 cm. Another benefit: The use of TORX screws provides greater protection for the Surface Compact IK10 against vandalism as it cannot be removed with conventional screwdrivers.

TOP DEFENSE!

Thanks to its robust construction and IK10 protection, it offers particularly high impact strength and is therefore ideally protected against vandalism.

LED WALL AND CEILING LUMINAIRES. APPEALING. DISTINCT. FUNCTIONAL.

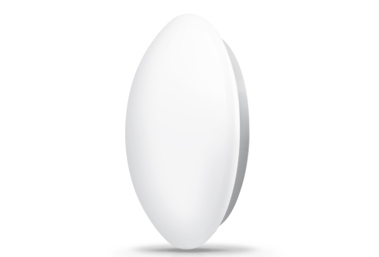

LEDVANCE Surface

Benefits for your project

The LED Surface luminaires are a suitable replacement for traditional fluorescent surface luminaires (2x18W/2x26W) with energy savings up to 55% compared to the conventional lighting technology. They are splashwater-proof (IP44) and have a shock resistance of IK03.

The LED wall and ceiling luminaires are characterized by a very homogenous light distribution and an aluminum housing and a high-quality PMMA diffuser. The LED Surface is available in a version with motion and daylight microwave sensor and a LEDs cover protection for safe installation. They come with a three-year guarantee.

Product catalog: All LED Surface luminaires at a glance

QUICK FACTS

Benefit highlights


  • Replacement for traditional fluorescent surface luminaires (2 × 18 W, 2 × 26 W)
  • LED protected for safe installation
  • Very homogenous light distribution
  • Versions with sensor or IK10 available

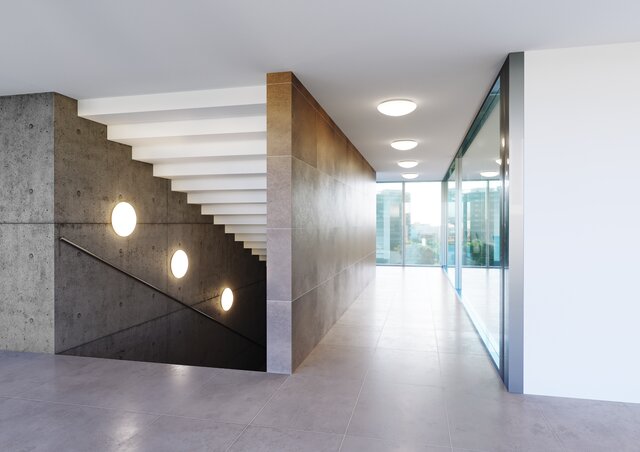

Recommended applications


  • Corridors, hallways and staircases
  • Foyers and entrances
  • Bathrooms

SAVINGS IN ENERGY AND COSTS OVER THE ENTIRE LIFETIME*

Comparison Energy consumption Costs
Traditional equivalent
e. g. 2x26W CFL, DULUX D 26W/840 		1,560 kWh 224.87 €
LEDVANCE Surface Circular
e. g. Surface-C LED 400 24W/3000K IP44 		720 kWh 112.96 €
Savings –53.85 % –111.91 €
* Savings calculated based on lifetime of LEDVANCE LED luminaires including purchase price, maintenance and installation costs as well as energy costs of 0.12 EUR/kWh. Calculation of CO2 savings based on European electricity mix and 400 g CO2/kWh. Payback period assumes 7 hours of operation per day and 260 days per year.
