MORE EFFICIENT, VERSATILE AND ATTRACTIVE EVEN MORE FUNCTIONS and BENEFITS IN HUMAN CENTRIC LIGHTING

The right light at the right time. Human Centric Lighting (HCL) has all the visual, biological and emotional characteristics of natural daylight. LEDVANCE has now launched an updated version of its BIOLUX HCL system. This system offers even greater potential for energy savings and more potential applications – not least thanks to an improved and expanded BIOLUX HCL PANEL range and optional cloud services.

Find out about combining BIOLUX HCL with VIVARES IoT systems

MORE LIGHT, MORE EFFICIENCY NEW BIOLUX HCL PANELS

Optimized in performance and efficiency and with a new rectangular version, the popular BIOLUX HCL PANELS are more powerful and versatile than ever before:
  • New addition – the 1200 x 300 mm BIOLUX HCL PL 1200 S
  • Thanks to 10% more light output (lm) for all versions fewer PANELS are required for a certain brightness
  • 14% increase in efficiency (lm/W) for BIOLUX HCL PL 600 S and PL 625 S
  • Light colors from 2,700 K to 6,500 K
  • High quality of light at Ra > 90
  • Compatible with BIOLUX HCL control unit, VIVARES HCL and Zigbee 3.0 systems
  • Pre-mounted connection box for tool-free electrical connection with the option of through-wiring

CLOUD SERVICES: KEEP AN EYE ON EVERYTHING FROM ANYWHERE

You can now combine BIOLUX HCL luminaires with the comfortable VIVARES IoT light management system and optional VIVARES cloud services, creating a comprehensive HCL solution for open-plan offices and entire floors:

  • Clear dashboard as a central tool for planners, installers and users
  • Monitor energy consumption from any location at any time to achieve further optimisation
  • Reduce maintenance thanks to maintenance assistant
  • Malfunctions of each luminaire visible on the dashboard and combinable with automatic email notifications
  • Future-proof thanks to option of adding further functions



Find out about combining BIOLUX HCL with VIVARES IoT systems Learn more about the VIVARES cloud services now

FURTHER INNOVATIONS OF BIOLUX HCL SYSTEM AT A GLANCE

  • Extended usage with the new Timetable and sensor configuration mode
  • Sensor controlled light for energy and cost savings of up to 30%
  • Up to 48 BIOLUX HCL products can be connected now in one BIOLUX HCL system. Applications in rooms of up to 220 sqm are therefore possible.
  • The HCL Demo Mode is showing the Natural HCL curve in a 2 min. time sequence. This especially is helping to check that the installation works well.
  • Improved functionalities with the new BIOLUX HCL app, with extensive support during the installation process
  • A separate light switch is no longer needed thanks to the now implemented ON/OFF function in the control unit – one light control device decreases the installation effort
  • All new features and benefits are available with a simple automatic update of the installed HCL app or by download from the app stores.
  • After the BIOLUX HCL app is automatically updated, the firmware of the HCL control unit is also updated.

EVEN MORE APPLICATIONS

The BIOLUX HCL system is also of great interest to hospitals, nursing homes, schools and kindergartens because the new Timetable mode automatically switches to different light profiles based on a customizable schedule. This makes lighting management appreciably easier in places where daily routines are always the same.

THE LEDVANCE BIOLUX SYSTEM NATURAL LIGHT WHATEVER THE TASK

The BIOLUX HCL system from LEDVANCE automatically adapts artificial light to changes in daylight thanks to an intelligent, patent pending algorithm – allowing users to choose the right dynamics for them at any time.

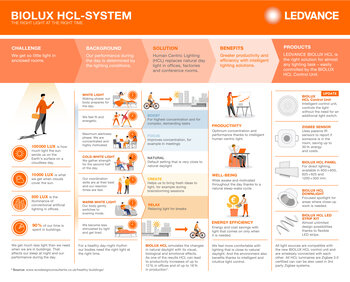

INTELLIGENT AND POWERFUL WITH HCL

Download chart

The BIOLUX system from LEDVANCE is ideal for single room solutions with up to 48 BIOLUX HCL products or luminaires1 such as meeting rooms or offices with little or no daylight. When integrated with VIVARES the BIOLUX HCL system is even suitable for open plan offices or entire floor solutions.

1 Higher number of luminaires on request

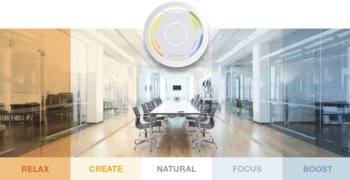

LEDVANCE BIOLUX SYSTEM: THE FIVE LIGHT PROFILES

These five HCL light profiles are available:

  • BOOST Highest concentration for highly detailed and particularly demanding tasks
  • FOCUS Enhanced concentration, e.g. in meetings
  • NATURAL Default setting
  • CREATIVE Creativity in workshops, e.g. in brainstorming sessions
  • RELAX e.g. during breaks in meetings
BIOLUX System

THROUGH THE DAY WITH HCL

Morning to midday/ after lunch: bright, energizing cold white light with a high blue content (e.g. 6,500 K at an illuminance of 450 lux at the eye).

Toward the evening: direct warm white light with low blue content (e.g. 2,700 to 3,000 K) which helps the body relax and prepare for the night.

BIOLUX System

BIOLUX – THE SMART ENTRY-LEVEL HCL SYSTEM

Step 1

Step 1

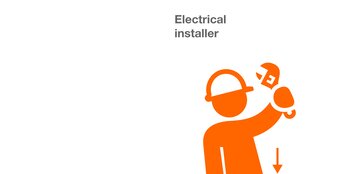

INSTALLATION – fast and easy thanks to wireless technology

  • No control cables required for luminaires
  • The control unit only needs to be connected to the power supply

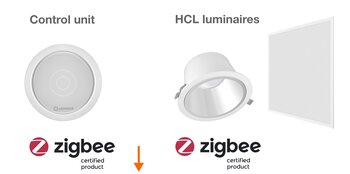

  • The HCL luminaires communicate wirelessly via ZigBee
Step 2

Step 2

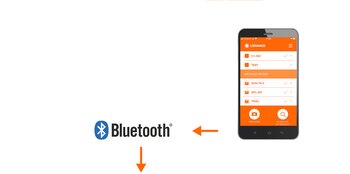

SETUP – easy via a smartphone app

  • Luminaires are registered and added to the system using a smartphone to scan a QR code
  • No programming required
  • Location and time automatically detected via the app
Step 3

Step 3

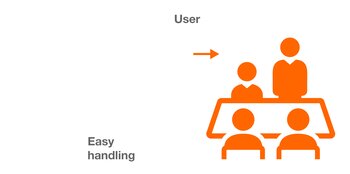

OPERATION – intuitive via the control unit

  • Preprogrammed lighting profiles can be selected via a rotary switch on the control unit
  • Lighting profiles adjusted automatically to your location and local time
  • No programming
Step 4

Step 4

FUNCTION – independent of any light management systems (LMS) or cloud

  • Autonomous system
  • No complicated integration in an existing LMS
  • No data storage, internet connection or cloud functions – privacy is protected

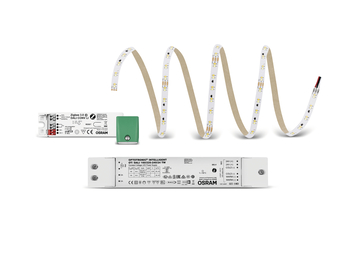

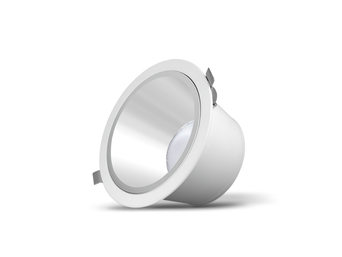

The Biolux hcl Range

the zigbee range

The dali range

BIOLUX System

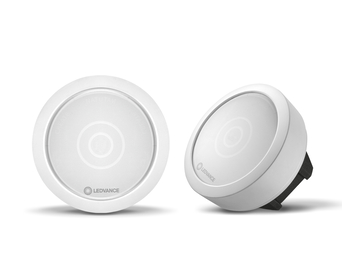

The BIOLUX HCL Control Unit is already a multiple industry award winner of the following:

  • German Innovation Award 2020 in the category “Lighting Solutions” acknowledging the level of innovation, user benefits and efficiency of our system.
  • Red Dot Award: Product Design 2020 recognizing the excellent product design quality.
  • VDE Quality Certificate awarded with the best possible 3 out of 3 stars. The LEDVANCE BIOLUX HCL System is the first ever to receive the new independent authority VDE HCL certificate.
