LED CLASSIC A ENERGY EFFICIENCY A DIM

LED Classic A 75 Filament DIM Energy efficiency class A 5W 827 Frosted E27

GTIN: 4099854477973 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to a halogen lamp
  • Low energy consumption
  • Instant 100 % light, no warm-up time
  • Low flickering
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Beam angle: up to 300°
  • Very long lifetime of up to 50,000 h
  • Very high number of switching cycles 500,000
  • Luminous efficacy: up to 210 lm/W
  • Dimmable
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 75 W
Nominal current 26 mA
Type of current AC
Inrush current 0.134 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 316
Max. lamp number on MCB B16 A 505
Total harmonic distortion 29.2 %
Power factor λ > 0.50
Photometrical data
Luminous flux 1055 lm
Luminous efficacy 211 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 31.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 70 °C
Lifespan
Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 500000
Lumen maintenance at end of service lifetime 0.96
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable Yes 1)
1) Check dimmer compatibility at ledvance.com/compatibility
Certificates & Standards
Energy efficiency class A 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LSSPCLA75D 5W/8
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.4630
Chromaticity coordinate y 0.4200
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor >0.5
LED light source replaces a fluorescent light source No
EPREL ID 2185159
Model number AC69993
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854477973 Folding box
1		 60 mm x 60 mm x 145 mm 46.00 g 0.52 dm³
4099854477980 Shipping box
6		 202 mm x 134 mm x 120 mm 365.00 g 3.25 dm³
Declarations of conformity
LED lamps
PDF (359.29 KB)

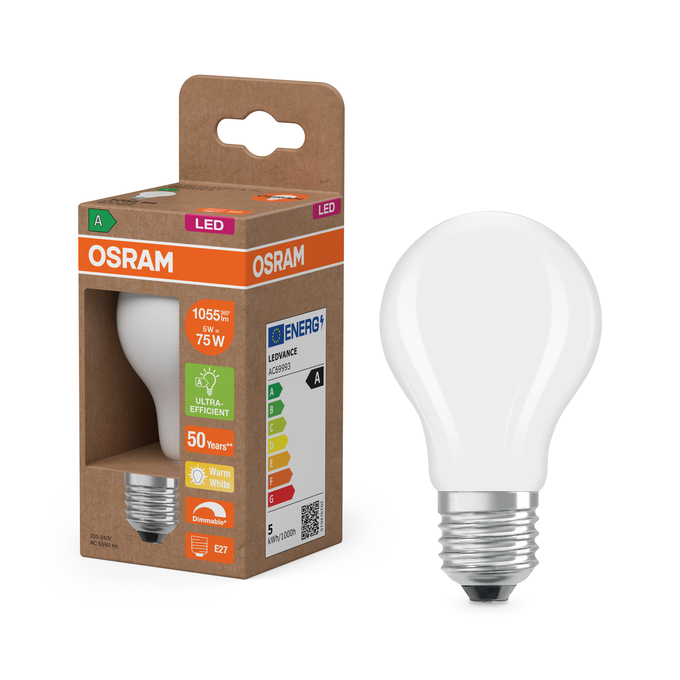

Product image: white background, diagonal with OSRAM logo
