PRODUCT INFORMATION

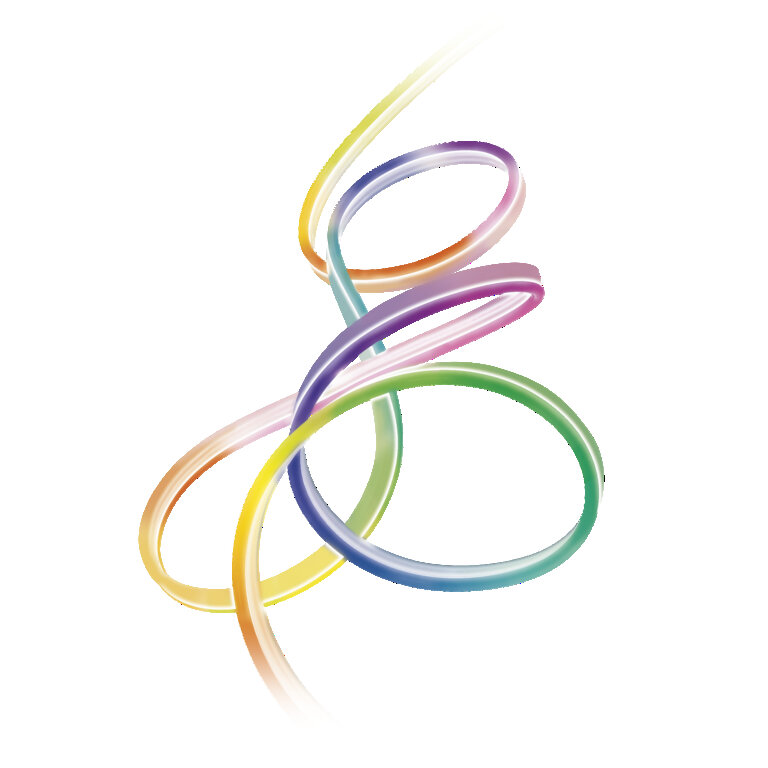

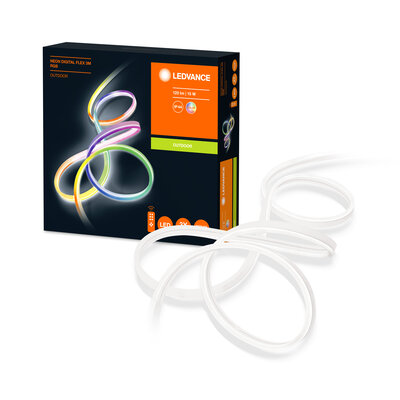

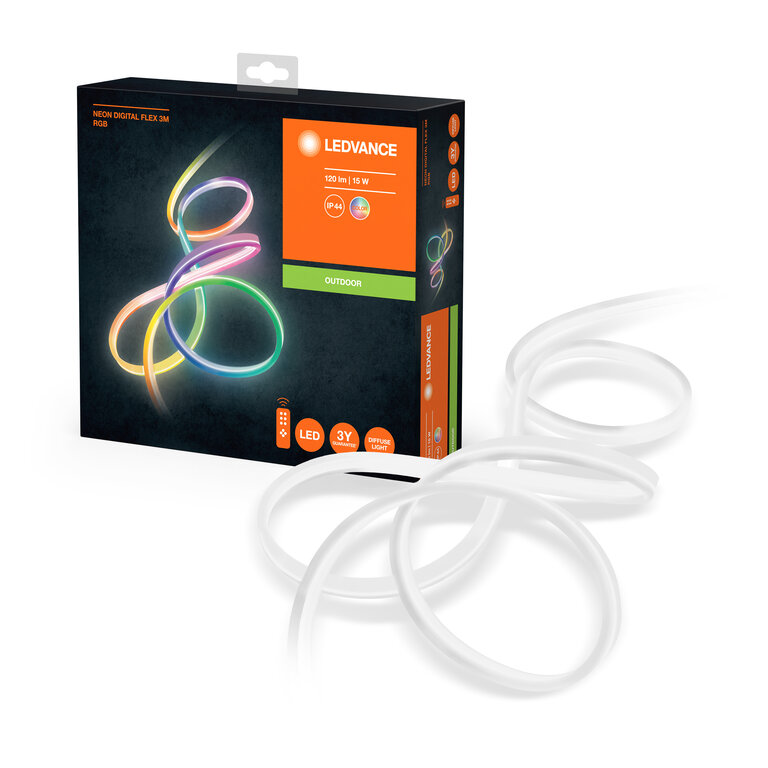

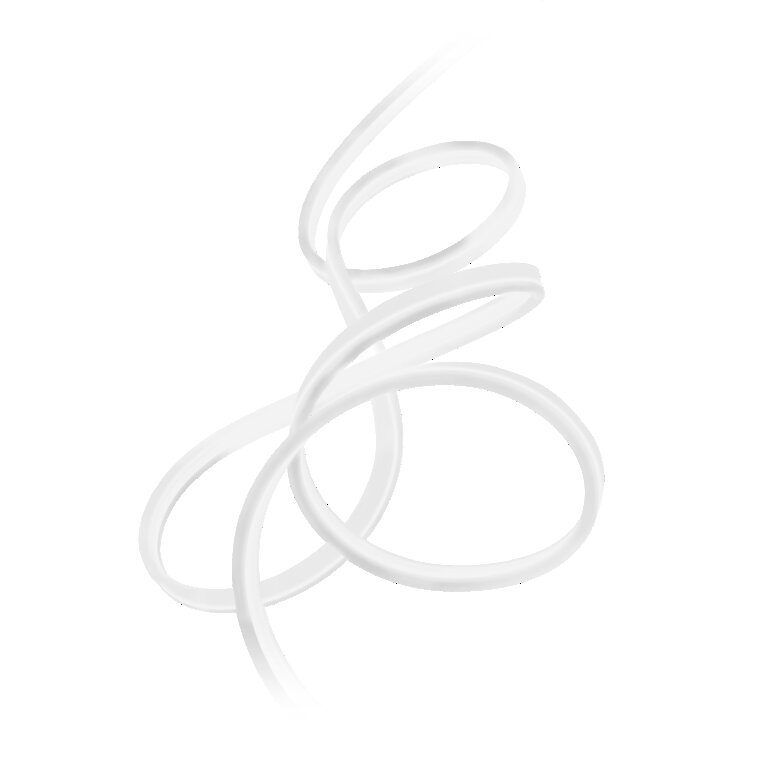

Neon Digital Flex IP44 3M RGB + RC

PRODUCT DETAILS

Electrical data

Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 120.000 mA
Power factor λ > 0.50
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 120 lm
Luminous efficacy 8 lm/W
Light color (designation) RGB
Color rendering index Ra > 80
Beam angle 160 °

Dimensions & Weight

Length 3000.00 mm
Height 13.50 mm
Width 6.70 mm
Product weight 449.00 g

Materials & Colors

Body material Silicone
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug, EU
Type of protection IP44
Dimmable Yes
Mounting type Surface
Mounting location All surfaces
Application environment Outdoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

BATTERY

Type of Battery Li metal button cell battery
Battery size [GMS] CR2025
Number of included batteries 1
Nominal voltage of battery 3 V
Nominal capacity of battery 150 mAh

Certificates & Standards

Standards CE, EAC

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
Areas of application
  • Gardens, balconies and other outdoor areas
  • Indirect and direct lighting
  • Living areas
Product features
  • Switch on and off, color changing and dimming via remote control
  • Type of protection: IP44
  • Dimmable
Equipment / Accessories
  • Complete mounting and connecting accessories included

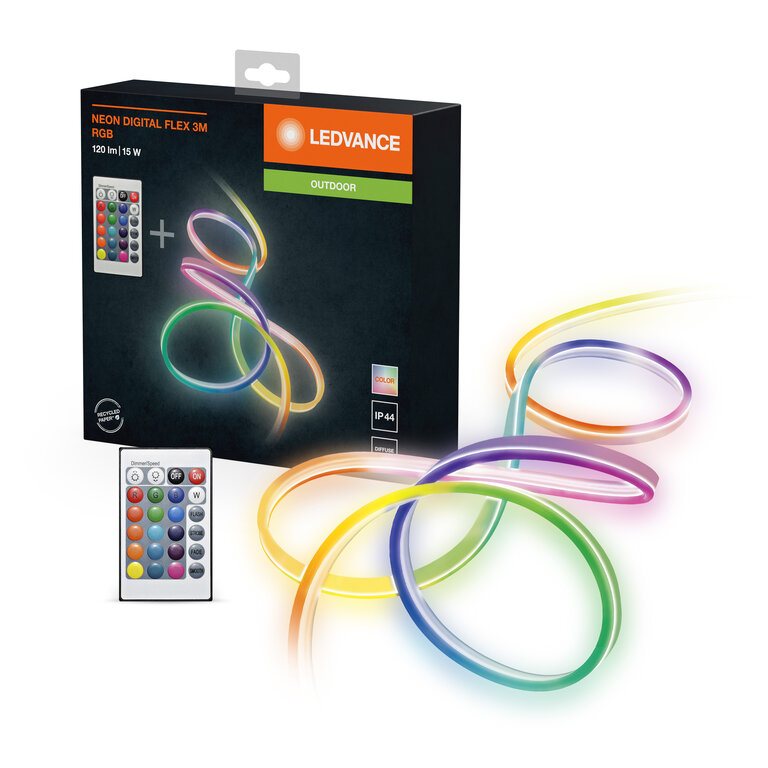

  • Remote control and battery included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

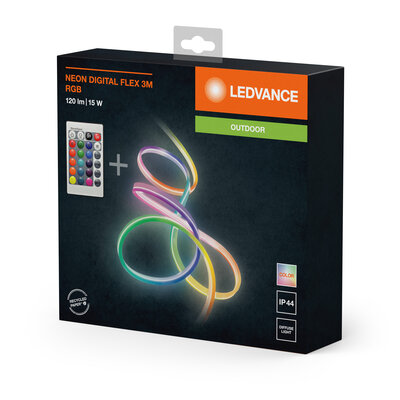

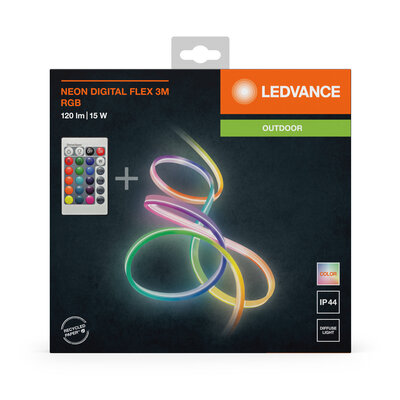

4058075504745 Folding box
1
62 mm x 254 mm x 230 mm 666.00 g 3.62 dm³
4058075504752 Shipping box
4
480 mm x 270 mm x 154 mm 3049.00 g 19.96 dm³
