PRODUCT INFORMATION



HALOPIN SST 50 W 230 V G9

PRODUCT DETAILS

Electrical data

Nominal wattage 50 W
Construction wattage 50.00 W
Nominal voltage 230 V
Claimed equiv. conventional lamp power 60 W

Photometrical data

Luminous flux 740 lm
Luminous efficacy 14 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028

Light technical data

Starting time 0.0 s

Dimensions & Weight

Overall length 43.00 mm
Light center length (LCL) 24,0 mm
Diameter 14.00 mm
Product weight 3.19 g

Lifespan

Number of switching cycles 50000

Additional product data

Base (standard designation) G9
Mercury-free Yes
Design / version Tube

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class G
Energy consumption 50.00 kWh/1000h

Country-specific categorizations

ILCOS HSGST/C/UB-48-230-G9-24
Order reference 66748 ECO SST

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G9
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 43.00 mm
Height 14.00 mm
Width 14.00 mm
Chromaticity coordinate x 0.452
Chromaticity coordinate y 0.409
Beam angle correspondence SPHERE_360
EPREL ID 714436
Model number AC35306

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant accent lighting
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Robust filament design thanks to innovative, unique bulb pinch technology
  • Approved for use in open luminaires (to IEC 60598-1)
  • Simple handling thanks to G9 plug-in base/holder system
  • No transformer required
  • UV filter
  • Complies with IEC 60432-3 thanks to integrated fuse function
Areas of application
  • Workplace lighting
  • Lighting for reading
Product features
  • Average life: 2,000 h
  • Dimmable
  • Color rendering index Ra: 100
  • Base: G9
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899195394 Blister
2		 119 mm x 139 mm x 17 mm 12.00 g 0.28 dm³
4052899195400 Shipping box
20		 164 mm x 148 mm x 130 mm 218.00 g 3.16 dm³

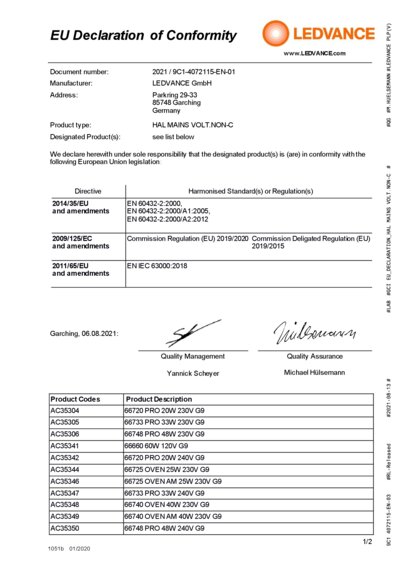

Declarations of conformity
HAL G9 PDF (151.08 KB)
Product image: white background, diagonal
324594_HALOPIN COMPACT CLEAR TIF (5.44 MB)
Product line drawing with letters
36218_HALOPIN CLEAR WI TH BASE G9 SVG (9.92 KB)
Product line drawing, front, no dimensions
40665_HALOPIN SVG (5.17 KB)

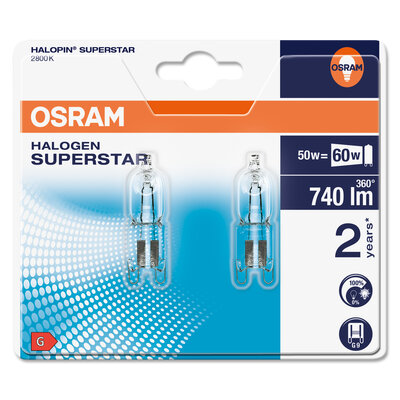

Packaging image, frontal
HALOPIN SST 66748 50W 230V G9 MiG JPG (2.73 MB)

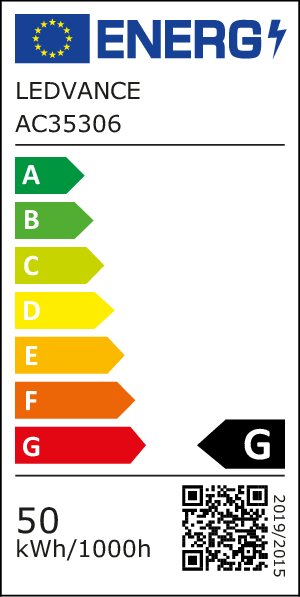

Energy label
EL-4052899195394-AC353 06 PDF (21.45 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

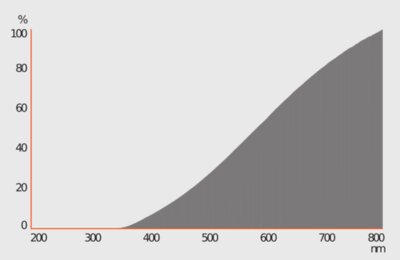

Spectral power distribution
349631_HAL_HV_UVS PNG (103.33 KB)
EAN AU model number
4052899195394 OSR66748SST2
