ENDURA STYLE WALL ROUND
ENDURA STYLE Wall RD 8 W DG
GTIN: 4058075205925
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Outdoor use (IP44)
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Bright and functional outdoor LED luminaires
- Available with and without motion sensor
- Die-cast aluminum housing
Equipment / Accessories
- Complete mounting and connecting accessories included
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 80.000 mA |
| Power factor λ | > 0.5 |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 530 lm |
| Luminous efficacy | 66 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 105 ° |
Dimensions & Weight
| Diameter | 90,0 mm |
| Length | 132.00 mm |
| Height | 245.00 mm |
| Width | 140.00 mm |
| Product weight | 640.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, EAC, REACH, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075205925 | Folding box 1 |
134 mm x 204 mm x 296 mm | 710.00 g | 8.09 dm³ |
| 4058075205932 | Shipping box 4 |
425 mm x 285 mm x 315 mm | 3182.00 g | 38.15 dm³ |
User instruction / safety instructions
ENDURA® STYLE WALL ROUND
ENDURA® STYLE WALL ROUND
Legal information
Legal Insert B - Outdoor Not dimmable
Legal Insert B - Outdoor Not dimmable

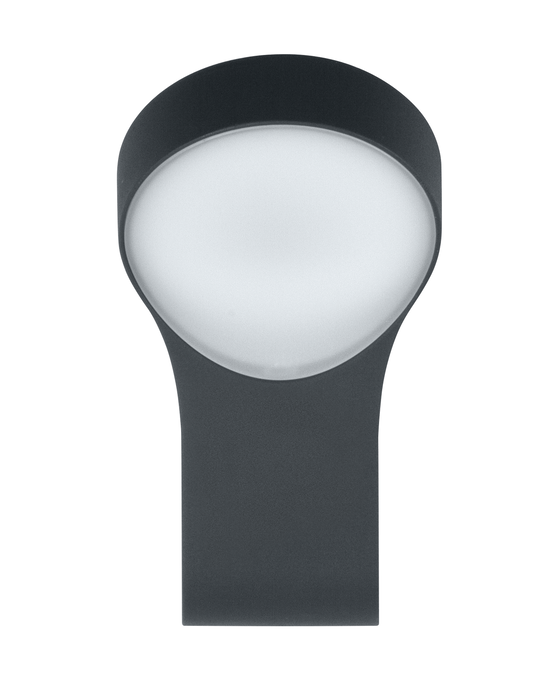

Product image: white background, upright
ENDURA STYLE WALL ROUND 8W DG
ENDURA STYLE WALL ROUND 8W DG
Product image: white background, upright, alternative image
ENDURA STYLE WALL ROUND 8W DG
ENDURA STYLE WALL ROUND 8W DG

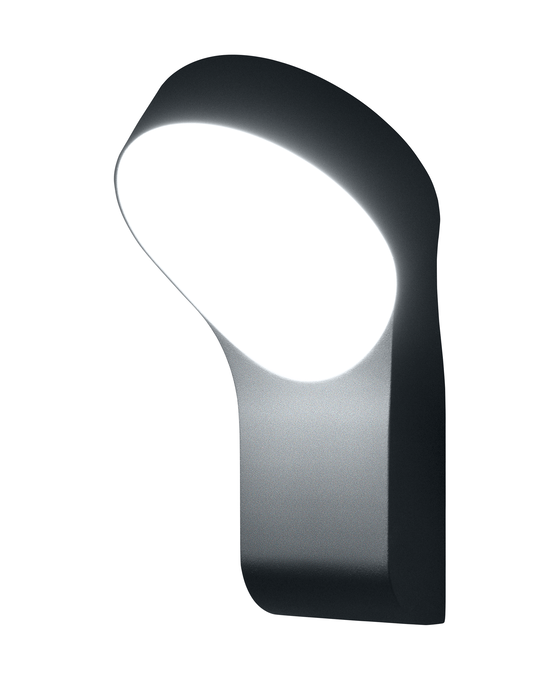

Product image: white background, upright, switched on
ENDURA STYLE WALL ROUND 8W DG
ENDURA STYLE WALL ROUND 8W DG
Product line drawing with letters
ENDURA STYLE WALL ROUND 8W DG
ENDURA STYLE WALL ROUND 8W DG
Product line drawing with numbers
ENDURA STYLE WALL ROUND 8W DG
ENDURA STYLE WALL ROUND 8W DG
Product line drawing, front, no dimensions
ENDURA STYLE WALL ROUND 8W DG
ENDURA STYLE WALL ROUND 8W DG
Packaging image, frontal
LUM FC ES WALL ROUND MIPRC LDV Front
LUM FC ES WALL ROUND MIPRC LDV Front
Packaging image, spacial
LUM FC ES WALL ROUND MIPRC LDV Side
LUM FC ES WALL ROUND MIPRC LDV Side

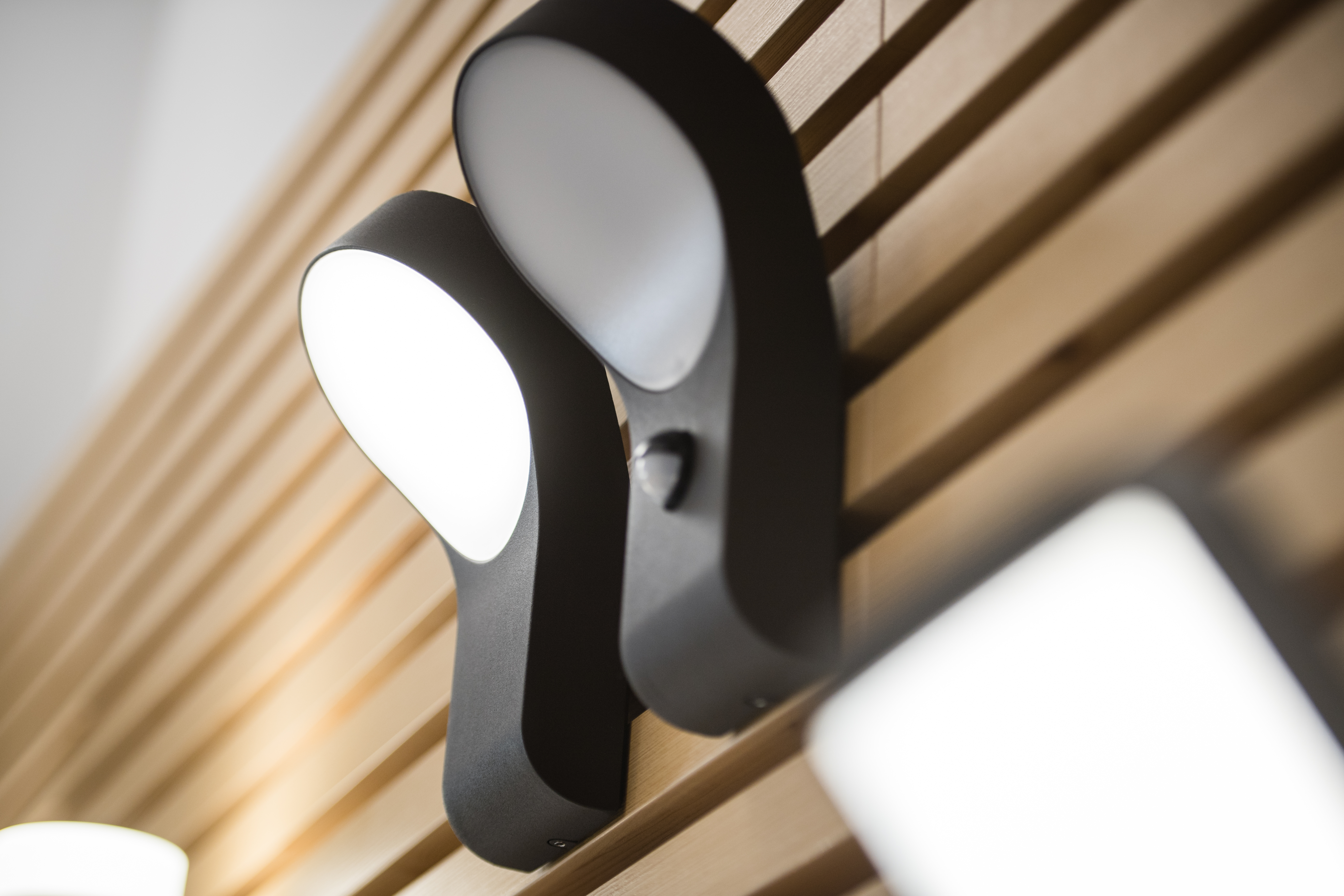

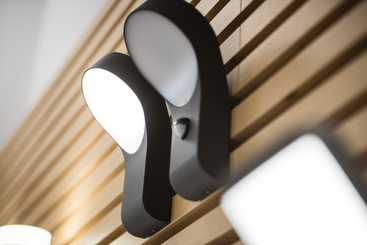

Application pictures
l+b 2018
l+b 2018

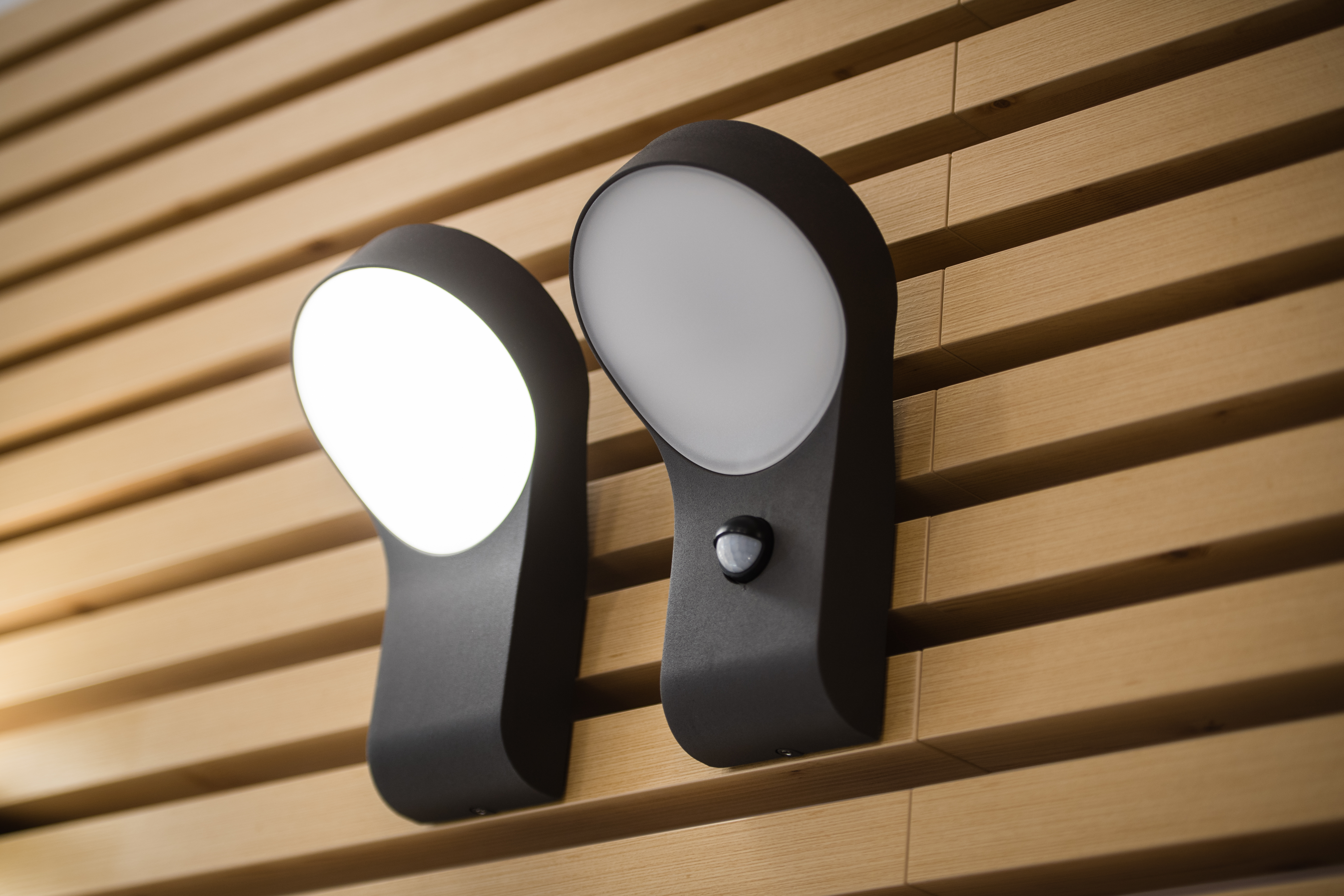

Application pictures
l+b 2018
l+b 2018
