REPEATER DALI-2 RAIL MOUNTING
REPEATER DALI-2 RAIL MOUNTING
GTIN: 4099854709111
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Over temperature protection for save operation
- Supports over voltage protection for long product lifetime
- Protects the device's output circuit in case of failures
- Integrated Push DIM function
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Big buildings with long cable distances to luminaires of more than 300m
- Integration of additional DALI devices into DALI systems
Product features
- Installation in electrical cabinets on DIN Rails
- Integrated DALI Power supply for up to 90 DALI drivers
- Enables simple extension of DALI wire length
- Behaves like a DALI ballast with a DALI address
- Plug&Play for DT6 and DT8 applications
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Nominal wattage | 5.30 W |
| Nominal voltage | 230 V |
| Type of current | AC |
| Input current | 40 mA |
| Nominal output current | 200 mA |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 98.00 mm |
| Width | 17.50 mm |
| Height | 56.00 mm |
| Cable cross-section, input side | 0.5…2.5 mm² 1) |
| Cable cross-section, output side | 0.5…2.5 mm² 2) |
| Wire preparation length, input side | 7.0 mm |
| Wire preparation length, output side | 7.0 mm |
| Product weight | 50.00 g |
1) Solid wire: 0.5…2.5 mm² / Flexible wire: 0.5…1.5 mm²
2) Solid wire: 0.5…2.5 mm²
2) Solid wire: 0.5…2.5 mm²
Colors & materials
| Product color | Grey |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -20…+55 °C |
| Maximum temperature at tc test point | 75 °C |
Lifespan
| Number of switching cycles | 5000 |
Additional product data
| Product remark | Available from December 2025 |
| Number of control outputs | 1 |
| Max. number of connected drivers | 90 |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Overheating protection | Reversible |
| Short-circuit protection | Reversible |
| Type of installation | Rail mounting |
| Reverse polarity protection | Yes |
| Over voltage protection | Yes |
Certificates & Standards
| Standards | CE, UKCA |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…+75 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854709111 | Folding box 1 |
66 mm x 105 mm x 27 mm | 65.00 g | 0.19 dm³ |
| 4099854709128 | Shipping box 100 |
347 mm x 287 mm x 224 mm | 6700.00 g | 22.31 dm³ |
User instruction / safety instructions
REPEATER DALI 2 RM
REPEATER DALI 2 RM
Addon technical information
VIVARES DALI LMS components
VIVARES DALI LMS components
Addon technical information
VIVARERS DALI LMS komponenten
VIVARERS DALI LMS komponenten
Addon technical information
DALI REPEATER application guide
DALI REPEATER application guide
Addon technical information
DALI REPEATER Anwendungsleitfaden
DALI REPEATER Anwendungsleitfaden
Legal information
Safety Insert G11201420
Safety Insert G11201420
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11185544
Legal Insert G11185544
Declarations of conformity
CE declaration REPEATER DALI-2
CE declaration REPEATER DALI-2

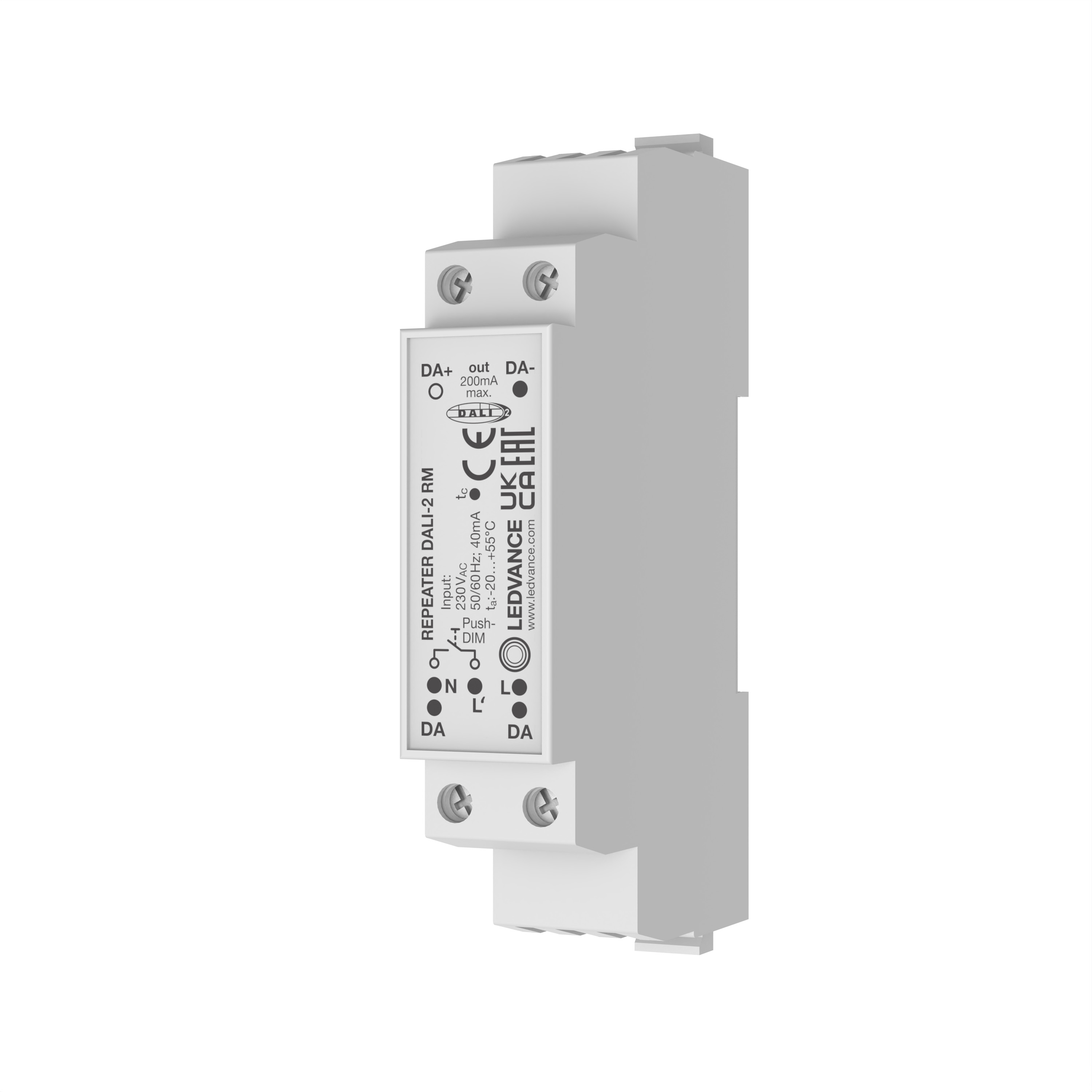

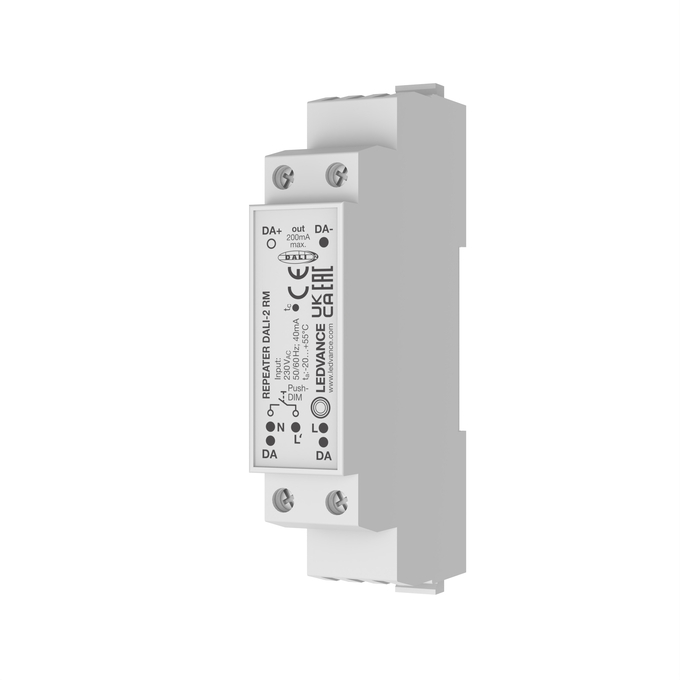

Product image: white background, diagonal
REPEATER DALI-2 RM DIAGONAL
REPEATER DALI-2 RM DIAGONAL

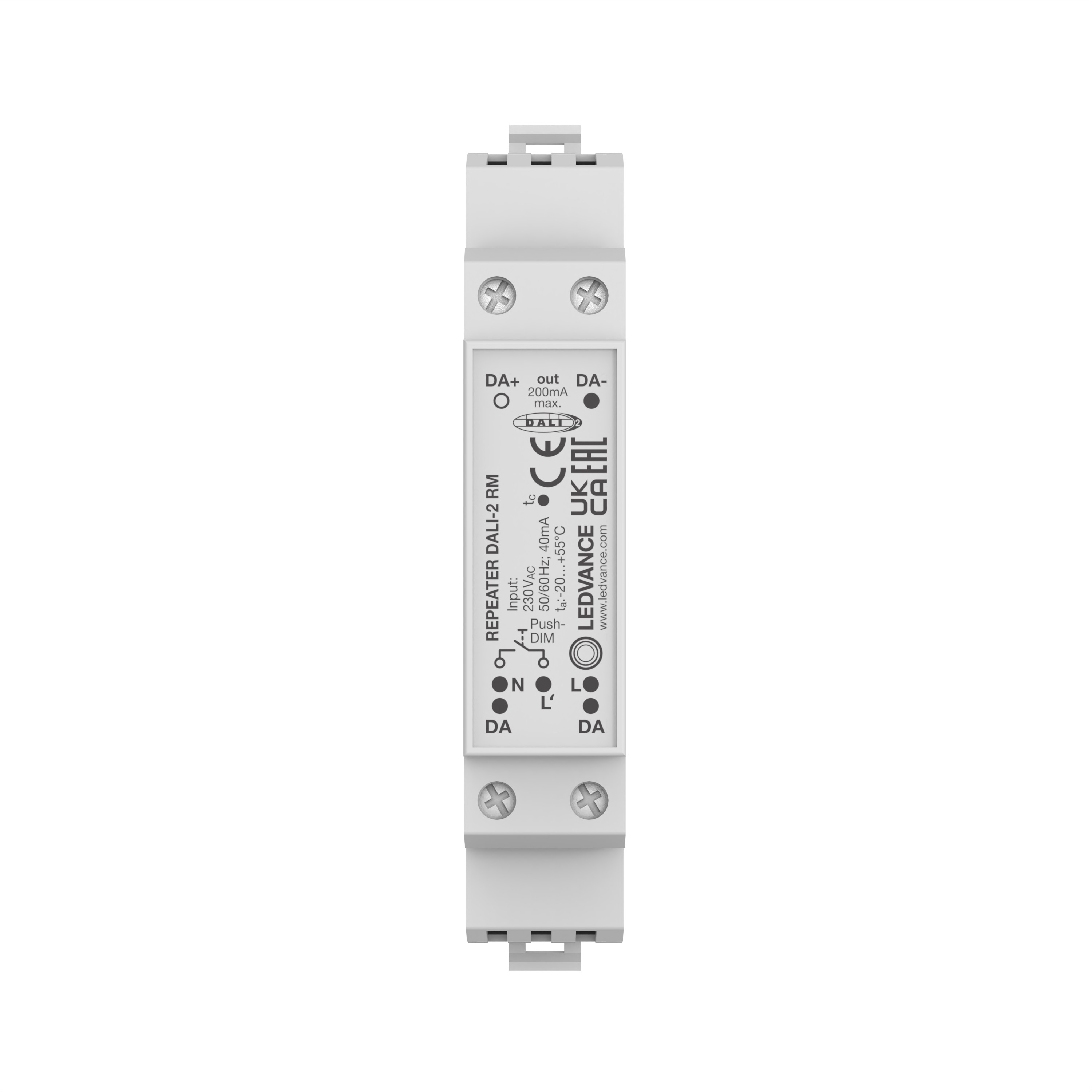

Product image: white background, upright
REPEATER DALI-2 RM FRONT
REPEATER DALI-2 RM FRONT
Product line drawing with letters
REPEATER DALI-2 RM
REPEATER DALI-2 RM
Product line drawing with numbers
REPEATER DALI-2 RM
REPEATER DALI-2 RM
Product line drawing - technical
REPEATER DALI-2 RM
REPEATER DALI-2 RM
Tender documents
REPEATER DALI2 RAIL MOUNTING RAIL MOUNTING-en
REPEATER DALI2 RAIL MOUNTING RAIL MOUNTING-en
| EAN | SEG number | STK number | UK Org |
|---|---|---|---|
| 4099854709111 | 1302235 | 2628037 | 438616299 |
