LED Retrofit CLASSIC B

ST CLAS B 40 4 W/2700 K B22d

GTIN: 4058075808225 Blister / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime up to 15,000 h
  • Lamp made of glass
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 32 mA
Type of current AC
Inrush current 7.25 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 156
Max. lamp number on MCB B16 A 250
Power factor λ > 0.40
Photometrical data
Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 91.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 20.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 58 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, In development, data preliminary
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
ILCOS DRBB/F-4-827-220-240-B22d-35
Order reference LEDSCLB404W/827
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Length 91.00 mm
Height 35.00 mm
Width 35.00 mm
EPREL ID 1403176
Model number AC24352
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075808225 Blister
1		 42 mm x 140 mm x 120 mm 35.00 g 0.71 dm³
4058075809659 Shipping box
6		 262 mm x 153 mm x 132 mm 318.00 g 5.29 dm³
PRODUCT DATASHEET
LED STAR CL B GL FR 40 non-dim 4W/827 B22d
PDF (213.82 KB)
Product image: white background, diagonal
CLB GL FR B22d
TIF (17.46 MB)
Product image: white background, upright
CLB GL FR B22d
TIF (17.47 MB)
Product line drawing with letters
CLB GL FR B22d
SVG (7.7 KB)

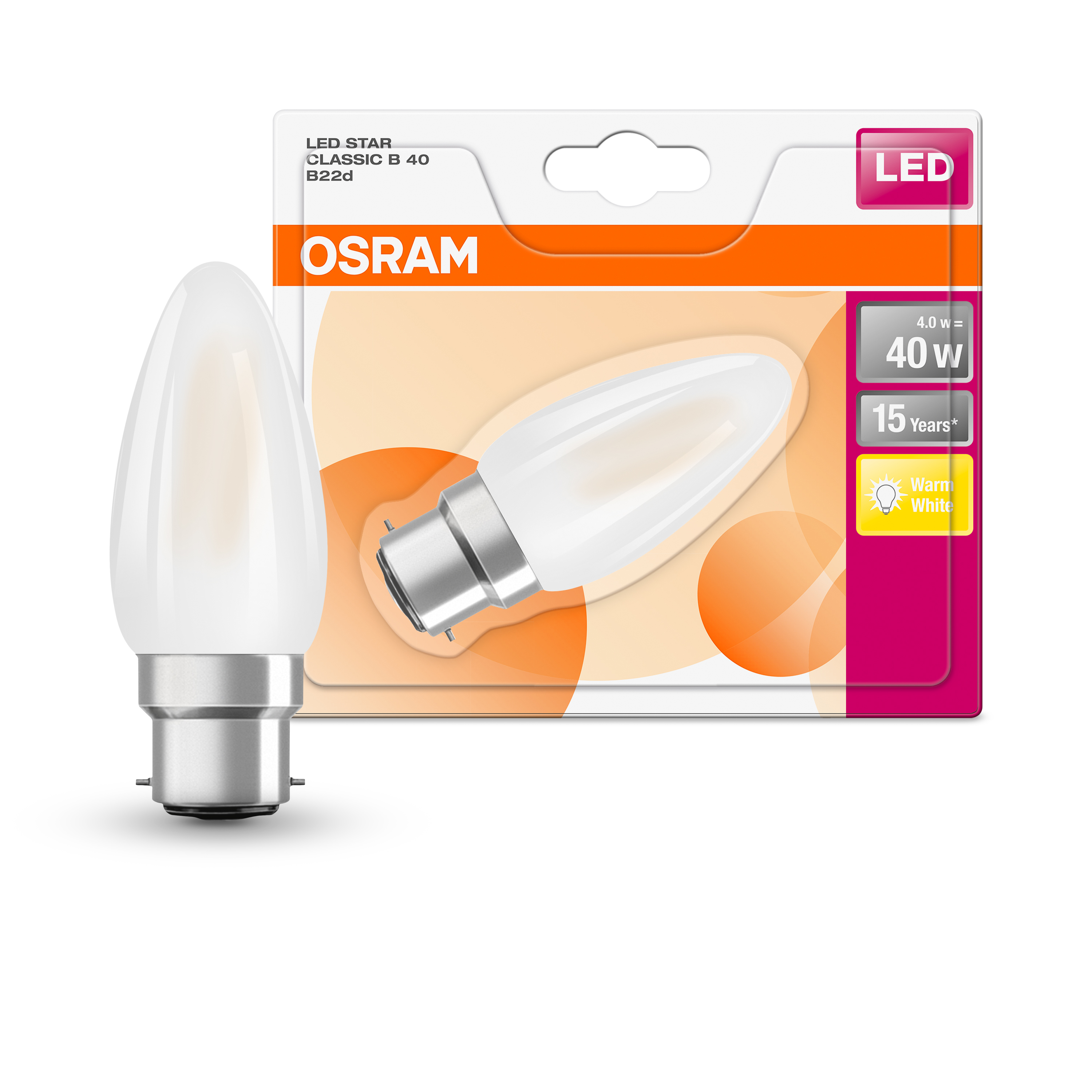

Combo Shot = Product Beauty Shot + Packaging Image
